Old 02-15-2010, 04:40 PM   #281
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

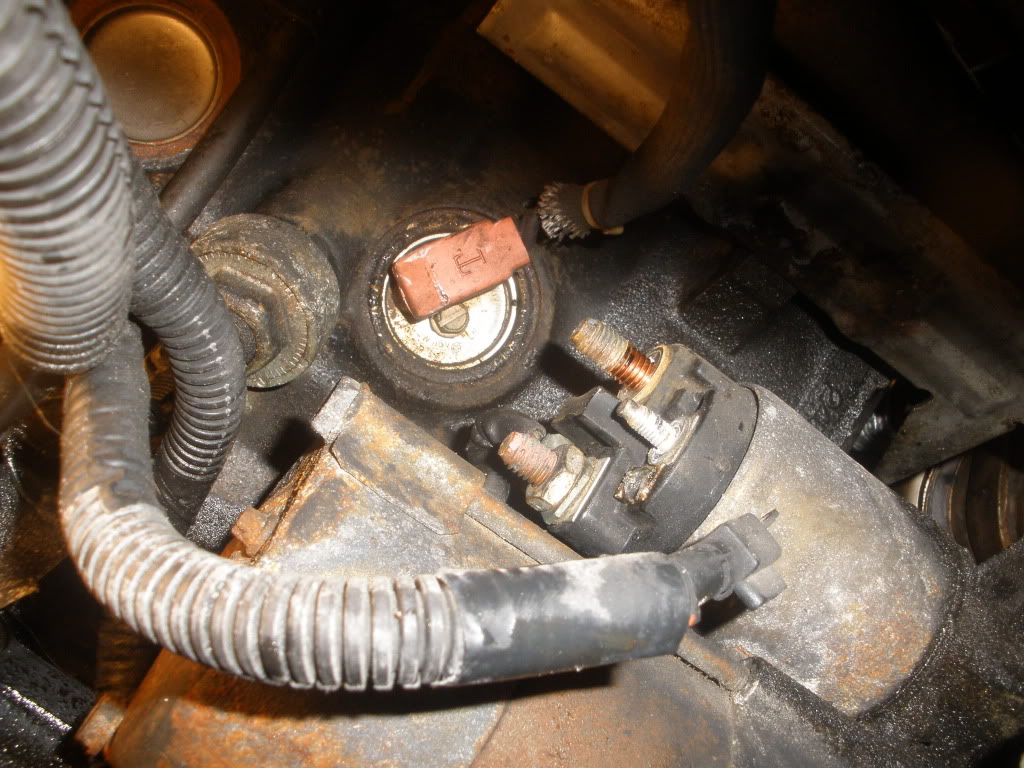

Pulled the starter, way easy with the sub frame out of the way. And was well worth the effort, opened it up real nice to undo the torque converter from the flex plate.
Name:  P2150105.jpg
Views: 1
Size:  183.2 KB

Removed the 3 bolts from the flex plate, real easy with the starter out of the way.
Name:  P2150107.jpg
Views: 2
Size:  171.1 KB

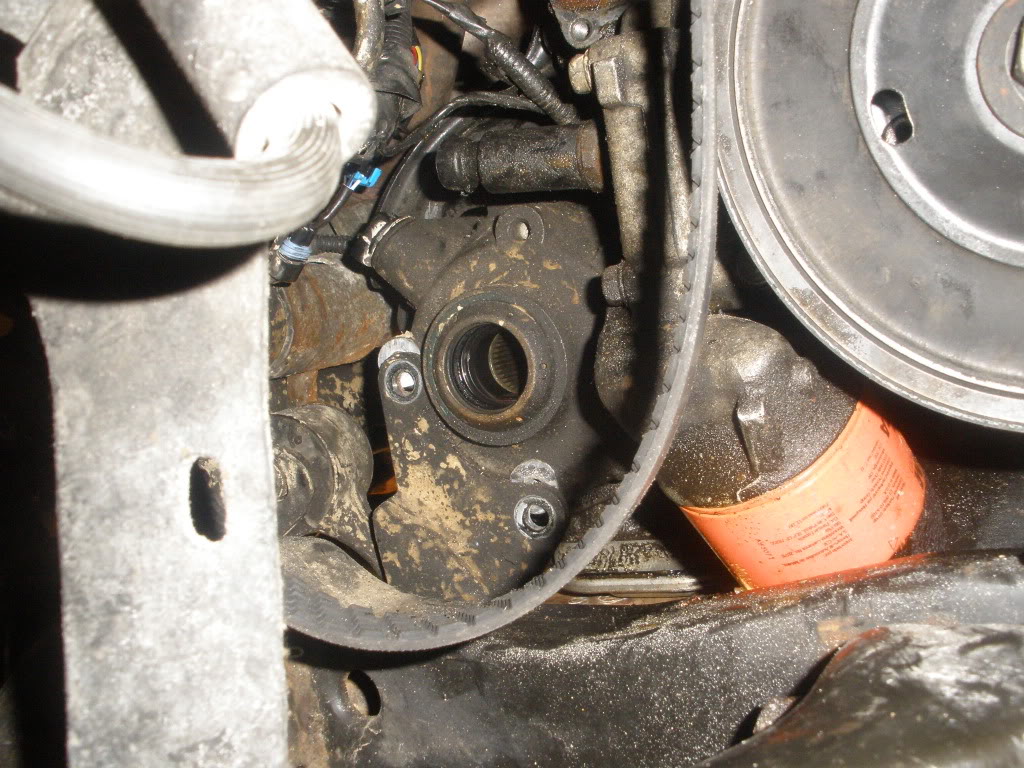

Removed the two bolts from the right rear trans mount, and the two bolts from the engine to trans mount. Had to remove the power steering pump to get at it.
Name:  P2150108.jpg
Views: 2
Size:  200.3 KB

Removed the bolts from this mount, left rear. To answer Bill, the bottom two were not to bad, had to use a pry bar to open it up just enough to get a socket on the bottom two, once broke loose a ratcheting wrench worked great. However, that top bolt was another story and was the recipient of many harsh words. I finally broke it loose and removed it. I left one in place and will be the last bolt removed.
Name:  P2150109.jpg
Views: 2
Size:  187.6 KB

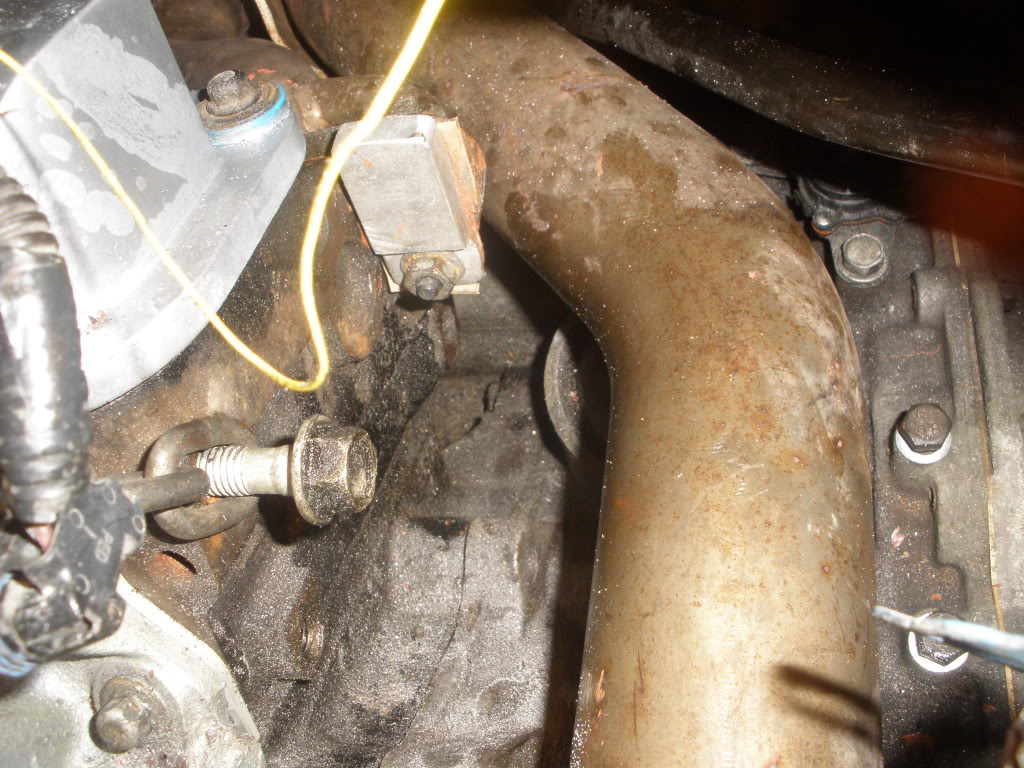

However, there is always a evil bolt. And here it is. The only bolt I have not removed yet. Look close, it'* under the EGR block off, you can just catch the edge of it.
Name:  P2150111.jpg
Views: 1
Size:  203.5 KB

I figure there'* a trick to it, so I'm waiting for Bill. That'* better then fighting it.
Danthurs is offline   Reply With Quote
Old 02-15-2010, 06:14 PM   #282
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

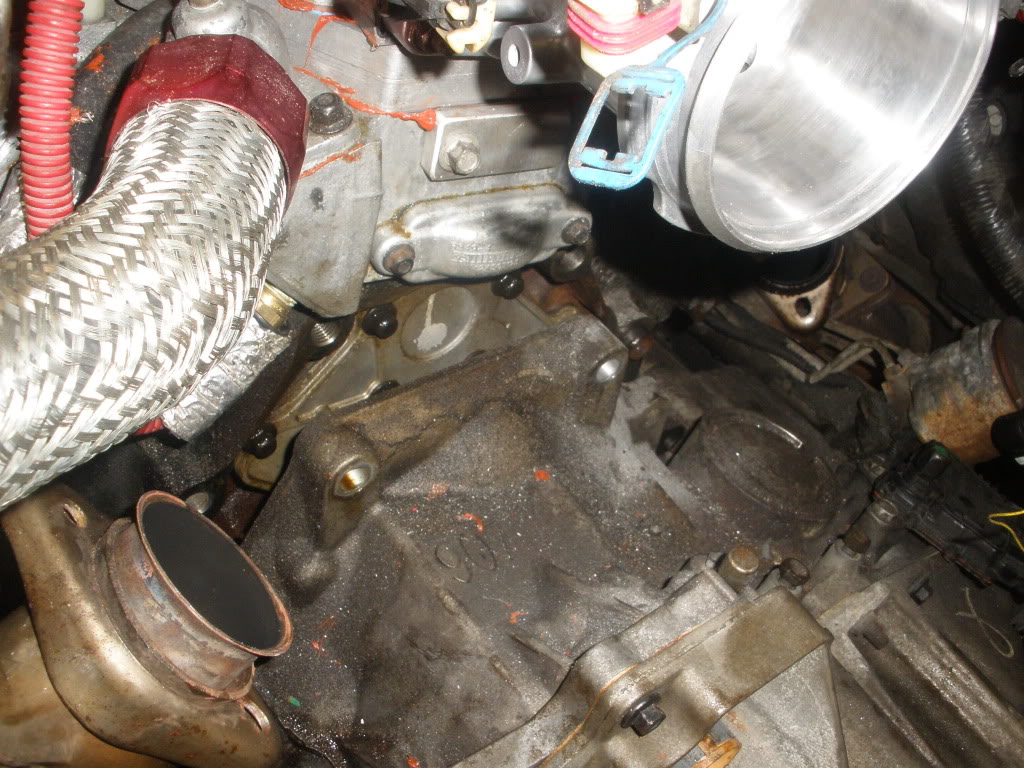

Well, my car is now missing one transmission. I didn't want to remove the cross over pipe, but it was the only way to get that last bolt.
Name:  P2150113.jpg
Views: 2
Size:  199.8 KB

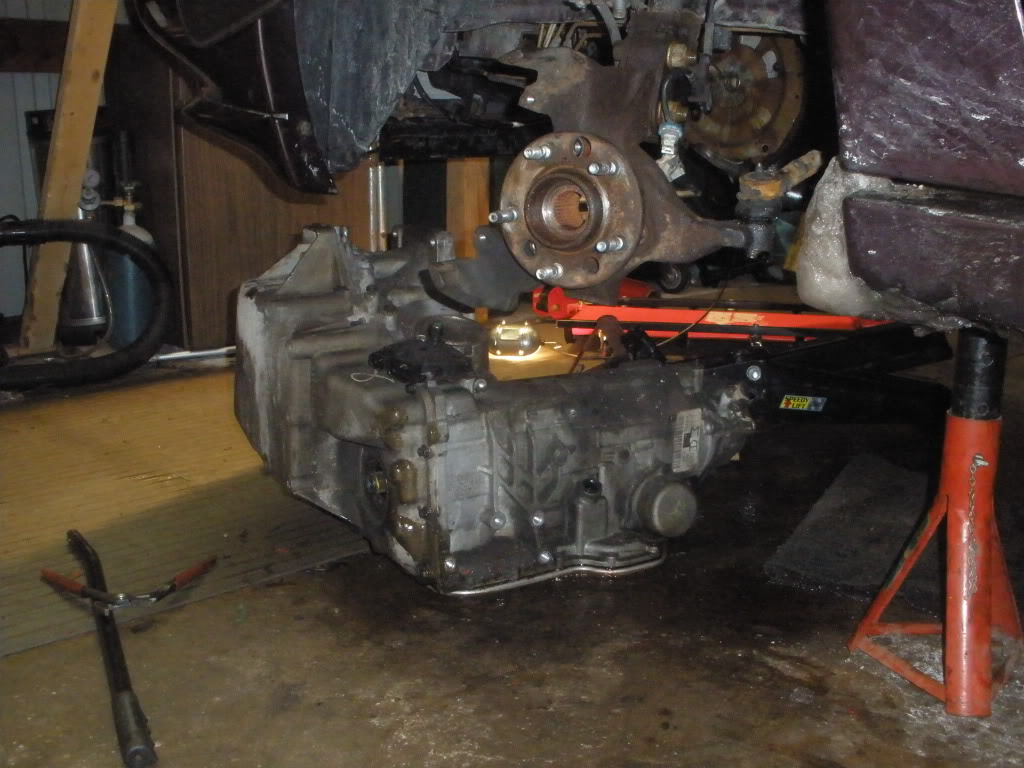

Once that bolt was out, it was just a mater of lowering it, and that wasn't easy. It slid off the jack the last few inches and fell on a oil pad.
Name:  P2150114.jpg
Views: 3
Size:  140.0 KB

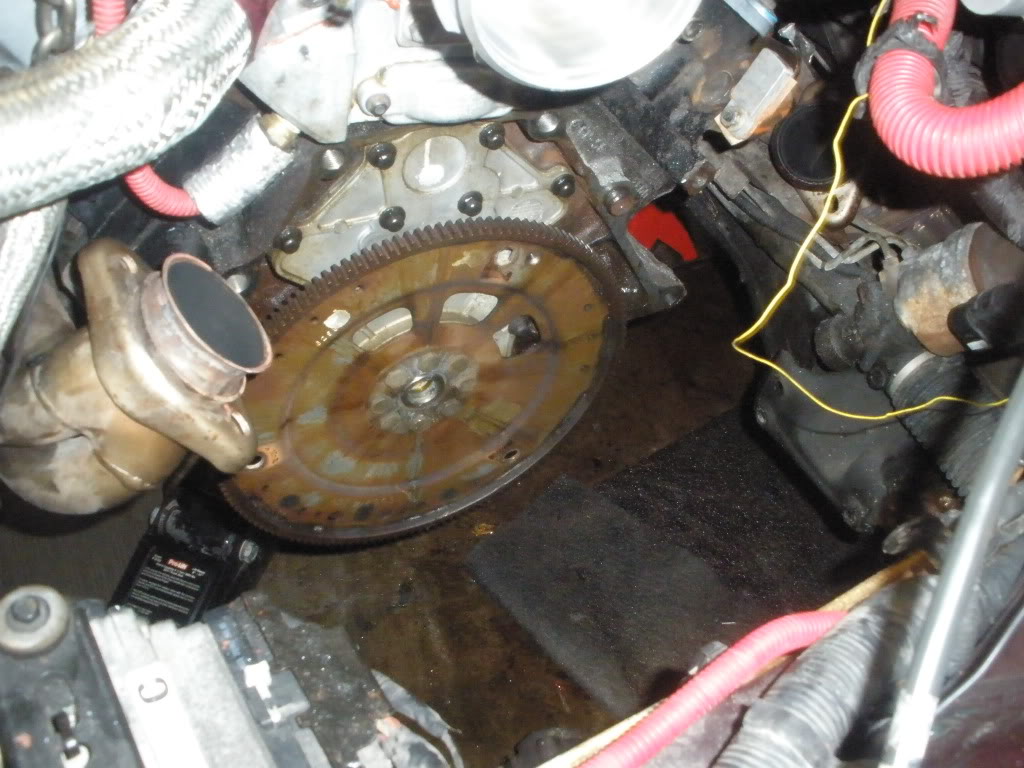

That'* a big honking hole.
Name:  P2150115.jpg
Views: 2
Size:  144.8 KB

Getting ready to mount it on the stand.

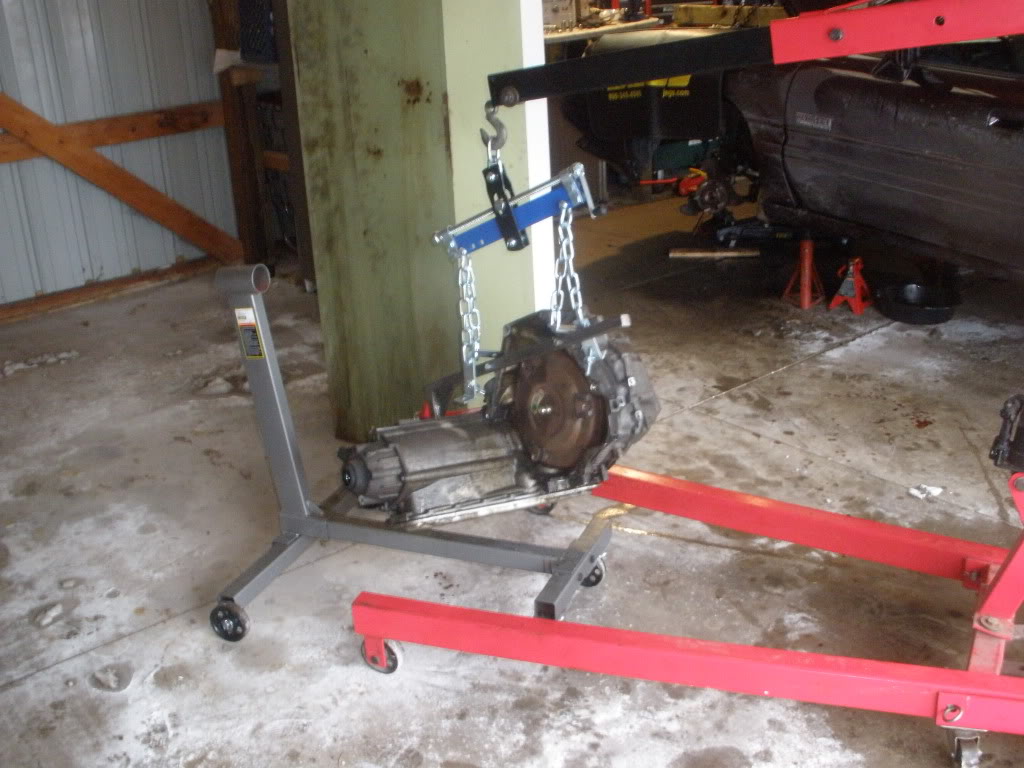

Lifting it up.
Name:  P2150117.jpg
Views: 3
Size:  132.8 KB

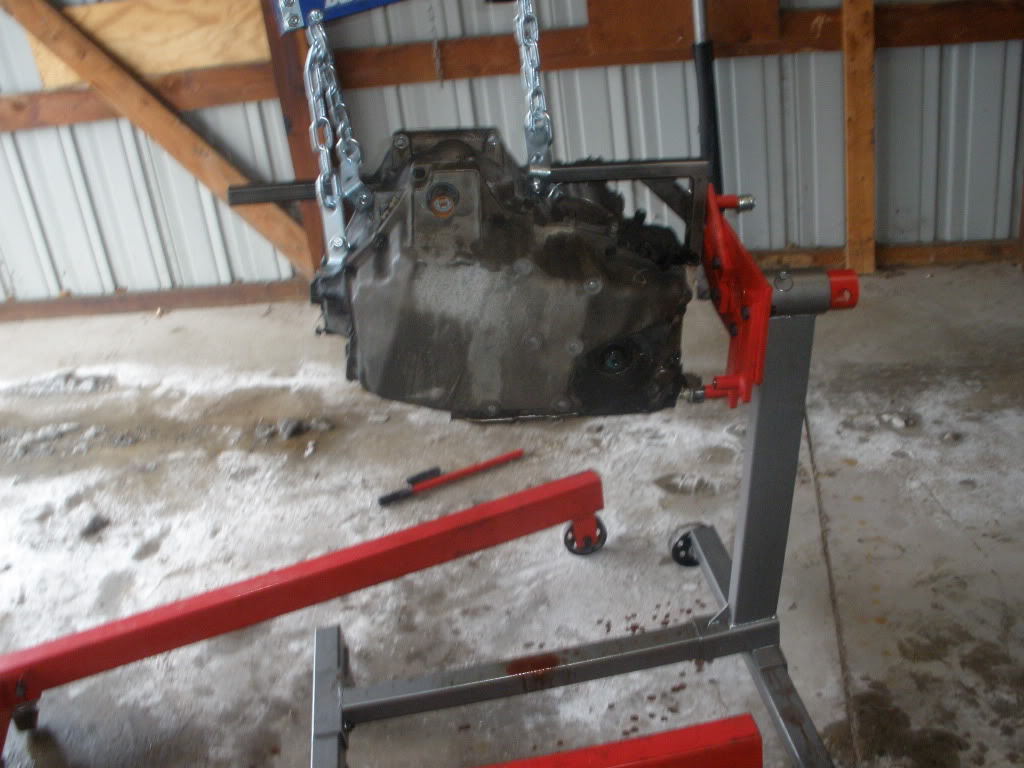

All mounted.
Name:  P2150118.jpg
Views: 2
Size:  121.8 KB

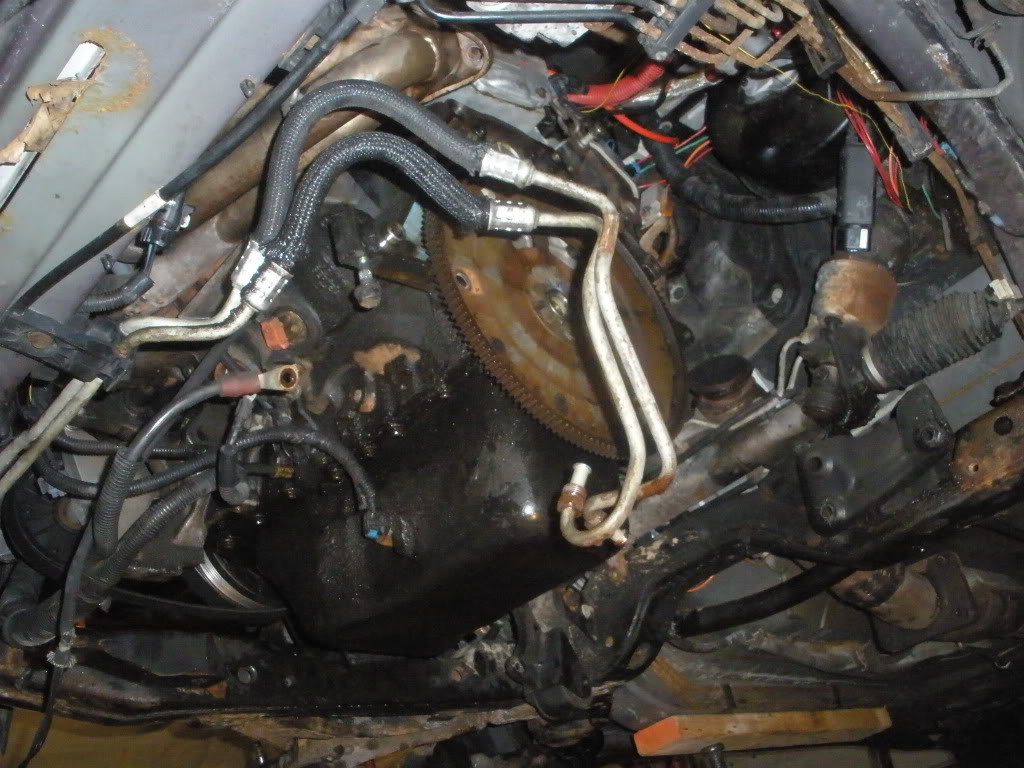

Looks weird.
Name:  P2150119.jpg
Views: 1
Size:  162.8 KB

All out of time today, kids are home from school. I'll open it up tomorrow.
Danthurs is offline   Reply With Quote
Old 02-15-2010, 08:16 PM   #283
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Can't wait to see the transmission autopsy Dan. You've done some great work here and the pictures and write up is awesome.
Purplehazeir is offline   Reply With Quote
Old 02-15-2010, 08:20 PM   #284
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I'm kind of antsy about what I find. I'm hopping it'* just a shredded 4th gear input shaft. I did notice something. I mounted the transmission and left the torque converter in. I can't get it out when mounted. So I'll be dropping it and then remounting it.
Danthurs is offline   Reply With Quote
Old 02-15-2010, 08:31 PM   #285
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Oh crap...I just re-looked at the picture of the mounted tranny. You're right! Your not going to get that torque converter out without a plasma cutter! Bummer dude...
Purplehazeir is offline   Reply With Quote
Old 02-15-2010, 09:08 PM   #286
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You got the number...but you never call with questions...lol

Which bolt was last the one o'clock one? I usually go right under the SLP'* and it comes out w/o an issue. If it was the backwards one..then you use a deep 18mm and about 3 feet of extensions. I have a 24" and 30" that I pair up for the task.

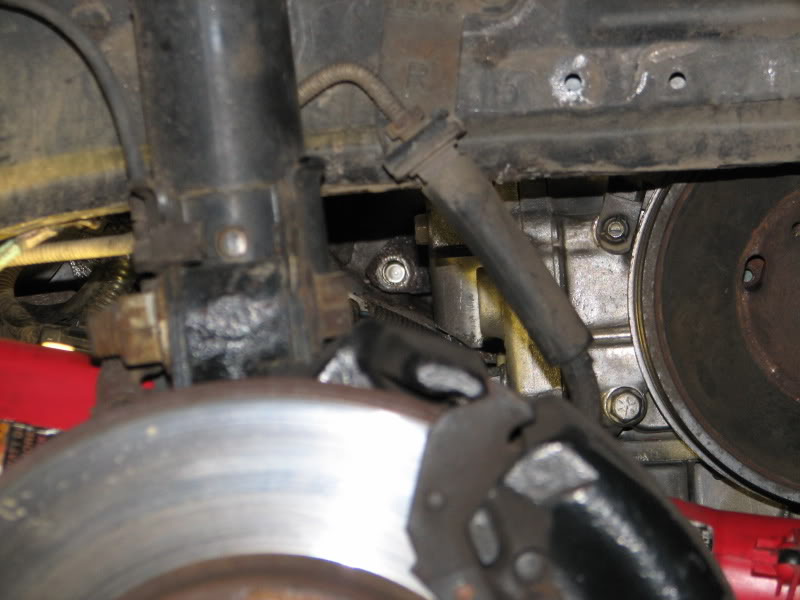

Backwards bolt.
Name:  IMG_1674.jpg
Views: 2
Size:  58.7 KB

I don't have a pic of 1 o'clock. It'* too easy and never makes me remove anything on my car or with stock exhaust. If that one gave you a hassle, then that'* a TOG feature only.
BillBoost37 is offline   Reply With Quote
Old 02-15-2010, 09:11 PM   #287
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It was the TOG clamps. Once I pulled the crossover the bolt was right there nice and easy. I had to remove it non the less. Needed to remove the dipstick and the TOG clamp blocks the bolt for that as well.
Danthurs is offline   Reply With Quote
Old 02-15-2010, 09:39 PM   #288
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I was wondering what he was talking about. Backwards trans bolt, easy, 3 feet of extensions!

Dan, that trans only weighs 200 lbs, even I can lift it off a 4 foot bench, set it on the ground, pick it back up and put it on the table. Big muscle guy like you should be able to hang it off your... well... you know. lol
Mike is offline   Reply With Quote
Old 02-15-2010, 09:44 PM   #289
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

No problems moving it. Now when I pulled one out of my trunk, that was a work out.
Danthurs is offline   Reply With Quote
Old 02-15-2010, 09:51 PM   #290
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Tranny'* are people to Dan, and why did you have one locked in your trunk?
ymmot04 is offline   Reply With Quote
