Old 02-13-2010, 10:50 PM   #261
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I think 4th went out. Shortly after doing a WOT the scan shows the trans dropping from 4th and not going back. I'll know more when I open it up.
Danthurs is offline   Reply With Quote
Old 02-14-2010, 01:55 PM   #262
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Got out today and got started.

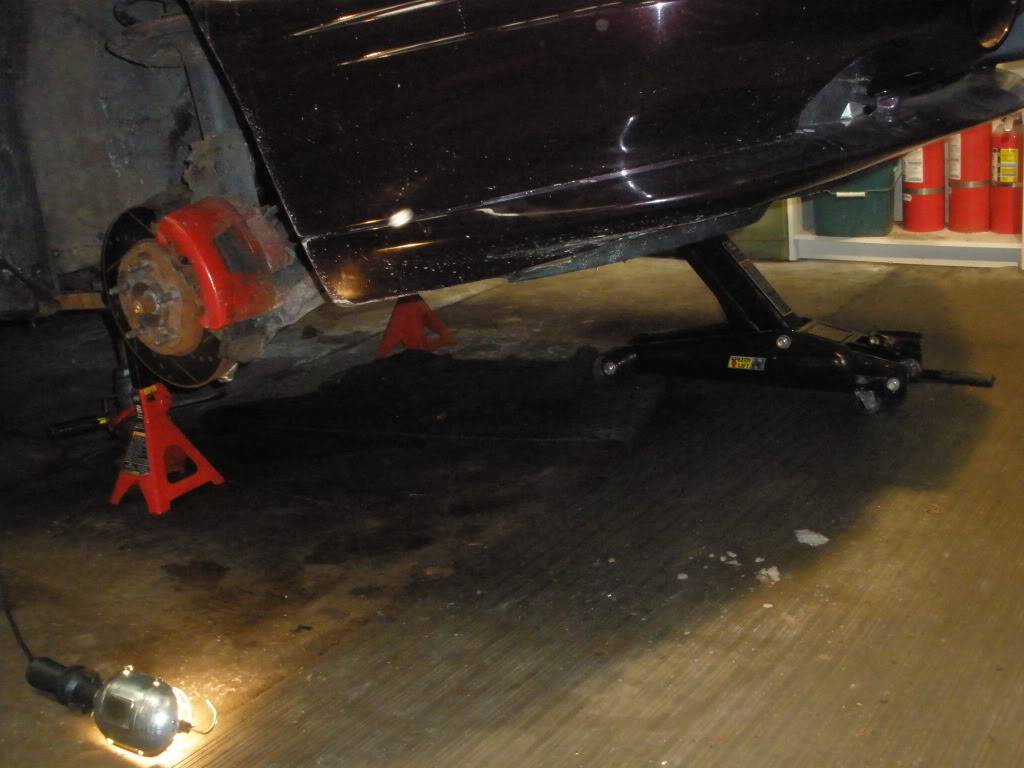

Got the car up as high as I can get it.
Name:  P2140084.jpg
Views: 2
Size:  105.2 KB

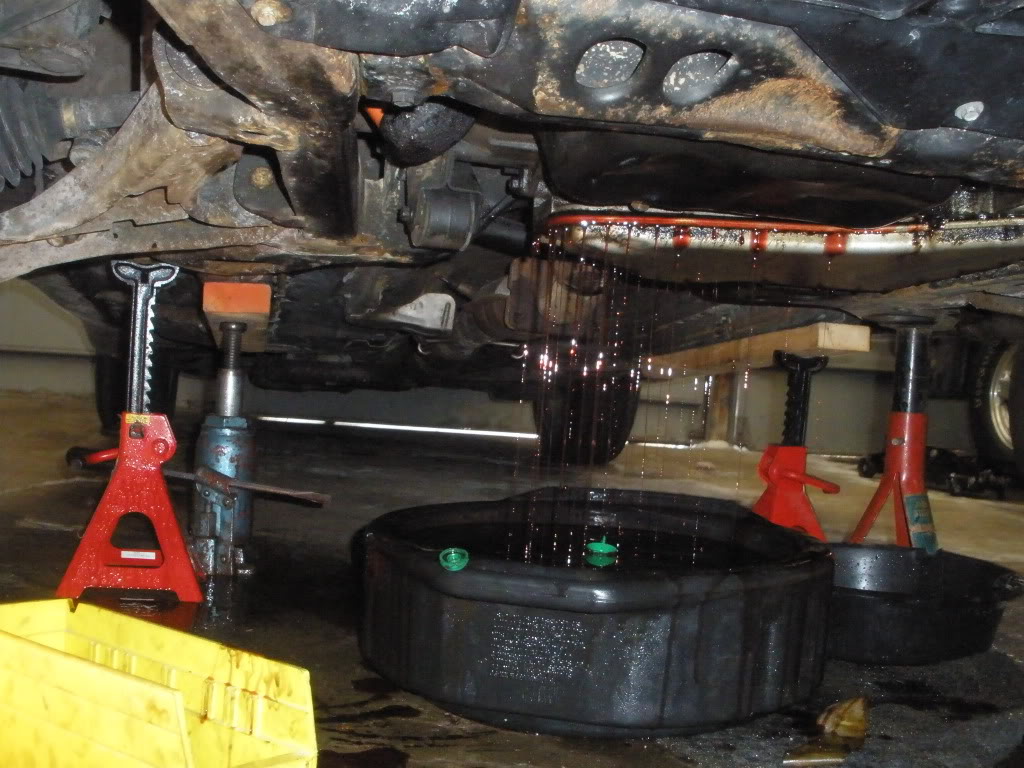

Drained the transmission
Name:  P2140085.jpg
Views: 2
Size:  164.6 KB

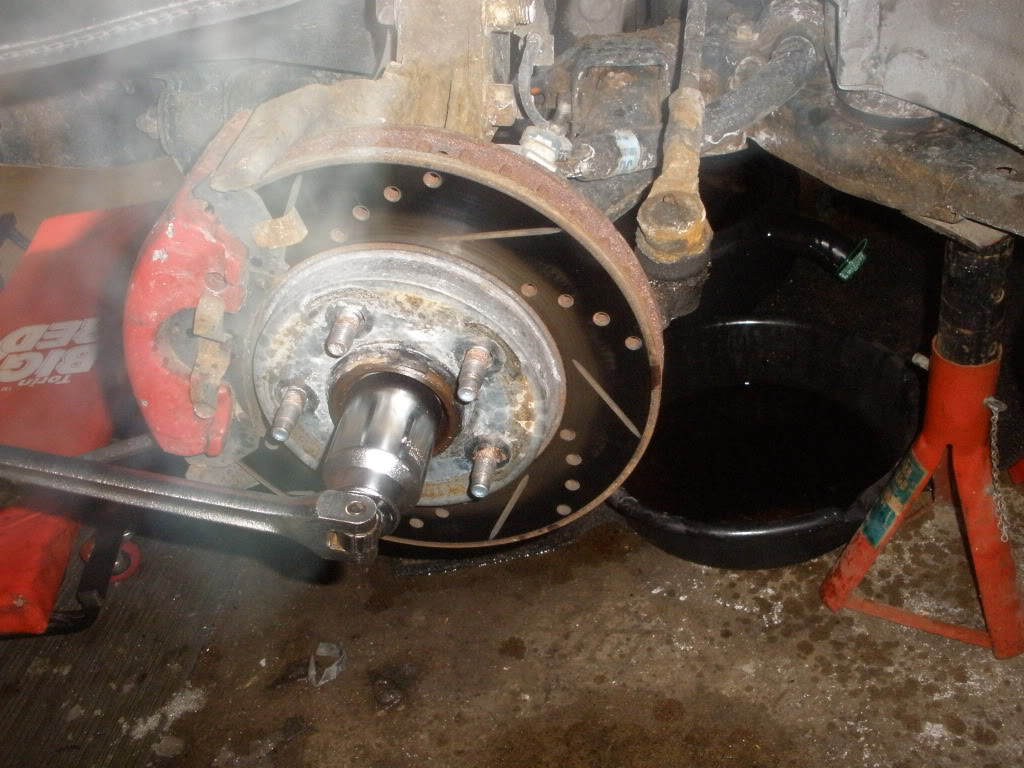

Removing the hub nut.
Name:  P2140087.jpg
Views: 4
Size:  161.7 KB

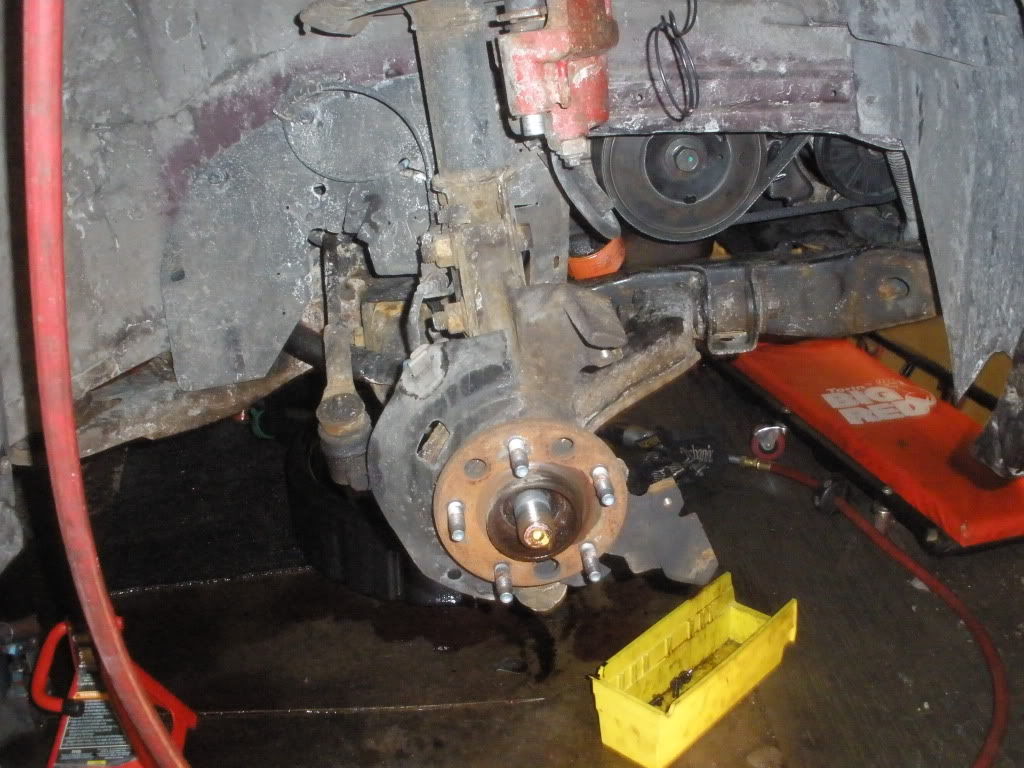

Brakes, and rotors removed, the hubs are being stubborn.
Name:  P2140088.jpg
Views: 3
Size:  165.3 KB

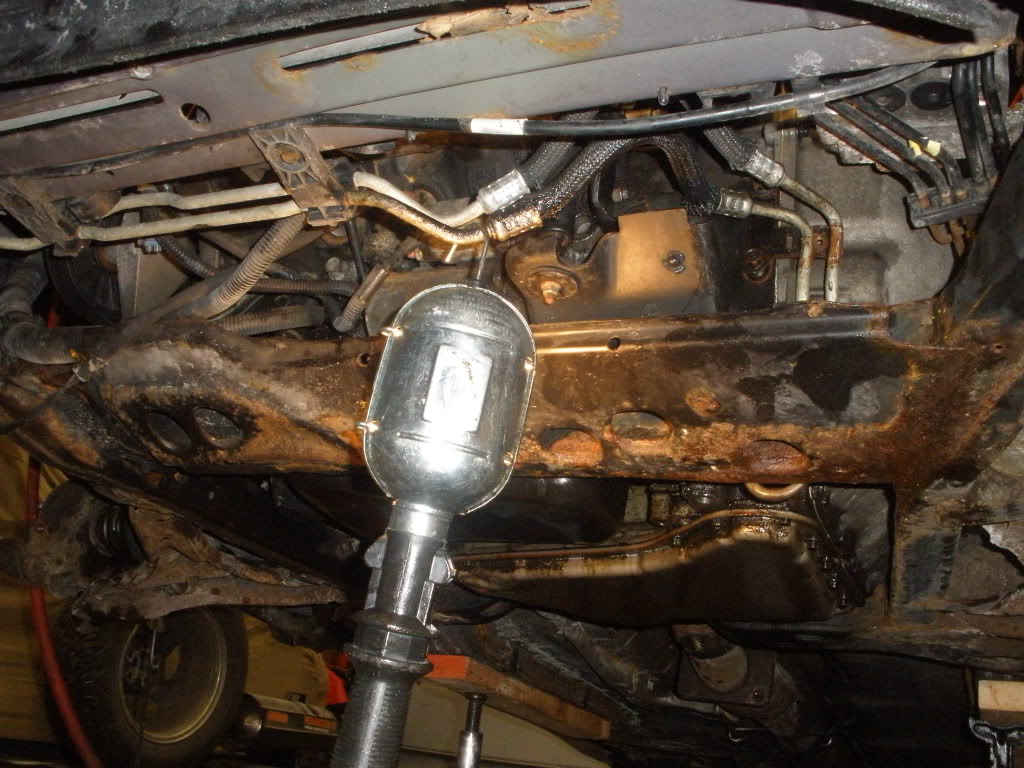

Removed the splash guards, flex plate access cover, and disconnected the transmission cooling lines.
Name:  P2140089.jpg
Views: 4
Size:  191.0 KB

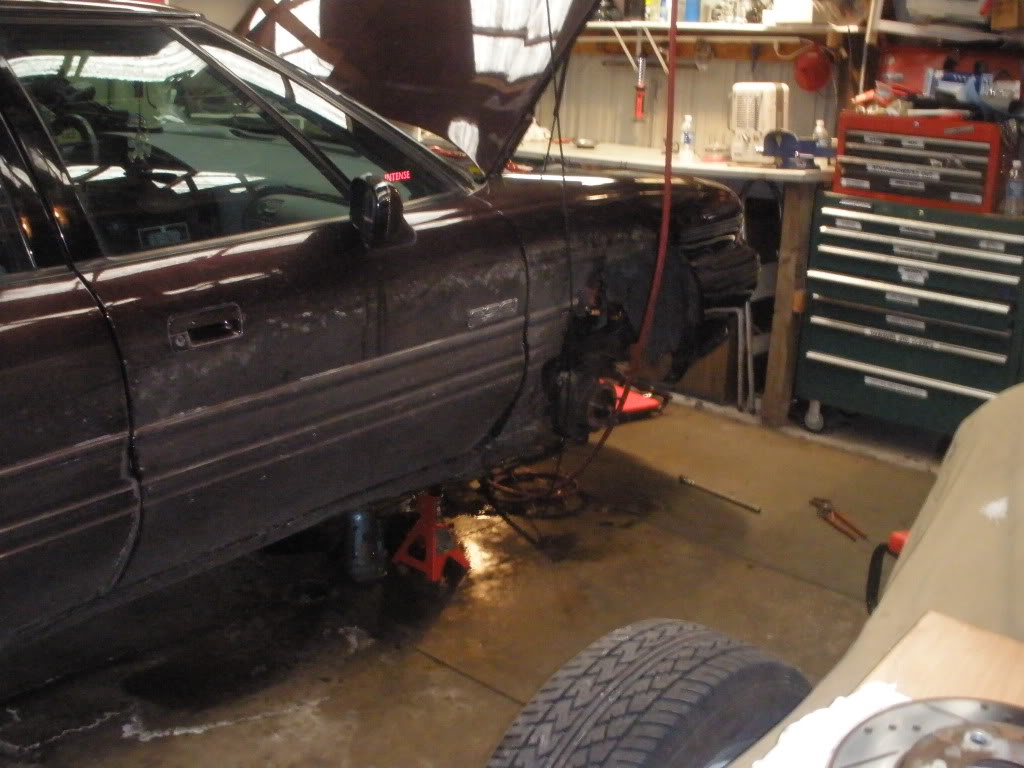

Time to warm up and get a bite to eat. I'll be picking up a bigger puller after lunch.
Name:  P2140091.jpg
Views: 4
Size:  127.8 KB
Danthurs is offline   Reply With Quote
Old 02-14-2010, 02:34 PM   #263
Senior Member
Posts like a Turbo

LeSabreUltra's Avatar

Join Date: Feb 2007
Location: Alabama
Posts: 494
Thanks: 0
Thanked 0 Times in 0 Posts
LeSabreUltra is on a distinguished road
Default

Nice work, sucks about your trans though!
.
.
.
LeSabreUltra is offline   Reply With Quote
Old 02-14-2010, 04:16 PM   #264
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

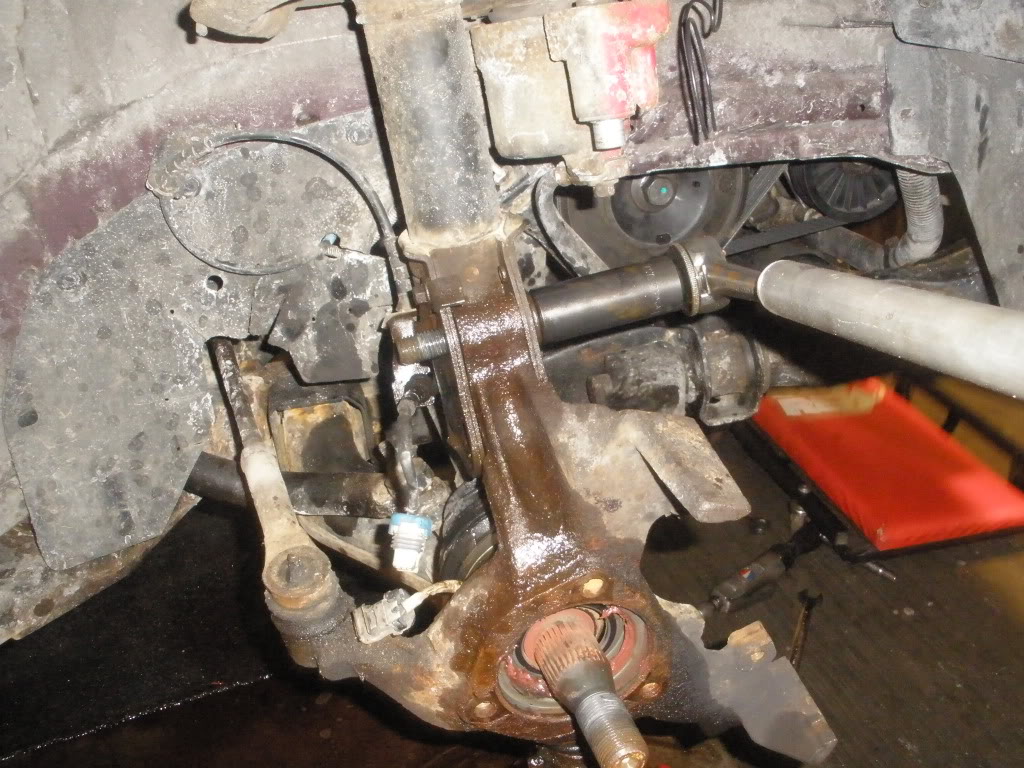

Well, I went out and bought a hardened socket, this works much better. What a pain getting these bolts out.
Name:  P2140092.jpg
Views: 4
Size:  193.6 KB

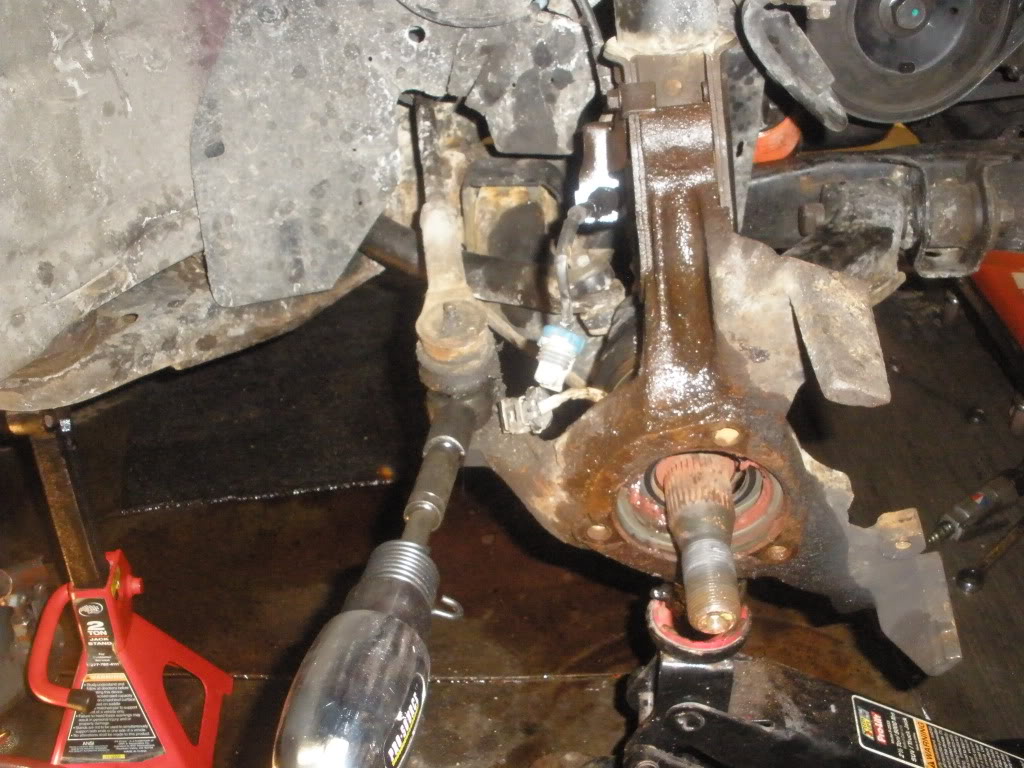

After getting those out I popped the ball joints. Easier doing that first I think.
Name:  P2140093.jpg
Views: 4
Size:  165.2 KB

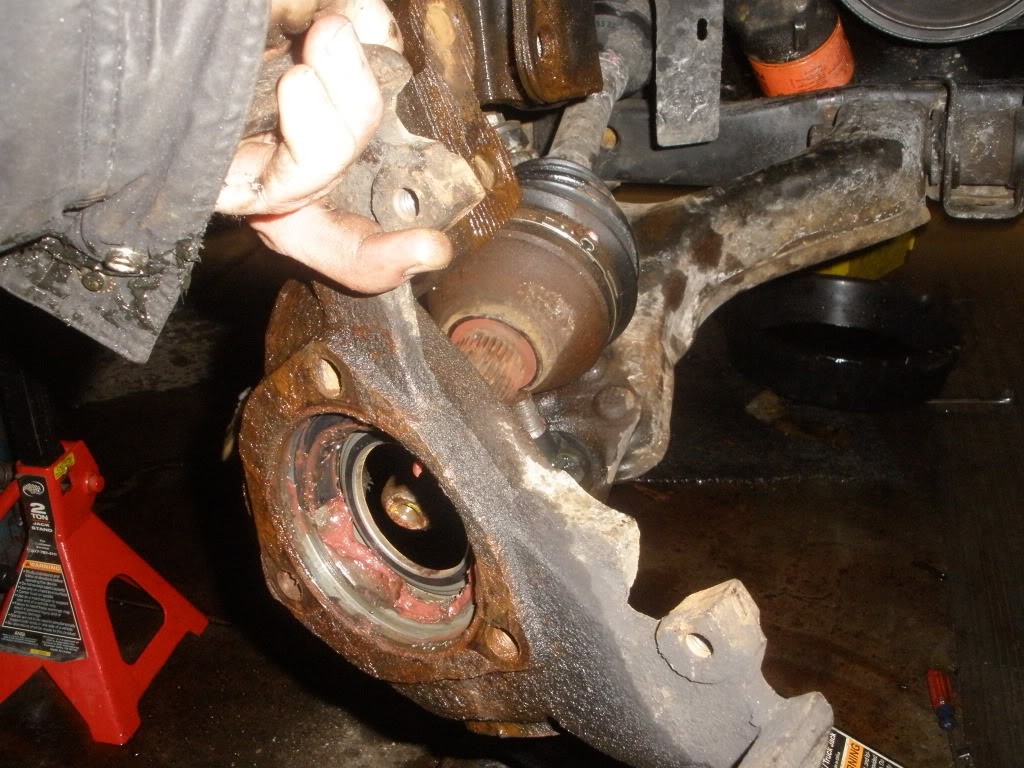

And out she comes.
Name:  P2140094.jpg
Views: 3
Size:  188.3 KB

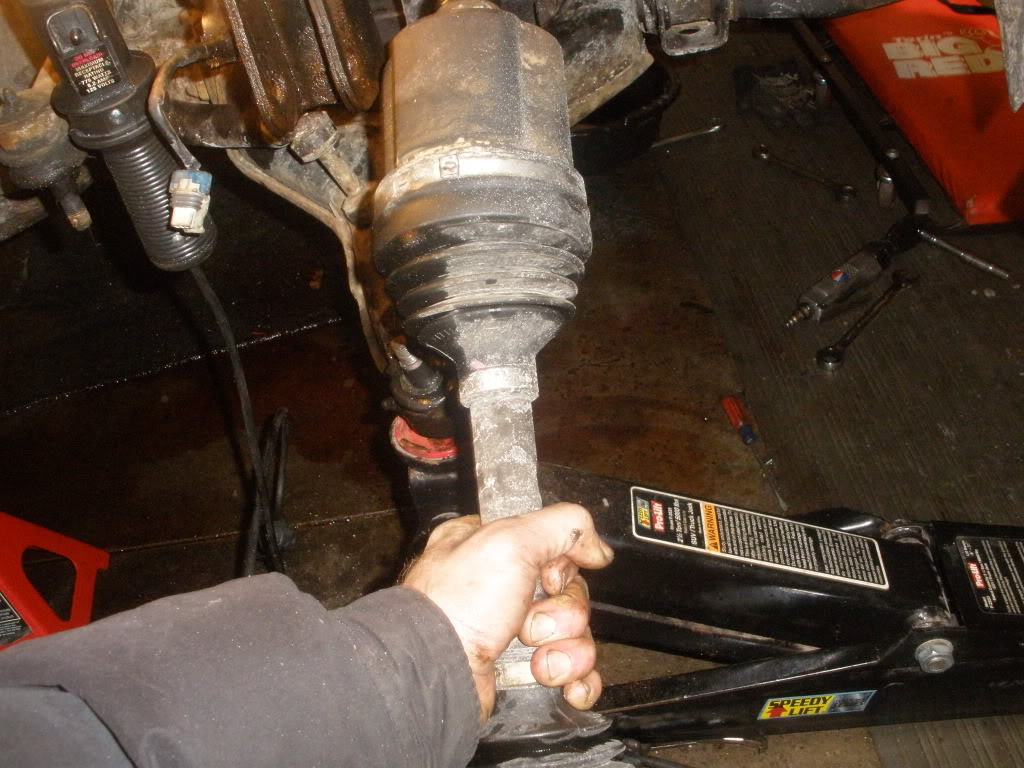

Axle came out super easy, just push in a bit, then a sharp pull and it was in my hand.
Name:  P2140095.jpg
Views: 4
Size:  174.7 KB

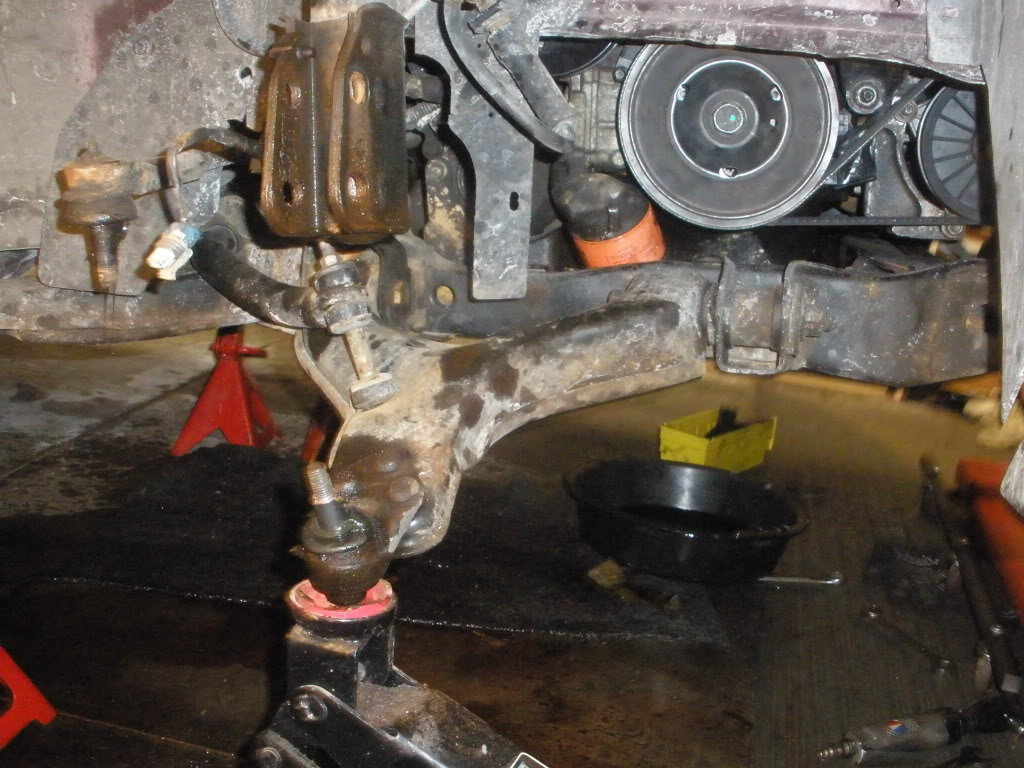

Lots of open space now.
Name:  P2140096.jpg
Views: 3
Size:  165.5 KB

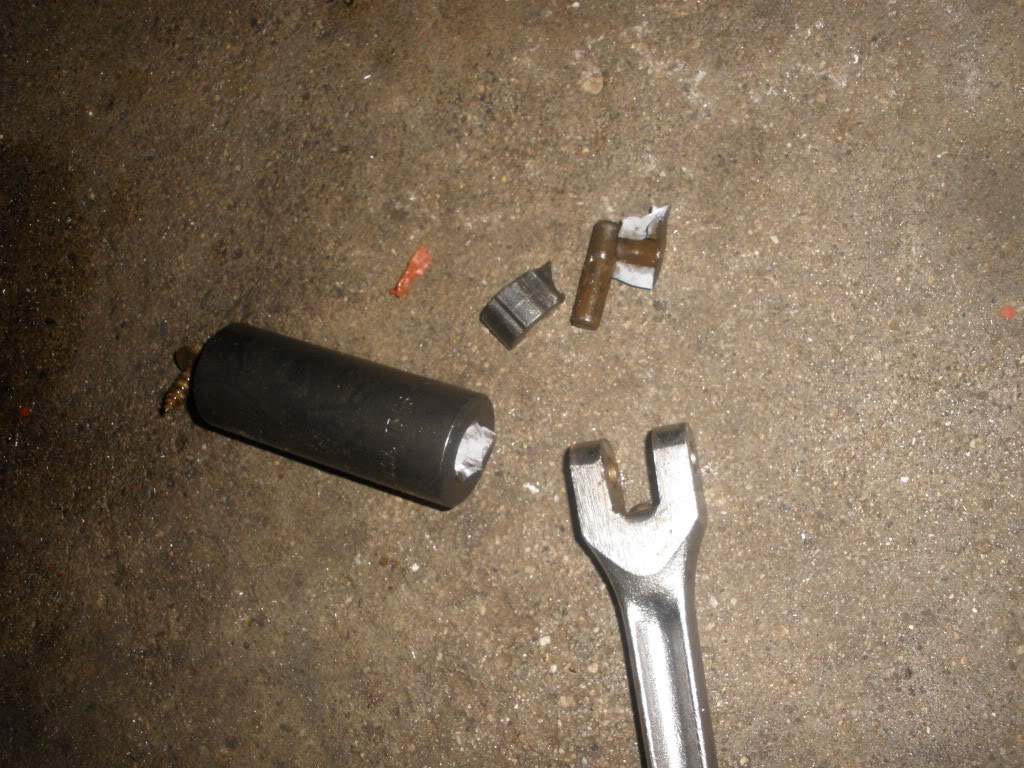

So then I go to the other side. OK, I know it'* called a breaker bar, but come on, I don't think this is what that means.
Name:  P2140097.jpg
Views: 2
Size:  210.5 KB

This looks like a good time to stop. Didn't get as far as I wanted, but I'm about 75%. I'll stop at sears and exchange the breaker bar in the morning and then I can get back to work. My hope is to have the transmission out of the car tomorrow. At the very least I want everything ready and the engine hanging from the lift.
Danthurs is offline   Reply With Quote
Old 02-14-2010, 09:39 PM   #265
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I'm sorry I didn't get something to you sooner Dan. Unfortunately you did that the hardest way possible from the looks and it fought well.

If you pop the ball joint with a long bar, you won't hurt the boot and you can leave the knuckle bolted to the tie rod and strut. Just pull the strut toward the back of the car and the axle will slide out.

A side note: you should never pull on an axle. You can pull them apart and have to buy a new one. You should always pop then by tapping or prying (quick pop) from behind the CV that is at the transmission side. This way the CV won't be pulled apart by mistake.

Looks really good so far. I'd PB those cradle connection point bolts again before calling it a night if you can.
BillBoost37 is offline   Reply With Quote
Old 02-14-2010, 09:43 PM   #266
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I had the cradle off 2 weeks ago Bill. 4 of the 6 bolts were removed and the other 2 were loosened.

Ya, the service manuals didn't help much at all.

Edit. The axle actually just came right out, no pop was needed.
Danthurs is offline   Reply With Quote
Old 02-14-2010, 09:49 PM   #267
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I'm talking splitting the cradle. From 92 to I think 99 the cradle splits in two. Front passengerside there are 3-4 bolts and rear driverside there are 4-5 bolts. Breaking the cradle apart will keep the power steering rack from being pulled off the subframe and help out as the sub itself is pretty darn heavy.

On the axle.. you got lucky. Really shouldn't tug on them. Ever. There is a tool that is made for going behing the trans side CV with a slide hammer to pop them out. Most of the time it'* overrated and really works poorly on our driverside axle. A prybar for driverside and block of wood with hammer for the passengerside seem to work the best overall.

Please understand that as I write this I realize it probably sounds pretty dry. I only mean to help and save you time and effort whereever possible as I've had too many experiences with most stuff on my 97. Also have a buddy that had been a mechanic for 20 something years who taught me some of the tricks and speedier ways to get the work done.

By pulling the two strut to knuckle bolts, you will need an alignment or need to get them tightened back down at the same spots as before.
BillBoost37 is offline   Reply With Quote
Old 02-14-2010, 09:52 PM   #268
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I'll have to look for those bolts tomorrow. I'm all snug in my chair now.
Danthurs is offline   Reply With Quote
Old 02-14-2010, 10:13 PM   #269
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I'm gonna go with Bill too Dan. You took the hard route. I find it easier to just drop the passenger side A-arm off the steering knuckle, pop the shaft out of the trans, and just let it sit. Hook the trans up to the chain, and pull it towards the passenger side, pop the drivers side shaft and done.

Though, I have yet to do the frame part yet and am curious. I have dropped the trans through the bottom while the engine was in. PITA, much worse trying to put it back into the hole.

You may need an alignment now Dan.
Mike is offline   Reply With Quote
Old 02-14-2010, 10:22 PM   #270
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You sure earned it.

To all.. I've pm'd Dan some axle removing instructions that should make side two much easier. Surely once he'* all set on the trans, he'll put it into some good instructions for us all..

Hey.. speaking of. I might have some pics.
Ohhh man. It'* in a pb album called Axles Removal. I tell you guys..I got nearly everything.

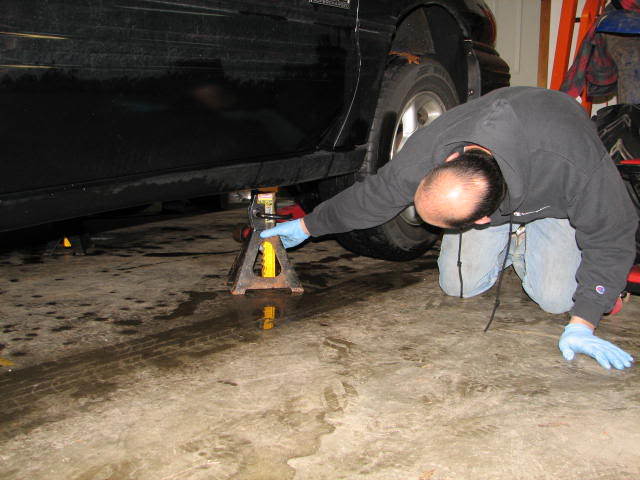

Jack and support the car.
Name:  IMG_2757.jpg
Views: 4
Size:  46.2 KB

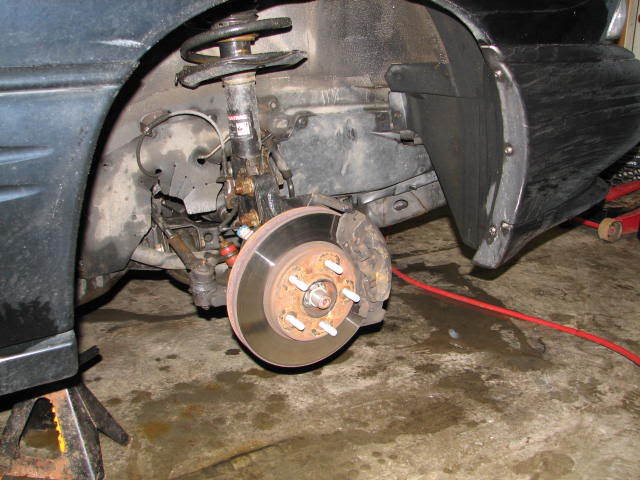

Zip the tire out of the way
Name:  IMG_2761.jpg
Views: 2
Size:  45.3 KB
Name:  IMG_2762.jpg
Views: 3
Size:  56.8 KB

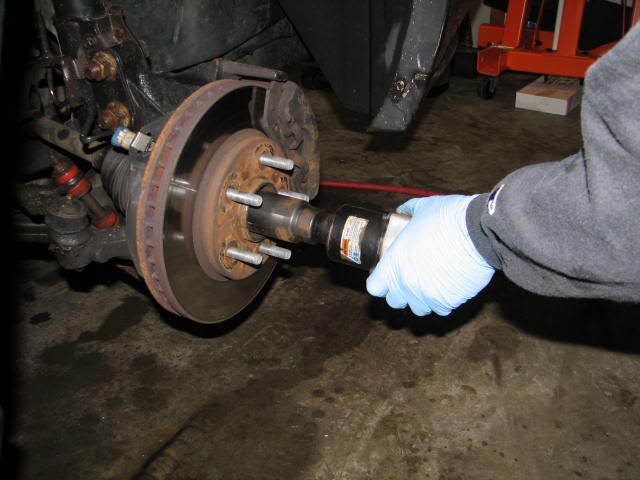

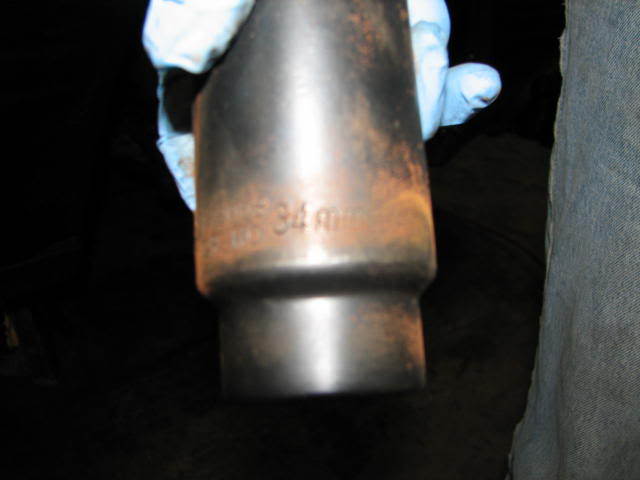

34mm socket for Bonneville axle nuts, remove axle nut
Name:  IMG_2763.jpg
Views: 3
Size:  23.8 KB
Name:  IMG_2764.jpg
Views: 4
Size:  42.5 KB

Thread nut back on so it'* flush with the end of the axle. This way when you hit it, the threads on the axle do not become hurt. Hit until you see axle move inward. This is to free it from the tapered splines of the hub/bearing.
Name:  IMG_2765.jpg
Views: 3
Size:  46.2 KB

Remove cotter pin from the castle nut on the balljoint
Name:  IMG_2774.jpg
Views: 4
Size:  45.5 KB

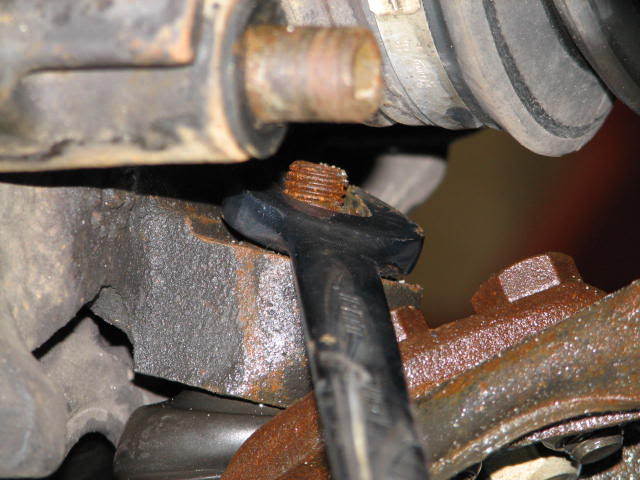

Using your 18mm wrench remove the castle nut from the balljoint
Name:  IMG_2776.jpg
Views: 3
Size:  50.6 KB

If the nut won't come out.. do your best to have it fully loosened.

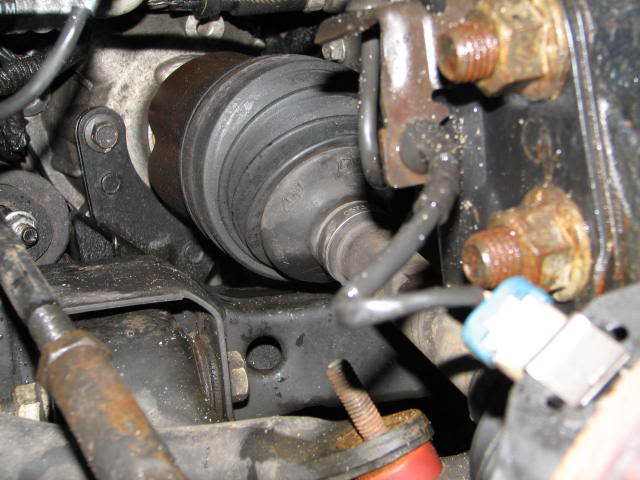

Undo your endlink to facilitate the control arm moving.
Name:  IMG_2779.jpg
Views: 4
Size:  52.5 KB

Unbolt the brake like from the body.

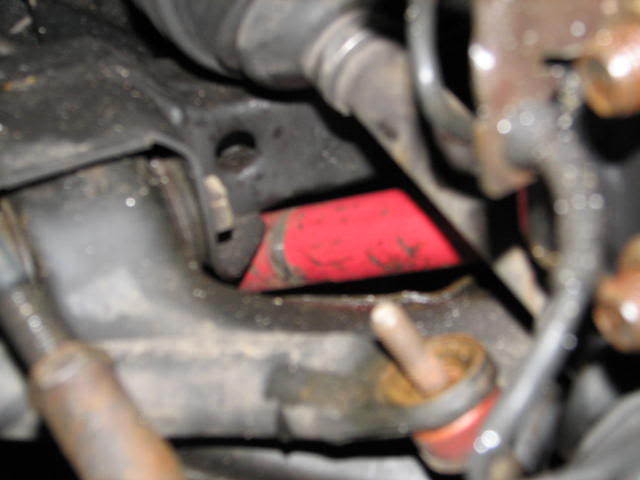

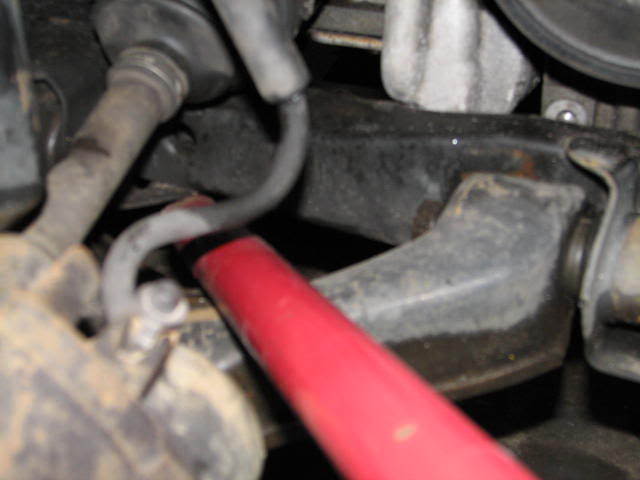

Bring in a 4-5 foot prybar (I use my steel floor jack handle) from by the front bumper where the wheel well meets it toward the body between the body edge and subframe bolts. Slide it under the axle and over the control arm.
Name:  IMG_2780.jpg
Views: 3
Size:  31.0 KB
Name:  IMG_2781.jpg
Views: 3
Size:  30.2 KB

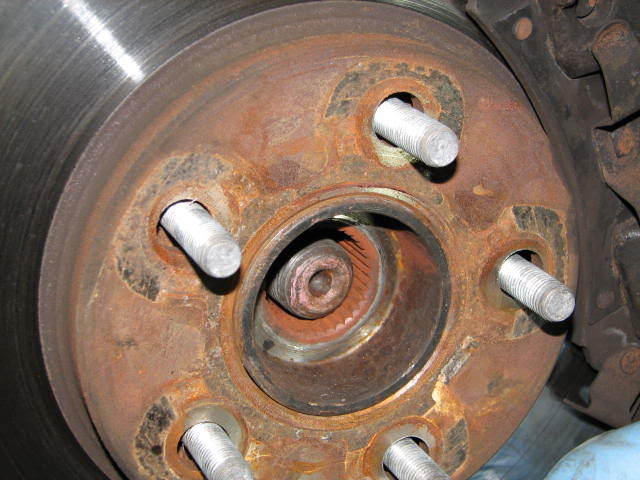

Pry down. It helps to have a helper. At the same time as the prying, hit the balljoing on the side (not where the grease zerk is, other side ) and after a few hits the ball joint will come free from the knuckle. Move the strut/knuckle behind the ball joint before letting the control arm back up.

I like to sit/kneel facing the hub. My hand that is closer to the rear of the vehicle grabs the caliper and pulls outward and toward the rear of the vehicle. At the same time, the hand that is closer to the front of the car reaches around and cups the CV between the hub an the outter CV joint. Pushing backward on the CV and outward and back on the knuckle you pull the axle out of the hub and then lay it on the control arm. Pics for this part are poor because I was basically blocking all the shots with my body to do the work.
Name:  IMG_2782.jpg
Views: 4
Size:  53.1 KB

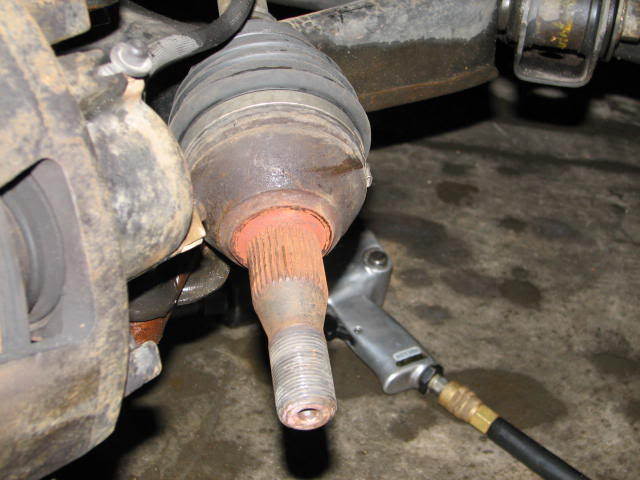

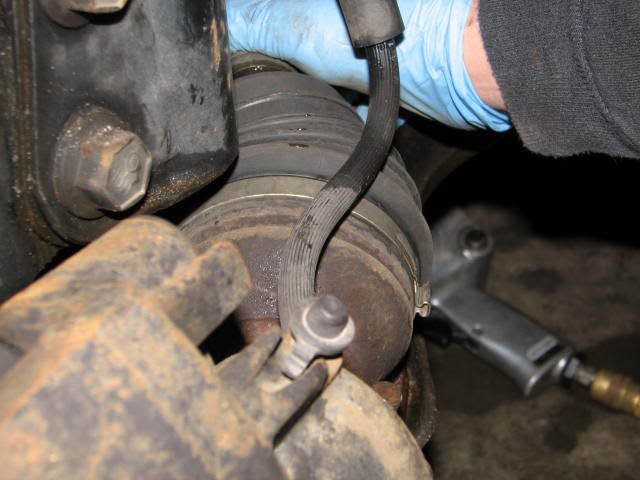

I moved my hand off the CV for a second for this shot. My hand was between the hub and the outter boot of the CV.
Name:  IMG_2783.jpg
Views: 3
Size:  42.5 KB
Name:  IMG_2784.jpg
Views: 5
Size:  45.2 KB

Crawl under and use a prybar etc (usually I use a block of wood and hammer on the pass side and prybar on driverside). to give the CV a quick pop like hit from the back. If you put tension on it the clip will hold it in. A quick pop is what is needed to remove it. Here we have the prybar in place.


And the axle is out.
Name:  IMG_2787.jpg
Views: 3
Size:  42.3 KB

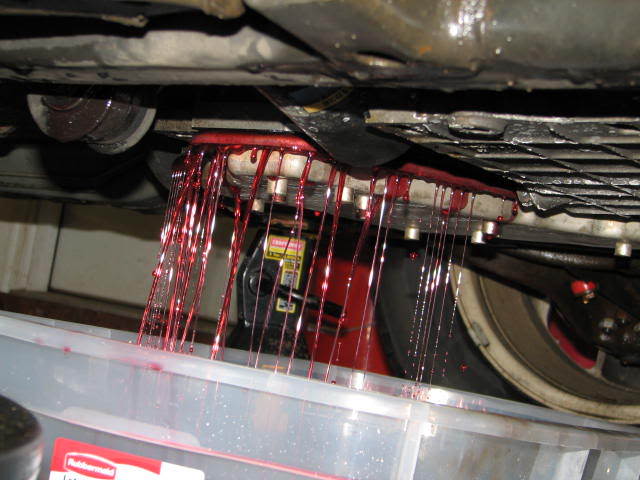

You may notice that somebody forgot that the axle seals, seal the axles from leaking trans fluid because the level of fluid is above them.
That someone then got under the car and drained the trans.


Technically this step should be before now. For anyone wondering $5 Steralite or Rubbermaid from Walmarts storage section.
Name:  IMG_2790.jpg
Views: 4
Size:  50.4 KB

Hope this helps.... feel free to turn this post into a write up .. I'm probaby off to bed soon.
BillBoost37 is offline   Reply With Quote
