Old 02-21-2010, 09:38 PM   #341
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I think he'* full of it.
Danthurs is offline   Reply With Quote
Old 02-21-2010, 09:40 PM   #342
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I had you goin didn't I?

Mike is offline   Reply With Quote
Old 02-21-2010, 10:00 PM   #343
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Not really, no. I went threw the manual many times, and I don't remember reading anything like that.
Danthurs is offline   Reply With Quote
Old 02-22-2010, 08:41 AM   #344
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Next time use transgoo to hold the thrust bearing in place. That'* one of the main things it'* used for.

It'* interesting and I'm trying to remember the clutches on the input/3rd carrier with sprag. I didn't use the 4th clutch hub trick. Pretty sure I put the trans horizontal like it would sit in the car for that install. Also..the clutches didn't fight much. Gotta bet the cold didn't help much.
BillBoost37 is offline   Reply With Quote
Old 02-22-2010, 08:46 AM   #345
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I have a small tube of lube I'm finishing off. A little dab and it stays in place. The biggest problem was the 3rd gear clutches. They would bind on the band and then move. After a few attempts it got easier, just had to figure out where ot put my hand.
Danthurs is offline   Reply With Quote
Old 02-22-2010, 09:09 AM   #346
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Maybe a little more goo next time.

Quote:
Originally Posted by Danthurs View Post
A little dab and it stays in place.
Quote:
Originally Posted by Danthurs View Post
found this thrust washer had moved out of place.
BillBoost37 is offline   Reply With Quote
Old 02-22-2010, 09:12 AM   #347
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Yep, that'* what I did, no problems after that.
Danthurs is offline   Reply With Quote
Old 02-22-2010, 09:18 AM   #348
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

When you do the next one.. please take a pic of the check balls all glued in place. I keep meaning to get one of that point. It'* cool to me how we install the VB with balls facing down and yet..we don't worry about them falling out.
BillBoost37 is offline   Reply With Quote
Old 02-22-2010, 10:27 AM   #349
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I have 2 spare valve bodies. When I get this done and caught up with other cars I'll set one up just to get a picture.
Danthurs is offline   Reply With Quote
Old 02-22-2010, 03:28 PM   #350
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Looks like I'm nearing the end of this wild ride. I hope

Transmission is done and as far as I can tell, everything is correct. About to pull it from the stand.
Name:  P2220195.jpg
Views: 1
Size:  123.1 KB

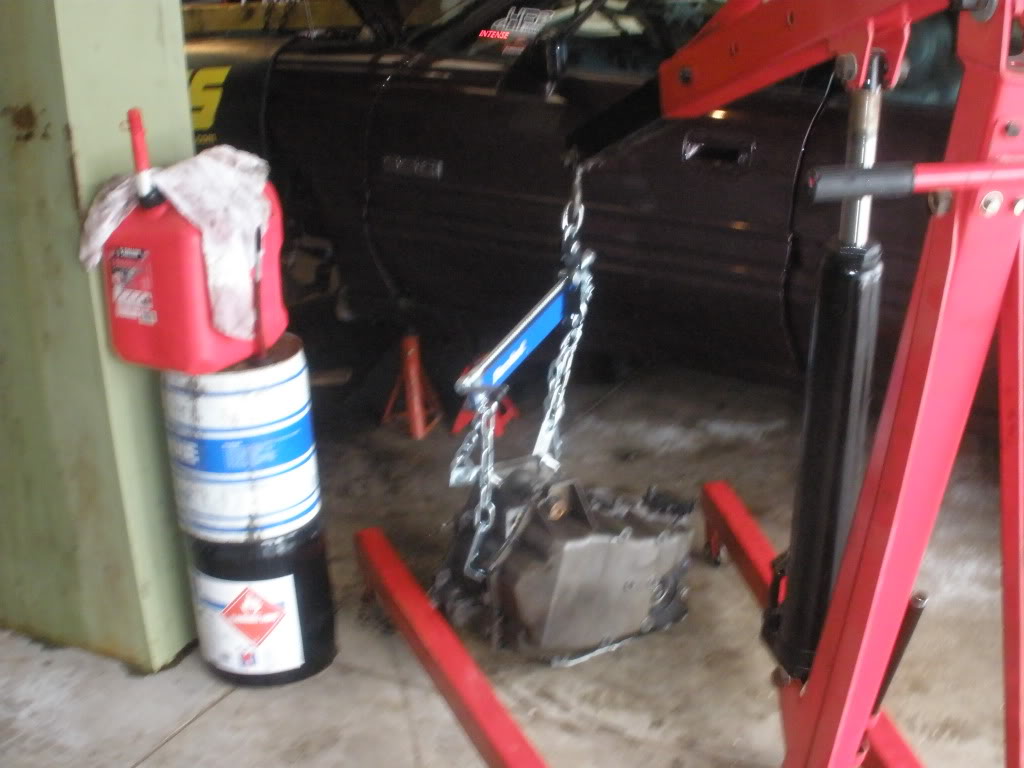

Setting it done by the car.
Name:  P2220196.jpg
Views: 1
Size:  104.0 KB

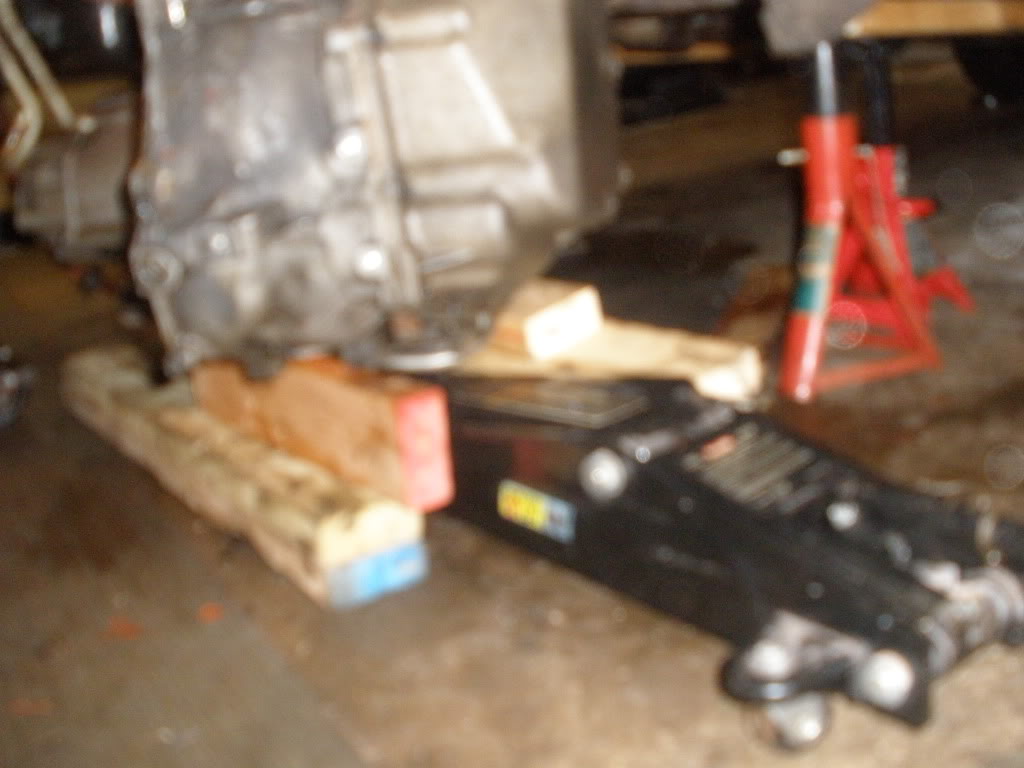

What a pain getting the jack under the transmission when it'* under the car. I hd to rock it back and forth putting 2x4s under until it was high enough to roll the jack under.
Name:  P2220197.jpg
Views: 1
Size:  93.8 KB

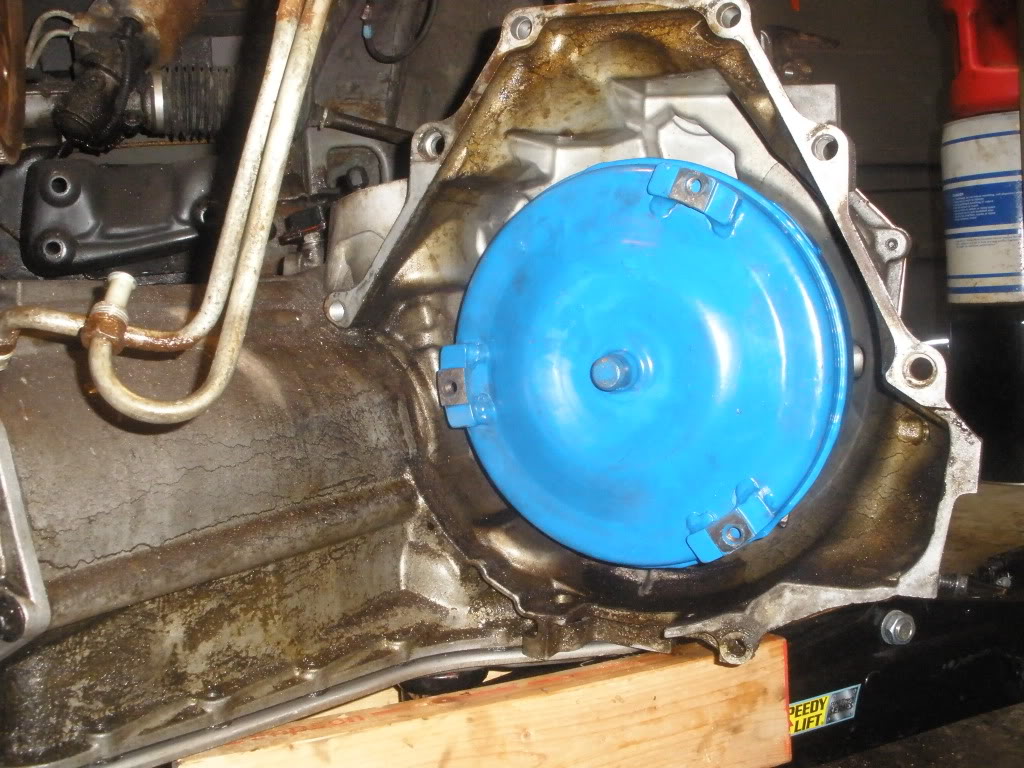

Slipped in the new 3000 stall torque converter.
Name:  P2220198.jpg
Views: 1
Size:  179.4 KB

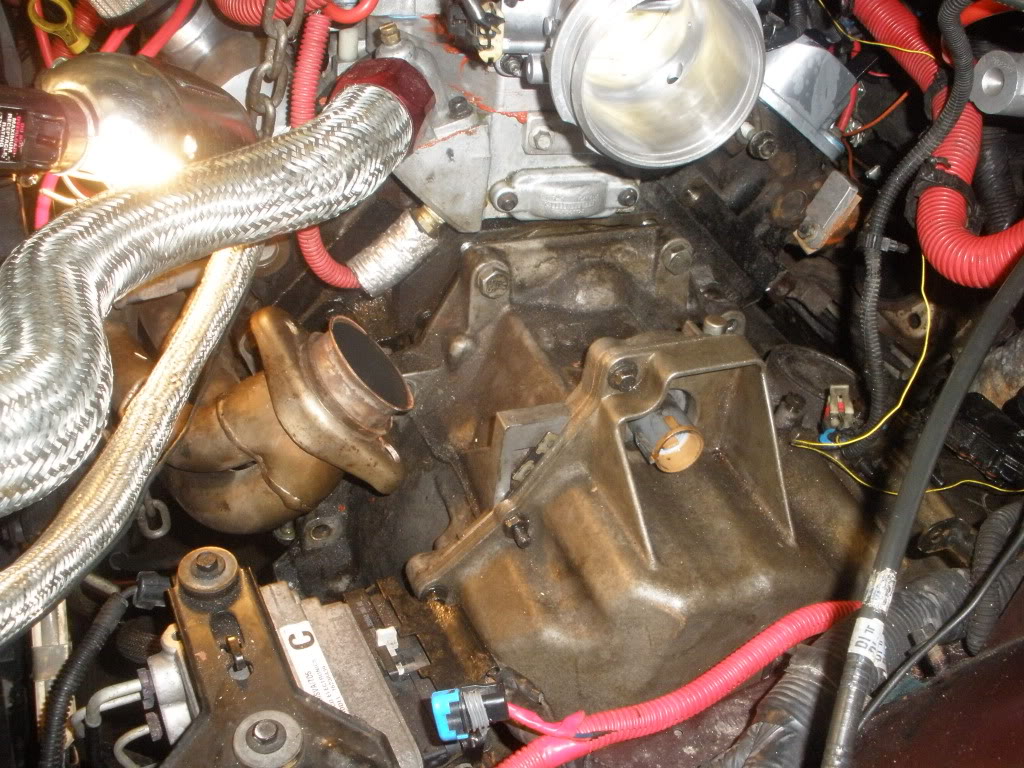

Slowly jacked it up until it was in place.
Name:  P2220199.jpg
Views: 1
Size:  211.8 KB

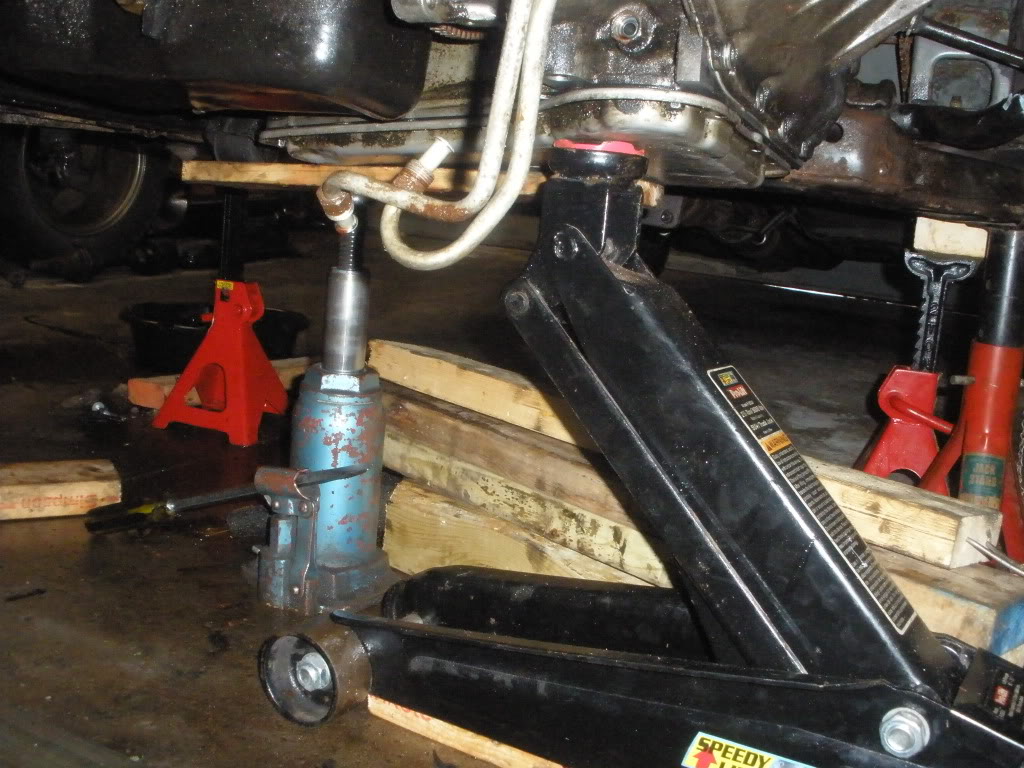

After some fighting I found adding a second jack helped a lot.
Name:  P2220200.jpg
Views: 1
Size:  167.9 KB

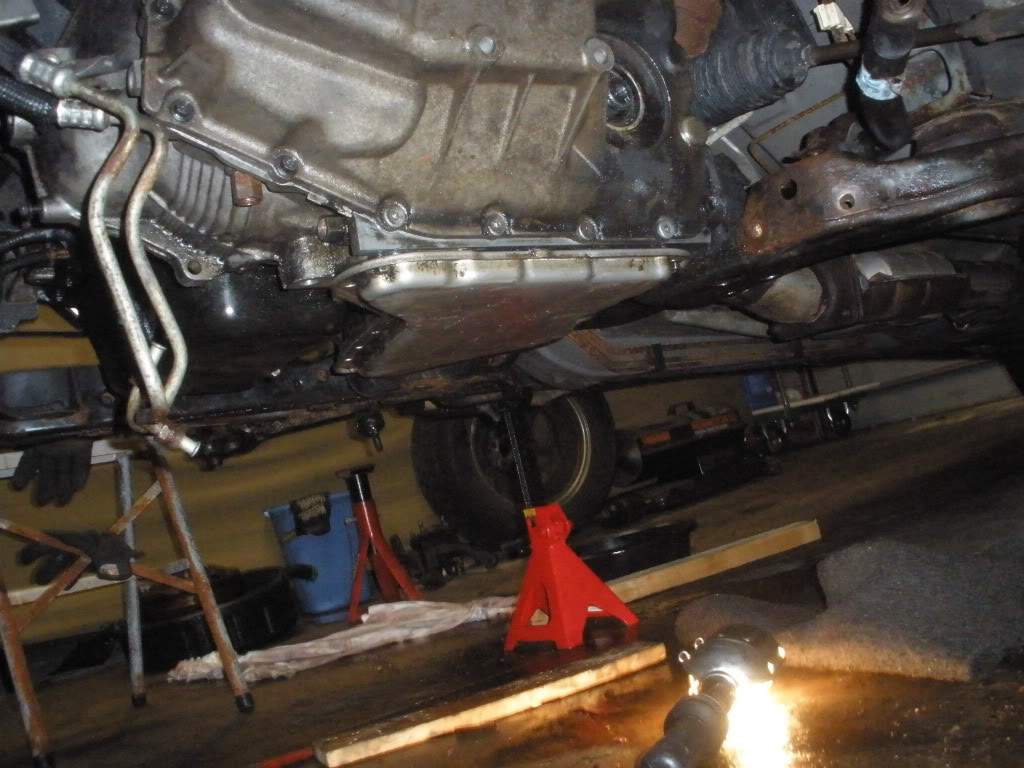

All bolted in.
Name:  P2220201.jpg
Views: 1
Size:  144.0 KB

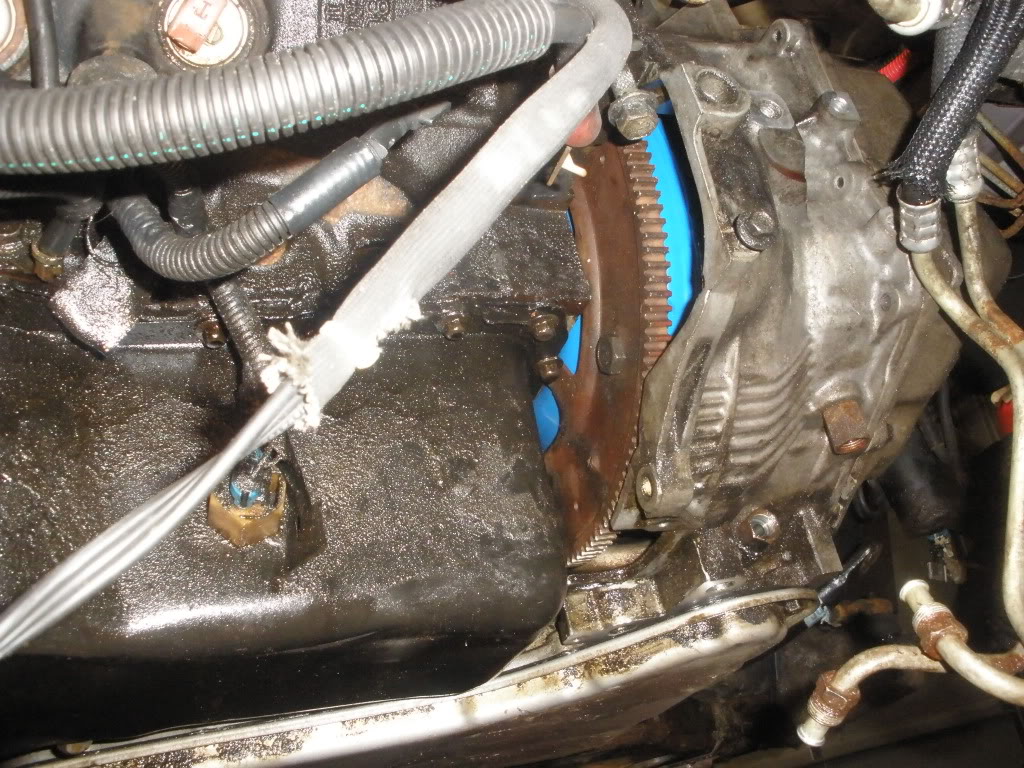

Bolted the torque converter to the flex plate.
Name:  P2220202.jpg
Views: 1
Size:  228.8 KB

That'* all I got in a bit under 3 hours. Time to warm up the toes. I'll be heading back out in a bit. My list is getting shorter. Sub frame, cross over pipe, starter, axles, brakes, plug things back in, and hook up air filter, update the bin file in the PCM, fill the transmission back up with fluid, put tires back on, lower to ground, start, drive. I hope.
Danthurs is offline   Reply With Quote
