Old 02-16-2010, 05:42 PM   #311
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

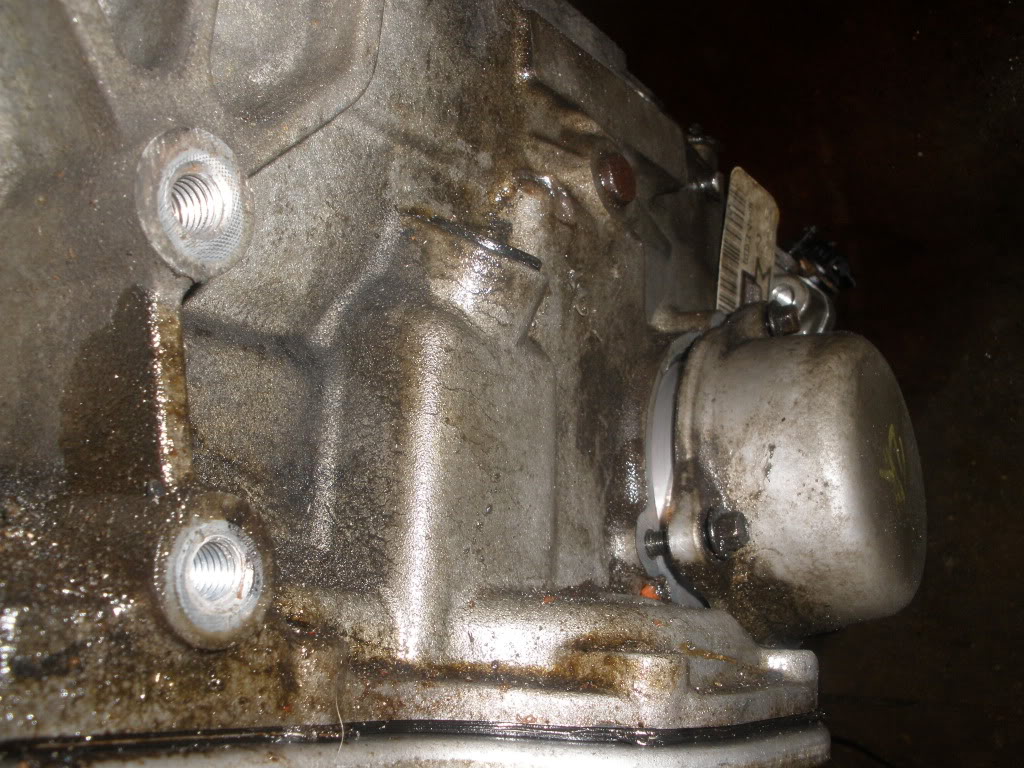

Solenoids all checked out, so next on the list is the forward servo.
Name:  P2160141.jpg
Views: 0
Size:  199.3 KB

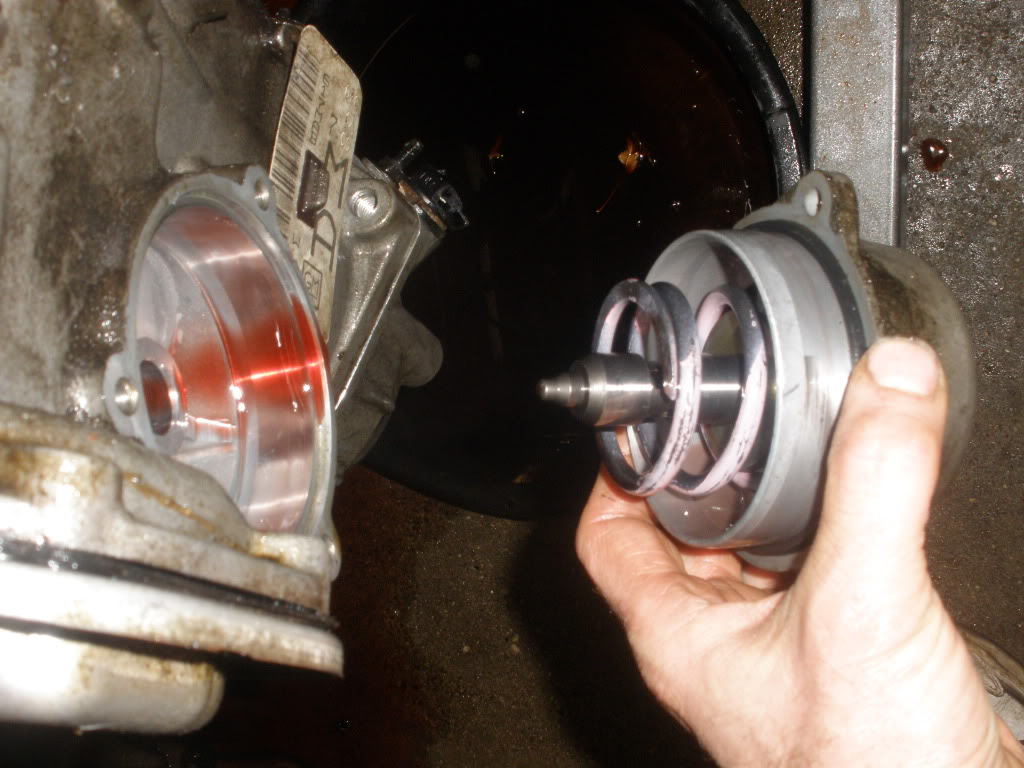

Don't see anything wrong here.
Name:  P2160142.jpg
Views: 0
Size:  133.9 KB

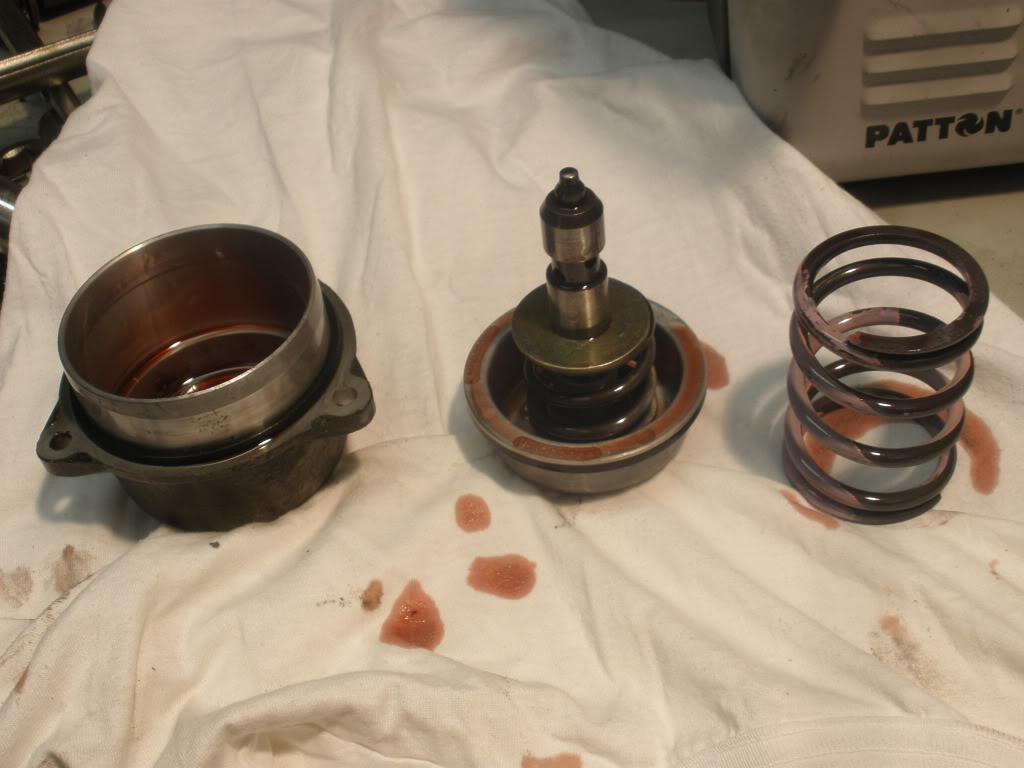

All looks good.
Name:  P2160143.jpg
Views: 0
Size:  100.9 KB

Nothing wrong here either.
Name:  P2160144.jpg
Views: 0
Size:  213.5 KB

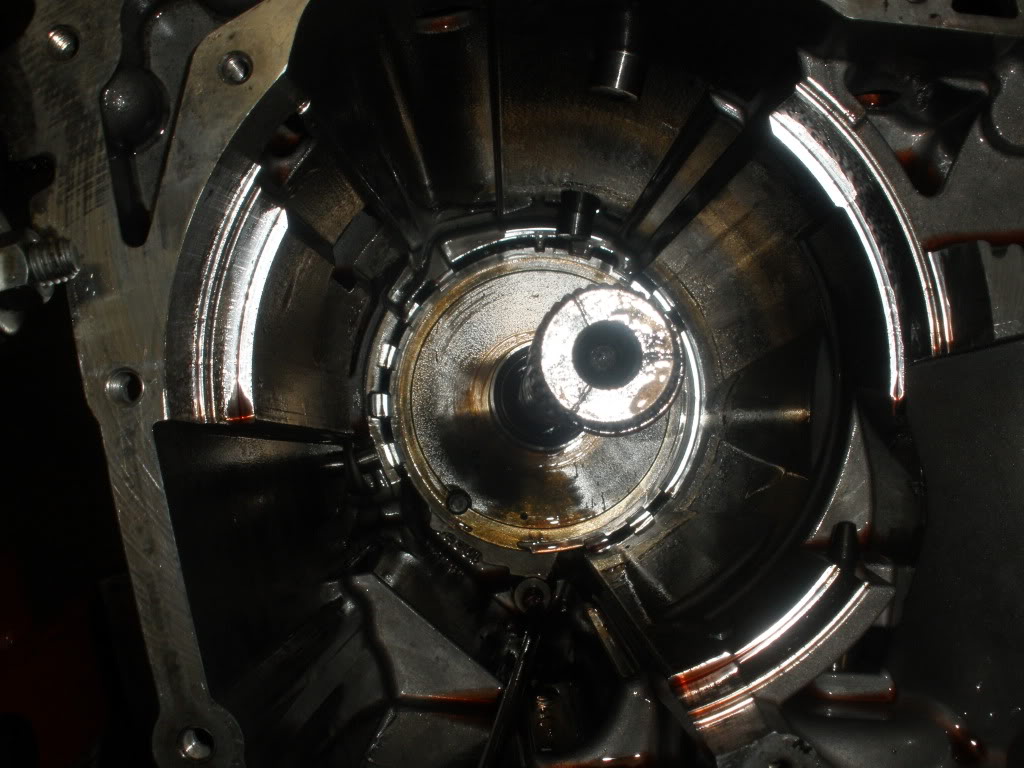

Pulled everything out.
Name:  P2160145.jpg
Views: 0
Size:  138.5 KB

Looks fine, no damage.

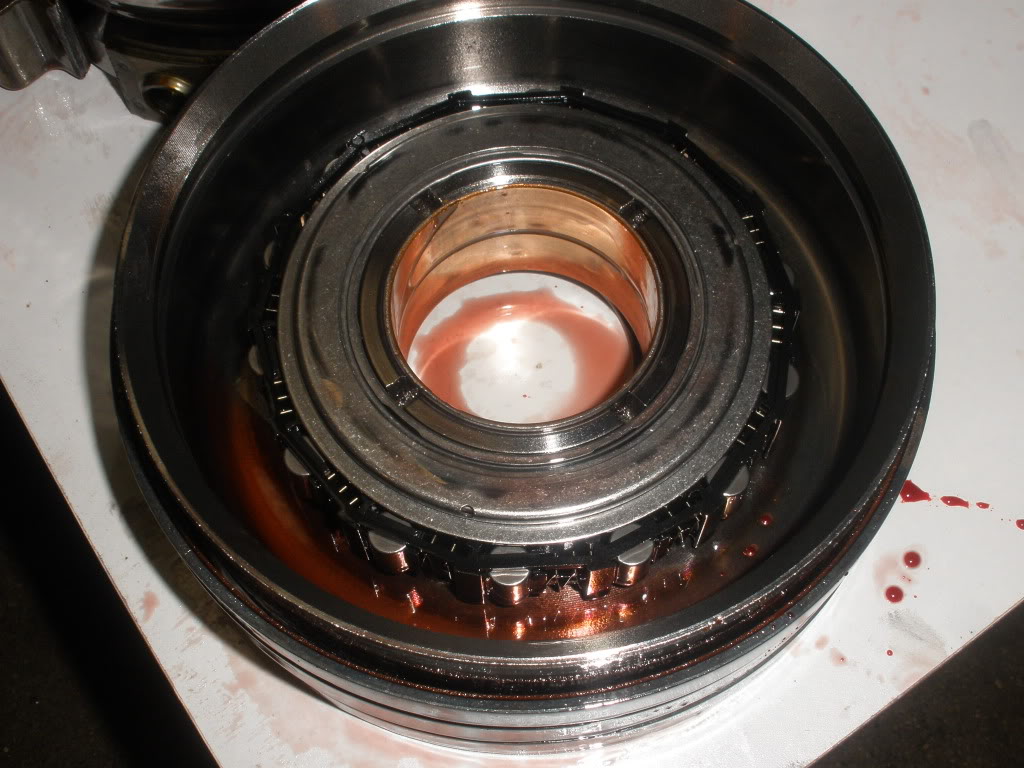

Nothing wrong here that I can see.
Name:  P2160147.jpg
Views: 0
Size:  148.9 KB

Again, no damage or wear.
Name:  P2160148.jpg
Views: 0
Size:  113.5 KB

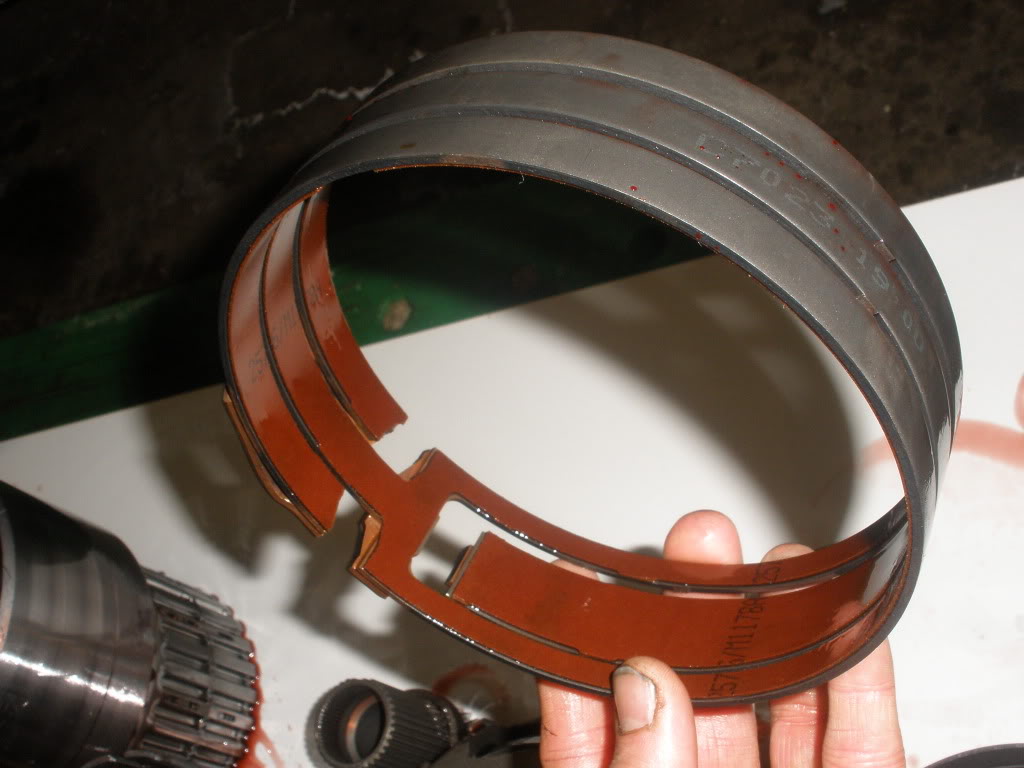

This band is not broken.
Name:  P2160149.jpg
Views: 0
Size:  99.5 KB

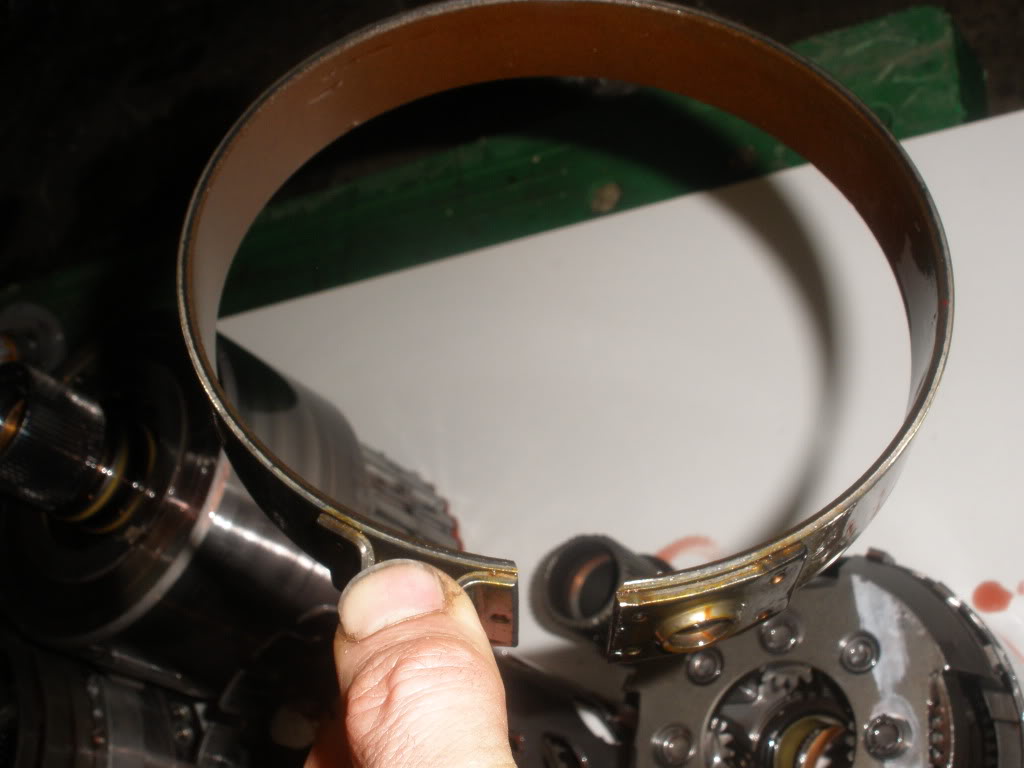

This one looks fine.
Name:  P2160150.jpg
Views: 0
Size:  82.3 KB

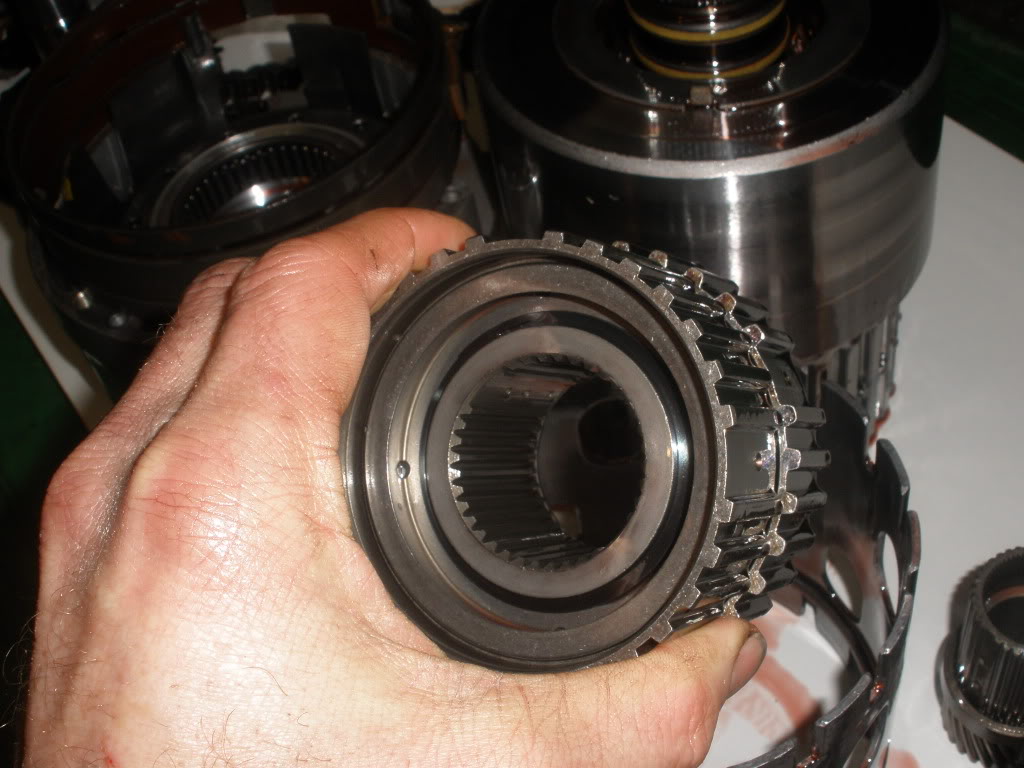

I see nothing wrong here.
Name:  P2160151.jpg
Views: 0
Size:  127.6 KB

Another band, not broken.
Name:  P2160152.jpg
Views: 0
Size:  144.8 KB

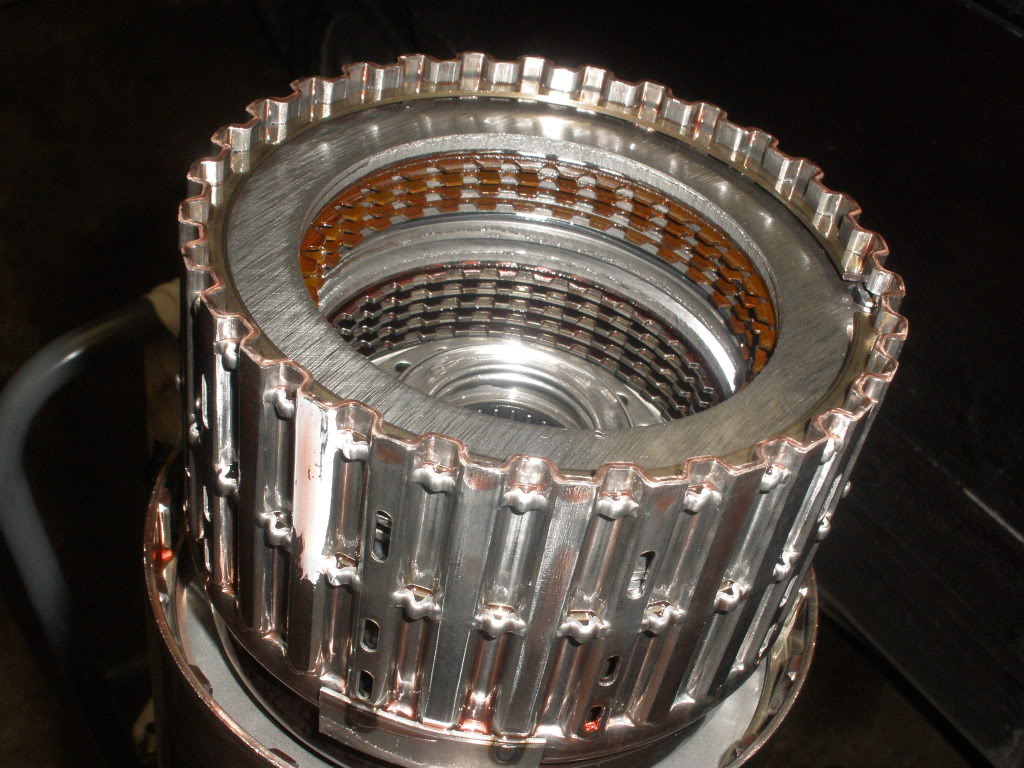

Clutch pack. Guess I'll be repacking these.
Name:  P2160153.jpg
Views: 0
Size:  176.7 KB

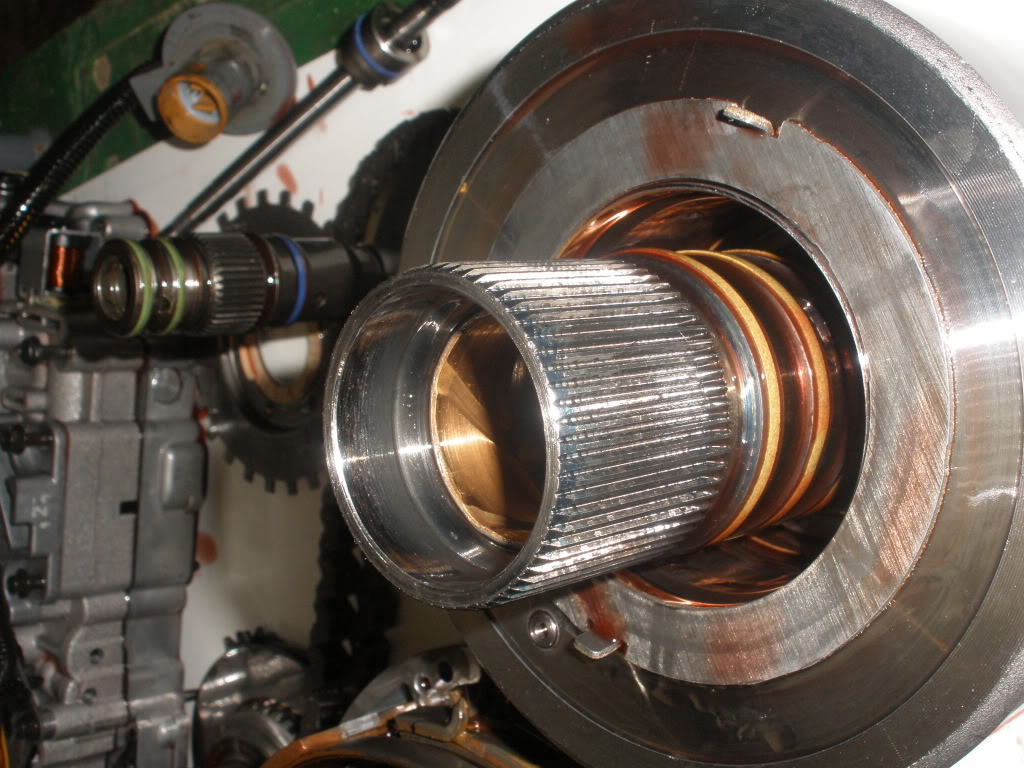

Again, no wear.
Name:  P2160154.jpg
Views: 0
Size:  168.7 KB

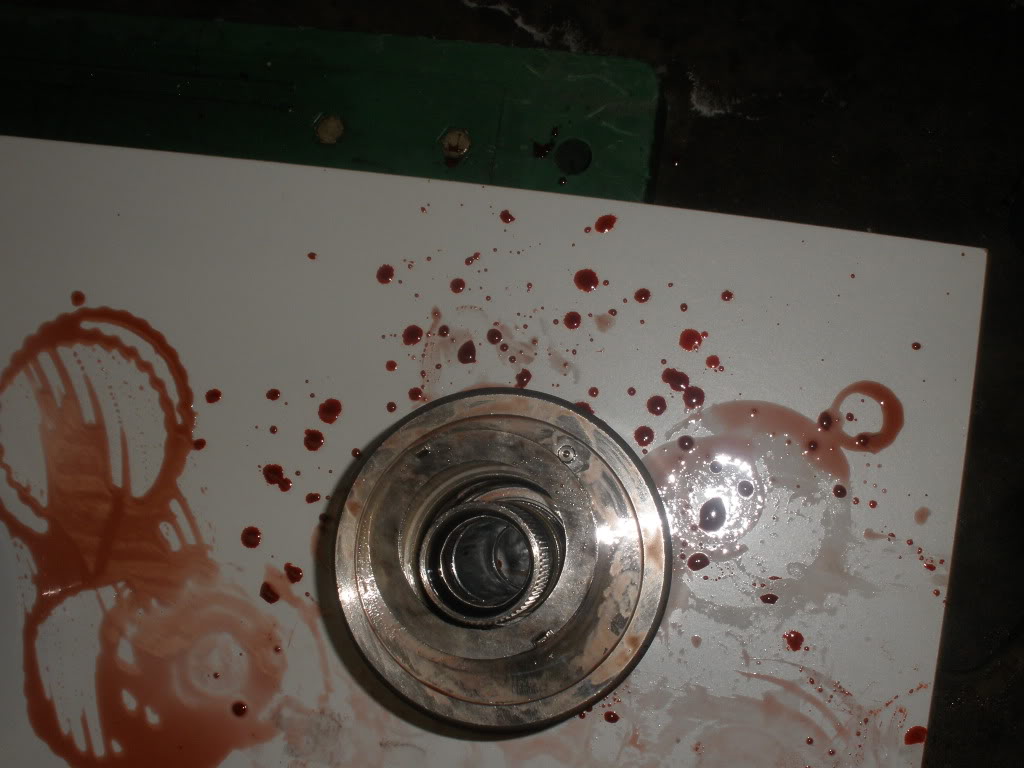

Started putting things back together and I said to myself, where is all this trans fluid coming from. man, that'* dark. Hmm, that'* not trans fluid.
Name:  P2160155.jpg
Views: 0
Size:  109.5 KB

Got my self real good. Was squirting all over. My daughter had to help put a band aid on.
Danthurs is offline   Reply With Quote
Old 02-16-2010, 05:49 PM   #312
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I must say I'm starting to run out of ideas here. Solenoids checked out, and mechanically everything seems to check out. I may have to swap out valve bodies, I have 3 more here. Still open for suggestions on what to check.
Danthurs is offline   Reply With Quote
Old 02-16-2010, 06:09 PM   #313
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Quote:
Originally Posted by Danthurs View Post
Got my self real good. Was squirting all over. My daughter had to help put a band aid on.
I don't think you can do an oil change on yourself Dan.. not sure what you would fill back up with either, Guinness?

Also, I've got a couple thoughts. You said you felt there was a chance a wire had broke on the pcm, and that you checked them all and they were good. What if one of the wires was not broken, but loose, grounding, dirty pin, etc. Maybe try testing again, wiggle wires, do another visual inspection, clean contacts. Thinking back to what was most recently changed, it would make sense.
ymmot04 is offline   Reply With Quote
Old 02-16-2010, 06:17 PM   #314
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I did check the wires real good, but I will have to check again. I'm getting confused on this. So far I can rule out a mechanical failure. nothing it broke. I feel it'* a pressure problem. Seems like the clutches are not locking in. Or the bands are just sliding. I still have the 2-1 manual servo to check, and then it'* open up the valve body. could be a stuck valve, I'm just not sure at this point. I may swap out valve bodies and solenoids, I'm just not sure right now.
Danthurs is offline   Reply With Quote
Old 02-16-2010, 06:30 PM   #315
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Did you try turning the one way bearings to make sure they operate properly?

Double up on the bandaid.. trannies have sharp objects
BillBoost37 is offline   Reply With Quote
Old 02-16-2010, 06:35 PM   #316
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I believe it checked out, but will double check when I'm no longer bleeding all over.
Danthurs is offline   Reply With Quote
Old 02-16-2010, 06:40 PM   #317
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Not it.. them.. plural

Unless you get us a picture.. we are going to call you a girl on the cut.

(Although there was a good amount)
BillBoost37 is offline   Reply With Quote
Old 02-16-2010, 10:58 PM   #318
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

By the way, what I took a picture of was nothing. There'* blood on the camera, blood on the Corvette, after I realized that was blood on my hand and not trans fluid I'm like now what, I'm jumping around looking for a clean rag, it was squirting out. now 6 hours later and if I take the band aid off it starts bleeding bad. My wife said I'm going in for stitches tomorrow if it hasn't stopped.

After enough PMs to shut down my mail box it'* looking like this may be a simple EPC solenoid. That'* pressure control. Steve said it'* a weak link in these transmissions and he replaces them every time he has them on the bench. When I tested it the ohms were a bit high. So I'm getting a new one, not using a old one. If I still have my finger I'll have to start getting things back together. All this work for a simple solenoid. Hmm.
Danthurs is offline   Reply With Quote
Old 02-16-2010, 11:03 PM   #319
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

It'* good preventative maintenance Dan! Better you beef it up now than wait till you blow something and risk really screwing up the trans. Hope the solenoid fixes the problem.
ymmot04 is offline   Reply With Quote
Old 02-16-2010, 11:09 PM   #320
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

As much as I'm not liking doing this. In the end it'* for the best. I'm adding hardened parts. and changing the gears and torque converter. I'm learning a lot. And most important, it'* better then blowing it and being on the side of the road.
Danthurs is offline   Reply With Quote
