Let'* not forget I also changed the throttle body and MAF.

Think of it this way. The PCM needs to know how much air can enter the engine for each condition, ie, RPM, and load. This is the VE table, volumetric efficiency. This is a hard coded table and is the starting point for all calculations to setting the AFR, Air fuel ratio. The PCM can adjust this by -20 to +20. If you look at that one chart, the histogram shows how much the PCM has to adjust. These readings are very far form zero, zero is the aim point. By changing how much air can enter the engine (cam change, throttle body, porting heads, etc) the tables need to be changed. If this table is not set correctly then all calculations will be off.
Danthurs is offline   Reply With Quote
Old 02-12-2010, 12:11 AM   #242
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

I'm curious, has anyone used the real time tuning for hp tuners? I would think if you had two people it could cut down on the time it takes for a good tune. One to drive, one to tune.
ymmot04 is offline   Reply With Quote
Old 02-12-2010, 12:20 AM   #243
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I've never tried it. Can't even find it.
Danthurs is offline   Reply With Quote
Old 02-12-2010, 12:23 AM   #244
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Real Time Tuning It is the first item on the list. Cost 2 credits for one vehicle.
ymmot04 is offline   Reply With Quote
Old 02-12-2010, 12:32 AM   #245
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Those are all V8s.
Danthurs is offline   Reply With Quote
Old 02-12-2010, 12:34 AM   #246
Senior Member
Posts like a Northstar

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

Quote:
Originally Posted by ymmot04 View Post
Real Time Tuning It is the first item on the list. Cost 2 credits for one vehicle.
When are you getting HP???????
Rockstar04 is offline   Reply With Quote
Old 02-12-2010, 12:36 AM   #247
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Quote:
Originally Posted by Danthurs View Post
Those are all V8s.
LOL, guess that doesn't mean Version 8 after all.

Quote:
Originally Posted by Rockstar04 View Post
When are you getting HP???????
Soon as my car is ready
ymmot04 is offline   Reply With Quote
Old 02-12-2010, 08:44 AM   #248
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

By putting in the LS1 maf table you should help the tune. Definatley changed everything up for sure.

Real time tuning like Dan mentioned..and my understanding was...only V8'*.
BillBoost37 is offline   Reply With Quote
Old 02-12-2010, 12:58 PM   #249
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

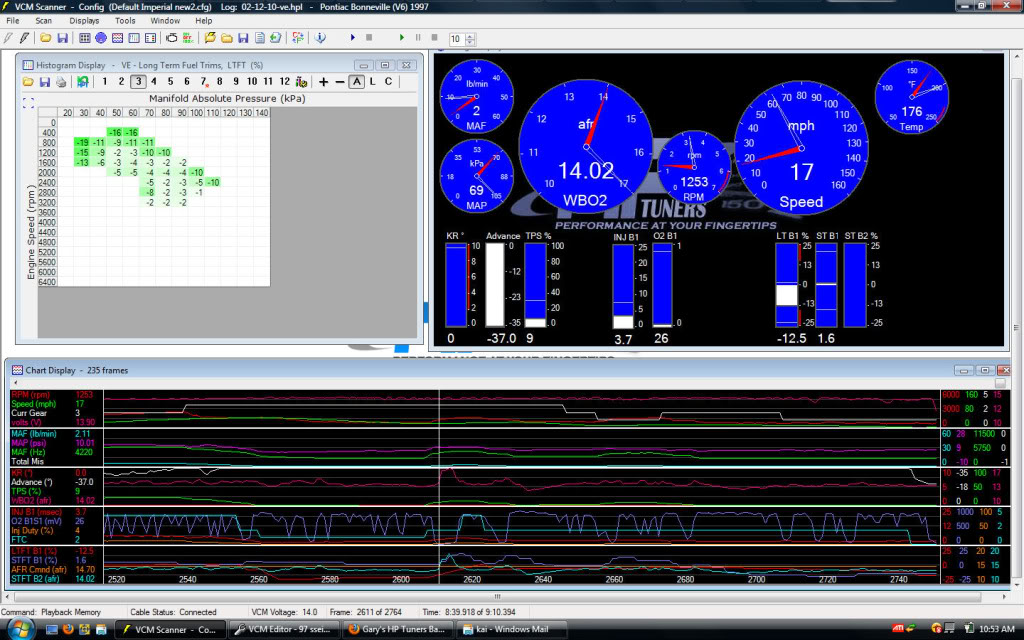

Was able to make a short VE run this morning. Slowly coming back in to shape.
Name:  02-12-10-ve-1.jpg
Views: 4
Size:  169.6 KB

I think I've got 2 or 3 more runs and it should be very close.

Edit.

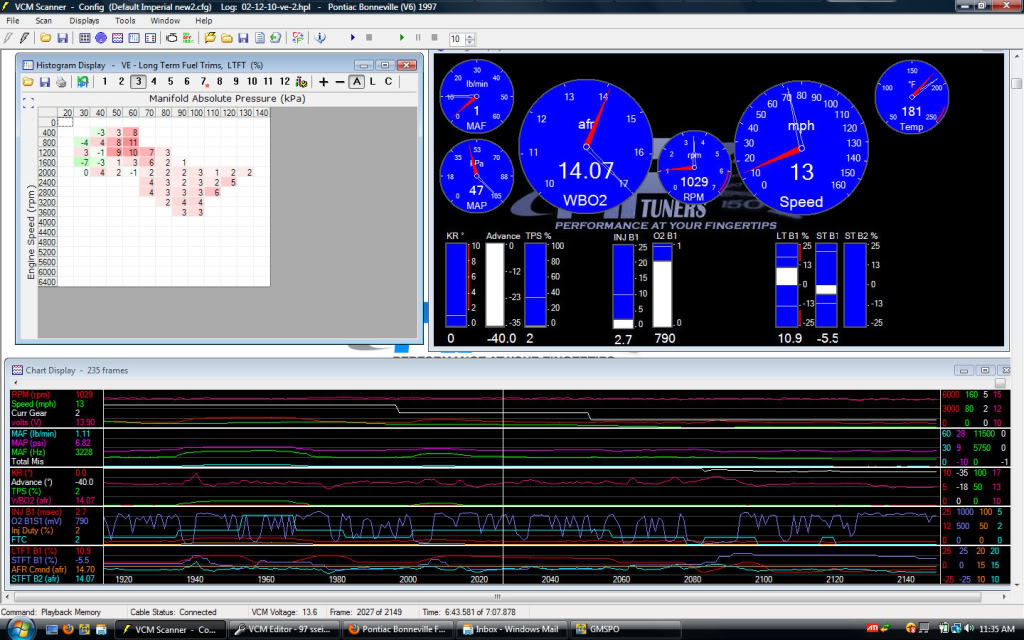

Next run is way better, as you can see most but not all numbers are within the -5 to +5 range.
Name:  02-12-10-ve-2.jpg
Views: 5
Size:  168.2 KB
Danthurs is offline   Reply With Quote
Old 02-12-2010, 06:03 PM   #250
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

After getting the VE tune to where I was happy, I scrapped out my MAF curve and started out with a stock LS1 curve, then went back to a stock PE table. The object here is to get the LTFT as close to zero -5 to +5.

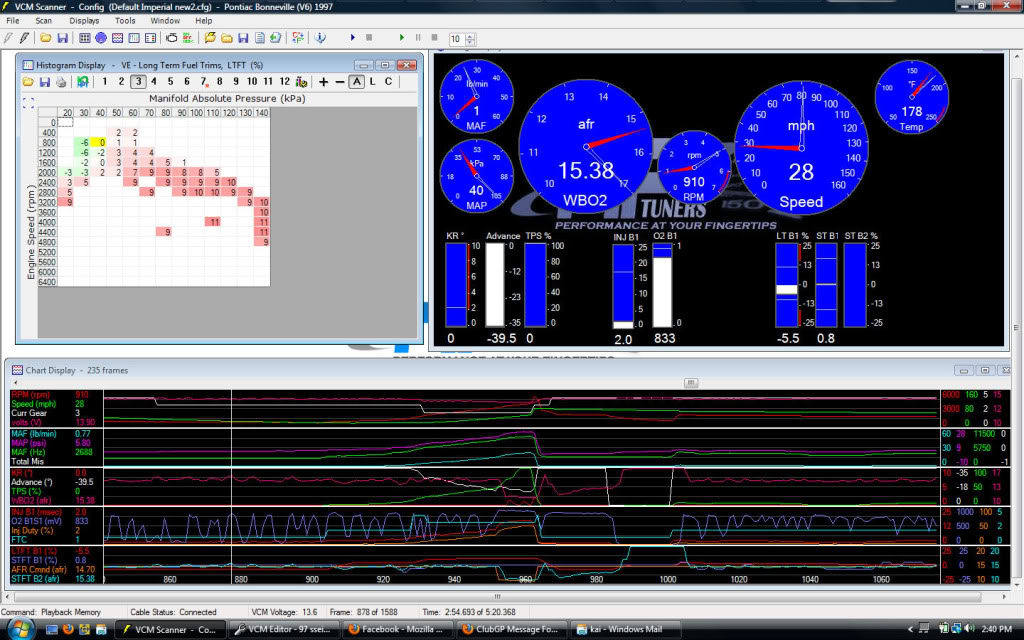

Run number 2, I didn't even save the scan from run 1
Name:  02-12-10-maf-2.jpg
Views: 3
Size:  169.8 KB

As you can see, I was off a bit, numbers all over. After several tweaks of the MAF curve, I got it a bit closer.
Name:  02-12-10-maf-3.jpg
Views: 2
Size:  171.6 KB

A few more tweaks and a few more runs, and it'* even closer.
Name:  02-12-10-maf-4.jpg
Views: 3
Size:  172.5 KB

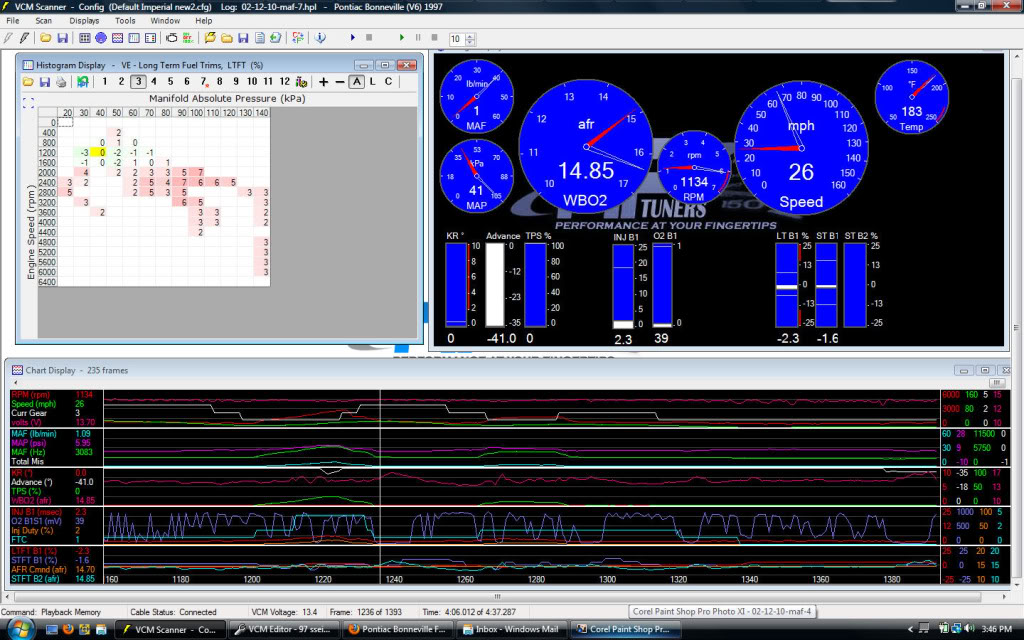

After 8 runs, I have it very close. I made one last tweak at the 5000hz and up range, that should bring that area down a bit more.
Name:  02-12-10-maf-5.jpg
Views: 4
Size:  171.6 KB

But all in all, I have it very close. The car feels stronger each time I go out. When working on the PE table I had some KR. Starting the tune I had a lot, like over 5*, as I got the MAF dialed in that dropped to 2.5*, but then I noticed my IC pump was turned off, oops. Turned that back on, added a little bit of fuel to the PE table, and no KR to speak of. I get a small spike here and there but mainly because I'm doing a rolling start. Once floored I have no KR. Ignore the wide band readings. I don't trust it. I'll be doing a free air calibration as soon as I can.

On my last run I was going 50mph and floored it. Trans down shifted and the tires broke loose. Wow.
