Spring build comes early

Thread Tools

Search this Thread

Old 02-14-2010, 09:33 PM
  #271
Retired



Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Dark Side, AZ
Posts: 17,920
Received 1,780 Likes on 1,304 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Wow Bill, you do it EXACTLY the way I do it. Except I use an old 500ft lb torque wrench as a pry bar.
__________________
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel

Old 02-14-2010, 09:35 PM
  #272
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 28 Likes on 24 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Well, that'* a whole lot easer then what I did. Drivers side is still there so I'll do it that way there.
Old 02-14-2010, 10:56 PM
  #273
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Likes: 0
Received 8 Likes on 8 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

There is always the tranmission guy way.

Pop the ball joints and then just pop the axles out of the trans side only. For me, they get in my way. On a lift..you can use straps to hold the struts/axles out the way.
Old 02-15-2010, 08:06 AM
  #274
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 28 Likes on 24 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I'll be back to work about 10, got things to do this morning.
Old 02-15-2010, 08:15 AM
  #275
Retired



Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Dark Side, AZ
Posts: 17,920
Received 1,780 Likes on 1,304 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

How are getting the trans out Dan? Through the bottom or you taking both out at the same time?
__________________
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel

Old 02-15-2010, 08:17 AM
  #276
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 28 Likes on 24 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Going out the bottom. I plan to hook my engine hoist up to the engine to hold it in place. After the trans is lowered down I'll move the jack to the engine and then remove the hoist and lift the trans to the stand.
Old 02-15-2010, 08:22 AM
  #277
Retired



Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Dark Side, AZ
Posts: 17,920
Received 1,780 Likes on 1,304 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Good deal!
__________________
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel

Old 02-15-2010, 10:40 AM
  #278
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Likes: 0
Received 8 Likes on 8 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I'd advise against the hoist part. There isn't really room for a jack, the hoist, a person etc under there. Things will get in the way of each other.

In 92-99 there is a TA or passenger side mount that holds the motor. Get a 4x4 and some chain and chain from the rear head to the front head (on the drivers end of the heads) to hold the motor. This is how I've done my trans and many others lots of times. It'* pretty goof proof and the least amount of work.

Yeah, there'* pictures in my photobucket somewhere..lol
Old 02-15-2010, 01:41 PM
  #279
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 28 Likes on 24 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

After picking up a new breaker bar I got to work. About two hours today so far. So I'm taking a little brake to eat and warm up.

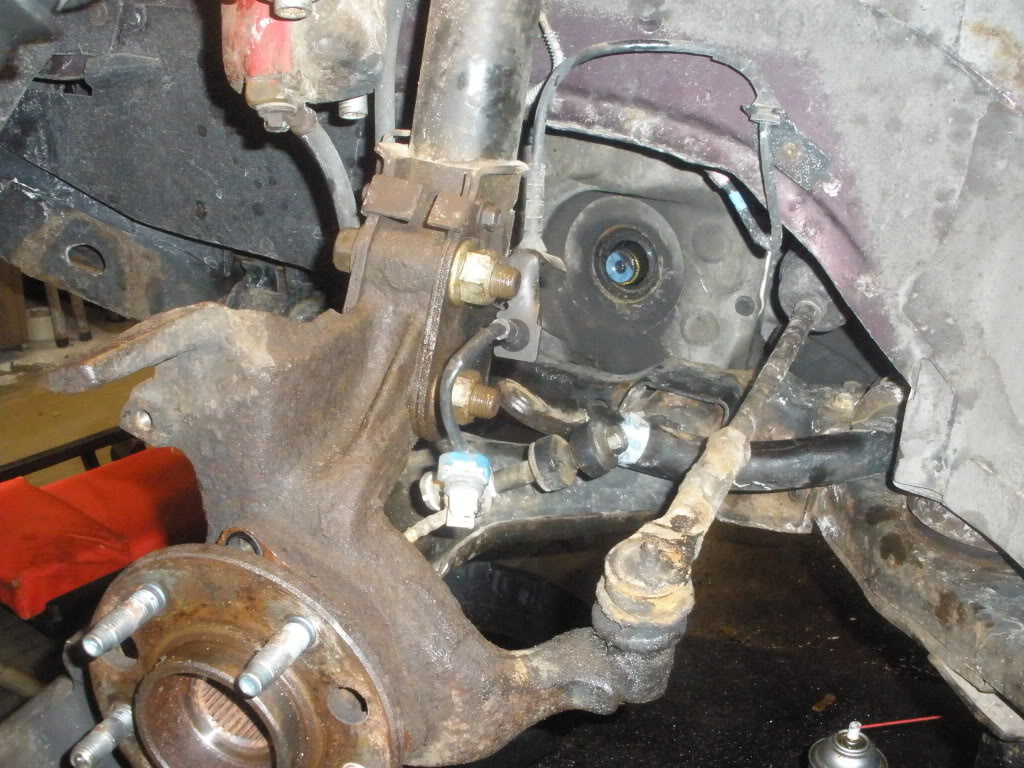

It fought me a lot, but I got the drivers side axle out.
Name:  P2150099.jpg
Views: 29
Size:  193.7 KB

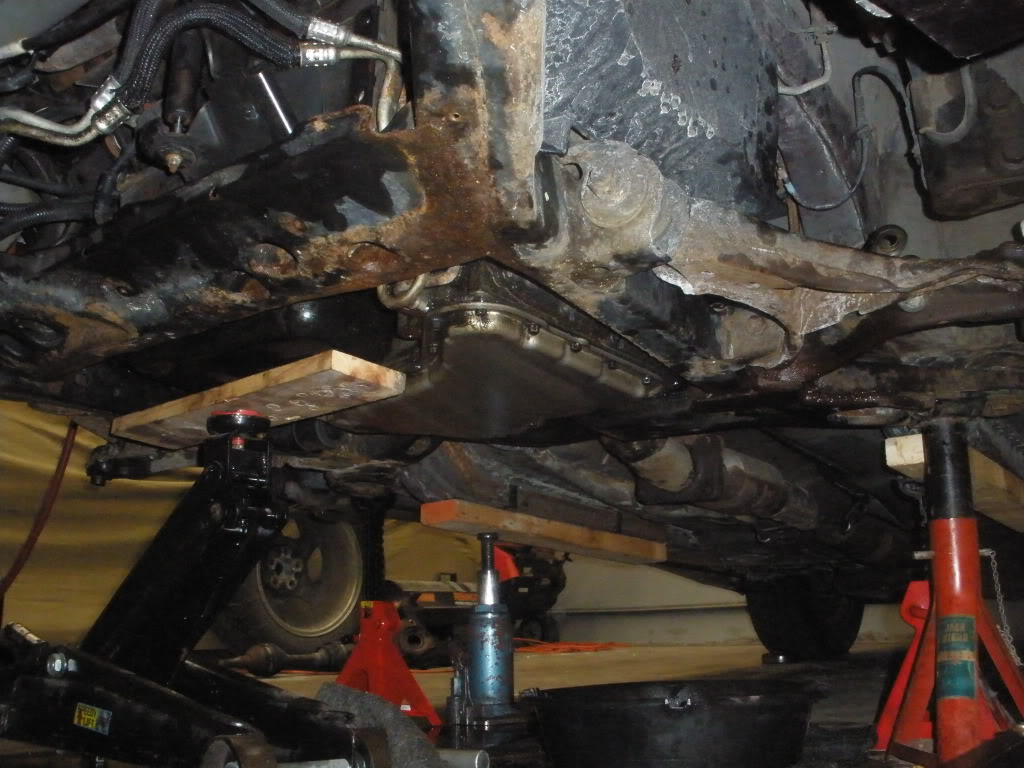

Then I jacked up the engine a bit
Name:  P2150101.jpg
Views: 14
Size:  153.1 KB

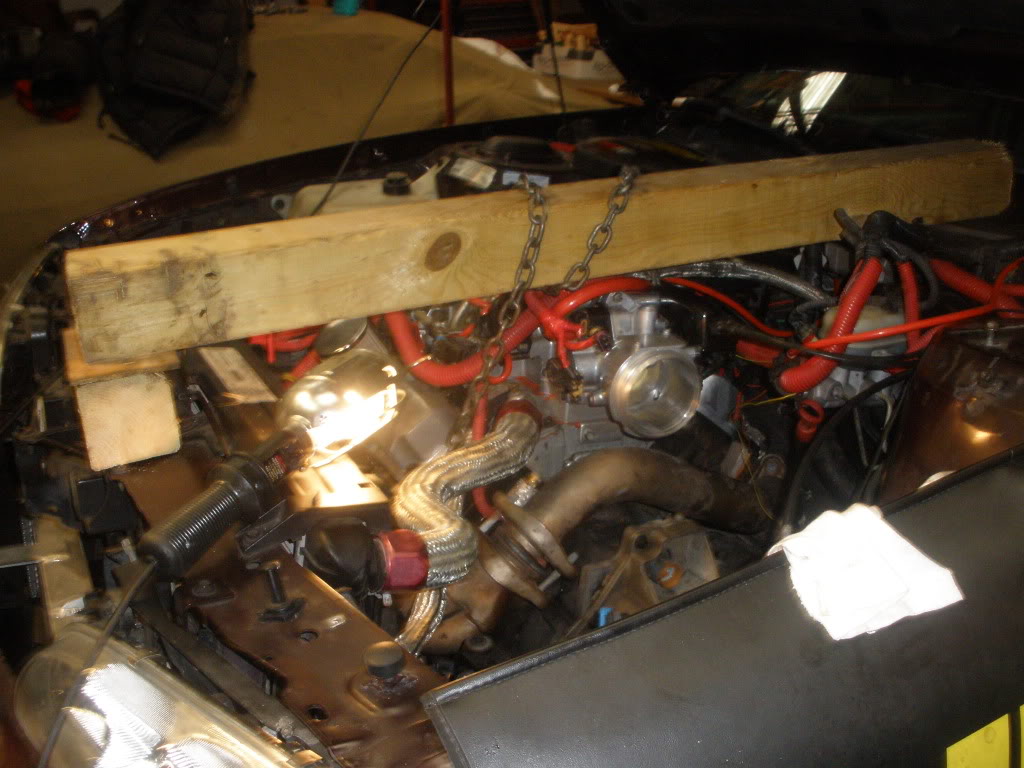

And chained it up so I could remove the jack.
Name:  P2150100.jpg
Views: 12
Size:  133.4 KB

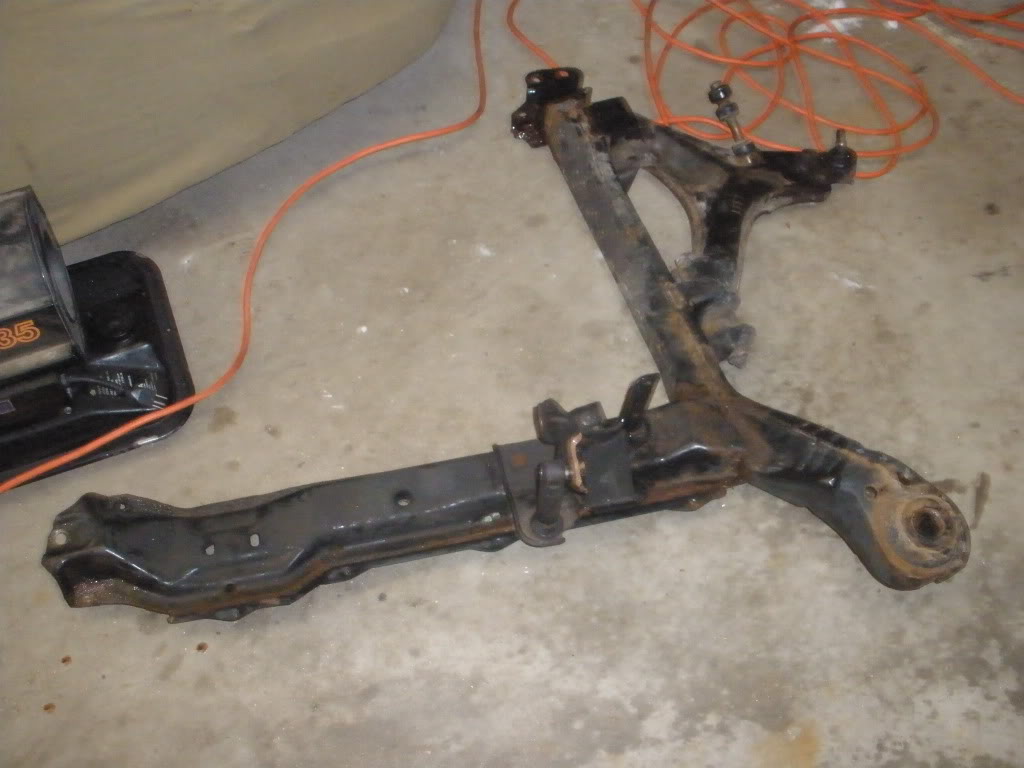

Split the sub frame. Really wasn't that hard. Had to work a bit getting a few bolts out, but really not bad. Gave it a wiggle and noticed I missed one bolt on the front trans mount, no big deal.
Name:  P2150102.jpg
Views: 12
Size:  95.9 KB

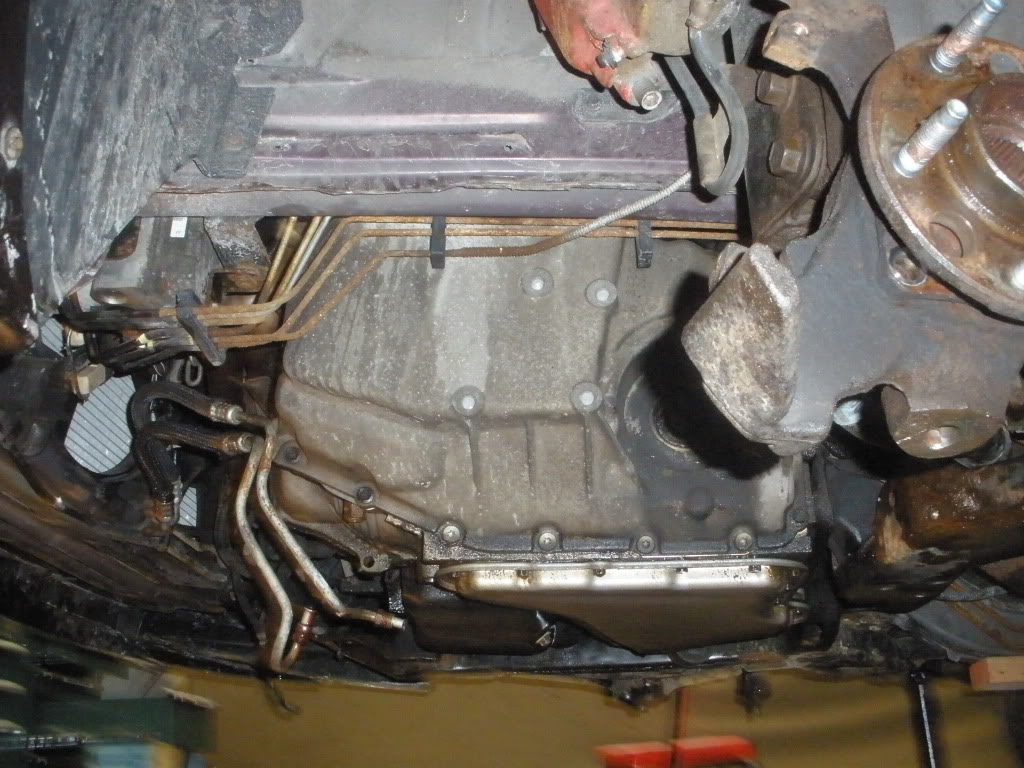

Now I have a ton of space.
Name:  P2150104.jpg
Views: 12
Size:  171.9 KB

Heading out again to pull the starter, then it'* jack up the trans and remove the mounts, undo the bolts attaching it to the engine and flex plate, then split it and lower. A few more hours I figure.
Old 02-15-2010, 02:45 PM
  #280
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Likes: 0
Received 8 Likes on 8 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Looking really good. One trick I sometimes use is leaving the DS axle in until the subframe is pulled. Once the sub is out of the way it'* a clear shot with the prybar.

Another tip would be to go ahead and put the brakes back together when you are waiting on parts. They can stay completely together to save a little time.

How'd you like that inside back cradle bolt that is up in or the trans mount bolts? Not horrible...but not fun.

You've done a ton of work for the time invested. Like I always say..taking pics doubles the time. And it does.
