What I've been working on... Turbo GP SOLD! - Page 19 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Pontiac When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 11-13-2010, 01:14 AM   #181
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default








Jonpro03 is offline   Reply With Quote
Old 11-13-2010, 03:21 AM   #182
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

That'* awesome! You're really moving fast with this project. No pressure, but are you going to have a valve on the PCV, and will there be some rerouting of the intake tubing?
radomirthegreat is offline   Reply With Quote
Old 11-13-2010, 09:02 AM   #183
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

No and no, sending boost into the crankcase is not a good thing! LOL

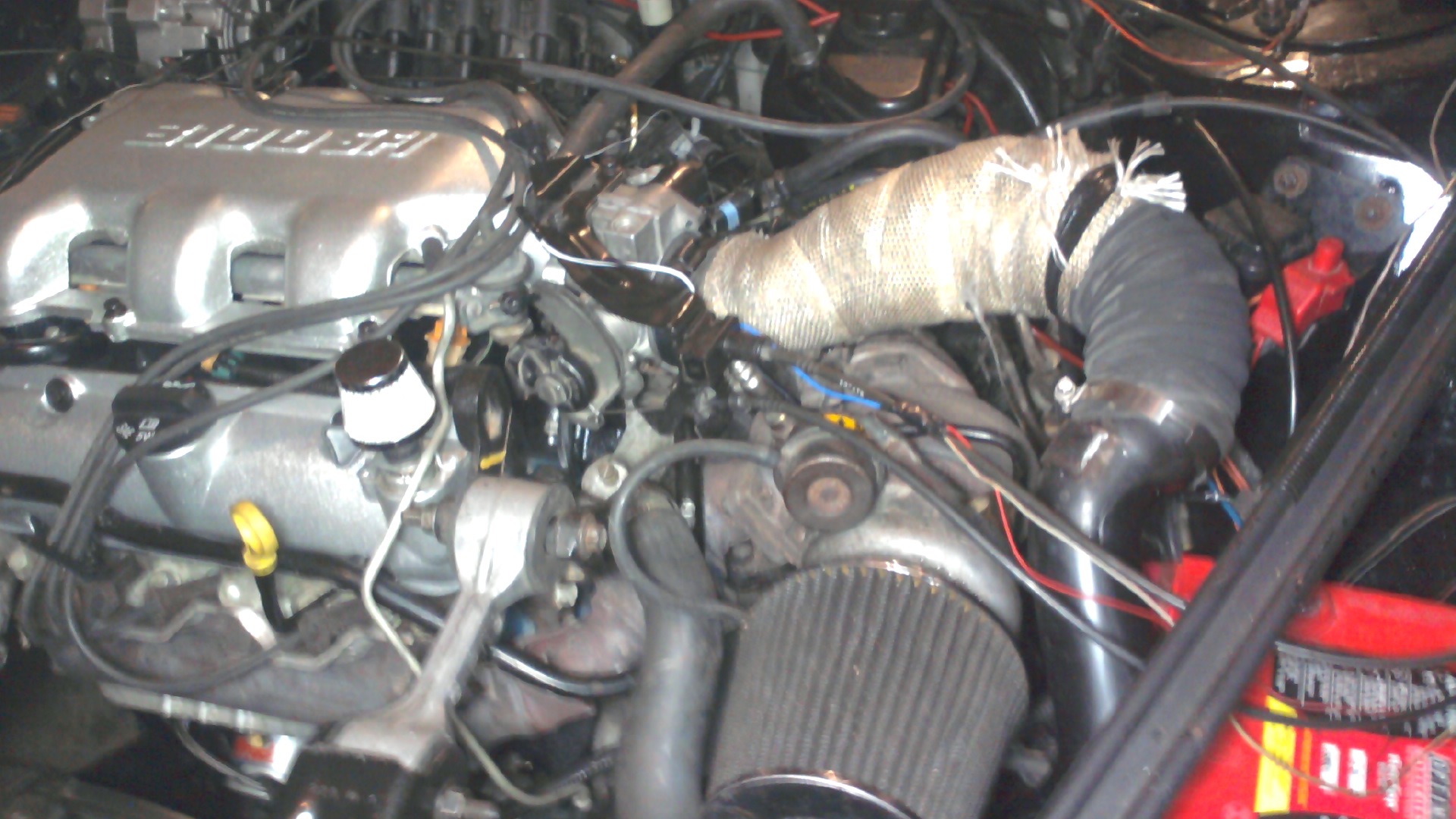

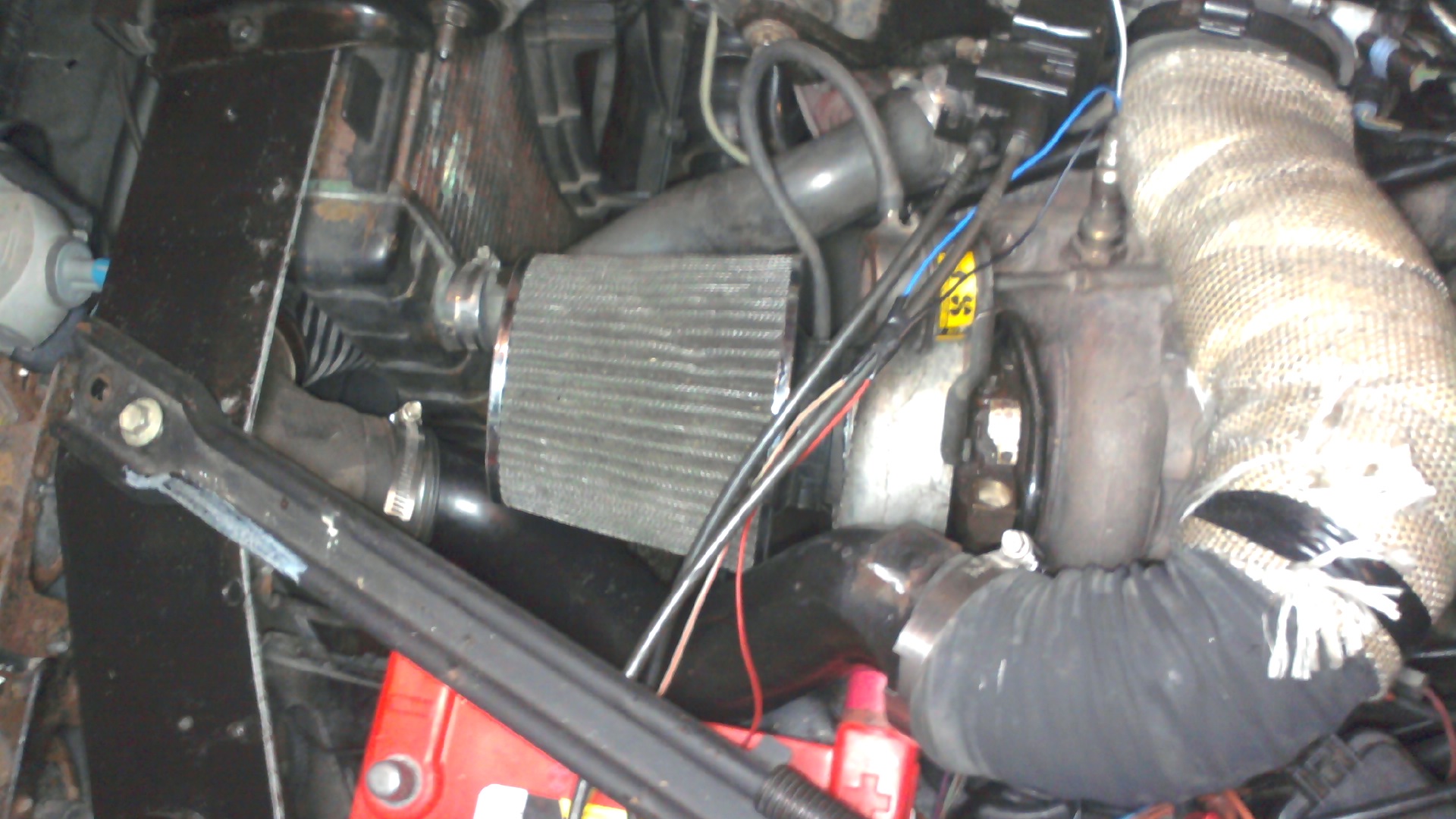

As for the intake tubing, for now this will have to do. I don't have any money to have a system built. The turbo side of the charge pipes are fine and I'm gonna call them permanent. The throttlebody side is another story. I really need to relocate the o2 sensor.
Jonpro03 is offline   Reply With Quote
Old 11-13-2010, 07:39 PM   #184
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

I was kind of referring to a small valve that sits where the filter is now and then the filter on that valve. It'* not really supposed to make contact with the intake, and it shouldn't look much different than it does now. I have that on the Alero, and it helps me collect nasty-looking gunk in the PCV area. I don't know why that'* an advantage.
radomirthegreat is offline   Reply With Quote
Old 11-13-2010, 09:17 PM   #185
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

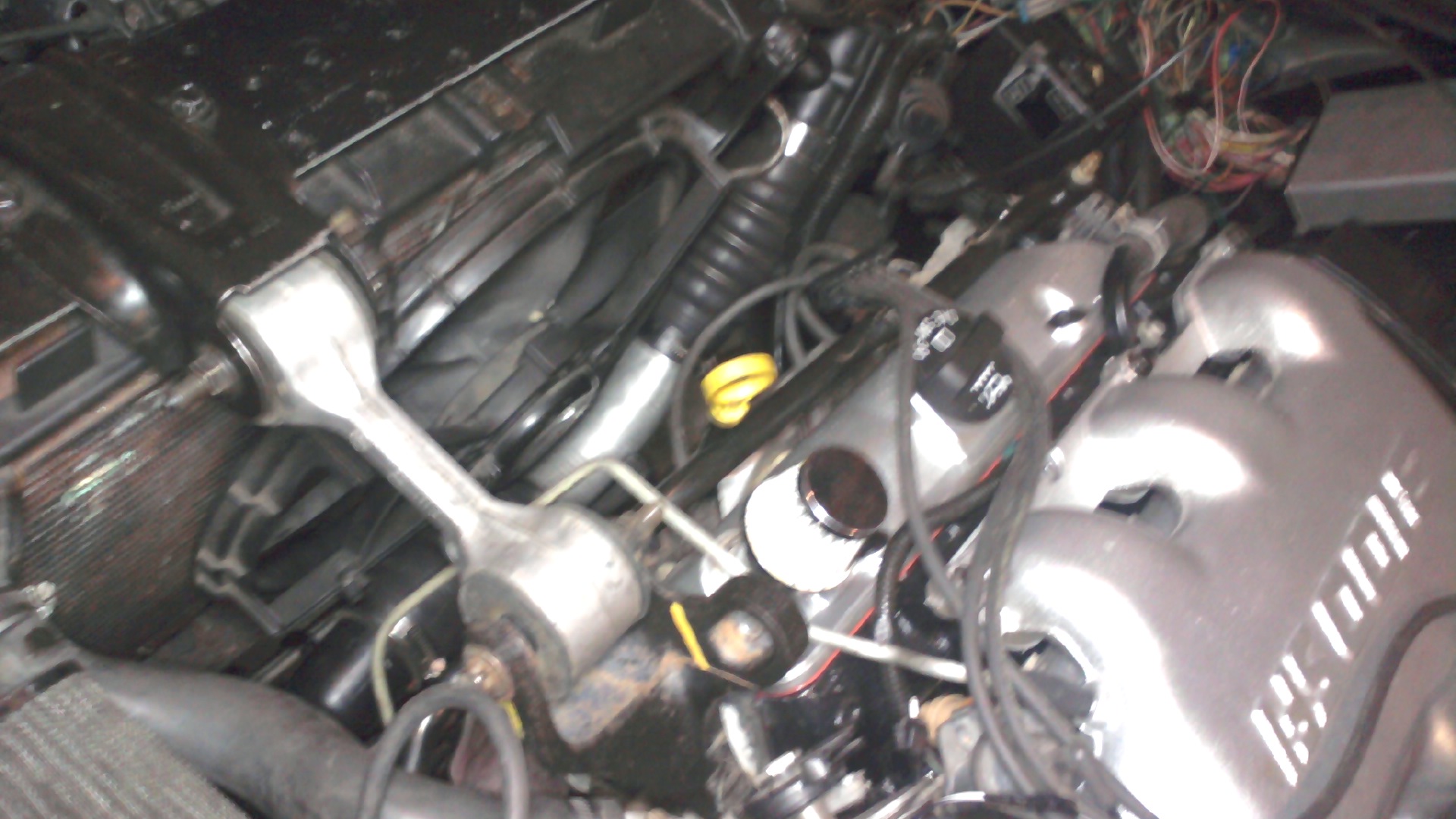

Oh! Ya, the PCV valve is there, just can't see it under the filter
Jonpro03 is offline   Reply With Quote
Old 11-14-2010, 12:29 AM   #186
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

[YT]http://www.youtube.com/watch?v=WZ4TLqJouZg[/YT]
I spent a lot of time tuning today. I've got a great idle. Throttle response has improved greatly.

I still have no O2 signal!

so I still have not autotune...
Jonpro03 is offline   Reply With Quote
Old 11-14-2010, 08:48 AM   #187
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

Wow, it sounds loud. Does it sound good in person?
radomirthegreat is offline   Reply With Quote
Old 11-14-2010, 10:04 AM   #188
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

It sounds loud! LOL

It'll sound a lot better once I put the exhaust on.
Jonpro03 is offline   Reply With Quote
Old 11-14-2010, 08:25 PM   #189
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Thumbs up

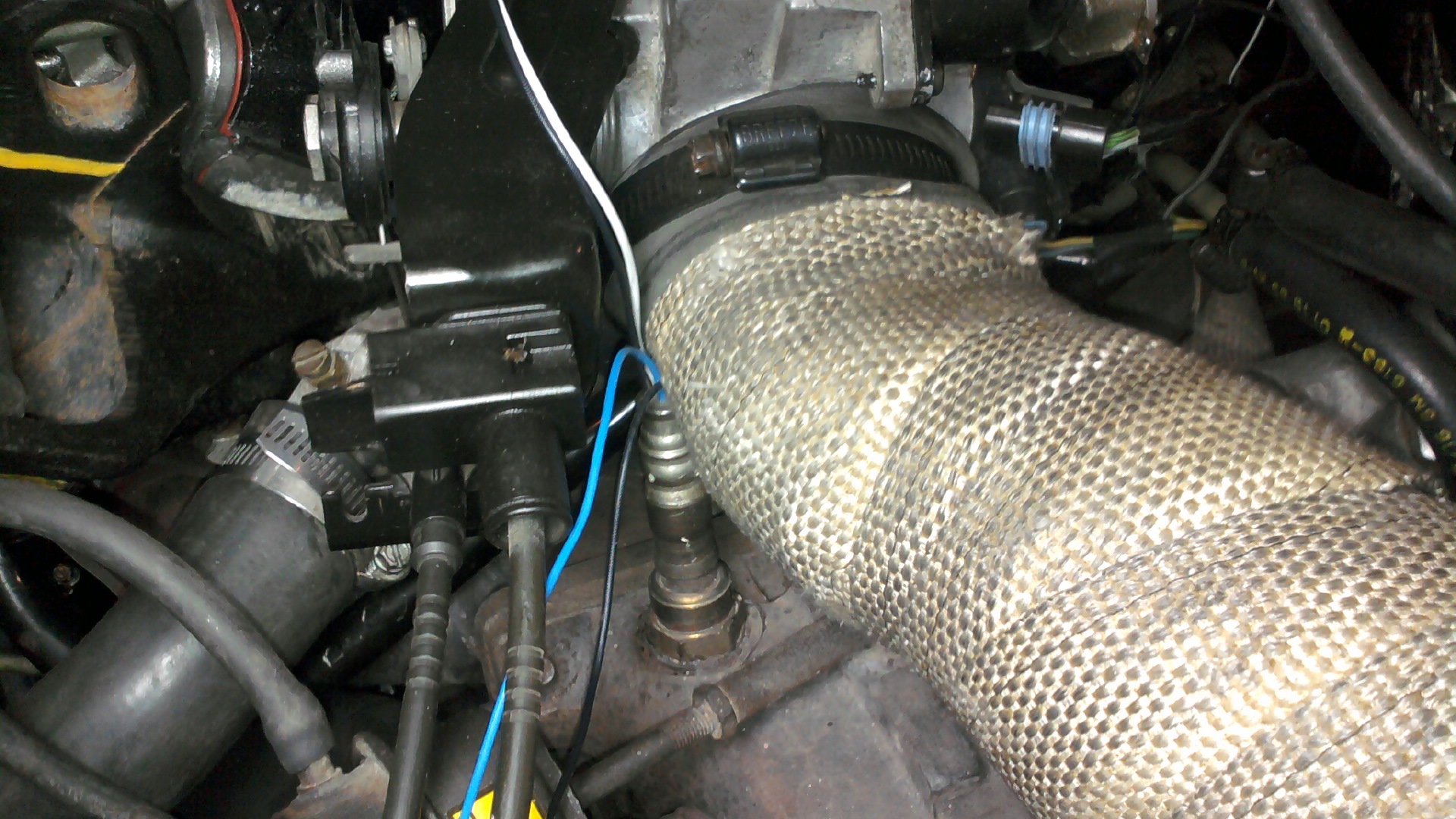

I got the o2 sorted out today. Now I can turn on autotune.

I put a load on the engine by putting it in drive and holding the brake pedal. Then autotune makes corrections to my fuel curve based on o2 readings.

In this video, watch the EGO Correction gauge. If it goes over 100, it'* adding fuel to the curve, under 100 and it removes fuel. I downloaded the fuel map off of the internet from a guy who was running a turbo 3400 on a megasquirt. You can see that once it starts to spool, the map i downloaded is actually pretty accurate.

[YT]http://www.youtube.com/watch?v=awEFmxLAfnc[/YT]
Jonpro03 is offline   Reply With Quote
Old 11-14-2010, 08:30 PM   #190
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

Wow, did I just see it autotune itself a bit? I noticed the second time around on the gas pedal, you didn't actually have too much of a fueling issue.
radomirthegreat is offline   Reply With Quote
