Well I've been working with some other Megasquirt guys on developing a LCD dash/gauge cluster. The LCD screen will be purchased, but the controller needs to be designed and built. My role in all of this was to turn this drawing:



into something practical.

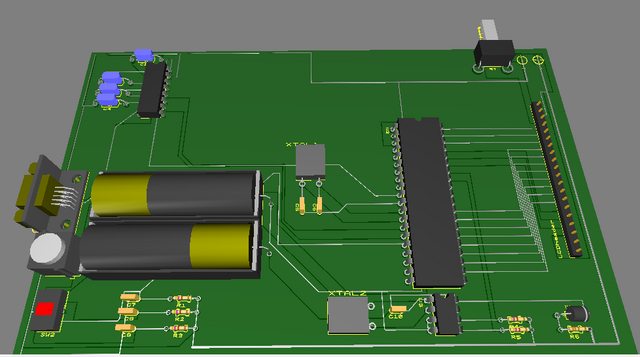

And here is the result.




There'* still a lot of room at the top of the PCB. There are still a couple of inputs on the processor to fill in with .... something. Maybe a speed sensor circuit for a speedometer or something. Also, this board runs on 5V which is currently set up to be supplied by the Megasquirt. I think it would be a good idea for it to have it'* own power supply circuit.
Jonpro03 is offline   Reply With Quote
Old 03-22-2011, 11:30 PM   #282
Senior Member
Posts like a Northstar

RobertISaar's Avatar

Join Date: Jul 2010
Location: Camden, MI
Posts: 615
Thanks: 0
Thanked 0 Times in 0 Posts
RobertISaar is on a distinguished road
Default

check it out, it runs on AA cells!

also, a 5 volt regulator is easy enough to integrate into nearly any design...
RobertISaar is offline   Reply With Quote
Old 03-22-2011, 11:35 PM   #283
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

Nah, those are backup for the clock/calender. Its a PCF8583. It wasn't my idea to use two AA batteries. Honestly, on my board, I'll just use an old cell phone battery.
Jonpro03 is offline   Reply With Quote
Old 03-23-2011, 07:20 AM   #284
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Jon.. just an idea. On pinball machines etc they used to put AA batteries on the PCB'* for memory etc like in your case. Over time or jostling around the batteries would sometimes leak and corrode/destroy the pcb. With all the work you've done, I'd hate to see that happen. A cheap RS plastic battery tray with wires running to the pcb can be a wonderful thing when batteries leak.
BillBoost37 is offline   Reply With Quote
Old 03-23-2011, 09:52 AM   #285
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

I agree with you. I don't understand why it'* even necessary in the first place. I mean, the car has a battery. But it'* not my design...
Jonpro03 is offline   Reply With Quote
Old 03-23-2011, 02:31 PM   #286
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

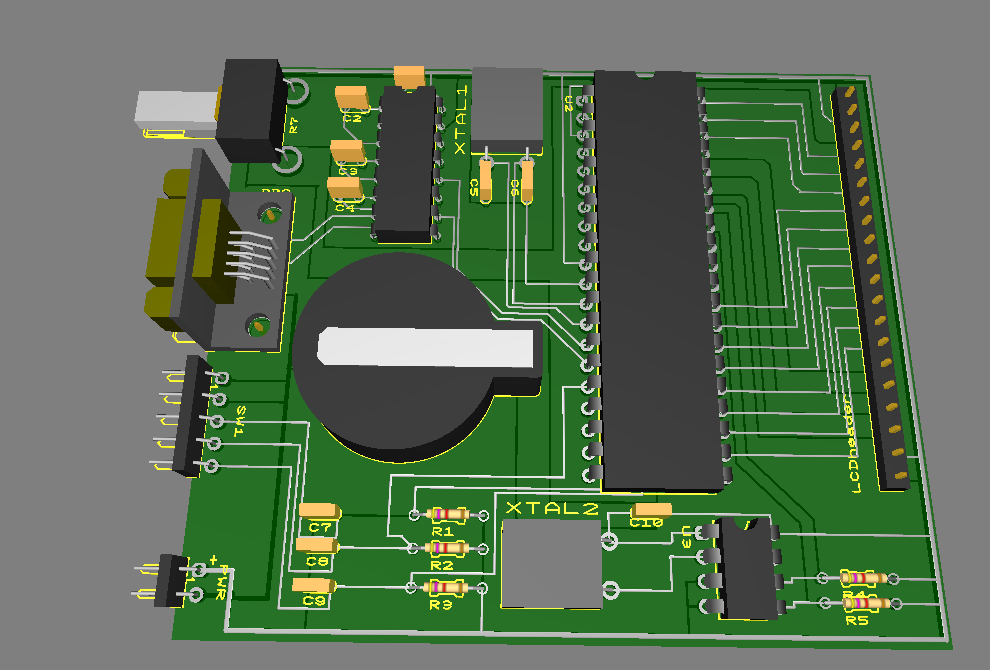

RevB



I think it will be called MegaLCD, but we haven't decided on a name. We dropped the rechargeable batteries and the charging circuit. Also dropped the onboard switches and put a header for an external rotary wheel with pushbutton for menu navigation. Still no onboard power supply, but I'll get them to change their minds...
Jonpro03 is offline   Reply With Quote
Old 03-23-2011, 03:14 PM   #287
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I'm liking those changes.
BillBoost37 is offline   Reply With Quote
Old 03-24-2011, 06:07 PM   #288
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

Just ordered:

http://www.atpturbo.com/mm5/merchant..._Code=ATP-OIL2

and

http://www.atpturbo.com/mm5/merchant..._Code=ATP-OIL2

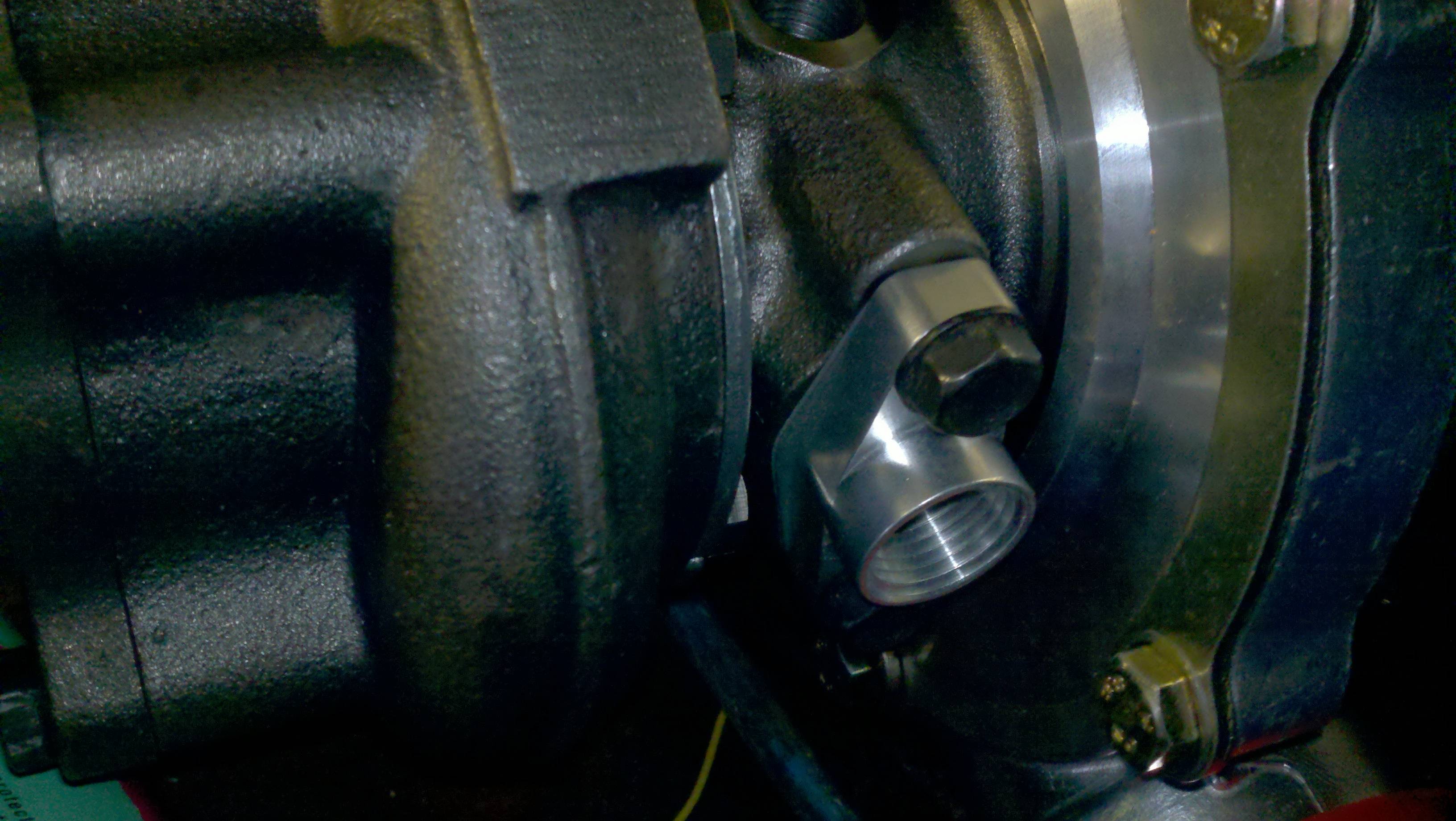

NOW I think I will finally have everything I need to install this turbo.

Also, I was able to get a supply circuit added to the MegaLCD. Also, the calender chip will dropped and a calender will be implemented in code instead. We are also cutting out the pullup resistors because we 'think' that the chip will be able to do without. This REALLY simplify the board and shrink it down some more. More on that this weekend after the circuit is redesigned.
Jonpro03 is offline   Reply With Quote
Old 03-30-2011, 11:32 AM   #289
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default



This should do it...

Hopefully the turbo will be under the hood this weekend.
Jonpro03 is offline   Reply With Quote
Old 04-01-2011, 10:05 PM   #290
Member
Posts like a V-Tak

Join Date: Jun 2007
Location: JACKSON, OH
Posts: 94
Thanks: 0
Thanked 0 Times in 0 Posts
97BONNIESE is on a distinguished road
Default

Awsome write-up!!
