Ugh, failure. Some problem somewhere in the wiring. There is a short somewhere when I go to crank the motor. The voltage drops (to like 4 volts) and the starter just clicks. Then when I stop cranking, back to ~12V. I don't know what it could be. I swapped the battery out for a fully charged one, that didn't help.

I don't get it, I didn't touch any of the starter wires. I'm wondering if the 'low reference' wires for the sensors and coils are the problem.
Oh and when I plugged the coils in, the LEDS on the front of the MS lit up dimly.
Jonpro03 is offline   Reply With Quote
Old 02-19-2011, 11:19 PM   #232
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

Well, poop. What'* your plan?
radomirthegreat is offline   Reply With Quote
Old 02-20-2011, 12:18 AM   #233
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

Diagnose... I'll get out there with a DMM tomorrow and figure out what the heck I did wrong.
Jonpro03 is offline   Reply With Quote
Old 02-25-2011, 04:46 PM   #234
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

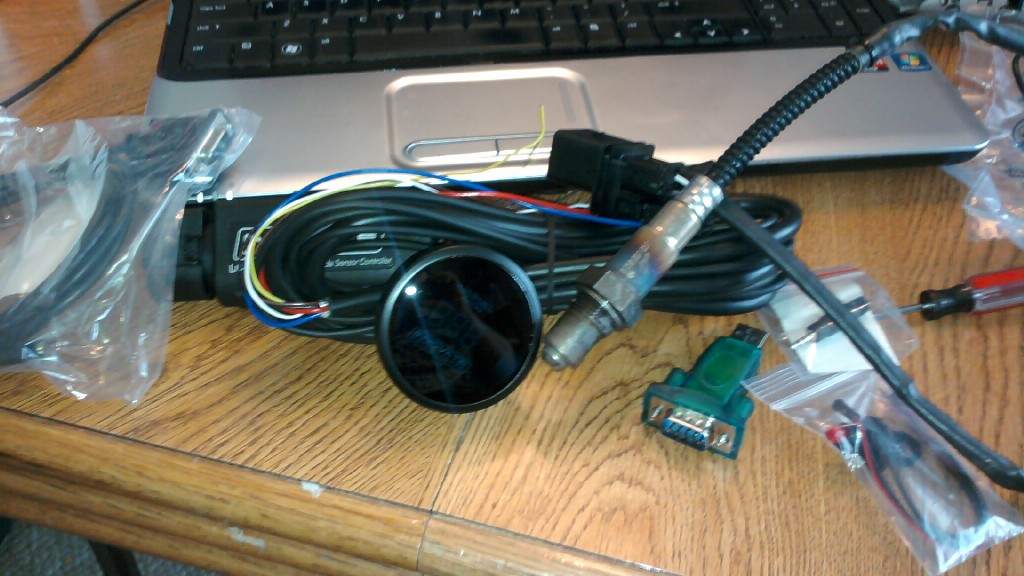

Box of goodies came in today.
Wideband O2 sensor with LC-1 controller
Red LED AFR gauge
LC-1 serial cable
Serial to USB adapter

WOOT!
Jonpro03 is offline   Reply With Quote
Old 02-26-2011, 12:16 AM   #235
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

I got all of the wiring sorted out and the engine cranking again. Sadly, I ran out of time tonight to get any real work done getting the settings right for the new ignition.

Tomorrows another day.
Jonpro03 is offline   Reply With Quote
Old 02-26-2011, 11:03 PM   #236
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

Good news everyone!

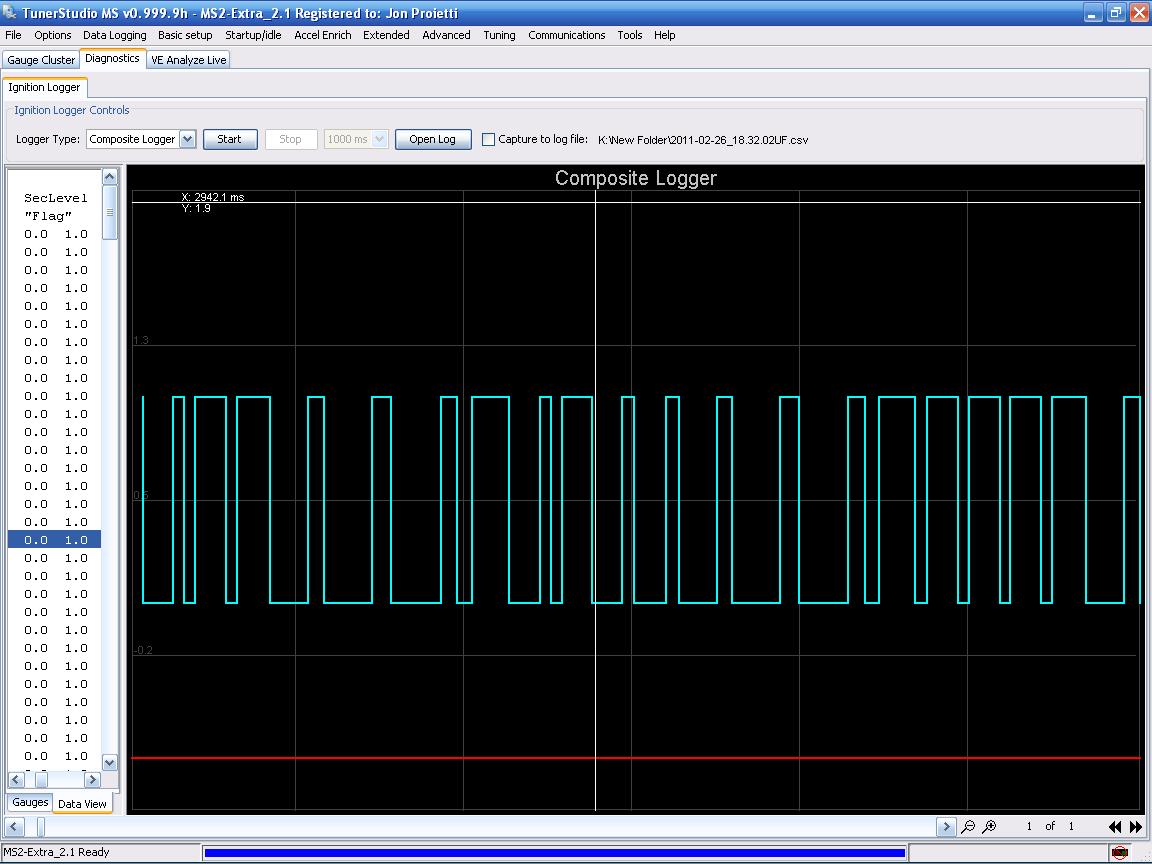

I finally got the megasquirt to pickup the crank signal! I don't think it'* picking up the cam signal but I'm halfway there!

Jonpro03 is offline   Reply With Quote
Old 02-27-2011, 07:47 PM   #237
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

It fired!

It'* working perfectly. Not a single event is being missed, even at higher RPMs. I can't believe it'* actually running. I'm so stoked.

No pictures or video yet, I'm still getting all the wiring wrapped up (pun).
Jonpro03 is offline   Reply With Quote
Old 02-27-2011, 08:21 PM   #238
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

Good job! Is the wiring going to look less interesting than the first version in which it was crammed behind the coolant reservoir?

No offense. I'm sure that'* a perfectly decent way to go about it.
radomirthegreat is offline   Reply With Quote
Old 02-28-2011, 12:49 AM   #239
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

I'm not going to wrap everything up under there until I'm sure I don't want to change anything else.

For example, I want to wire in the second fan to turn on when the motor goes into boost.

But someday!
Jonpro03 is offline   Reply With Quote
Old 02-28-2011, 01:11 AM   #240
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

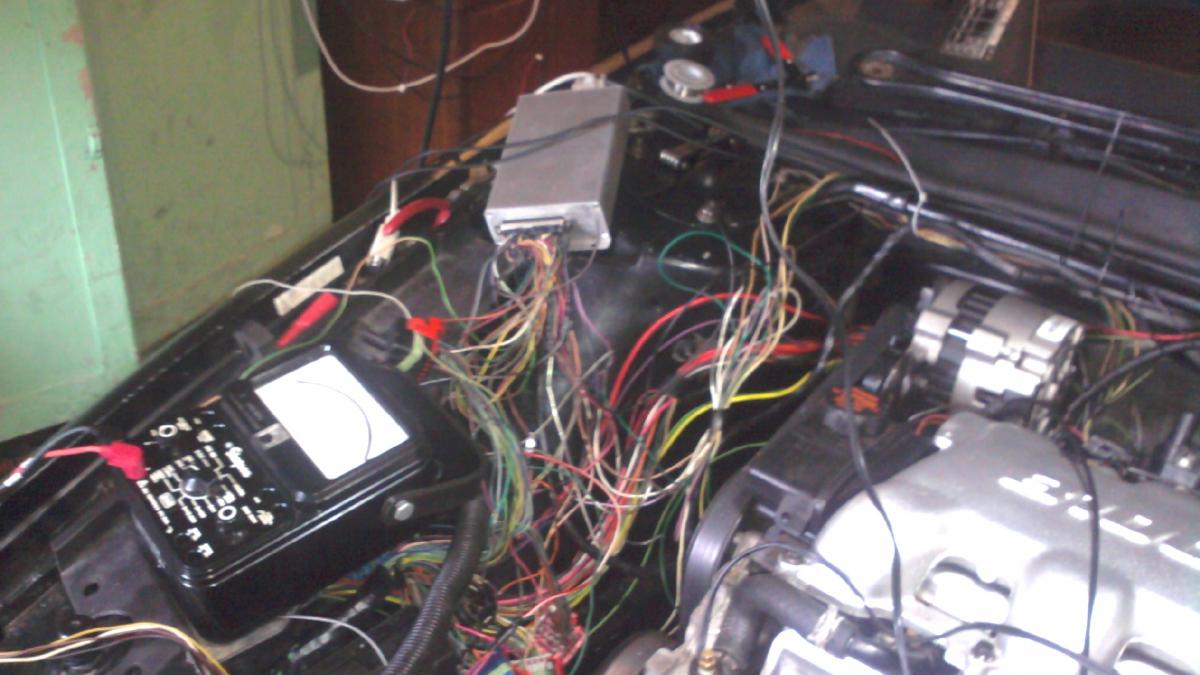

Just to show the scope of what'* involved with swapping in a different ignition system.

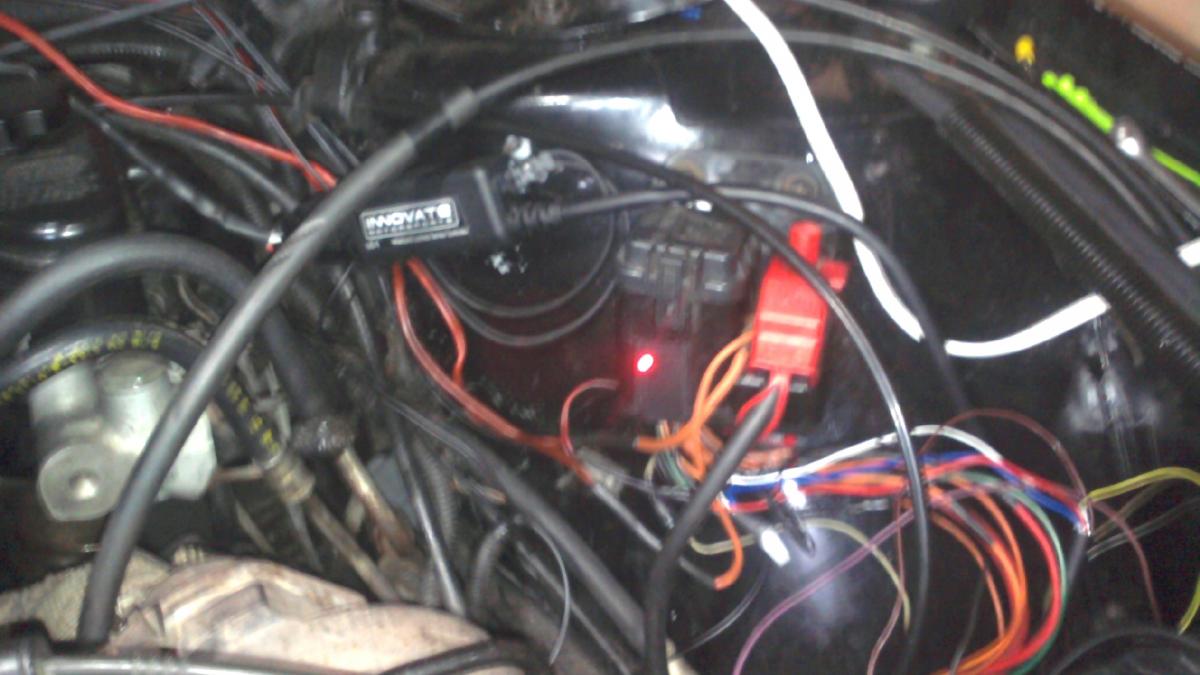

Over here you can see the Innovate wideband is mounted on the strut tower and wired in.

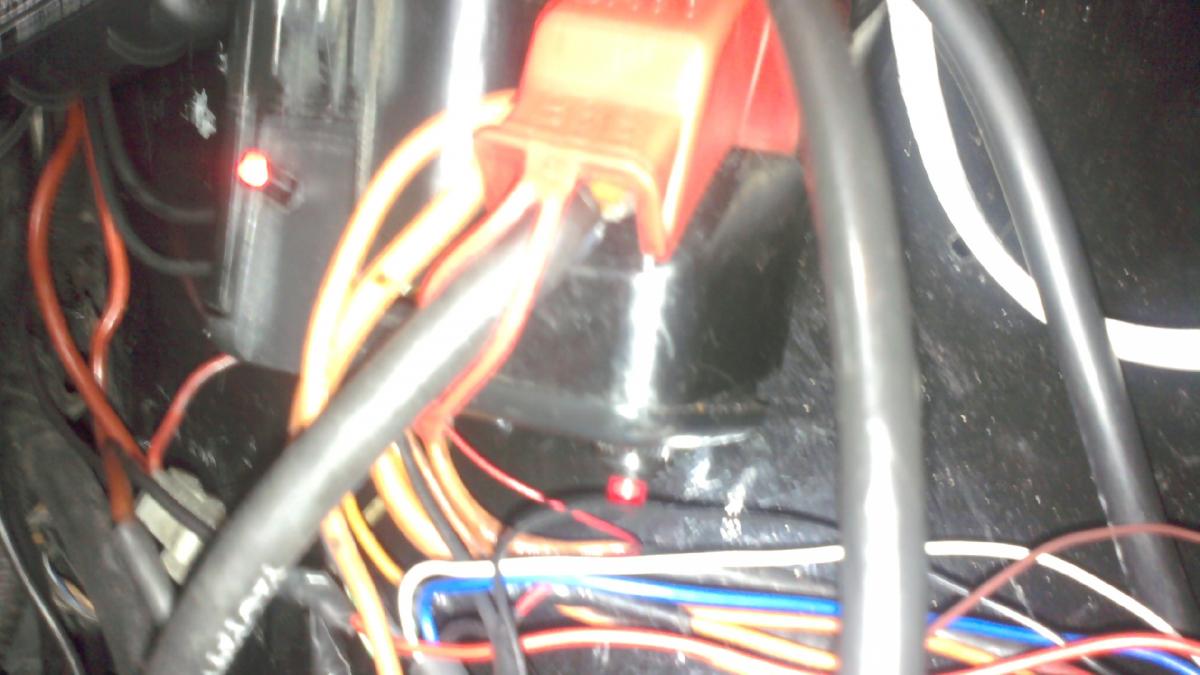

Since the fuel pump relay is so close to the WBo2, I decided to mount the LED and calibration button there

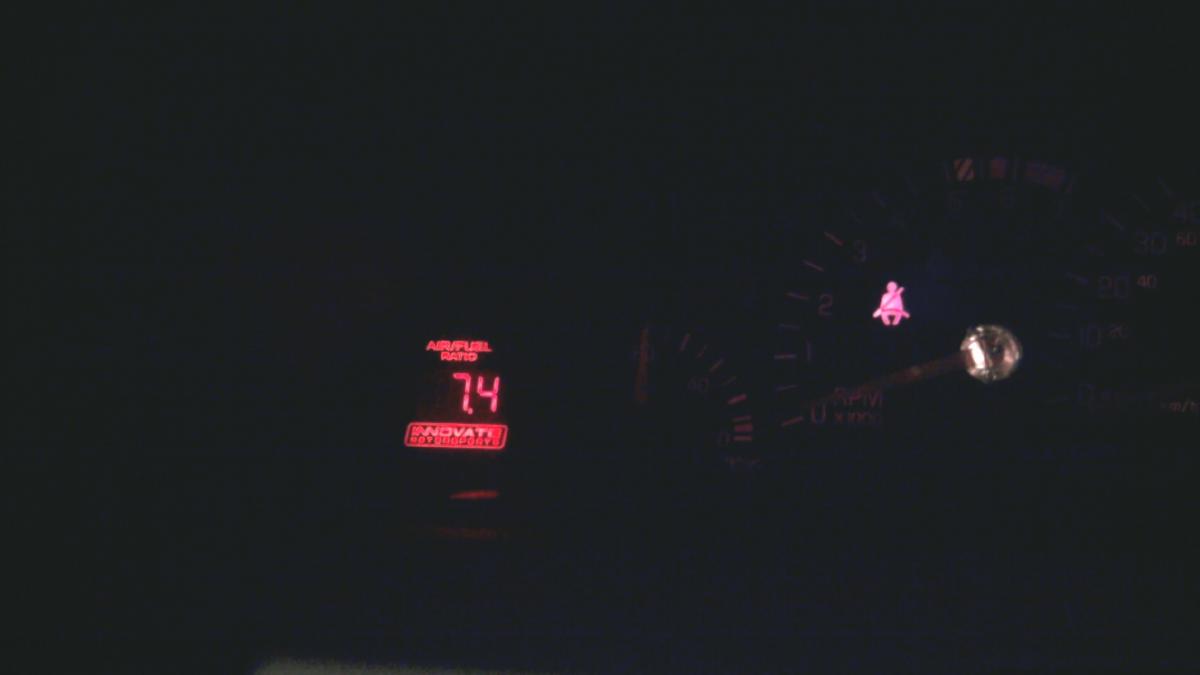

This, I am particularly proud of. I mounted the AFR gauge where the boost gauge used to be. Instead of running a signal wire from the engine bay through the firewall and to the gauge, I decided to 'borrow' the SES light signal wire. I just cut it at the factory ECM plug and wired it to the o2 signal wire going to the megasquirt. Then in the car, I just cut the SES wire at the gauge cluster and ran it to my AFR gauge



I also wired in a manual fan switch to the right of the cluster. No picture of that though...
