Default LX9 Reluctor decoded

I spent a good part of the day researching the LX9 reluctor and it'* events. It is in fact the same reluctor as the LS1 (it has the same pattern).

The question stuck in my mind is whether or not it has the same phasing (is TDC #1 compression stroke).

From this point on, I will assume that it is.

I started by plotting out the entire reluctor in a word processor.


http://i.imgur.com/of4Xv.png



http://i.imgur.com/jOCE1.png

You can see that I found 72 pulses. 72/3 is 24 events. Which means that each event is three pulses. So each cylinder gets 8 events or 24 pulses. For example, the first event for cylinder 1 is low low high or Y. The next event is low high high or X.

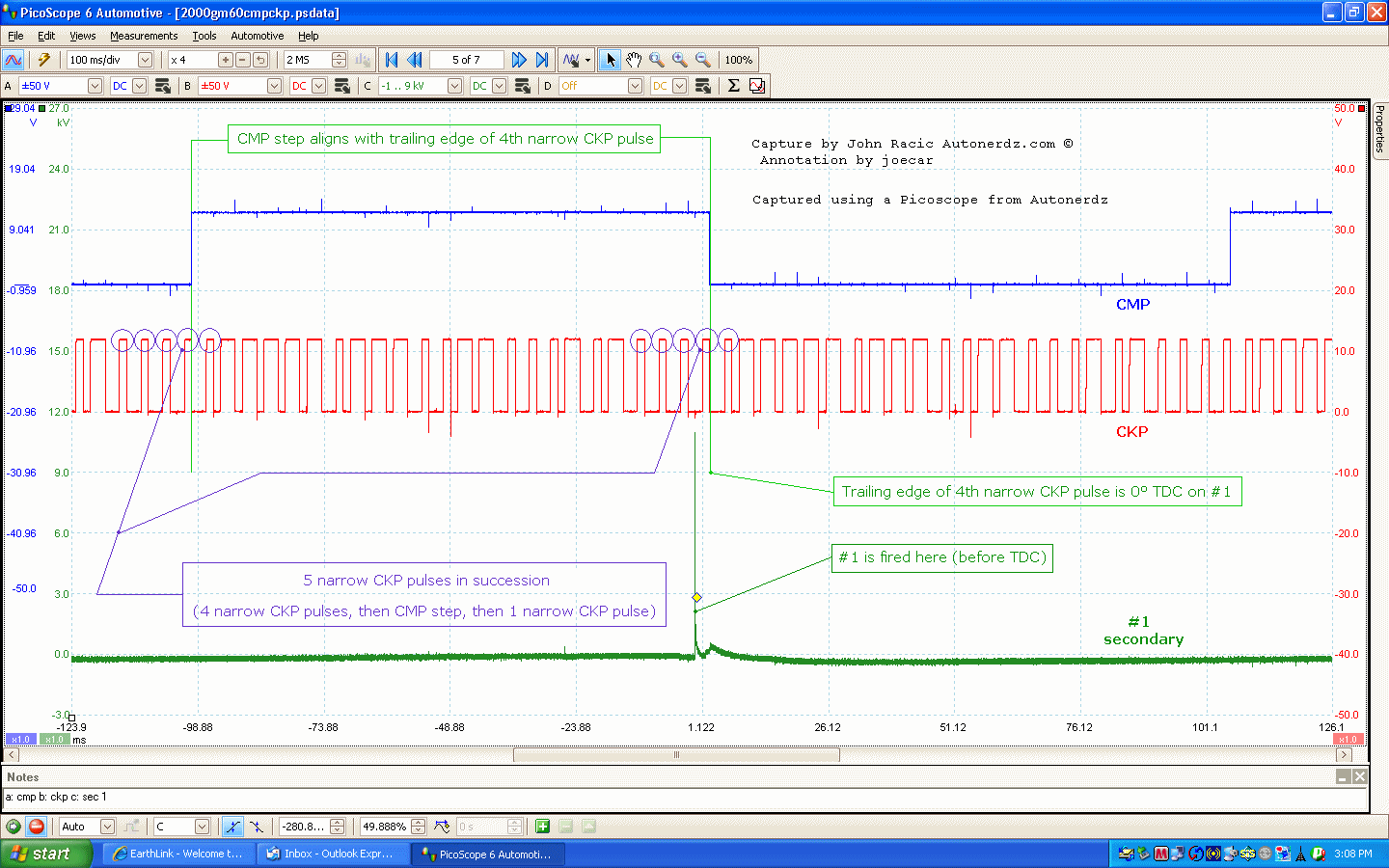

I used the following to determine phasing with the CMP sensor.


http://i.imgur.com/fppV8.gif


And this is the result:

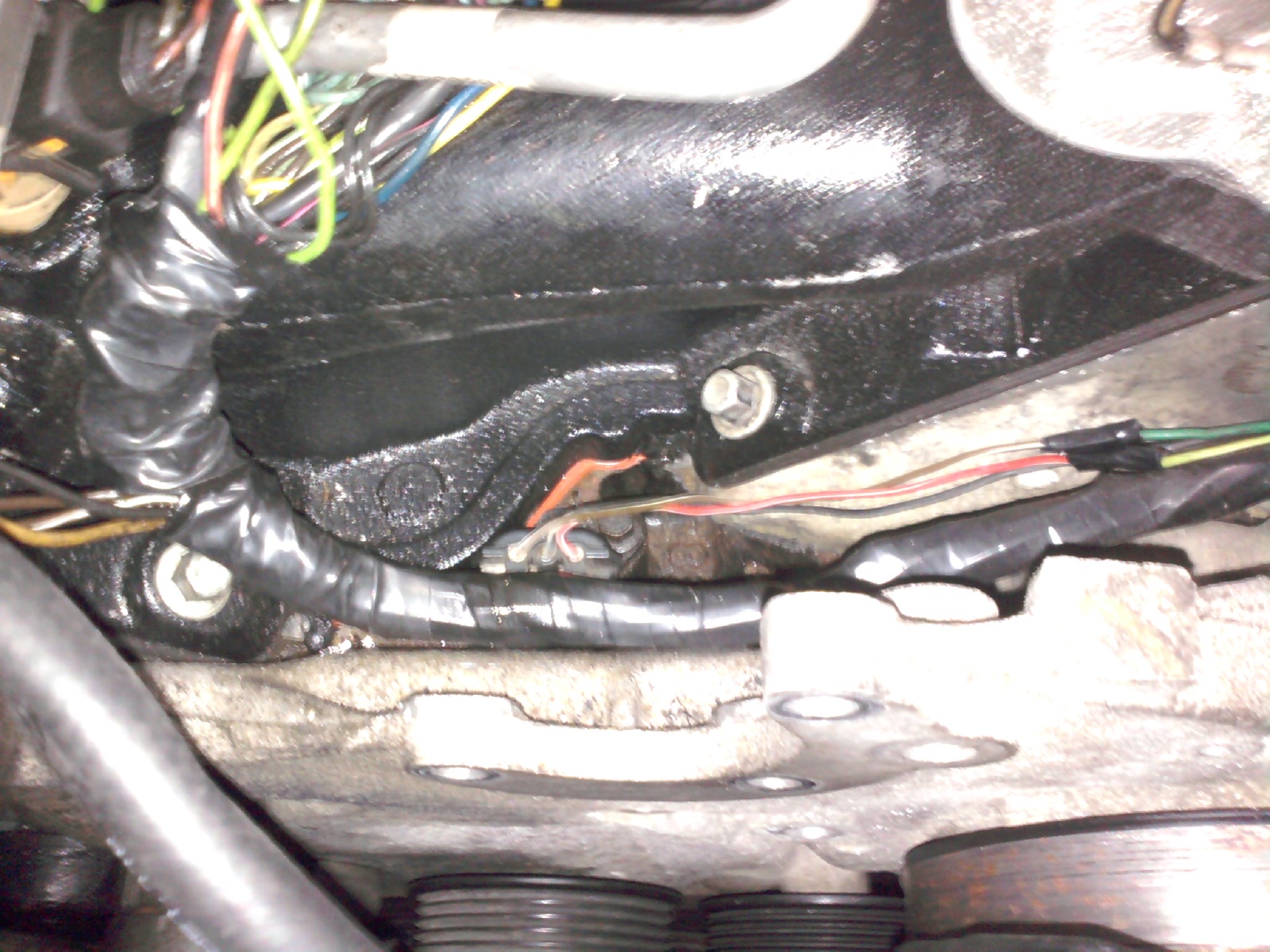

http://i.imgur.com/mKtmO.jpg

Just the red markings. Ideally, the picture would be of the other side of the reluctor. I'll try to get a different picture so I can show the reluctor spinning in the correct direction.

This can easily be translated to decode a LS1 reluctor (since they are the same). Instead of each cylinder having 8 events, it has 6. So it would decode:
YXXXXX YXXXYY XXYYYX YXYYY
Jonpro03 is offline   Reply With Quote
Old 02-18-2011, 11:29 PM   #229
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

I got started on the wiring today. About 50% done.

Here'* the cam sensor wired in.





Jonpro03 is offline   Reply With Quote
