Old 03-22-2008, 01:37 PM   #101
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I don't remember who disconnected my knock sensor, but it wasn't easy. I think it was Mattski, and we didn't figure it out until we saw the connector on my spare harness.

The front/crossover can stay on the car when you remove the rear, so you don't have to mess with that hoist bracket. Yes, I used a couple washers to make up for the lack of the rear EM flange when I reinstalled the rear hoist bracket for dropping the new motor in. Worked great (thick hardened washers under the bracket).

You might even be able to see some of that in my pics of the meet.

The bolts need to be removed that hold the bracket on the back of the block to the tailshaft bracket. I found it a little easier to remove the tailshaft bracket entirely, though. Pdad put that back, and may have better advice (remember we had to replace that axle as well).

Support the motor with slight tension on the hoist while you remove the two mounts and the bellhousing bolts. No jack is necessary, although you may need to finagle the motor with a jack a little for the Torque-axis mount (the one by the water pump). Don't jack too high or the axle will seperate. It may be best to simply remove the four bolts on the 'knuckle' of that mount and let the whole mount come out with the engine. The side bolts are a little harder to get to, but it can be done.
willwren is offline   Reply With Quote
Old 03-22-2008, 01:40 PM   #102
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

The front/crossover doesn't need to come off to get the rear mani off.

I didn't use any spacers for the rear lifting bracket.

Remove the bolts from the torque axis mount (just the one in the middle will do, but it may help to loosen up the bolts on the frame side of the mount) and the bracket hiding near the rear knock sensor, support the engine and remove the block-tranny bolts.
J Wikoff is offline   Reply With Quote
Old 03-22-2008, 02:55 PM   #103
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

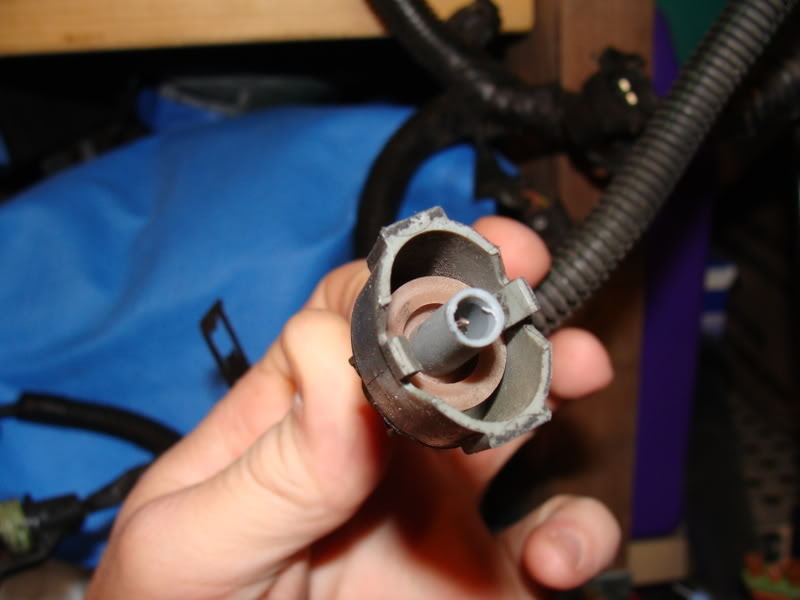

Sorry, squeeze on the LONG axis of the connector for the knock sensor:
Name:  DSC01064.jpg
Views: 0
Size:  50.3 KB

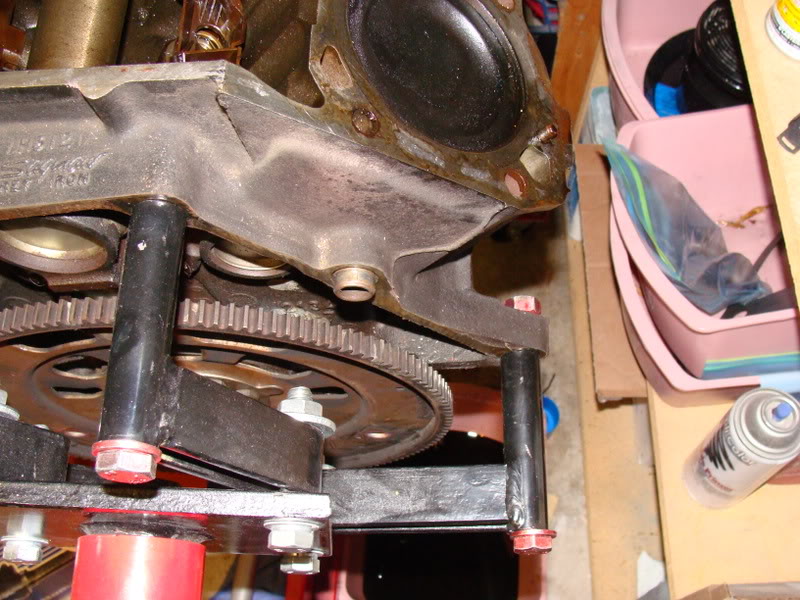

Backwards bolt on the far right (nearest the shelf unit):
Name:  DSC01065.jpg
Views: 0
Size:  120.8 KB

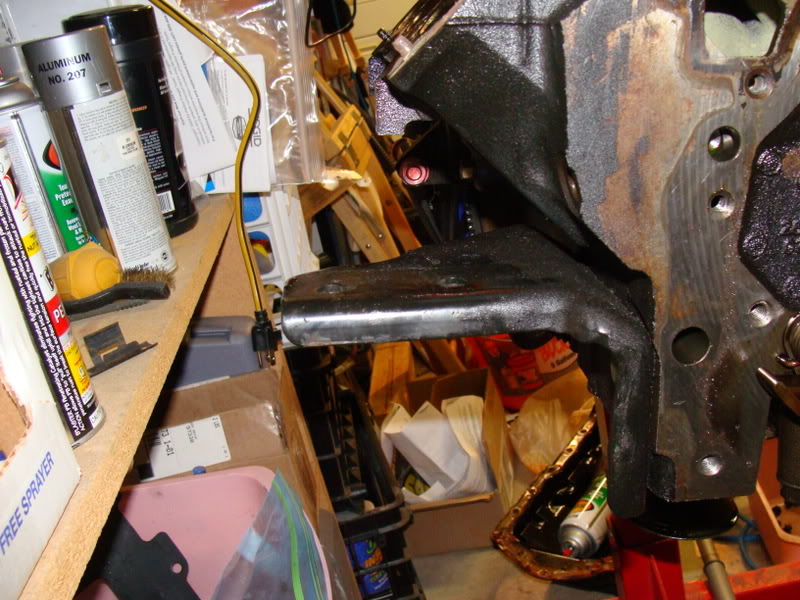

Tailshaft bracket, also showing the backwards bolt in the background:
Name:  DSC01066.jpg
Views: 0
Size:  124.2 KB
willwren is offline   Reply With Quote
Old 03-22-2008, 07:00 PM   #104
Member
Posts like a V-Tak

Join Date: Mar 2007
Location: Indy
Posts: 56
Thanks: 0
Thanked 0 Times in 0 Posts
red454 is on a distinguished road
Default

A year ago my mom'* 93 SSEi sounded like that. The supercharger was toast. When I took the */C belt off, the noise disappeared. She was disgusted and sold the car to me.

Changed the supercharger. ($400) No problems - love the car!.
red454 is offline   Reply With Quote
Old 03-22-2008, 08:05 PM   #105
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

He'* already removed the belt and the noise is still there.

And $400 for a supercharger is pretty steep. By more than double even after rebuilding.
willwren is offline   Reply With Quote
Old 03-22-2008, 08:15 PM   #106
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

OK thanks Bill and John. Pics are worth a thousand words.
Victor is working till 7 tonight.....really trying to rake in the engine money.

I spotted the backwards bolt and I think I know where the starter 2 bolts are. So it'* easier to hang the starter without disconnecting the wiring

I loosened the two PS bolts that poke thru the pulley and will leave the final extraction for Victor. The other bolt is where? in the back at right angle to those two? ...and you have to reach in thru the passenger wheelwell? I tried taking off the rubber sheild but it'* flexible enough so should be able to reach in without removing it.

I see the pic of my Series II engine to AC compressor mounting. It looks a little different. What are there, 3 bolts on the front and one in the back?

I think it will be better to lower the car off the jackstands so the hoist doesn't have to lift as high but if I have to support first and still have to be able to climb under to remove the support, how do you suggest we proceed.
2000SilverBullet is offline   Reply With Quote
Old 03-22-2008, 08:23 PM   #107
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Paul, only two PS pump bolts on a horizontal line.

AC compressor is two front, one smaller rear bolt.
willwren is offline   Reply With Quote
Old 03-22-2008, 08:47 PM   #108
Member
Posts like a V-Tak

Join Date: Mar 2007
Location: Indy
Posts: 56
Thanks: 0
Thanked 0 Times in 0 Posts
red454 is on a distinguished road
Default

$400 is steep? I searched around at the time and $400 was not bad for a rebuilt unit with a lifetime warranty. Perhaps I should have searched a little more... Oh well, the car runs great - I am happy... (Oops - I don't want to hijack the thread)
red454 is offline   Reply With Quote
Old 03-22-2008, 09:16 PM   #109
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Paul is no stranger to Eaton'*. He'll rebuild that one himself for under 100, or I will for him the next time the car makes a meet down here (if that one ever does). It would be fitting. The supercharger on Paul'* other SSEi came through my shop, but the motor is the far bigger problem right now.

(not to mention he'* torn down a couple for me during a visit when I had to work)
willwren is offline   Reply With Quote
Old 03-23-2008, 12:51 AM   #110
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

The PS pump is off and tied out of the way.

The starter wiring is disconnected.

The wiring harness is out.

The exhaust pipe disconnected and studs are removed.

The drivers side bolt is out of the AC compressor but the front two are sandwiched with another bracket...does that come off also

Victor works again tomorrow and it is Easter Sunday so no work tomorrow for me........well maybe just a little.

So with the rear exhaust manifold off, I should be able to get at the backwards trani bolt from the top drivers side

Why is it necessary to remove the passenger wheel and little liner piece (which by the way has bolts that are too big for 8mm and too small for 9 mm I don't see the point yet to removing it

I haven't removed the alternator bracket. Is there a need Everything looks clear.
2000SilverBullet is offline   Reply With Quote
