Old 10-20-2006, 10:57 PM   #111
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

I'm getting so excited about this swap....

I think I have all the parts I need now until Bill sends back the Gen VI case

It sure is tempting to go all the way with cam, intercooler and but then I wouldn't have anything to do next year.
2000SilverBullet is offline   Reply With Quote
Old 10-20-2006, 11:14 PM   #112
Senior Member
Certified GM nut

Join Date: May 2005
Location: Wickliffe, Ohio
Posts: 2,155
Thanks: 0
Thanked 0 Times in 0 Posts
McGrath is on a distinguished road
Default

Quote:
Originally Posted by 2000SilverBullet
I'm getting so excited about this swap....

I think I have all the parts I need now until Bill sends back the Gen VI case

It sure is tempting to go all the way with cam, intercooler and but then I wouldn't have anything to do next year.
Sure you would Paul! Theres always the MP112
McGrath is offline   Reply With Quote
Old 10-21-2006, 04:00 PM   #113
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Heads and the M112 are for the year after that.
2000SilverBullet is offline   Reply With Quote
Old 10-21-2006, 05:34 PM   #114
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

get blowzilla while its still forsale!
harofreak00 is offline   Reply With Quote
Old 10-21-2006, 06:30 PM   #115
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

FYI, I'll be starting a new topic soon to walk through Haro'* and Paul'* SC porting/polishing/modifications. Both will be going through the works simultaneously.

I'm plugging Paul'* EGR port, and while that dries, I have the time to disassemble, clean, and prep Andrew'*. From there, it goes pretty quick.

The trick is getting all the carbon traces out of the EGR inlet, and 'back-cutting' the passage so the plug holds firm with expanding/contracting, and vibration.

I'll be trying a new technique on the inlets that I haven't tried before, but only for the rough work.
willwren is offline   Reply With Quote
Old 10-21-2006, 07:05 PM   #116
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

No I wasn't serious about the M112. I think the Gen 5 will keep me happy for a while.

Judging from the performance I just got today out of the Bullet in this cool weather, it'd be twisting off half shafts if it had any more torque.

I expect you to be making some progress this weekend Bill. :P

Key that EGR plug in well.....there may be some Methanol spraying onto it.
2000SilverBullet is offline   Reply With Quote
Old 10-21-2006, 07:08 PM   #117
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by 2000SilverBullet
No I wasn't serious about the M112. I think the Gen 5 will keep me happy for a while.

Judging from the performance I just got today out of the Bullet in this cool weather, it'd be twisting off half shafts if it had any more torque.

I expect you to be making some progress this weekend Bill. :P

Key that EGR plug in well.....there may be some Methanol spraying onto it.
Turns out it wasn't needed. The port tapers towards the inlet.

This'll make it easier to remove the plug if you every wanted to. JB is drying, Haro'* SC is coming apart (my Gen3 also).
willwren is offline   Reply With Quote
Old 11-12-2006, 02:57 AM   #118
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

So here I sit, three weeks later without any progress to report.......still waiting for Bill.

My LIM will be polished to a mirror finish.......

I have every harness and bracket disconnected on the engine in anticipation of breathing new life into it with the Gen 5 huffer.
2000SilverBullet is offline   Reply With Quote
Old 11-19-2006, 11:25 PM   #119
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Well, I couldn't wait any longer and this weekend I was busy.

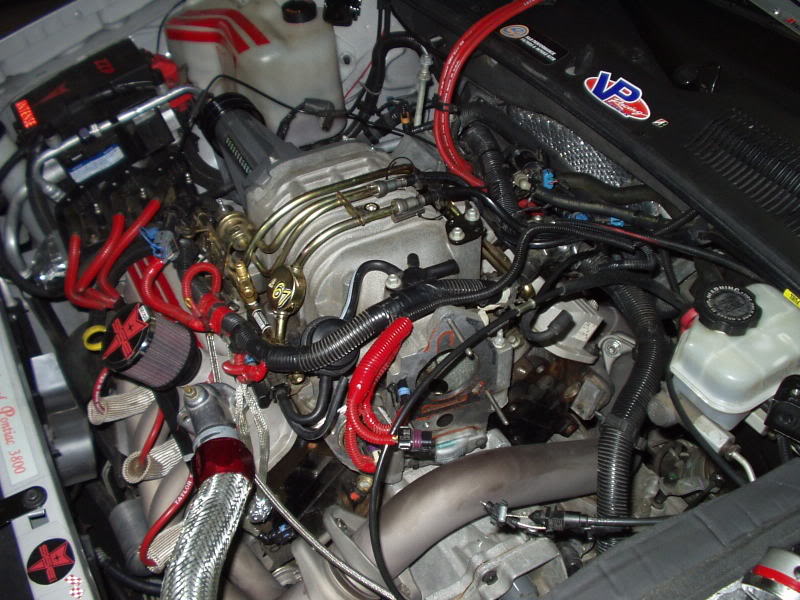

Name:  Nov19-06001.jpg
Views: 0
Size:  94.8 KB

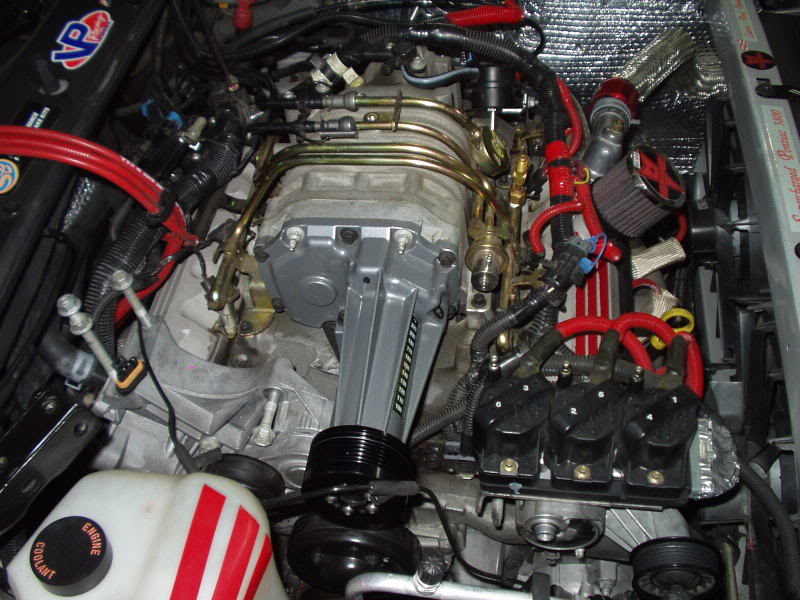

Name:  Nov19-06003.jpg
Views: 0
Size:  94.0 KB

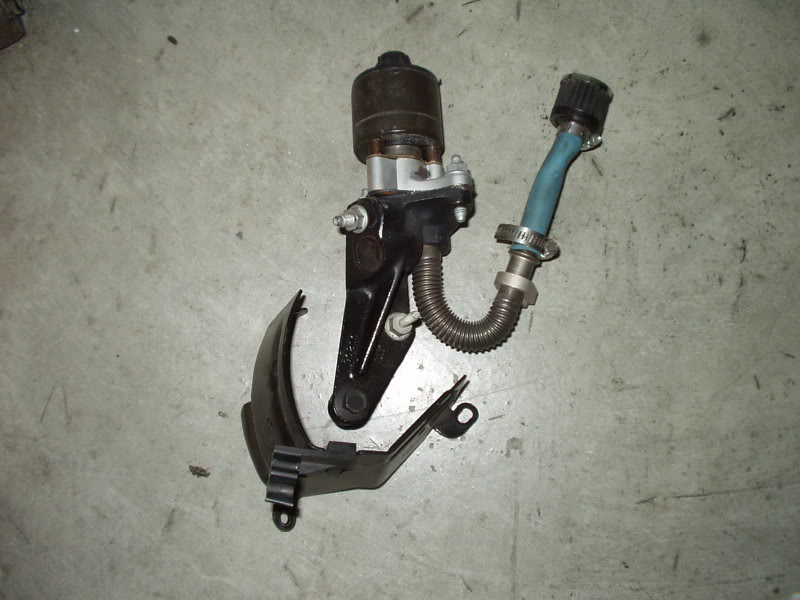

Shelving another 5 lbs of dead weight.


Name:  Nov19-06005.jpg
Views: 0
Size:  62.9 KB


Thanks Haro for instructions on how to unfasten the injector electrical harness.

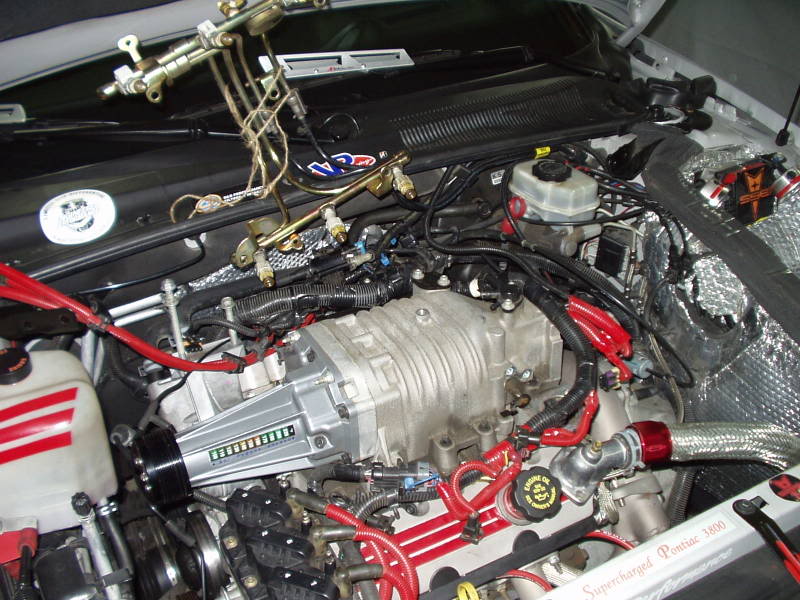

Name:  Nov19-06006.jpg
Views: 0
Size:  98.1 KB

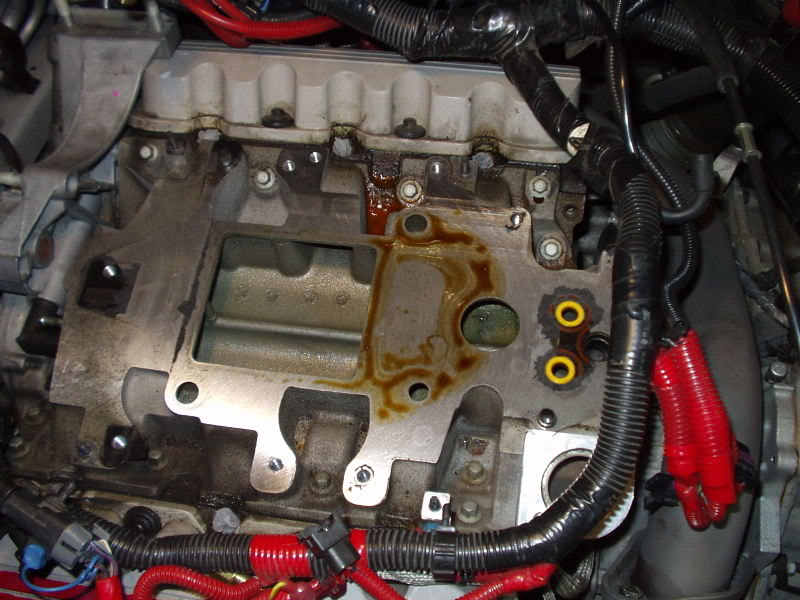

Surprise, surprise. I found my leak.
And look at how much oil is inside the LIM


Name:  Nov19-06007.jpg
Views: 0
Size:  86.2 KB

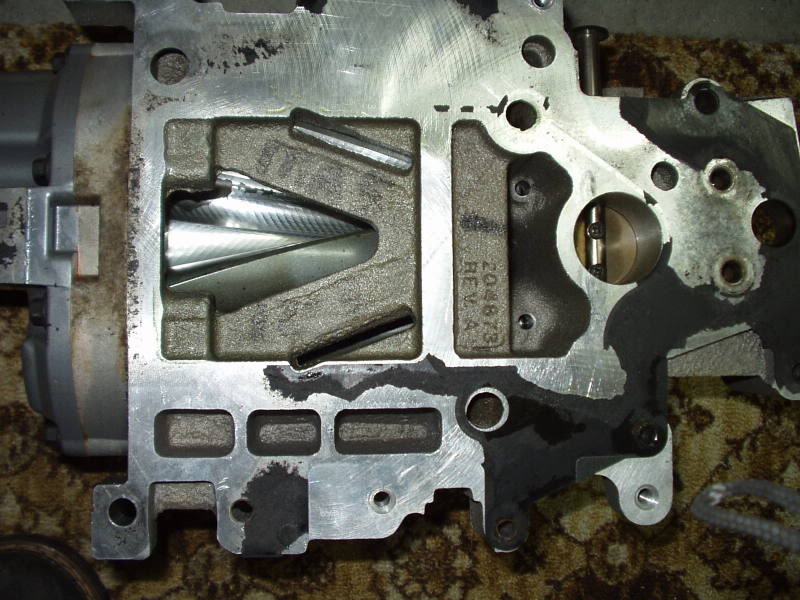

Two of three lobes on one rotor are worn with no coating. The other rotor is good. The water injection really washes it clean.


Name:  Nov19-06008.jpg
Views: 0
Size:  86.5 KB

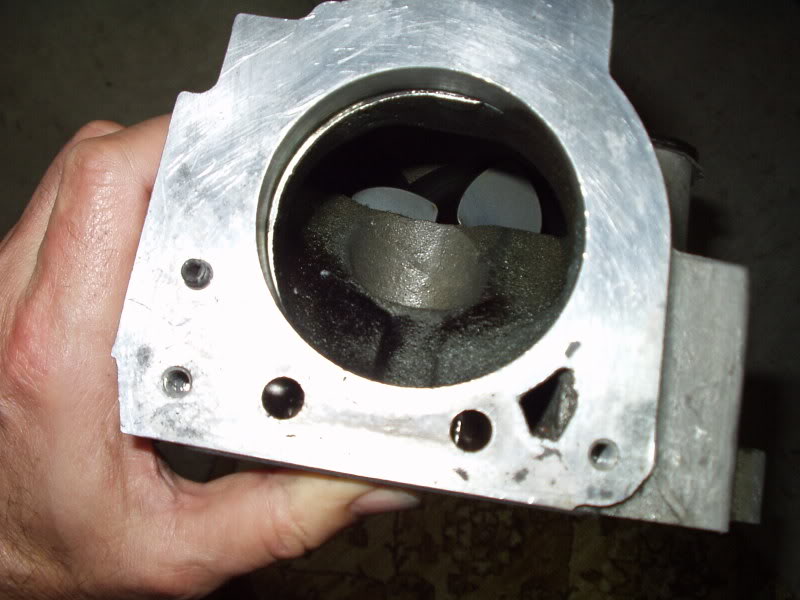

Very rough outlet compared to the Gen 5.





Name:  Nov19-06010.jpg
Views: 0
Size:  61.8 KB
2000SilverBullet is offline   Reply With Quote
Old 11-20-2006, 02:19 AM   #120
Senior Member
Certified GM nut

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

Um.... Please correct me if I am wrong ( and I really hope I am) but is there coating on the rotors of the supercharger?! Please tell me I am wrong.

Quote:
My LIM will be polished to a mirror finish
where will it be a mirror finish?
OLDsman105 is offline   Reply With Quote
