Old 11-20-2006, 02:56 AM   #121
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Name:  Nov19-06010.jpg
Views: 2
Size:  61.8 KB

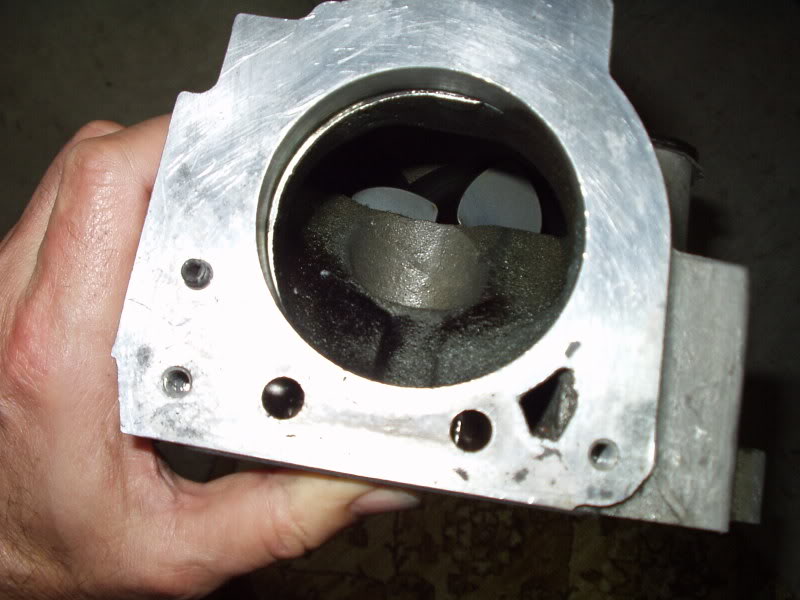

Wow, looks like Andrew'* (used to look anyway)
I guess those "misaligned" inlets are fairly common on the Gen III'*...
dillcc is offline   Reply With Quote
Old 11-20-2006, 08:38 AM   #122
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The miss alignment has been there on every M90 that I have seen to date.

Paul.. I'm confused. What leak did you find, oil? How can you possibly leak oil from a supercharger that only has a small amount of oil in the snout?
BillBoost37 is offline   Reply With Quote
Old 11-20-2006, 09:41 AM   #123
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The oil on the LIM is from your PCV.

It dripped out of the PCV passages in the SC when it was tilted for removal. The rough casting causes a ledge around the lower PCV port sometimes that traps and holds some oil until titled during removal.

I always get a little oil in this manner during a removal. Especially if you break it loose, and let it sit there for a minute.
willwren is offline   Reply With Quote
Old 11-20-2006, 10:59 PM   #124
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Quote:
Um.... Please correct me if I am wrong ( and I really hope I am) but is there coating on the rotors of the supercharger?! Please tell me I am wrong.

Quote:
My LIM will be polished to a mirror finish


where will it be a mirror finish?
Yes there is a coating on the rotors.....or there should be.

All surfaces exposed to the airstream should be as smooth as possible.


Yes, the inlet and outlet of this machined sand casting have a lot of room for improvement.

That makes sense Bill. The oil looks fresh, like it just dumped.
The leak I was referring to Boosty is Coolant.

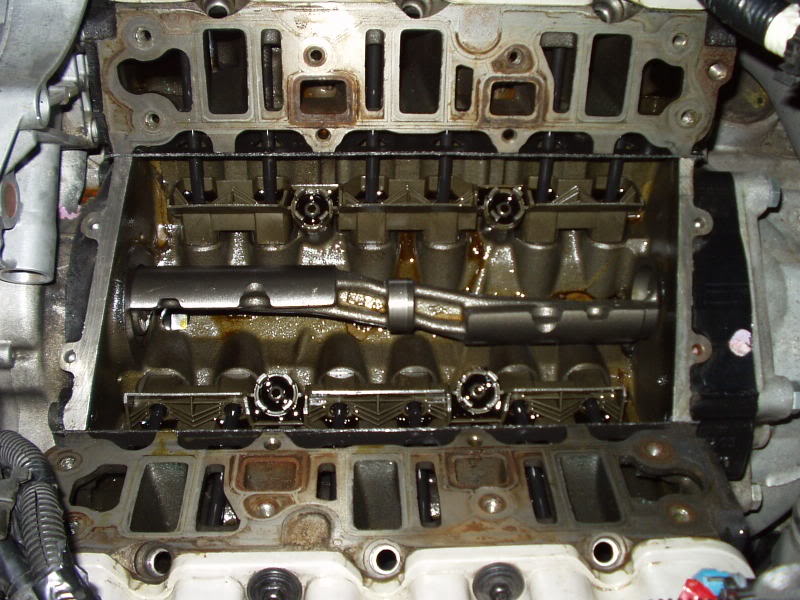

You can see in the following picture where it was leaking out and puddling on the LIM in the rear. It looks too close for comfort if it was leaking outwards, that it wasn't leaking inwards.
And yes the LIM gaskets were plastic not aluminum like the new ones I got.


Name:  Nov20-06001.jpg
Views: 1
Size:  93.0 KB

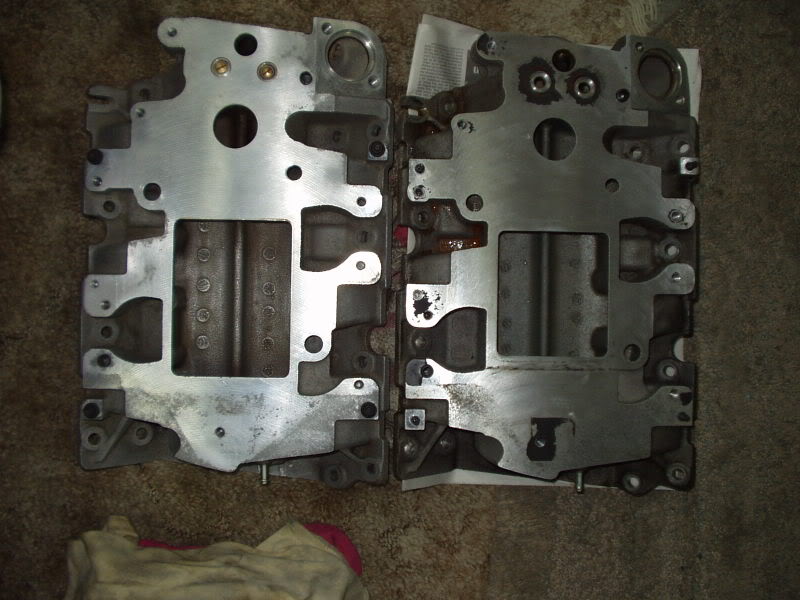

Look at the difference between the Gen 3 and the Gen 5 LIM.
It gives me a wide-on just looking at it.



Name:  Nov20-06003.jpg
Views: 1
Size:  74.9 KB
2000SilverBullet is offline   Reply With Quote
Old 11-20-2006, 11:44 PM   #125
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The LIM opening rectangle is larger on the new LIM because the GenV supercharger has a larger outlet. It'* half an inch TALLER in V than the Gen3.

In addition to the tighter tolerances on the GenV and the different coatings, the GenV'* rotors are also longer.
willwren is offline   Reply With Quote
Old 11-20-2006, 11:50 PM   #126
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Is it in the mail yet Bill.
2000SilverBullet is offline   Reply With Quote
Old 11-21-2006, 04:02 AM   #127
Senior Member
Posts like a 4 Banger

Join Date: Jun 2006
Location: Chicago, IL
Posts: 113
Thanks: 0
Thanked 0 Times in 0 Posts
67Goat is on a distinguished road
Default

Quote:
Originally Posted by willwren
The LIM opening rectangle is larger on the new LIM because the GenV supercharger has a larger outlet. It'* half an inch TALLER in V than the Gen3.

In addition to the tighter tolerances on the GenV and the different coatings, the GenV'* rotors are also longer.
Hmm, does this explain the efficiency difference between the gen 3 and 5? Air is compressed over a longer distance equals less heat/friction?

I'm following this with great interest - someone told me that porting a gen 3 and modding the LIM can make it even better than a stock gen 5. Seeing both side by side, what are your thoughts Bill?
67Goat is offline   Reply With Quote
Old 11-21-2006, 08:39 AM   #128
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Paul..the coolant seepage to roughly 30mm around the coolant rings is normal to see on the gasket as some coolant leaked out of the SC/TB when you removed it from the LIM. Personally..I don't see a leak, issue or problem. What I do see is a nice clean, low mileage top end in great shape from a good maintenance schedule.

Quote:
Originally Posted by 2000SilverBullet
Is it in the mail yet Bill.
Keep it up..he'* gonna mail you an M62.. (ps.. please do keep it up. You keep increasing my chances of him sending me the Gen V... )
BillBoost37 is offline   Reply With Quote
Old 11-21-2006, 09:45 AM   #129
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by 67Goat
Quote:
Originally Posted by willwren
The LIM opening rectangle is larger on the new LIM because the GenV supercharger has a larger outlet. It'* half an inch TALLER in V than the Gen3.

In addition to the tighter tolerances on the GenV and the different coatings, the GenV'* rotors are also longer.
Hmm, does this explain the efficiency difference between the gen 3 and 5? Air is compressed over a longer distance equals less heat/friction?

I'm following this with great interest - someone told me that porting a gen 3 and modding the LIM can make it even better than a stock gen 5. Seeing both side by side, what are your thoughts Bill?
The inlet design is quite different as well. I"m modifying my next M62 that some really nice Goat gave me a great deal on to reflect the inlet design of the GenV, and also modifying the outlet like the GenV to an extent, with all my typical porting/polishing, then a full rebuild.

So the GenV has a more efficient inlet (Paul'* will be very much so), longer rotors, and a 'taller' less-obstructed outlet. I'll get more pics up soon. Paul'* is almost done, and will be going back to him shortly, so I need to document as much as I can before that happens.
willwren is offline   Reply With Quote
Old 11-21-2006, 10:39 AM   #130
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

As well...I am currently modifying a Gen 3 to nearly mirror the Gen 5 inlet to the best of my abilities.
BillBoost37 is offline   Reply With Quote
