Old 12-02-2006, 12:41 AM   #141
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Thanks for the correction on the correct terminology for the air nipple.

Bill, I do have an adjustable water injection pump.
It came set at maximum 150 psi.
I have it turned down to a maximum of 100 psi now but will adjust it to suit when tuning later.

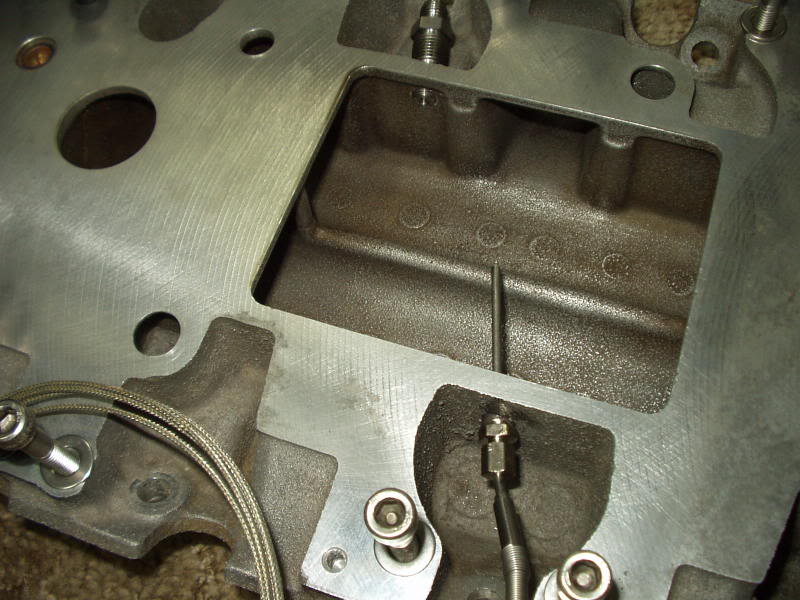

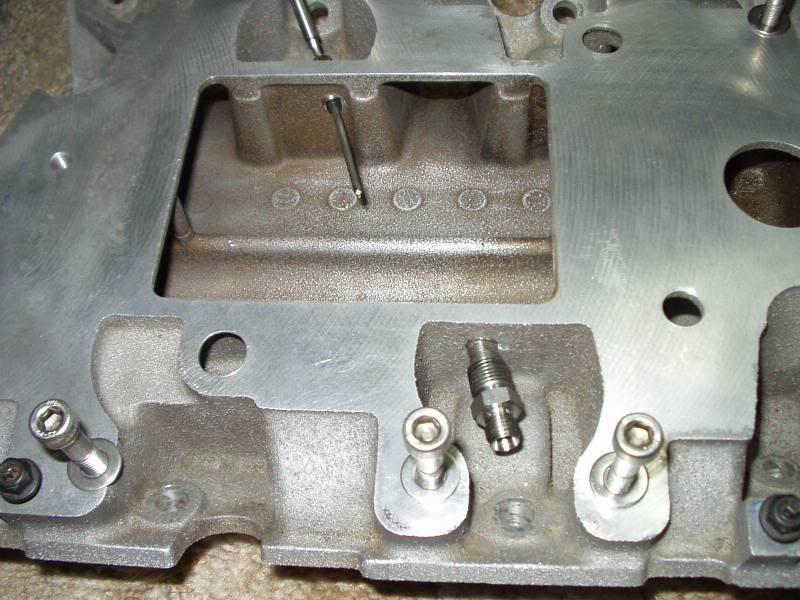

I decided to reduce the size of the nozzle from 375 ml/min to 250 ml/min.



Name:  Dec1-06003.jpg
Views: 6
Size:  76.5 KB


Name:  Dec1-06004.jpg
Views: 9
Size:  79.9 KB


Name:  Dec1-06001.jpg
Views: 8
Size:  82.1 KB

Did a little port blending too.
2000SilverBullet is offline   Reply With Quote
Old 12-16-2006, 10:39 PM   #142
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

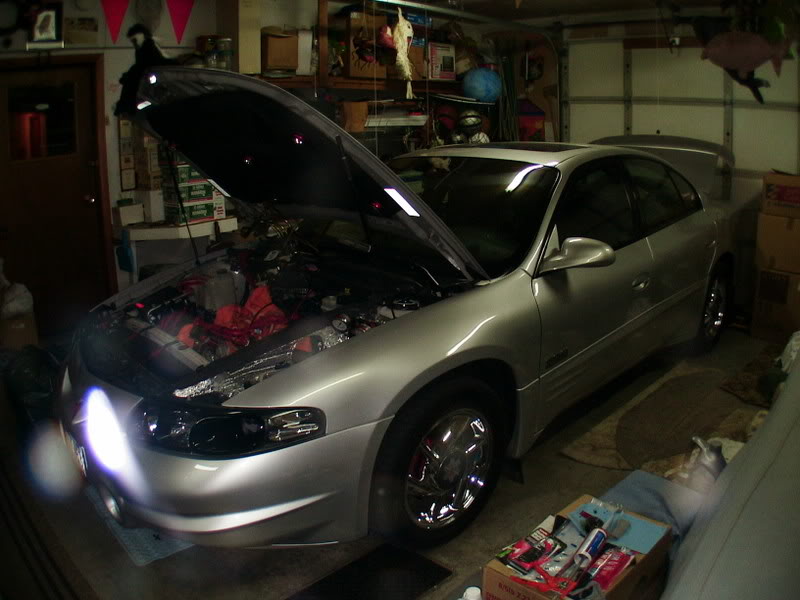

......and so it still sits ready and waiting for Bill to send me back my SC housing. Oh and Bill, don't forget to send me the fasteners for the TB adapter. They are quality pieces I don't want to lose.

Name:  Dec-4.jpg
Views: 9
Size:  95.6 KB

Name:  Dec-5.jpg
Views: 7
Size:  66.1 KB

2000SilverBullet is offline   Reply With Quote
Old 12-17-2006, 09:42 PM   #143
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Paul...the parts are temporarily delayed in Canadicut.

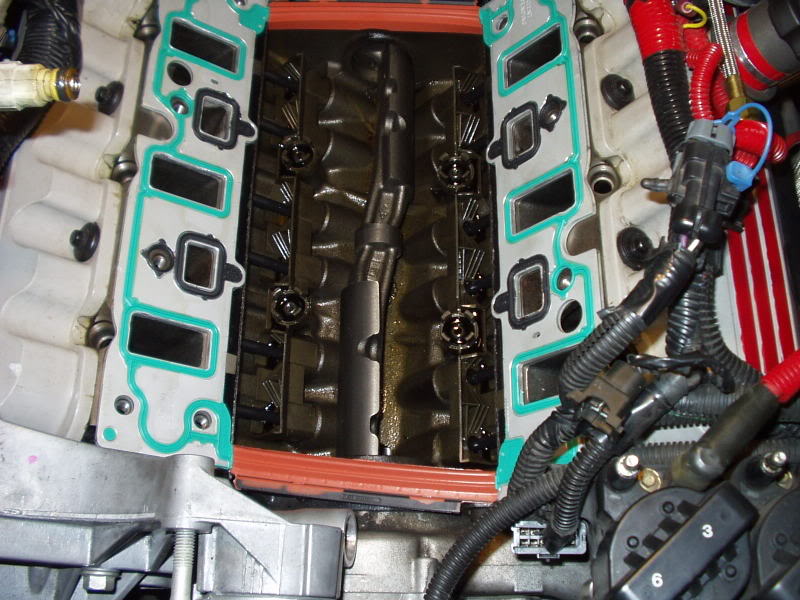

Are you test fitting the gaskets in the picture or did you already dab RTV under the corners? If so..they may not seal properly.
BillBoost37 is offline   Reply With Quote
Old 12-17-2006, 10:21 PM   #144
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

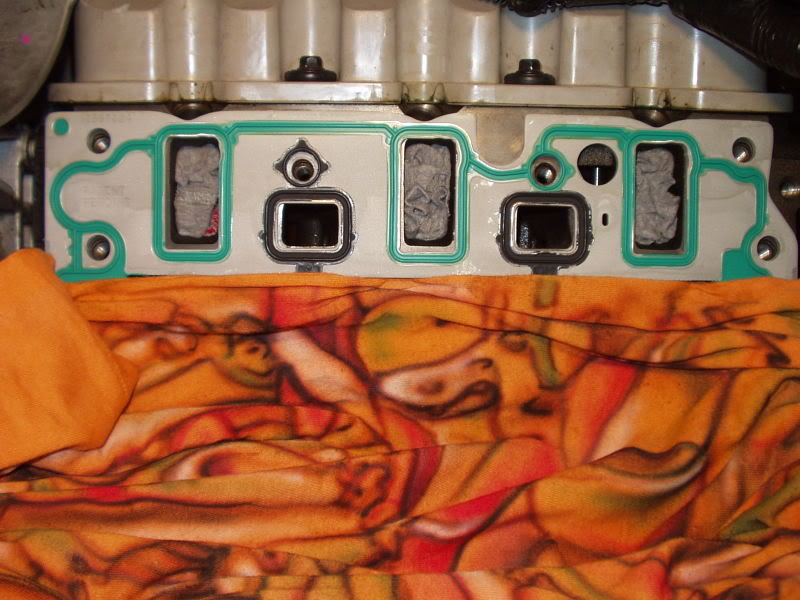

Don't worry Bill. I was test fitting the gaskets to port match them. I was surprised at how rough they were in some areas.

I have them off now. Going to give it all an extra good cleaning before the final assembly.

I'm waiting for the SC casing before I install the LIM so I can do some final porting.

I just installed an auxially 1/8 npt connection in the front for some future experimentation with injection points.
It'* in the front next to the pressure nipple at the #1 cyl intake runner but points into the LIM plenum center.
2000SilverBullet is offline   Reply With Quote
Old 12-18-2006, 12:51 AM   #145
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

sittin pretty, ready for action, I like it hehehe
I need to start comparing the gaskets to the Heads as well.
your engine looks alot like mine currently...
SSEimatt93 is offline   Reply With Quote
Old 12-18-2006, 12:53 AM   #146
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by SSEimatt93
your engine looks alot like mine currently..
x2
harofreak00 is offline   Reply With Quote
Old 12-18-2006, 02:56 PM   #147
Junior Member
Thread Starter

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

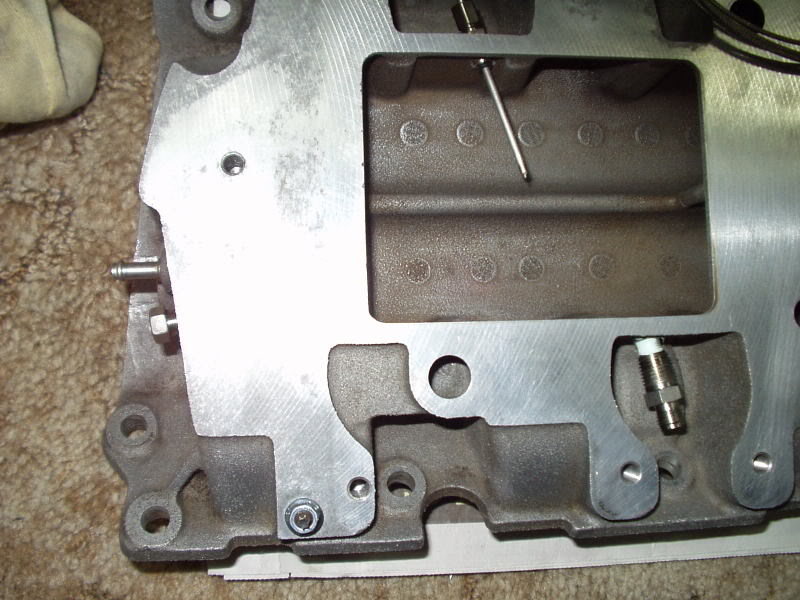

Here'* a view of my secret injection points.....shhhhhhhhhhh

Name:  Dec-8.jpg
Views: 6
Size:  82.0 KB
2000SilverBullet is offline   Reply With Quote
Old 12-18-2006, 04:00 PM   #148
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Aren't you porting the LIM or polishing it at least?
I'd suggest getting a dremel or rotary tool if you don't have one and some 120 grit sand paper wheels, and 120 grit flapper wheels. I used them when I ported 96BonnevilleL67'* Gen3 on Saturday and while I had used the sand paper wheels before the flappers I believe will work awesome on the valley of the LIM and the LIM runners if the wheels start getting worn down.
OLBlueEyesBonne is offline   Reply With Quote
Old 12-18-2006, 04:28 PM   #149
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Polishing or sanding the valley of the LIM will do absolutely nothing for performance. The air is static pressure at that point.

According to INTENSE and ZZP, there is nothing really worth 'porting' on the L67 S2 LIM. The L36 there is, as well as the S1 L67.

Paul did do some MINOR port work on the LIM however. Discussed in another reply/post.
willwren is offline   Reply With Quote
Old 12-19-2006, 08:16 AM   #150
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

In addition the top of the runners have a curvature that can not easily be smoothed with most dremel accessories..
