08 Grand Prix Crank and cam sensor fiasco please help

Thread Tools

Search this Thread

Old Mar 5, 2019 | 10:09 PM
  #21
carfixer007's Avatar
Senior Member


True Car Nut

Joined: Dec 2018
Posts: 3,246
Likes: 1,606
From: Flint, MI USA
carfixer007 is on a distinguished road
Default

I believe there are drums on the backside of the rotors. They are just like a drum brake but you need to get to them from behind the rotor. Not at all easy. I'll check You Tube to see if someone has done that.
Reply
Old Mar 5, 2019 | 10:18 PM
  #22
carfixer007's Avatar
Senior Member


True Car Nut

Joined: Dec 2018
Posts: 3,246
Likes: 1,606
From: Flint, MI USA
carfixer007 is on a distinguished road
Default

I'm pretty sure this is what you are up against.
Reply
Old Mar 6, 2019 | 01:01 PM
  #23
CathedralCub's Avatar
Senior Member


True Car Nut

Joined: Feb 2015
Posts: 6,885
Likes: 1,023
From: Earth
CathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to behold
Default

Have someone press the normal brake pedal fairly hard while you tap on the "hat" part of the rotor with a hammer. Be careful to not hit the studs. Might not work the first time, but keep blasting it with WD-40 or equivalent and try again a few times. Pressing the brake pedal attempts to hydraulically release some of the tension from the rusted mechanical emergency-brake parts.
Reply
Old Mar 6, 2019 | 01:09 PM
  #24
CathedralCub's Avatar
Senior Member


True Car Nut

Joined: Feb 2015
Posts: 6,885
Likes: 1,023
From: Earth
CathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to beholdCathedralCub is a splendid one to behold
Default

Originally Posted by carfixer007
I'm pretty sure this is what you are up against.
You're right. I just looked it up as a part and they have the drum brake.

Okay greentsarfish03, revising my instructions above: Tap on the "hat" part of the rotor with a hammer. Be careful to not hit the studs. Might not work the first time, but keep blasting it with WD-40 or equivalent and try again a few times. (this is with the wheel off and nothing on the lug nuts)

Make sure when you're spraying WD-40 (or equivalent) you are spraying the parts inside the drum, but not necessarily the shoe'* friction material directly.
Reply
Old Mar 6, 2019 | 03:05 PM
  #25
Tech II's Avatar
Senior Member

True Car Nut

Joined: Feb 2014
Posts: 2,878
Likes: 1,097
From: Worcester, Ma.
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

is there slack in the cables going to each linkage on the backing plate of each brake? If there isn't, then the shoe is expanded against the inside drum of the rotor....
Reply
Old Mar 6, 2019 | 08:47 PM
  #26
greentsarfish03's Avatar
Thread Starter
Member
Posts like a V-Tak

Joined: Mar 2019
Posts: 72
Likes: 2
From: Grand Blanc, MI
greentsarfish03 is on a distinguished road
Default






Thanks everyone I really appreciate the responses. @Tech II @carfixer007 @CathedralCub
I dont think I have that style brake. I just went out and took some pictures. My actual brake pads are pressed very frimly against the rotor.
Reply
Old Mar 6, 2019 | 08:50 PM
  #27
greentsarfish03's Avatar
Thread Starter
Member
Posts like a V-Tak

Joined: Mar 2019
Posts: 72
Likes: 2
From: Grand Blanc, MI
greentsarfish03 is on a distinguished road
Default

In the second picture you can see the pad pushed tight against the rotar.

Reply
Old Mar 6, 2019 | 08:52 PM
  #28
greentsarfish03's Avatar
Thread Starter
Member
Posts like a V-Tak

Joined: Mar 2019
Posts: 72
Likes: 2
From: Grand Blanc, MI
greentsarfish03 is on a distinguished road
Default

In the second picture you can see the pad pushed tight against the rotar.

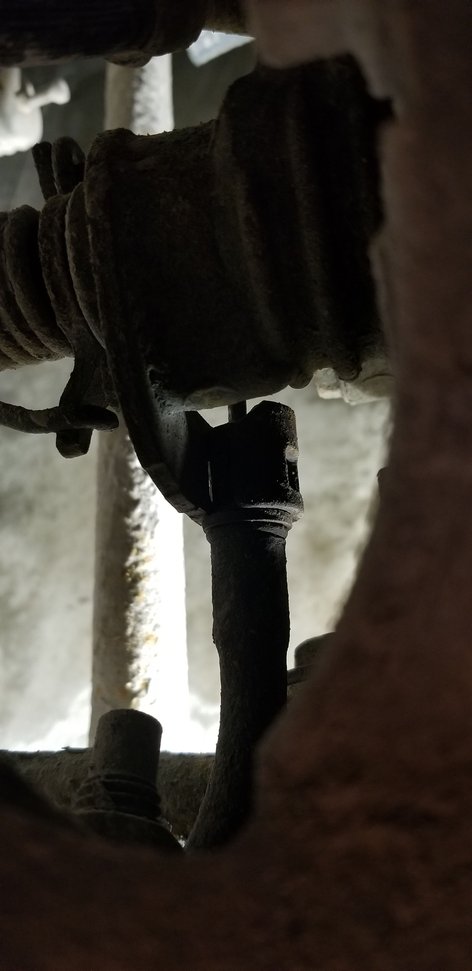

in the third picture in the center you can see the tab on the end of the e brake cable and the mechanim that it clips into.

Reply
Old Mar 6, 2019 | 08:55 PM
  #29
greentsarfish03's Avatar
Thread Starter
Member
Posts like a V-Tak

Joined: Mar 2019
Posts: 72
Likes: 2
From: Grand Blanc, MI
greentsarfish03 is on a distinguished road
Default

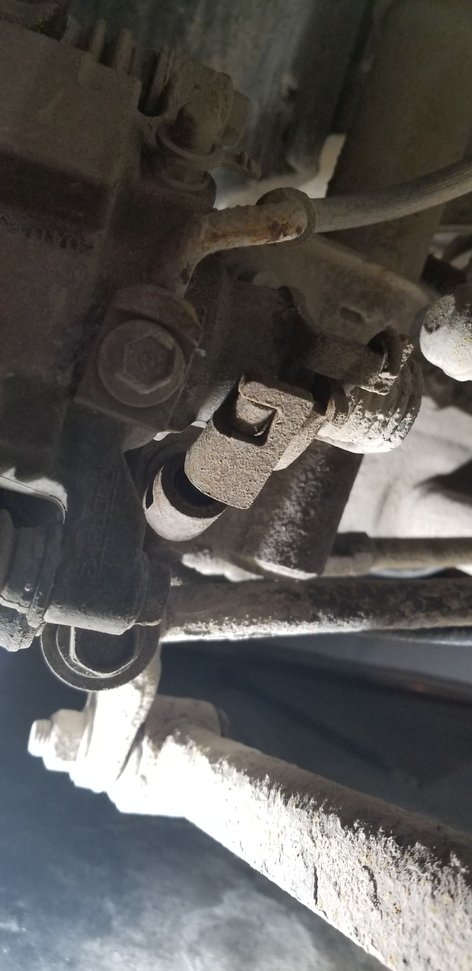

4th picture you can see the bottom of the e brake line as it gets to the rotor before it gets to pic three.

This is my mane issue. I scoured youtube and i cant find a video or anything that tells me how the e brake mechanism works on that car. If I knrw how it worked I could probably get it free.

again i really appreciate the help. Check out these pics and let me know what you think. At this point im not even sute what to spray or hit bc im not sure how that little cable is forcing my pads up against the rotars.
Reply
Old Mar 6, 2019 | 09:09 PM
  #30
carfixer007's Avatar
Senior Member


True Car Nut

Joined: Dec 2018
Posts: 3,246
Likes: 1,606
From: Flint, MI USA
carfixer007 is on a distinguished road
Default

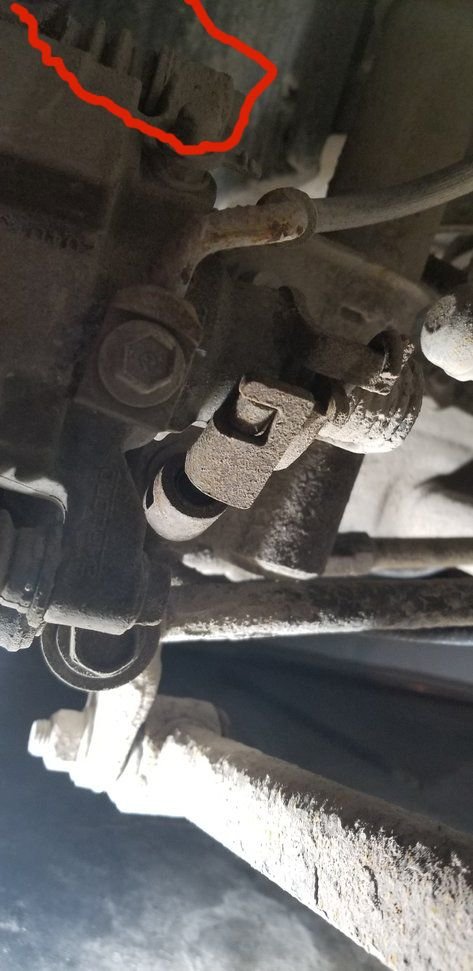

It is the drum. The area I circled is a rubber boot that protects the cable end where it pulls on the cam that spreads the shoes. Get a drift or something that you can hammer it to open up and loosen the grip of the shoes. If you try and remove the caliper you'll find it comes off along with the pads. That is NOT your problem.
Reply
