Old 03-18-2007, 01:03 AM   #91
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

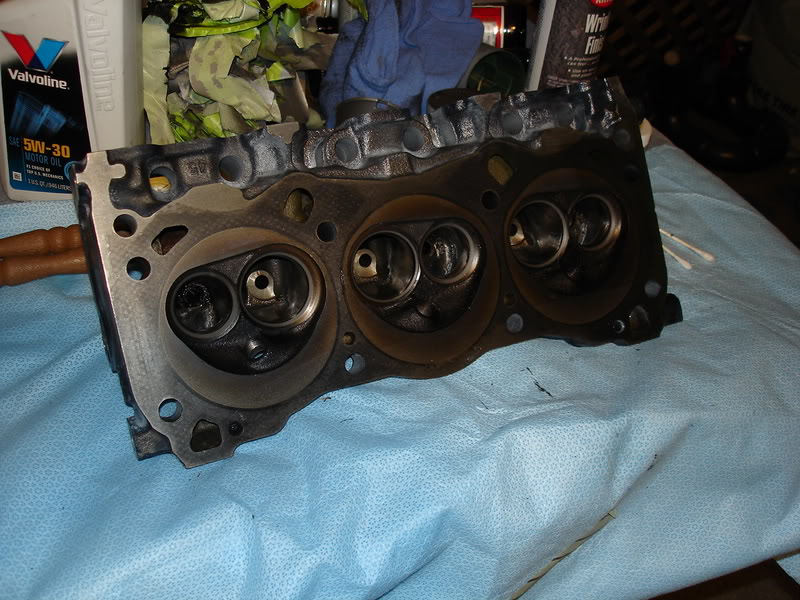

A little more material gone now. Valve lapping for the rear head is complete. Nothing left to do but paint this head, assemble it, and set it aside. Then it'* on to the front cylinder head.

Name:  valvelap1.jpg
Views: 0
Size:  93.4 KB

Name:  valvelap2.jpg
Views: 0
Size:  120.6 KB
willwren is offline   Reply With Quote
Old 03-18-2007, 01:06 AM   #92
Senior Member
Posts like a Turbo

Join Date: Oct 2006
Posts: 450
Thanks: 0
Thanked 0 Times in 0 Posts
ieatfeets is on a distinguished road
Default

man that would have messed with me bab messing around around the valve seat with a dremel. your a brake man
ieatfeets is offline   Reply With Quote
Old 03-18-2007, 01:33 AM   #93
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Quote:
Originally Posted by ieatfeets
man that would have messed with me bab messing around around the valve seat with a dremel. your a brake man
Have a good St. Patty'* day there?
Looks great, Bill. Keep it up on the second head.
dillcc is offline   Reply With Quote
Old 03-18-2007, 11:34 AM   #94
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'm not looking forward to working around those valve seats again. I even considered cutting a plastic tube to 'buffer the hit if there is one. On the front head, I'll probably tape the collets up on the die-grinder and dremel.

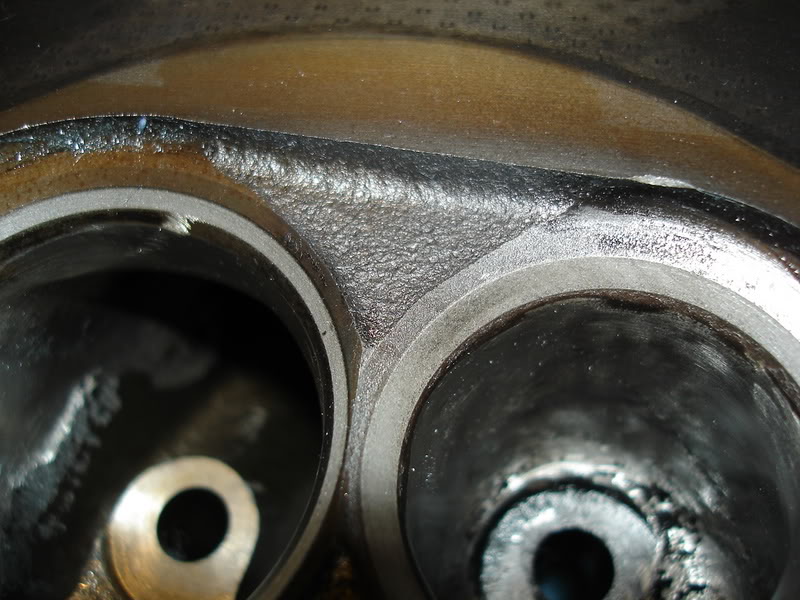

I chose this pic on purpose:

Name:  valvelap1.jpg
Views: 0
Size:  93.4 KB

On the intake valve seat in the upper left of the pic, you can see how close I came to goofing the actual seat. Just below where I lapped the seats.
willwren is offline   Reply With Quote
Old 03-18-2007, 06:14 PM   #95
Senior Member
Posts like a Turbo

Join Date: Oct 2006
Posts: 450
Thanks: 0
Thanked 0 Times in 0 Posts
ieatfeets is on a distinguished road
Default

yes it was a great st pattys day. the bad thing is i came back a few times to fix it before i read all the way through.
man you nearly goofed up there.
ieatfeets is offline   Reply With Quote
Old 03-18-2007, 07:24 PM   #96
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Sooo when are we going to see completed pictures? C'mon put the new valve seals and springs on.. we want finished pics.
BillBoost37 is offline   Reply With Quote
Old 03-18-2007, 07:40 PM   #97
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I have no valve seals. Finishing up this one. It'* painted. Need to clean out the threads on the bolt holes, lightly oil it, snap a couple pics, an set it aside.

Front head gets pre-cleaned tonight.
willwren is offline   Reply With Quote
Old 03-18-2007, 09:58 PM   #98
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

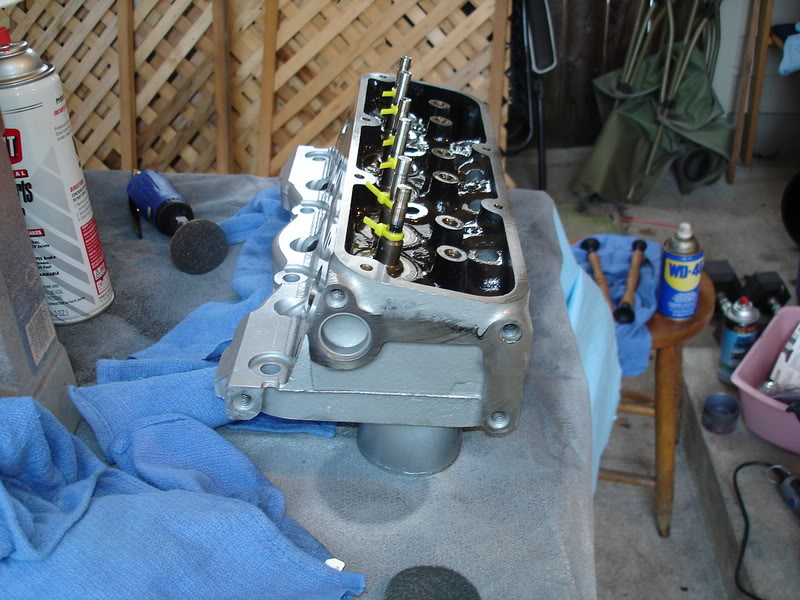

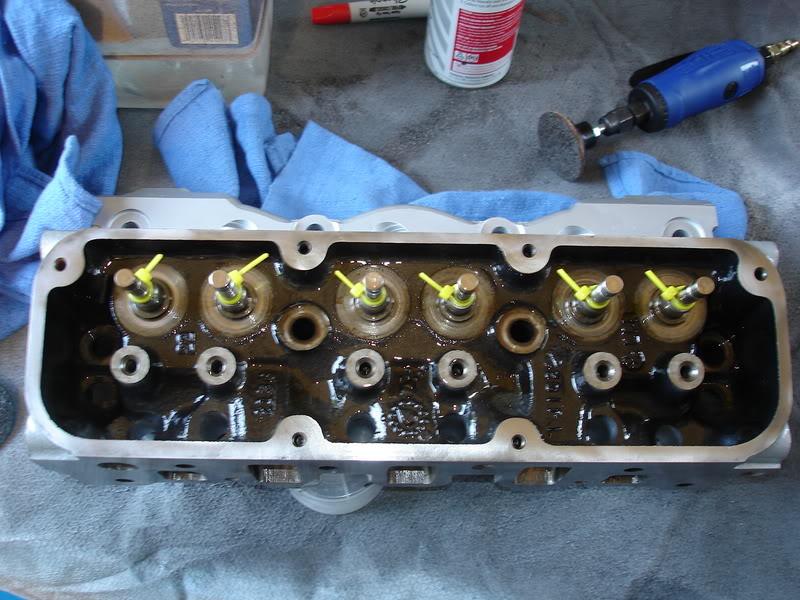

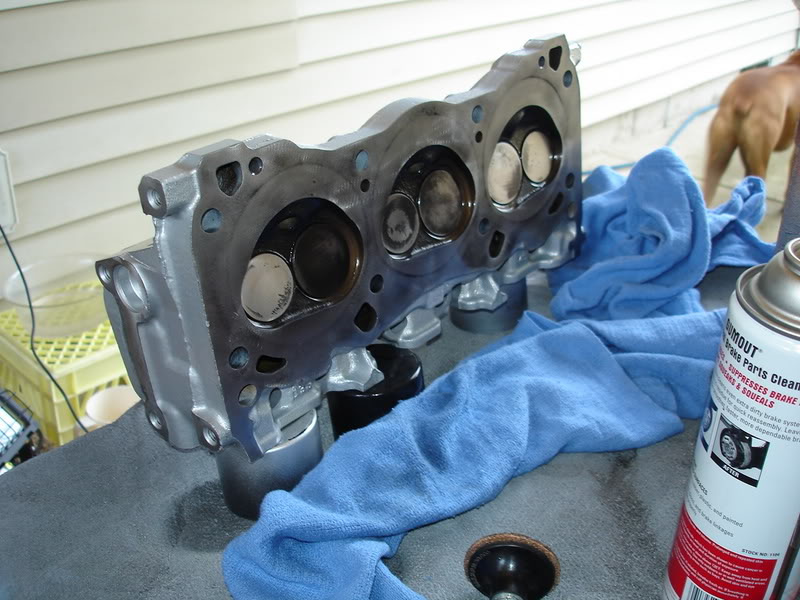

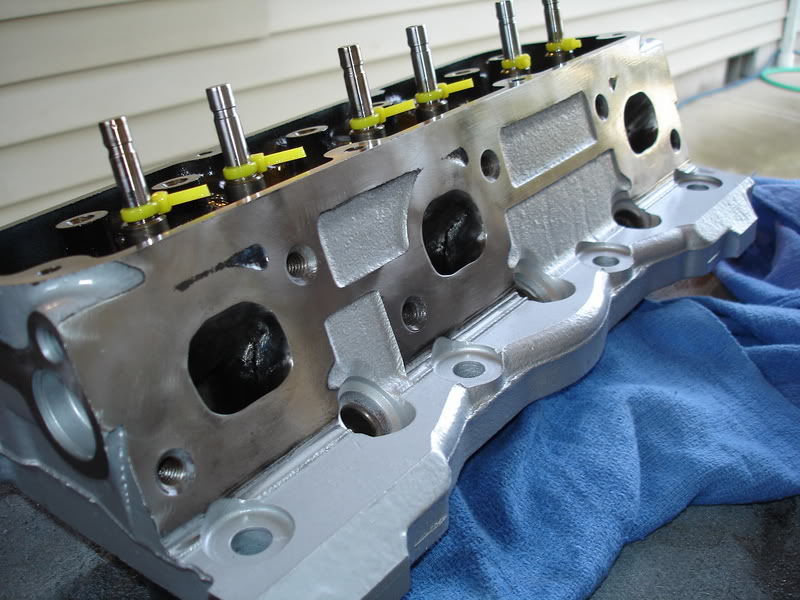

Valve seals ordered today. Until they arrive, this will have to do for the rear. Sealing in plastic after oiling for the wait, moving on to the front cylinder head next.

This is the last of the rear for awhile:

Name:  DSC03550.jpg
Views: 0
Size:  93.0 KB

Name:  DSC03551.jpg
Views: 0
Size:  106.0 KB

Name:  DSC03552.jpg
Views: 0
Size:  101.0 KB

Name:  DSC03553.jpg
Views: 0
Size:  93.0 KB
willwren is offline   Reply With Quote
Old 03-22-2007, 09:11 AM   #99
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Got my gaskets and bolts, as well as my timing gears and chain yesterday. Water pump is still enroute, but I still have alot of work to do before assembly anyway.

Final measurements were made yesterday on my rear cylinder head before starting on the front. Without taking into account the gains from smoothing, and ONLY the port size changes, I've gained 8% on the intake side, and 18% on the exhaust side. This is why I call it a mild or 'stage 1' cylinder head porting. Should be in the 10/20 range due to smoothing, as well as the work I did in my valve bowls.
willwren is offline   Reply With Quote
Old 03-22-2007, 01:54 PM   #100
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

That should be noticeable.
Do you think it will affect low speed torque at all
2000SilverBullet is offline   Reply With Quote
