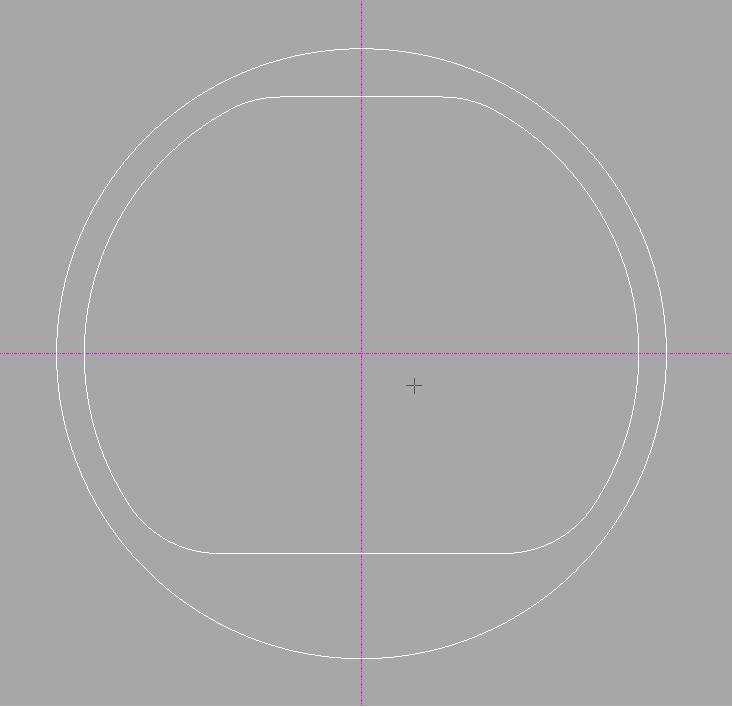

Please note that my exhaust manifolds are already ported......did that a year and a half ago. I did a good measurement today before I left for work and created it to scale for this topic.

The full circle is the inside diameter of my exhaust manifold ports. 1.435". Area of 1.6"
The inside profile is my head port. The head port has a calculated area of about 1.2 square inches.

By matching the head port BUT KEEPING THE PROFILE (flats have a purpose), I can squeak another easy 15-20% in exhaust port flow from the heads. If I made it a full matching round (which I won't), I could gain 33%.

It'* better to take half what you WANT if you don't like creating scrap. The D-shaped exhaust port is designed to cancel out the shockwave that returns back to the cylinder from inside the exhaust manifolds. This actually helps performance.

Name:  ports.jpg
Views: 0
Size:  17.9 KB

So I'll be enlarging the rounded sections in WIDTH, but leaving the flats where they are.
willwren is offline   Reply With Quote
Old 03-10-2007, 09:27 AM   #72
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Posts: 1,166
Thanks: 0
Thanked 1 Time in 1 Post
mkaake is on a distinguished road
Default

Not even a proportional increase in size, eh?

I'm not privvy to the equations that went into designing those flats, so I'm just going to go ahead and ask: is it the true position of the flats, or the presence of the flats that work to cancel the shockwave?

If you had a spare set of heads, it would be interesting to see the effects of a proportional increase to their size...
mkaake is offline   Reply With Quote
Old 03-10-2007, 11:04 AM   #73
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

It'* both the position and surface area of the flats that are important on a D-shaped exhaust port.

I've found some interesting work by Edelbrock on Harley Davidson heads that are very similar to my exhaust ports. I actually spoke to one of the Edelbrock guys about them, which is what I'm basing my porting on.



Quote:
The "D" shaped exhaust port is designed to provide a larger area for increased flow and velocity as well as to create a mismatch between the exhaust pipe and the exhaust exit. This purpose-built mismatch reduces "power-robbing" reversion by keeping the majority of the exhaust gasses from going back into the engine.
willwren is offline   Reply With Quote
Old 03-14-2007, 07:28 PM   #74
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

It has begun. I'm porting the rear head right now. The intake runners are roughed in, very little material removal, just smoothing things, as I will in the valve bowls.

The exhaust ports are getting a little more attention than that, when my compressor catches it'* breath.
willwren is offline   Reply With Quote
Old 03-14-2007, 09:22 PM   #75
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

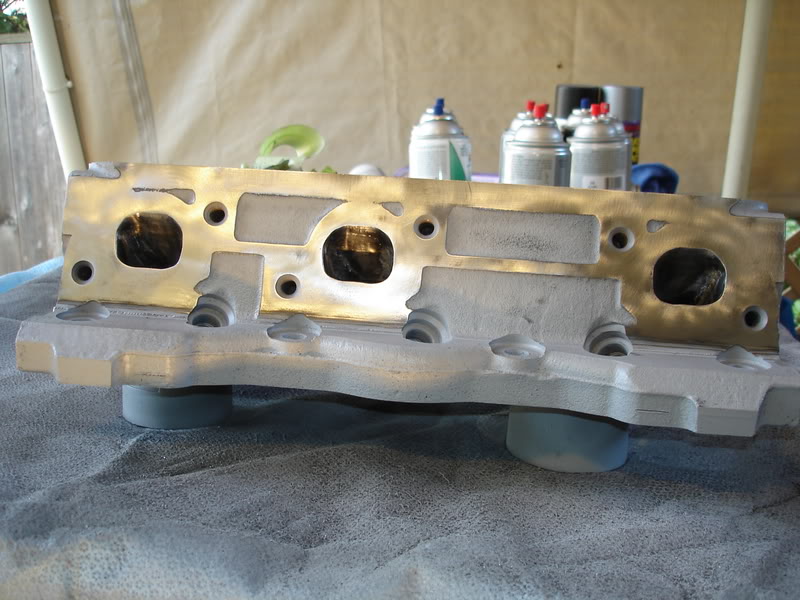

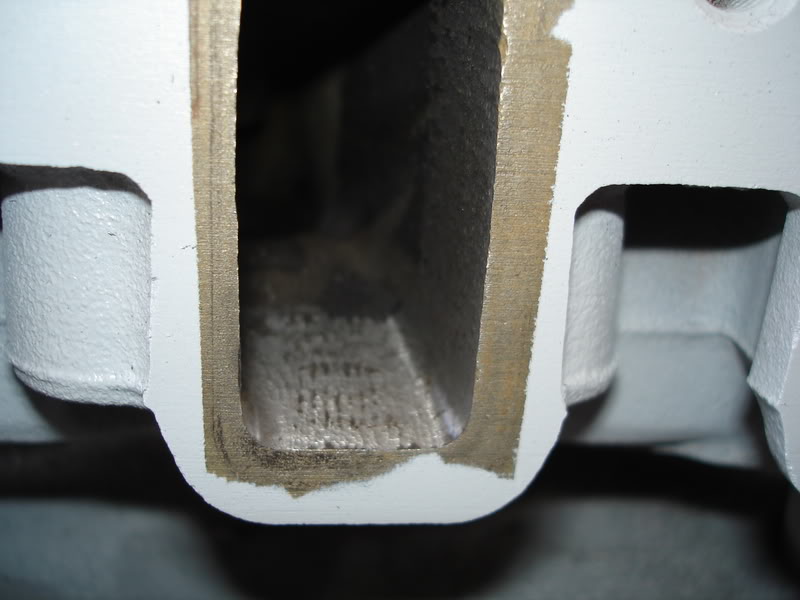

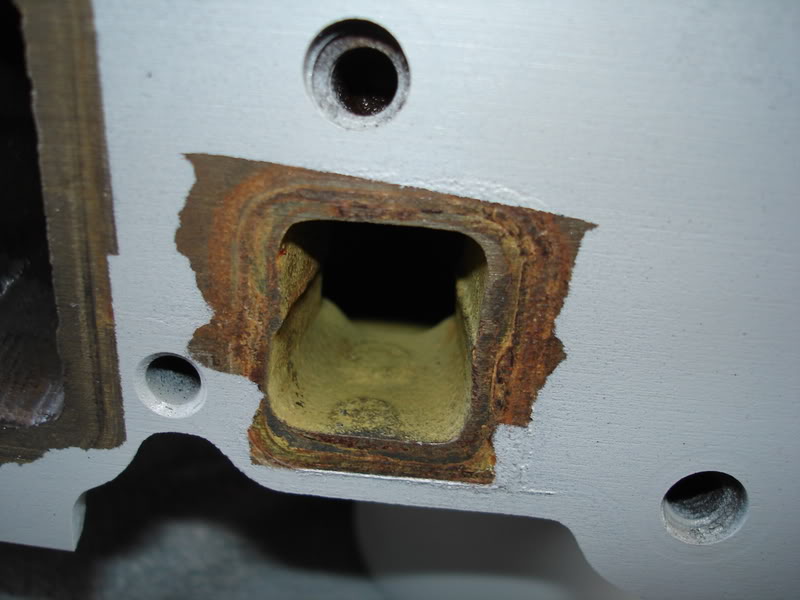

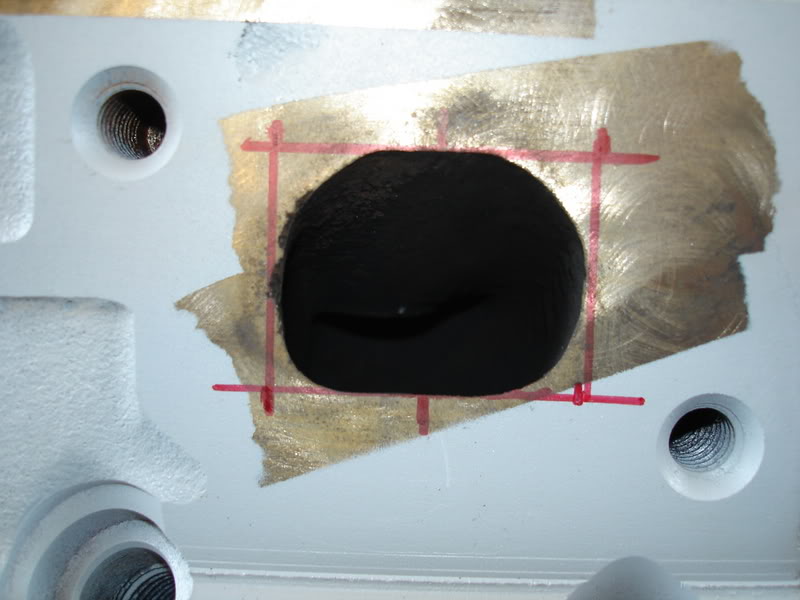

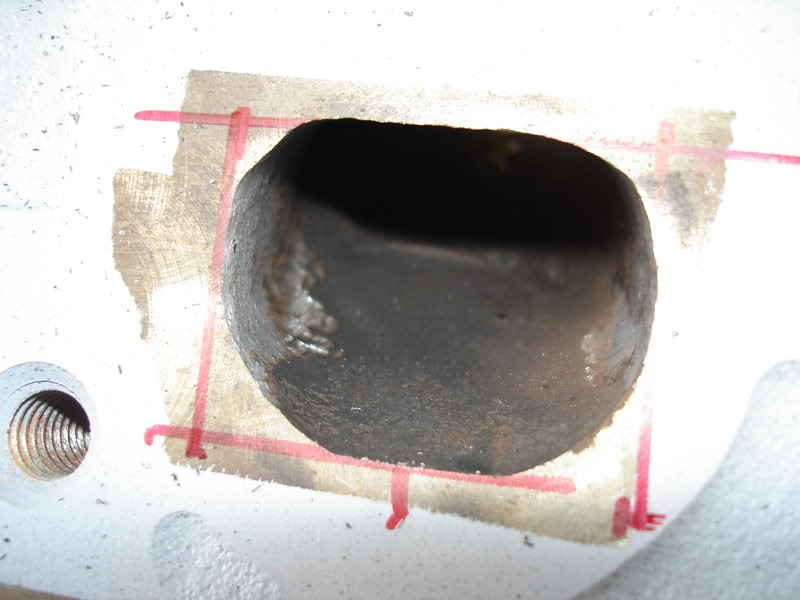

These are progress pics, not finished pics.

Name:  head1.jpg
Views: 0
Size:  55.6 KB

Name:  head2.jpg
Views: 0
Size:  52.1 KB

Name:  head3.jpg
Views: 0
Size:  54.0 KB

Name:  head4.jpg
Views: 0
Size:  55.7 KB



Name:  head6.jpg
Views: 0
Size:  87.2 KB

willwren is offline   Reply With Quote
Old 03-14-2007, 09:35 PM   #76
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Alot of good clean work is what I see right there.
Zilla will thank you
SSEimatt93 is offline   Reply With Quote
Old 03-14-2007, 09:38 PM   #77
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

He'* talking too fast to get done tonight. Expect finished pics tomorrow.
BillBoost37 is offline   Reply With Quote
Old 03-14-2007, 11:58 PM   #78
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

Thats looking very good!

hurry up and get then done!
Peterg22000 is offline   Reply With Quote
Old 03-15-2007, 12:52 AM   #79
Senior Member
True Car Nut

Join Date: Aug 2003
Location: Salina, KS
Posts: 5,246
Thanks: 0
Thanked 0 Times in 0 Posts
TrueWildMan is on a distinguished road
Default

Looking very good. And clean!! Wow, that'* a clean engine for the miles and tear that'* been on it. :P

With the increased flow, what'* you're thoughts on flat pistons with relief cuts for the valves?

(Haven't really seen any topics on flat pistons.)
TrueWildMan is offline   Reply With Quote
Old 03-15-2007, 09:09 AM   #80
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Pistons stay the same.

All I'm doing here is what I'd call a 'Stage 1' job. I'm SLIGHTLY increasing the intake ports in order to smooth them. The LIM will be further ported to match them.

Increased the width of my exhaust ports to match my ported exhaust manifolds, and left the upper and lower flats relatively untouched, other than smoothing them down.

I still have to enlarge my valve bowls and blend back to the intake and exhaust ports. Then do the other head.

Typical warning applies......this isn't your typical garage job. This is difficult work, and I take great pains to do all the ports exactly the same. I move from port to port, and measure several times.
