Old 02-01-2010, 10:52 AM   #111
Senior Member
Posts like a Northstar

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Yes, we have a 4 wire.
I knew the rear one was, because I deleted that one, but have never seen the main one lol

I know where it is just never looked for it. . .
Rockstar04 is offline   Reply With Quote
Old 02-01-2010, 10:56 AM   #112
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I'm pretty confident that the scan log shows us it was probably bad or the pcm has tanked
BillBoost37 is offline   Reply With Quote
Old 02-01-2010, 11:03 AM   #113
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Found this, when rich check,

Quote:
No MAF sensor, ECT sensor, HO2S, TP sensor, EVAP, EGR, Misfire, Injector circuit, Idle speed, MAP sensor, or IAT sensor
MAF is good, ECT good, TPS good, EVAP not sure, ERG disabled, misfire no, injector circuit good, MAP good, IAT good.

The scan tool is showing about 440mv and that indicates a dead sensor.
Danthurs is offline   Reply With Quote
Old 02-01-2010, 11:04 AM   #114
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Quote:
Originally Posted by Rockstar04 View Post
I knew the rear one was, because I deleted that one, but have never seen the main one lol

I know where it is just never looked for it. . .
Go back a page or 2, I have a picture of the plug.
Danthurs is offline   Reply With Quote
Old 02-01-2010, 11:10 AM   #115
Senior Member
Posts like a Northstar

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Go back a page or 2, I have a picture of the plug.
Wow my bad, I missed a page or two lol. . . Ya then it will ground through a wire not the case if you try to test it.
Rockstar04 is offline   Reply With Quote
Old 02-01-2010, 11:13 AM   #116
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I'll see what I can do today. i'm pulling the SC off and resealing the gaskets. Then cleaning up the mess.
Danthurs is offline   Reply With Quote
Old 02-01-2010, 03:49 PM   #117
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

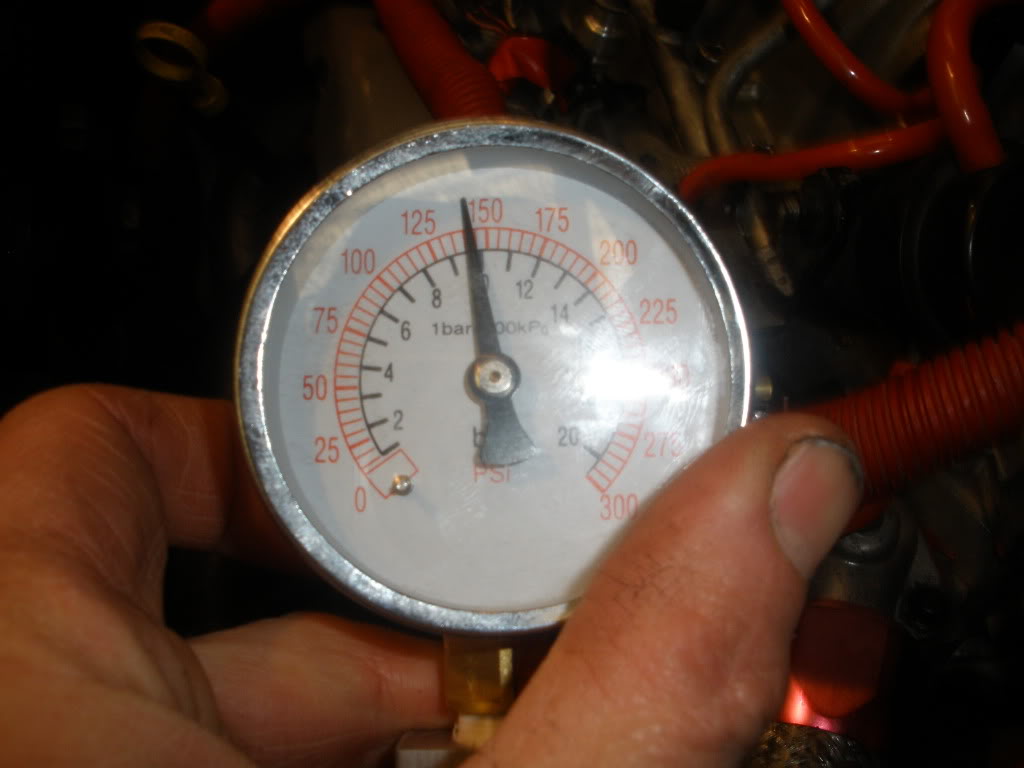

Well, considering my car is down for the count until I get my new O2 sensor, I figured I'd fix that vacuum leak I had under the intercooler plate. First I ran a compression test just to make sure nothing funny happened, all was good.
Name:  P2010009.jpg
Views: 0
Size:  78.4 KB

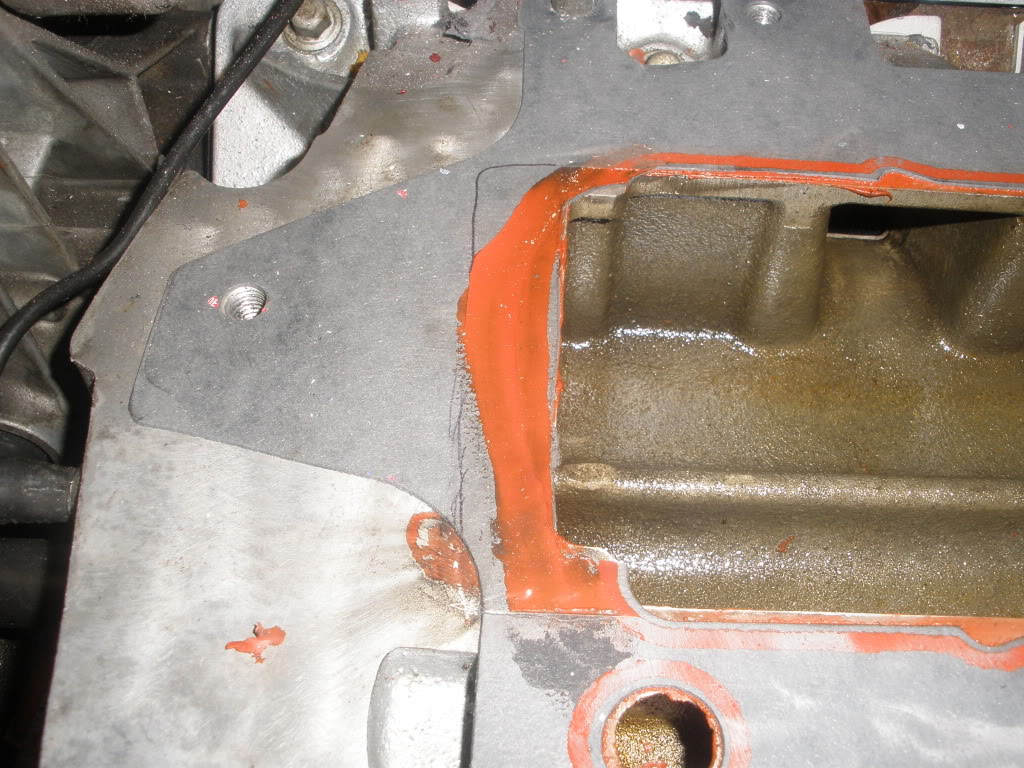

So I then remove the supercharger and intercooler. As you can see, the intercooler plate never even touched the RTV, so no seal.
Name:  P2010012.jpg
Views: 0
Size:  204.6 KB

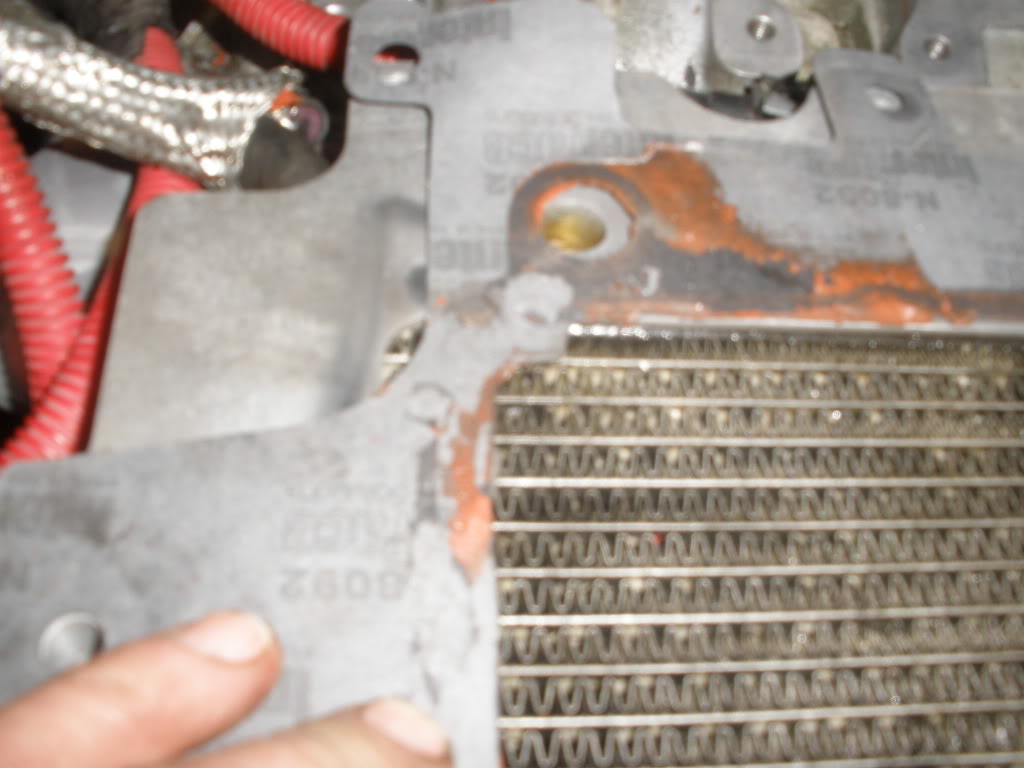

But wait, it gets better, I then put the gasket on the IC plate, and what have we here?
Name:  P2010014.jpg
Views: 0
Size:  98.1 KB

The gasket left the core open, I would call this a big vacuum leak. Last time I used the garlock gaskets, this time I went with the fiber type.

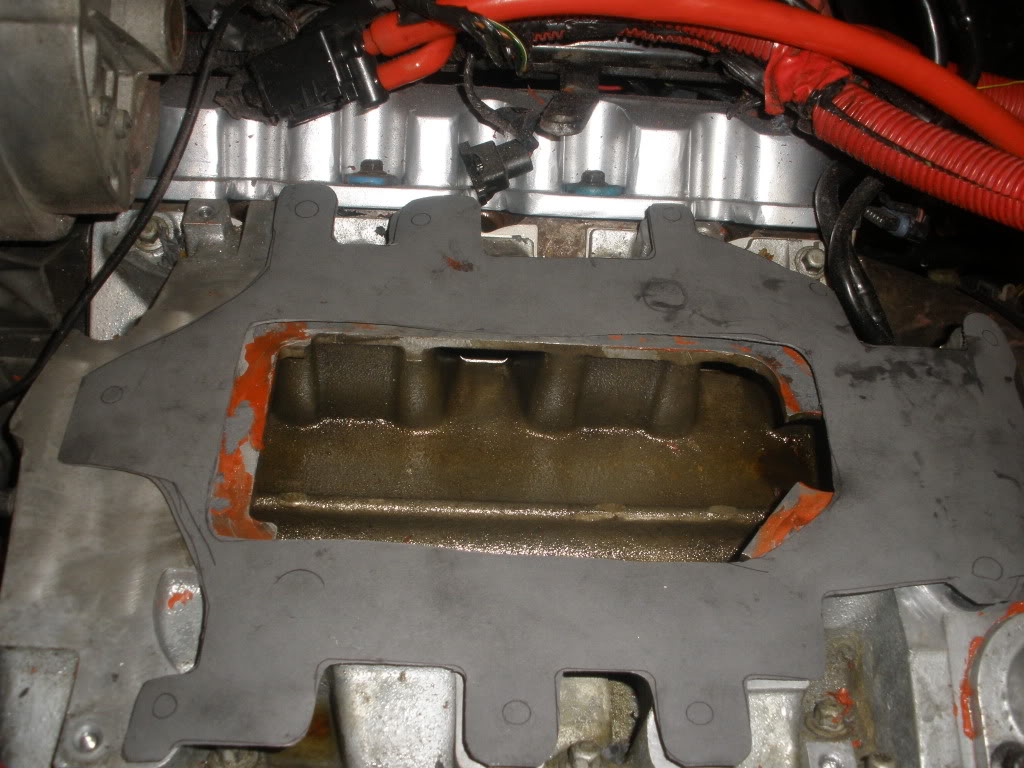

This time I made a gasket myself. I matched the IC core. You can see the LIM didn't line up so good.
Name:  P2010015.jpg
Views: 0
Size:  147.3 KB

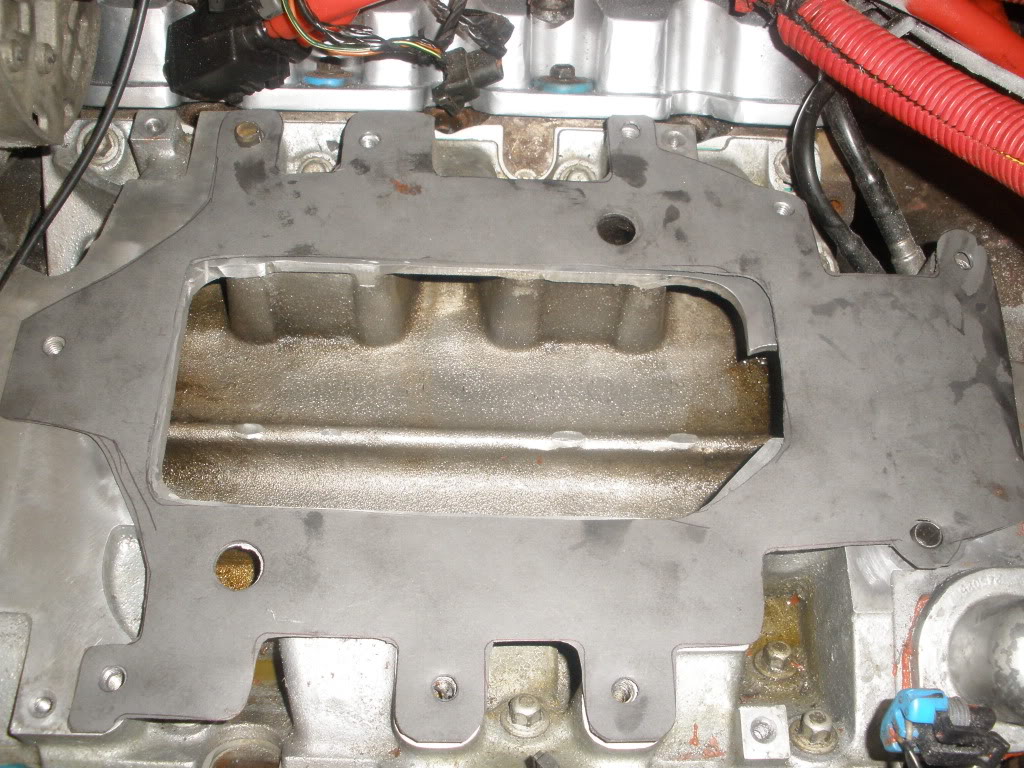

So, I decided to modify the LIM inlet to better match. Not perfect, but way better then it was.
Name:  P2010018.jpg
Views: 0
Size:  195.7 KB

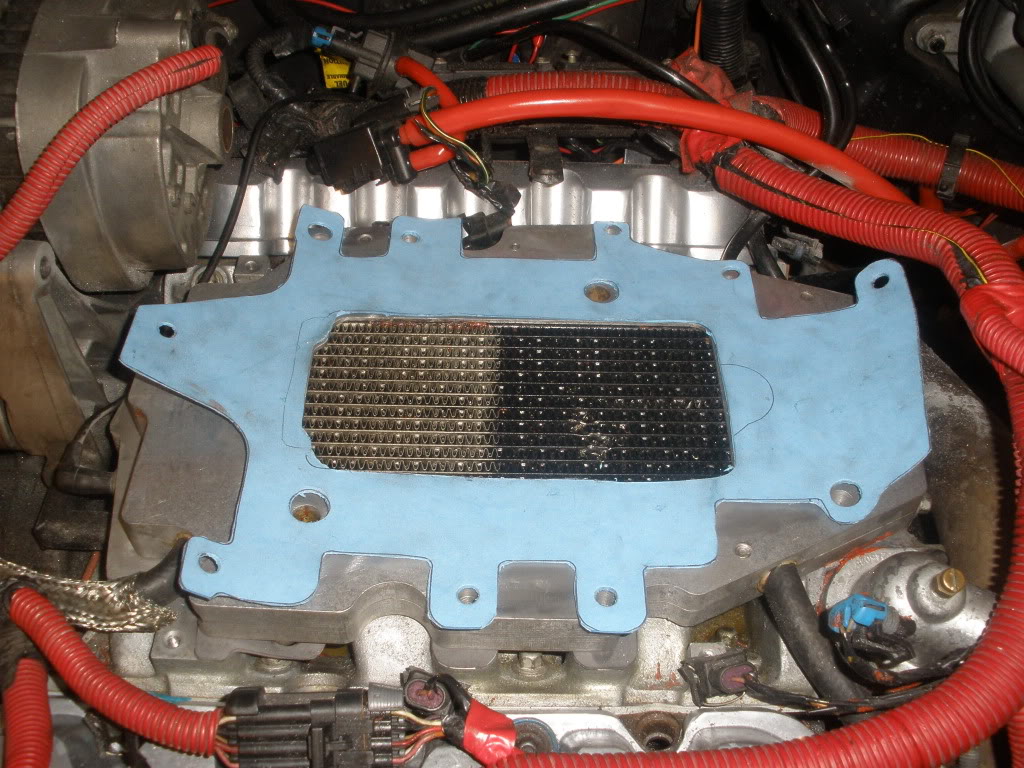

I then made up a new gasket for the top of the plate, and again, matched the core inlet.
Name:  P2010019.jpg
Views: 0
Size:  196.2 KB

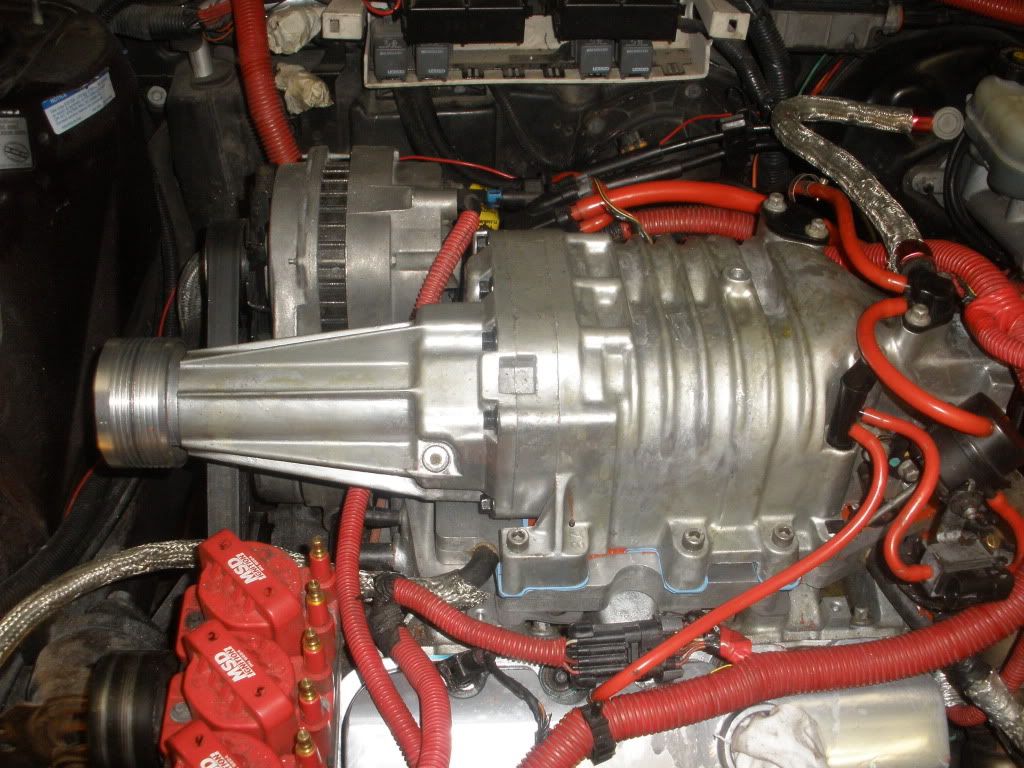

Got everything back on. Now just wait until I get my O2 sensor
Name:  P2010020.jpg
Views: 0
Size:  178.3 KB
Danthurs is offline   Reply With Quote
Old 02-01-2010, 03:56 PM   #118
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

*cough*
Reminds me of someone switching accumulator lines. *cough*
Mike is offline   Reply With Quote
Old 02-01-2010, 04:00 PM   #119
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

I like the way the valve covers match the super charger in color, that worked out nicely. When is the sensor due to arrive?
ymmot04 is offline   Reply With Quote
Old 02-01-2010, 04:01 PM   #120
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Ya, it was a stupid mistake, I just never looked at the bottom of the IC core lined up with the gasket. Now I can move even more air. If I take the LIM off again I'll clean up that other side as well.
Danthurs is offline   Reply With Quote
