Old 11-04-2007, 08:39 PM   #51
Junior Member
Posts like a Ricer Type-R

Join Date: Oct 2007
Location: Omaha, NE
Posts: 18
Thanks: 0
Thanked 0 Times in 0 Posts
86 electra is on a distinguished road
Default

Hey sam thats a nice project you have there.

Thanks for refering me to bonnivilleclub it'* a thousand times better than that buick forum.

I may be doing a similar swap with my electra in the spring if it serves me well this winter lol. So I'll be reading everything I can about it.

I'm still not familiar with the different engine / chasis codes but I was wondering where the ecu mounts for this swap. I'm thinking that the cars that mount them in the engine bay would make the swap much simpler as the motor trans and wiring harness/ecu could be pulled from the donor in more or less one piece and dropped in the project car in a similar fashion.

I figure that besides the fuel pump and ignition the whole thing could run independent of the rest of the chassis harness.
86 electra is offline   Reply With Quote
Old 11-04-2007, 09:49 PM   #52
Senior Member
Certified GM nut
Thread Starter

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

Quote:
Originally Posted by 86 electra
Hey sam thats a nice project you have there.

Thanks for refering me to bonnivilleclub it'* a thousand times better than that buick forum.

I may be doing a similar swap with my electra in the spring if it serves me well this winter lol. So I'll be reading everything I can about it.

I'm still not familiar with the different engine / chasis codes but I was wondering where the ecu mounts for this swap. I'm thinking that the cars that mount them in the engine bay would make the swap much simpler as the motor trans and wiring harness/ecu could be pulled from the donor in more or less one piece and dropped in the project car in a similar fashion.

I figure that besides the fuel pump and ignition the whole thing could run independent of the rest of the chassis harness.
yeah, this forum is the best, you'll like it here.

your best bet would be a wrecked donor if you wanted to do a swap. other wise, it is just way too costly (imop).

and welcome to BC!
samueljackson is offline   Reply With Quote
Old 11-04-2007, 10:08 PM   #53
Senior Member
Certified GM nut
Thread Starter

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

yesterday was a header day.

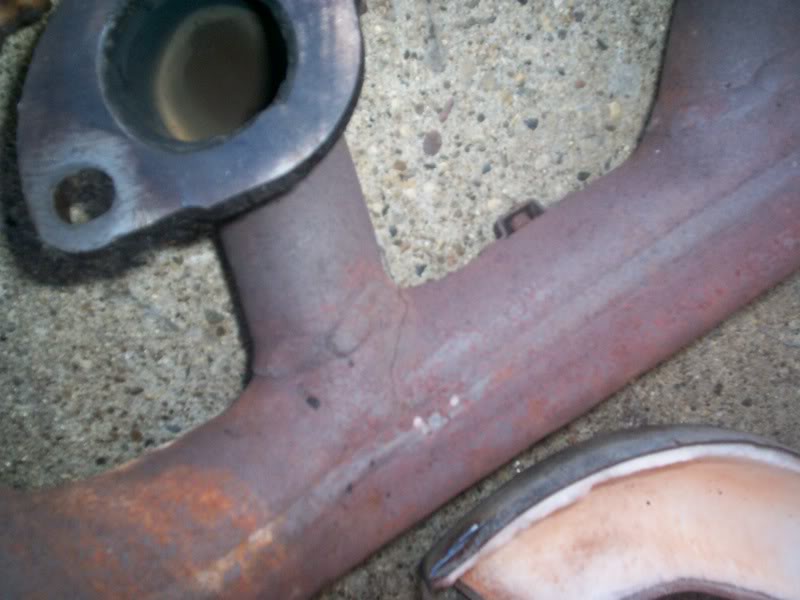

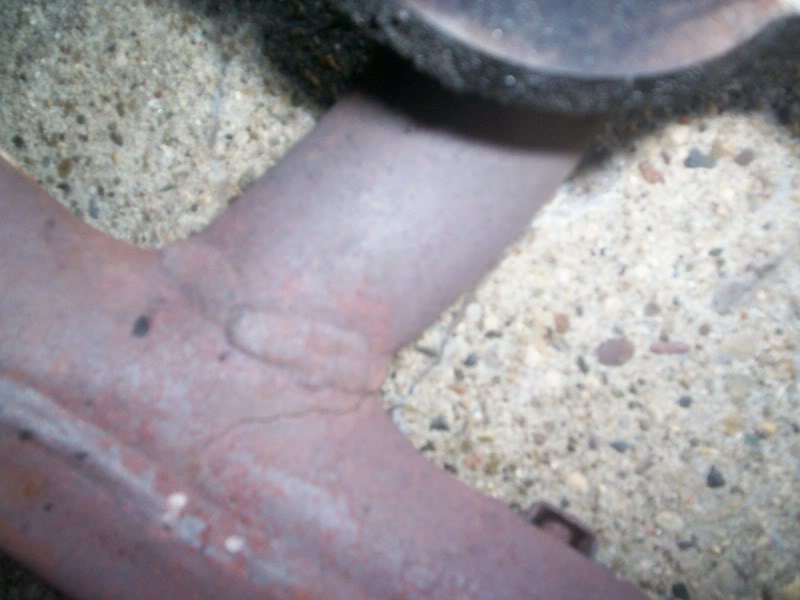

close inspection only revealed one crack
Name:  100_1486.jpg
Views: 0
Size:  56.5 KB
Name:  100_1487.jpg
Views: 0
Size:  46.4 KB

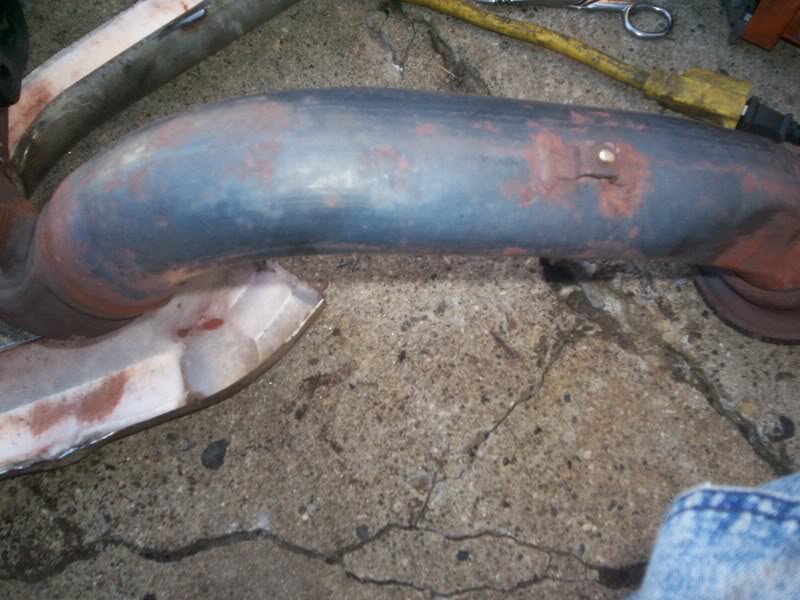

the cross over was in good shape
Name:  100_1488.jpg
Views: 1
Size:  80.8 KB

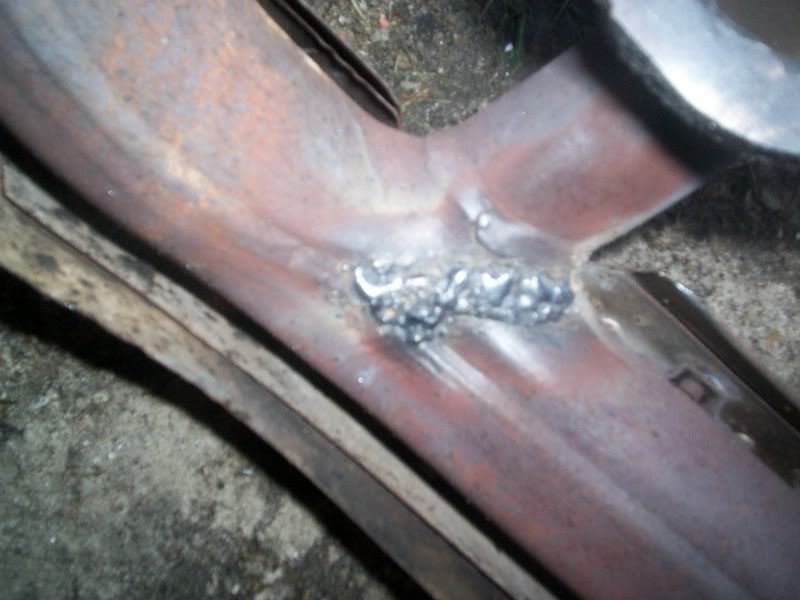

this is a good reminder of how horrible my welding skills are. but it seals.
Name:  100_1493.jpg
Views: 1
Size:  55.5 KB

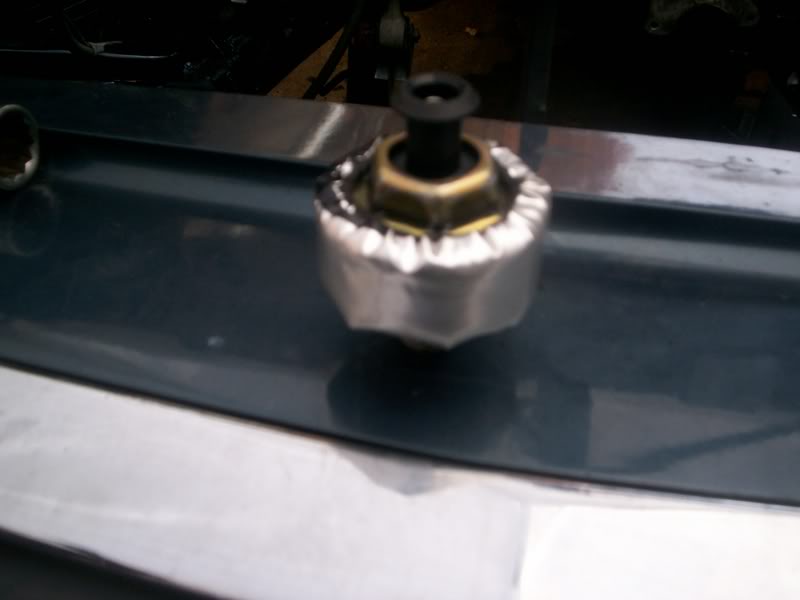

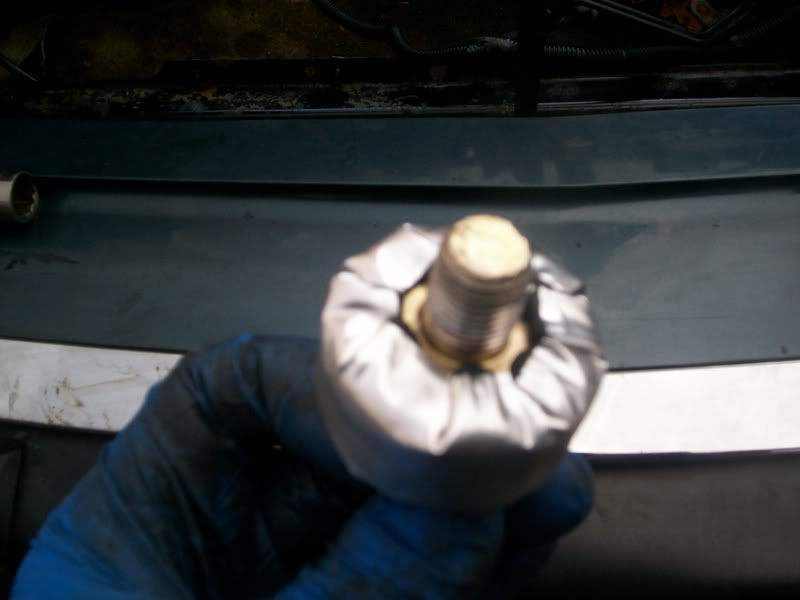

this was roadtech'* suggestion, thanks
Name:  100_1498.jpg
Views: 0
Size:  31.4 KB
Name:  100_1499.jpg
Views: 1
Size:  35.7 KB

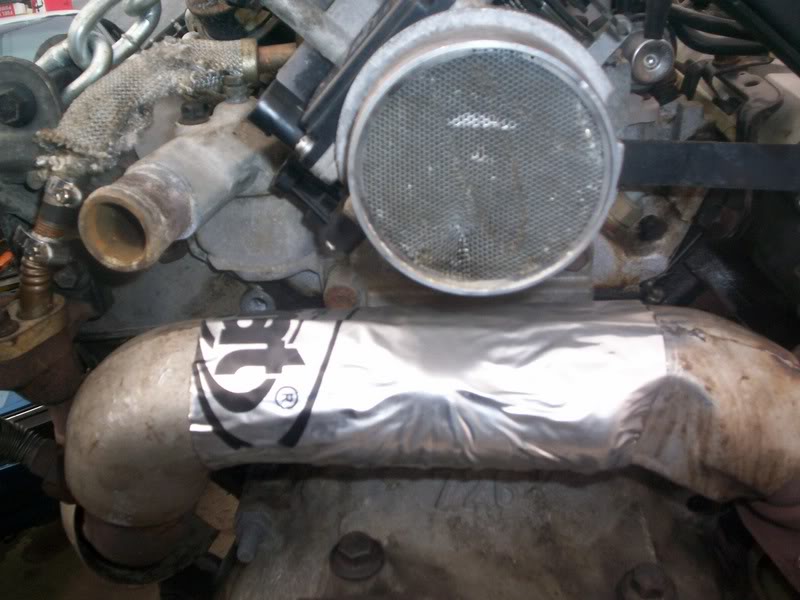

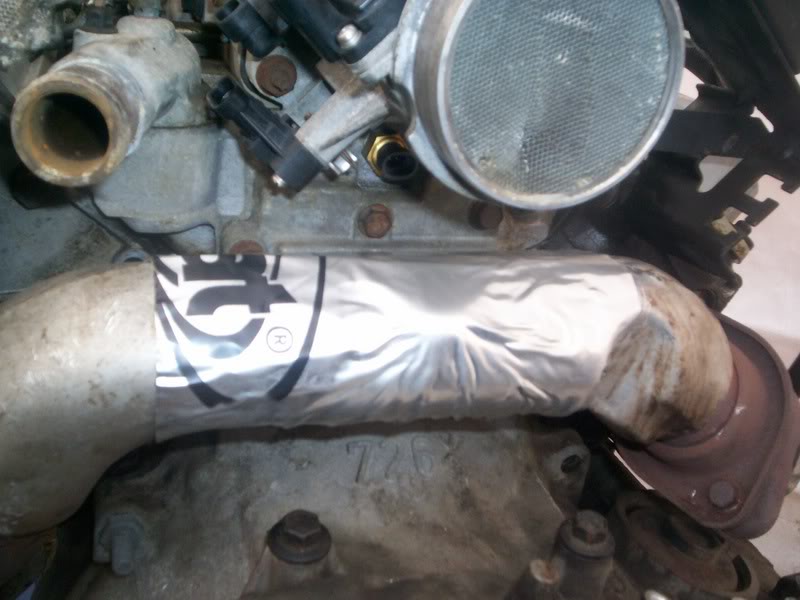

and this spawned from that suggestion, time will tell how it hold up to the temp tho
Name:  100_1496.jpg
Views: 0
Size:  64.1 KB
Name:  100_1497.jpg
Views: 0
Size:  70.4 KB

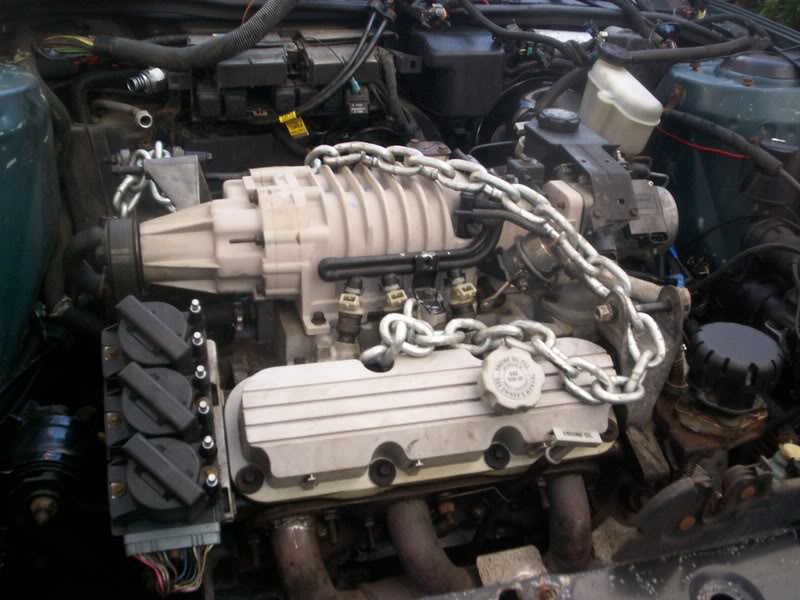

eng in place
Name:  100_1500.jpg
Views: 1
Size:  81.0 KB

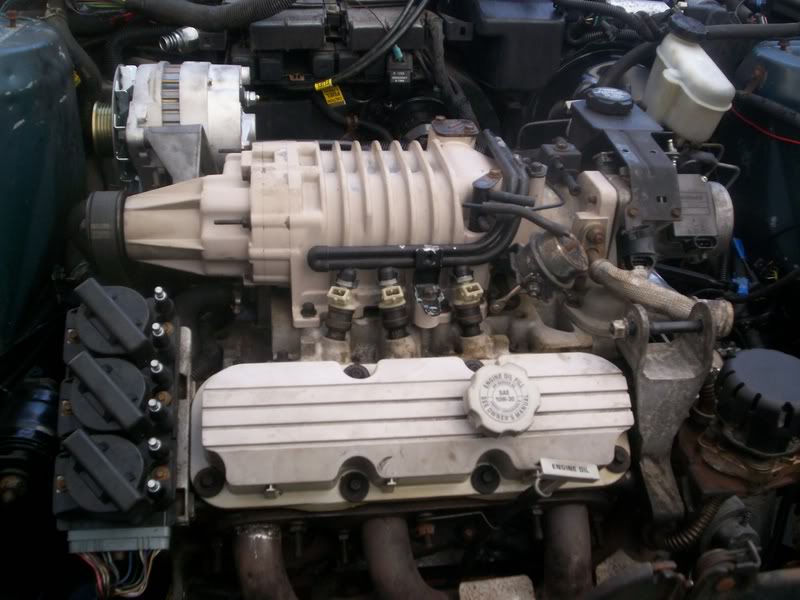

BREAK THES CHAINS LOL
Name:  100_1501.jpg
Views: 1
Size:  71.7 KB

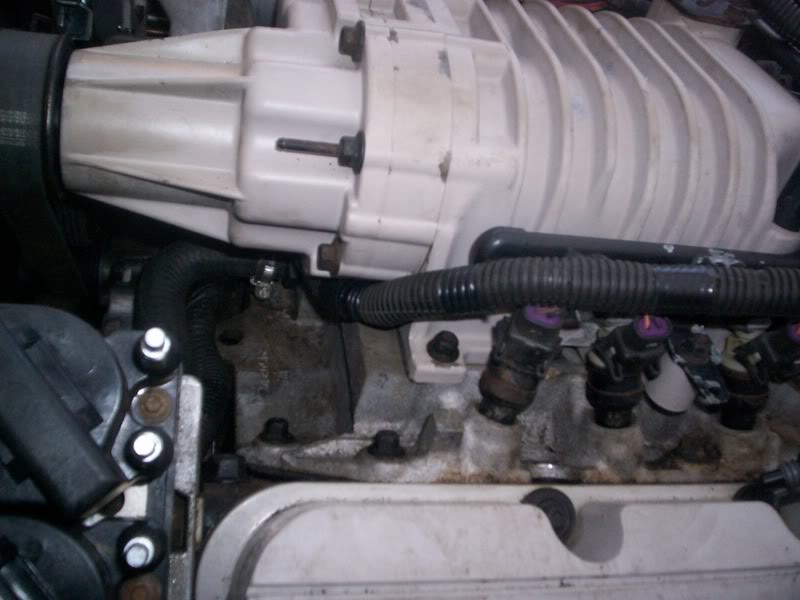

i chose to route the wires under the nose drive, rather than above, like stock.
Name:  100_1503.jpg
Views: 2
Size:  57.2 KB

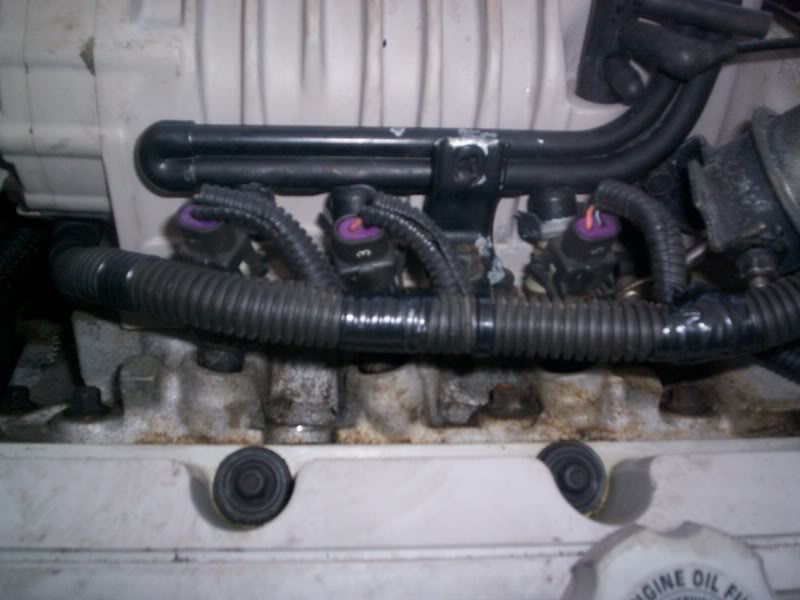

tidy'd up a lil
Name:  100_1505.jpg
Views: 1
Size:  54.2 KB

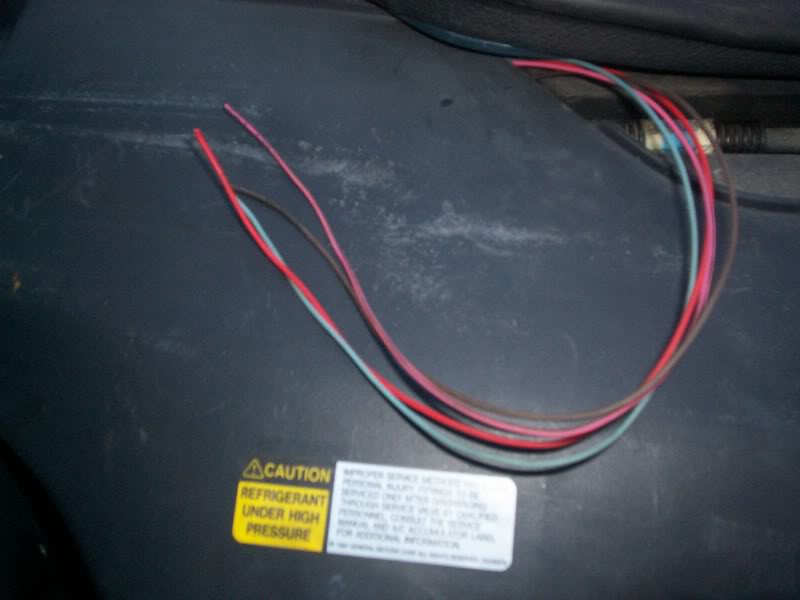

these 4 wires are the only addition to the stock harness. they are for the egr and the bcs
Name:  100_1506.jpg
Views: 1
Size:  40.6 KB


the harness that goes to the sensor on the ps pump had to be lengthened, and that was it for the harness modification.
samueljackson is offline   Reply With Quote
Old 11-05-2007, 06:35 PM   #54
Senior Member
Posts like a Northstar

Join Date: Jul 2007
Location: Memphis,TN Originally from MA
Posts: 571
Thanks: 0
Thanked 0 Times in 0 Posts
roadtech195 is on a distinguished road
Default

Sweet, lets get a vid of this beast running! Friggin cool project and I love the attention to detail.
roadtech195 is offline   Reply With Quote
Old 11-05-2007, 10:02 PM   #55
Senior Member
Certified GM nut
Thread Starter

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

Quote:
Originally Posted by roadtech195
Sweet, lets get a vid of this beast running! Friggin cool project and I love the attention to detail.
maybe thursday. all i have to do is attach the down pipe, and i can start it.

but unfortunately my only vid media is my cell phone, so the quality will be sheet. but i think its do-able on thurs. school and work till then :(
samueljackson is offline   Reply With Quote
Old 11-07-2007, 04:55 PM   #56
Senior Member
Certified GM nut
Thread Starter

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

update

yesterday my boss let me leave a lil early, so i could work on the car a bit. he'* cool.

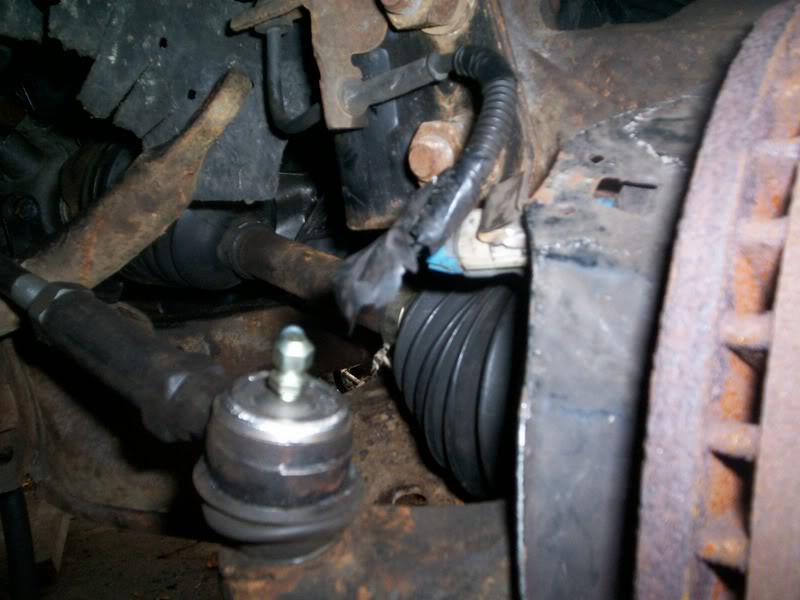

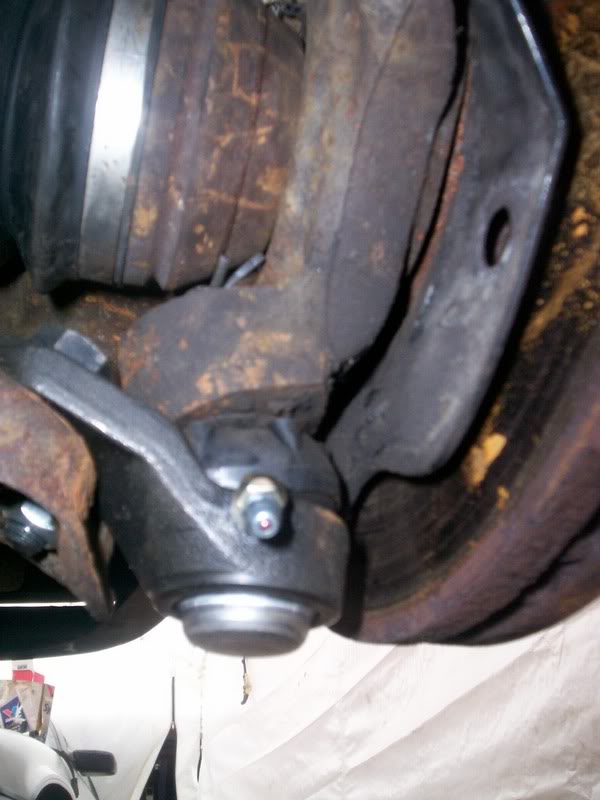

so i started by puting on new tie rods and ball joints (life time warranty).
Name:  100_1530.jpg
Views: 1
Size:  56.2 KB
Name:  100_1531.jpg
Views: 0
Size:  62.4 KB

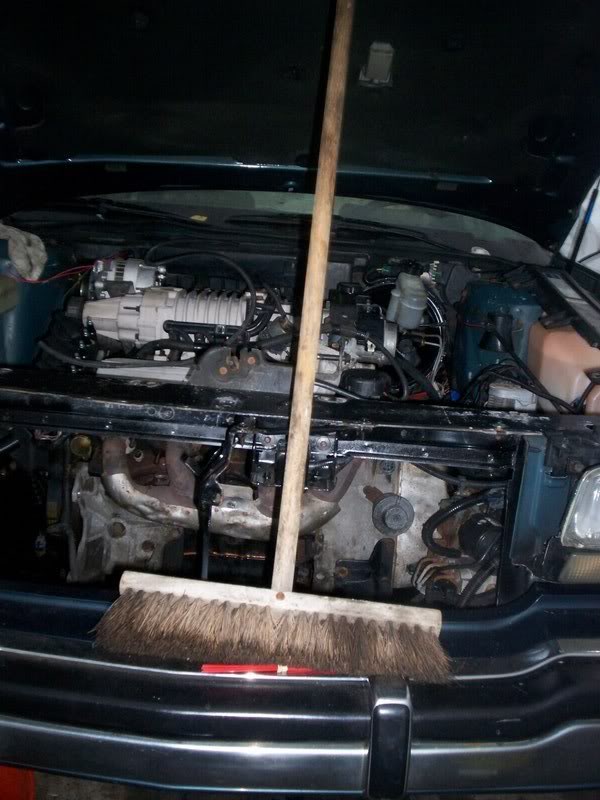

and how do you attach an 80 lb (or w/e) hood with no help? with this super sofisticated thinga-majigger.
Name:  100_1532.jpg
Views: 0
Size:  78.0 KB

i was outside until 2 am last night and i was rushing to get as much done as i could, so sorry, no pics. but radiator, air box, power steering, trans cooler lines, and a couple other odds and ends are finished.

now, just sway bar links, fluids, and wheels!
samueljackson is offline   Reply With Quote
Old 11-07-2007, 07:42 PM   #57
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Nice Progress Wes

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 11-07-2007, 08:24 PM   #58
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Looking great.. nice to see it in place.

BTW for others or future... the hood doesn't have to come off. Our hoods will lift up nearly straight or past if the prop struts are removed.
BillBoost37 is offline   Reply With Quote
Old 11-07-2007, 08:32 PM   #59
Senior Member
Certified GM nut
Thread Starter

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

Quote:
Originally Posted by jr's3800
Nice Progress Wes
thanks Don

Quote:
Originally Posted by BillBoost37
Looking great.. nice to see it in place.

BTW for others or future... the hood doesn't have to come off. Our hoods will lift up nearly straight or past if the prop struts are removed.
thanks bill,

and i wish i had known that before hand

yeah, i didnt realize how far is swings, until i was putting it back on. but hey, live and learn right.
samueljackson is offline   Reply With Quote
Old 11-07-2007, 10:36 PM   #60
Senior Member
Posts like a Northstar

Join Date: Jul 2007
Location: Memphis,TN Originally from MA
Posts: 571
Thanks: 0
Thanked 0 Times in 0 Posts
roadtech195 is on a distinguished road
Default

Looks like the army of one is doing good, how much has this project cost you so far?
