Old 04-14-2007, 01:55 AM   #261
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I see a PCV cover gasket. I found two in my stash.
J Wikoff is offline   Reply With Quote
Old 04-14-2007, 02:04 AM   #262
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Valvetrain going together. Lifters, retainers, and pushrods are in. Pics will be up within the hour.
willwren is offline   Reply With Quote
Old 04-14-2007, 02:39 AM   #263
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

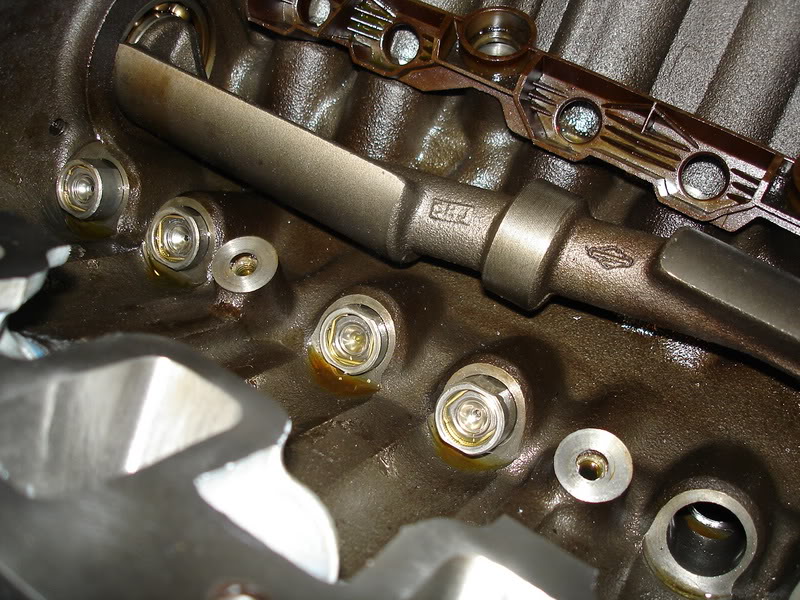

Front lifters going in (CompCams):
Name:  DSC03783.jpg
Views: 0
Size:  137.2 KB

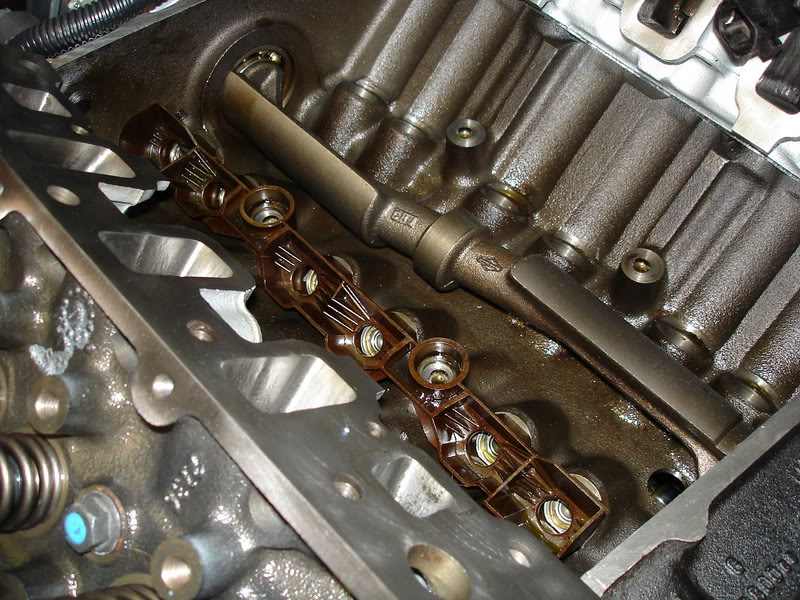

Front retainer in place:
Name:  DSC03784.jpg
Views: 0
Size:  148.1 KB

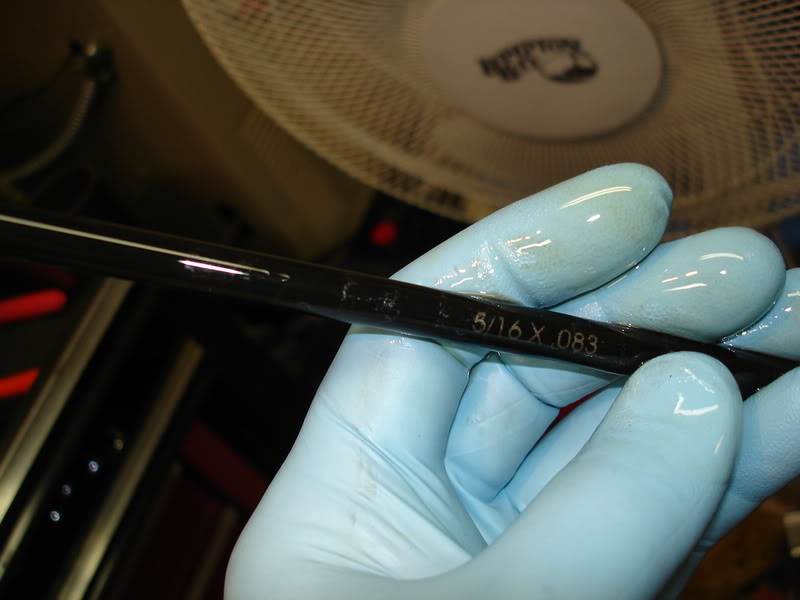

Custom chro-moly one-piece pushrods (made just for me :P ):
Name:  DSC03785.jpg
Views: 0
Size:  47.1 KB

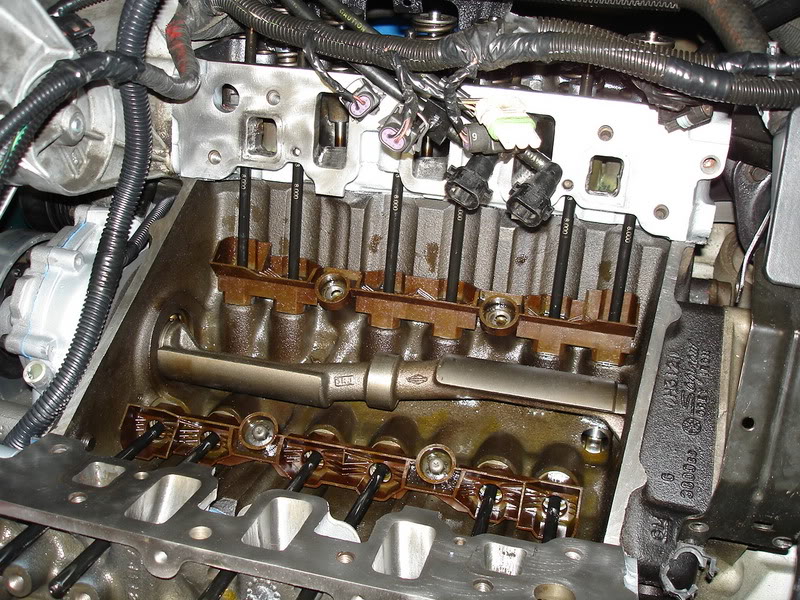

Pushrods in place:
Name:  DSC03786.jpg
Views: 0
Size:  173.0 KB

Not much will be accomplished tomorrow. Heading up to FIE for most of the day. Katie is babysitting Chris'* baby while Chris and I get caught up with injectors. I'll re-flow mine, and we'll be putting a matched set of injectors together for PeterG. We have 18 injectors already in the pool to clean, rebuild, and flow check. I'll take a few pics and vids like I did last time. Part of this will be determining if I had an injector problem on #6. I still haven't found a reason for that plug nearly disintegrating. I'm actually HOPING to find a bad injector.

Pedestals, rockers, bolts, and valve covers will hopefully be going on sometime tomorrow night. Valve covers dependent on me finishing my wire retainers.

After that, it'* time to get the LIM and SC ported and polished. One full day for that, and it might just be Sunday.
willwren is offline   Reply With Quote
Old 04-14-2007, 04:27 AM   #264
Junior Member

Join Date: Mar 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
myfirstbonnie is on a distinguished road
Default

Do you use any sort of pre lube on the lifters, or do you just use oil? I was under the assumption that there was a pre lube that was supposed to be used. Or is that only for the bearings?
myfirstbonnie is offline   Reply With Quote
Old 04-14-2007, 08:28 AM   #265
Junior Member

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
wjcollier07 is on a distinguished road
Default

Well usually you put them in engine oil and let them fill up before installing.
wjcollier07 is offline   Reply With Quote
Old 04-14-2007, 08:40 AM   #266
Senior Member
True Car Nut

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Prelube is never a bad idea for anything that will move. Yes, you let lifters soak in oil to allow them to semi-pump up (full pump won't happen until the engine'* running), but the oil that is on the outside of the lifter (and inside the bore) will drip down over time if the engine isn't started in due time. That'* where the prelube comes in handy.
sandrock is offline   Reply With Quote
Old 04-14-2007, 10:15 AM   #267
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

They've been soaking in oil since late December. In fact, dillcc saw them soaking on his western circle tour. This was the same vat of oil and parts that the Satan Kitten that I was babysitting fell into on Xmas.

But I ALSO used GM cam and lifter pre-lube. All contact and pivot points. Each point will get another drop or two just before the LIM goes on.
willwren is offline   Reply With Quote
Old 04-14-2007, 11:00 AM   #268
Senior Member
Posts like a Camaro

Join Date: Dec 2003
Location: Massachusetts
Posts: 1,019
Thanks: 0
Thanked 0 Times in 0 Posts
CFoote is on a distinguished road
Default

Looks awesome, keep working away on it
CFoote is offline   Reply With Quote
Old 04-14-2007, 11:38 AM   #269
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

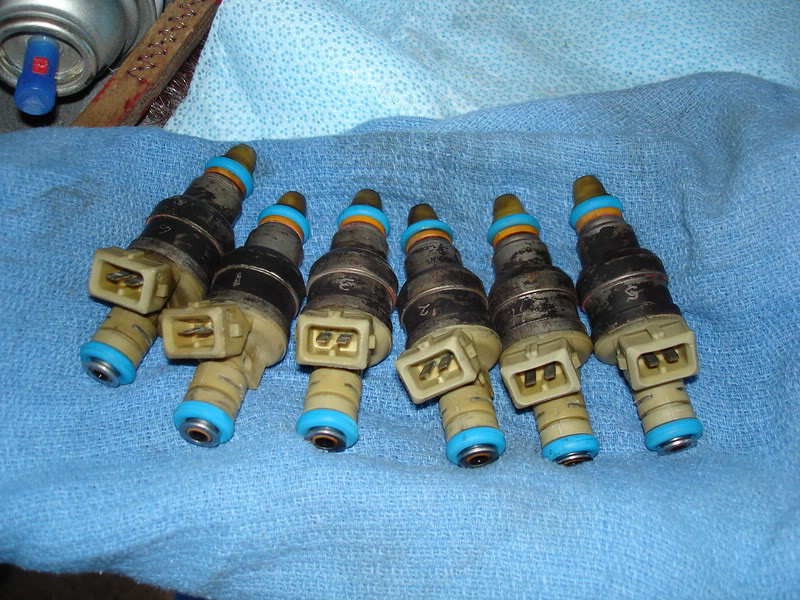

Hello little fellers:
Name:  DSC03791.jpg
Views: 0
Size:  147.4 KB

Bagging them up for a 20-minute drive to FIE. When we had these done originally a couple years ago, I had only my original OEM 6. Since then, I've given FIE 6 more for the pool, as have others.

Sadly, some of my little friends may not be coming back home today. Some may go to PeterG depending on how the matching works. The set I come home with today MAY sacrifice matching (I'm at 0.8% right now) for a slightly higher flowing set. Depends on how all the pool injectors test out. PeterG will get the best match we can come up with.
willwren is offline   Reply With Quote
Old 04-15-2007, 12:31 AM   #270
Senior Member
True Car Nut

Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road
Default

Things seem to be progressing nicely. Like everyone else, here, I can't wait to hear it up and running.
Echo SSEI is offline   Reply With Quote
