Default Out of the Box: Pacesetters headers (18 - 800x600 pics)

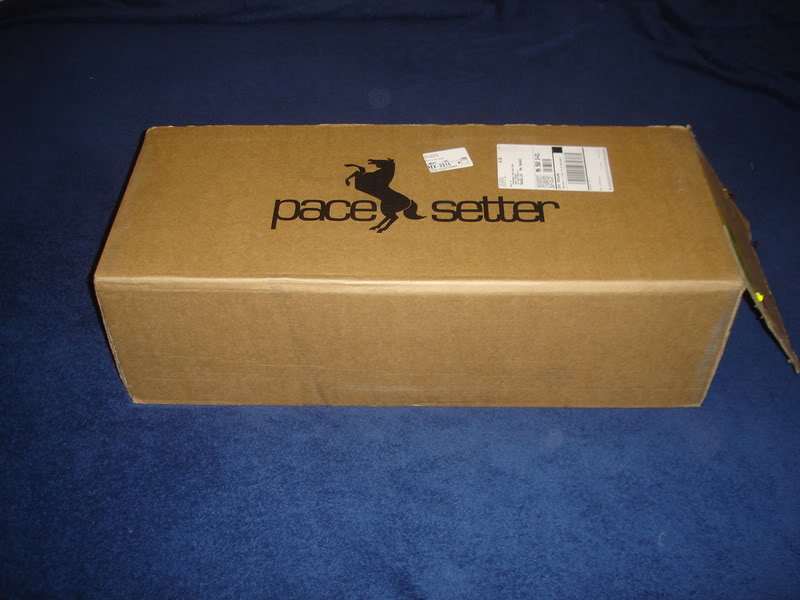

I got these from ZZP today, here is how they come shipped
https://www.zzperformance.com/grand_...ts1.php?id=598

Name:  DSC07234.jpg
Views: 1
Size:  54.9 KB

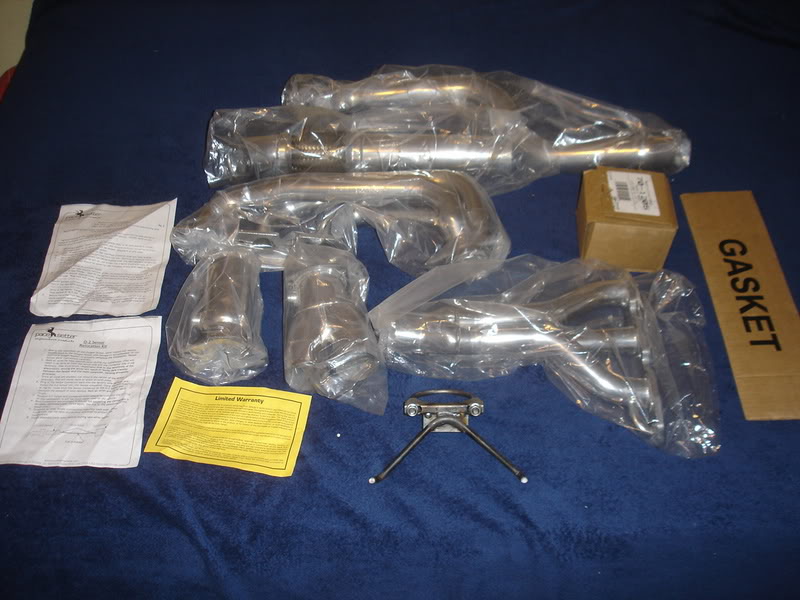

here is everything in the box
Name:  DSC07236.jpg
Views: 1
Size:  80.2 KB

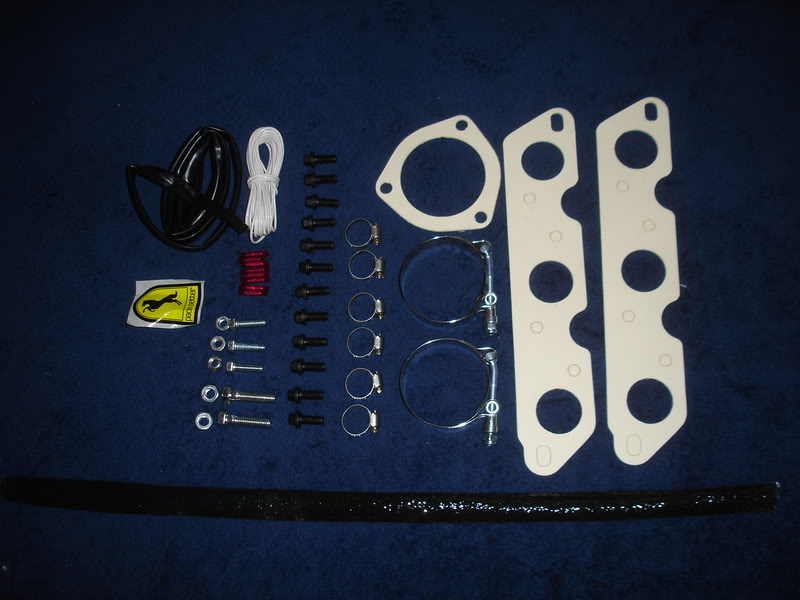

here are all the small parts
Name:  DSC07238.jpg
Views: 1
Size:  57.2 KB

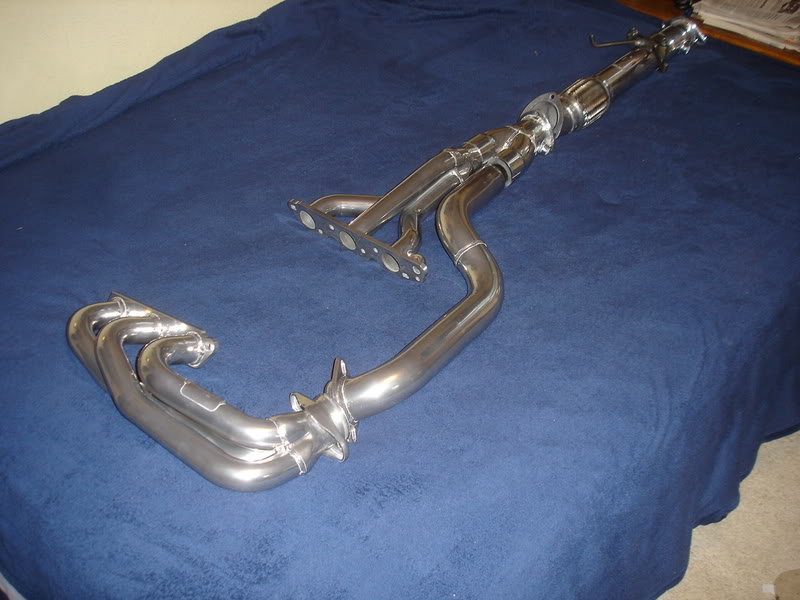

basic layout
Name:  DSC07239.jpg
Views: 1
Size:  69.8 KB

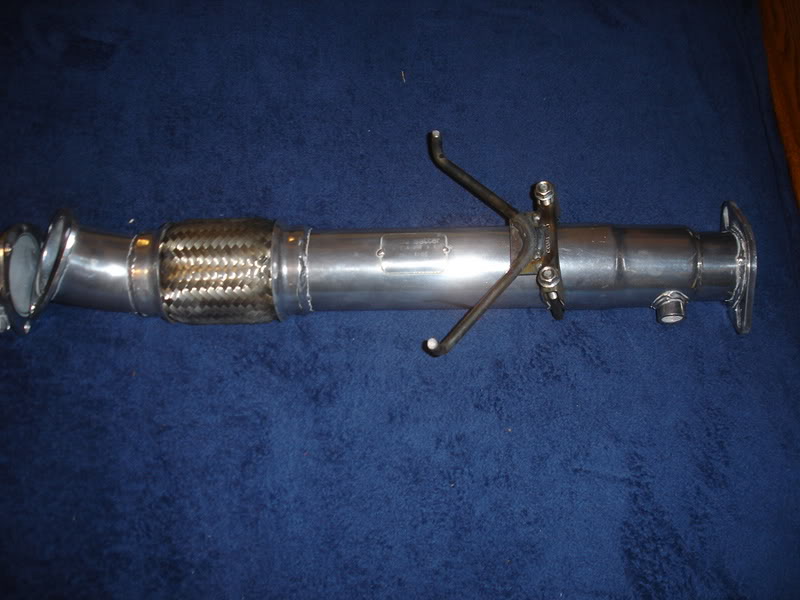

Name:  DSC07240.jpg
Views: 2
Size:  66.0 KB

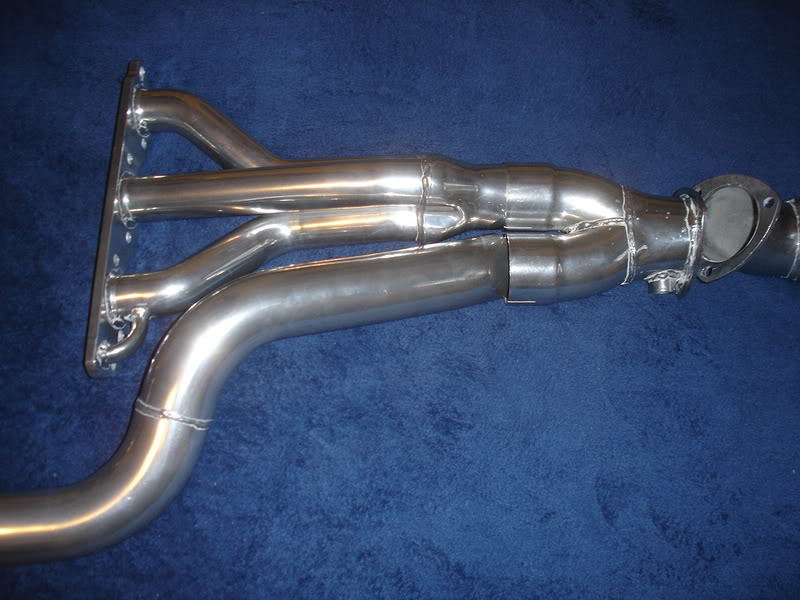

Name:  DSC07241.jpg
Views: 1
Size:  77.2 KB
Name:  DSC07242.jpg
Views: 1
Size:  101.2 KB

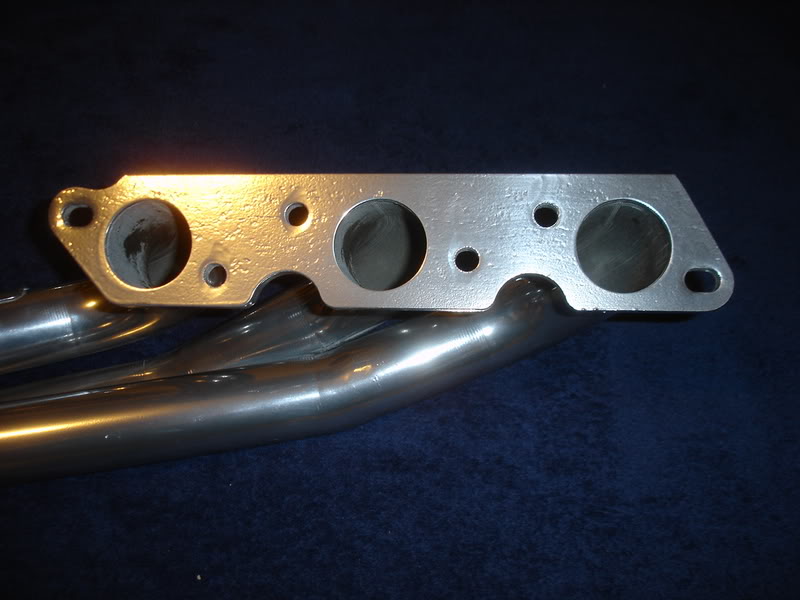

Name:  DSC07243.jpg
Views: 2
Size:  55.9 KB
Name:  DSC07244.jpg
Views: 1
Size:  69.1 KB

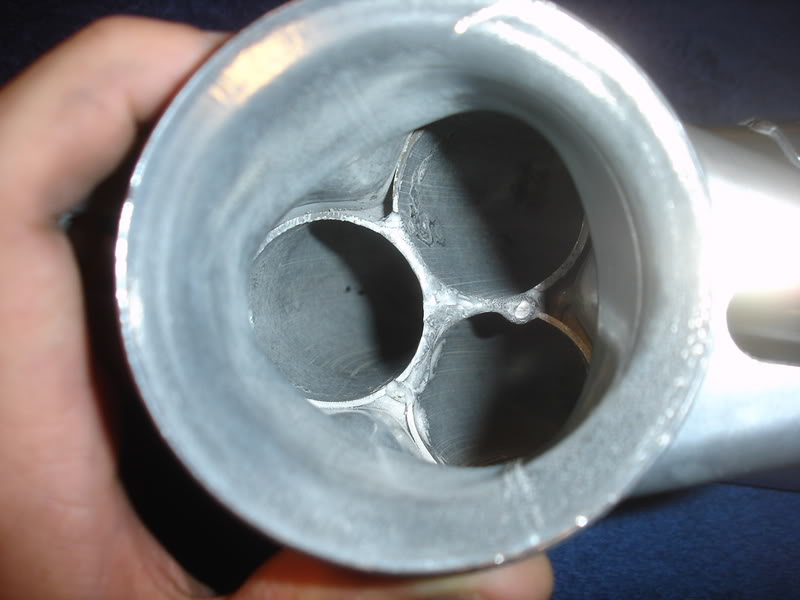

Name:  DSC07247.jpg
Views: 1
Size:  47.0 KB

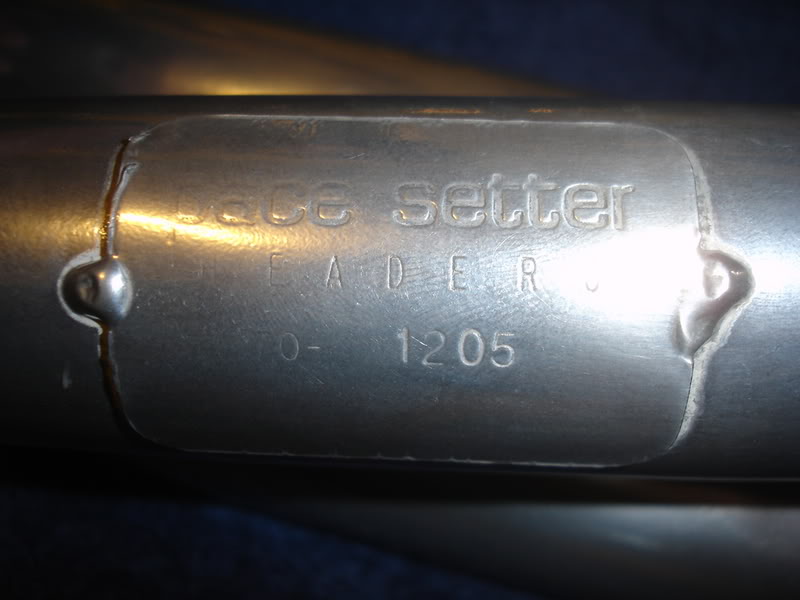

Name:  DSC07248.jpg
Views: 1
Size:  46.6 KB

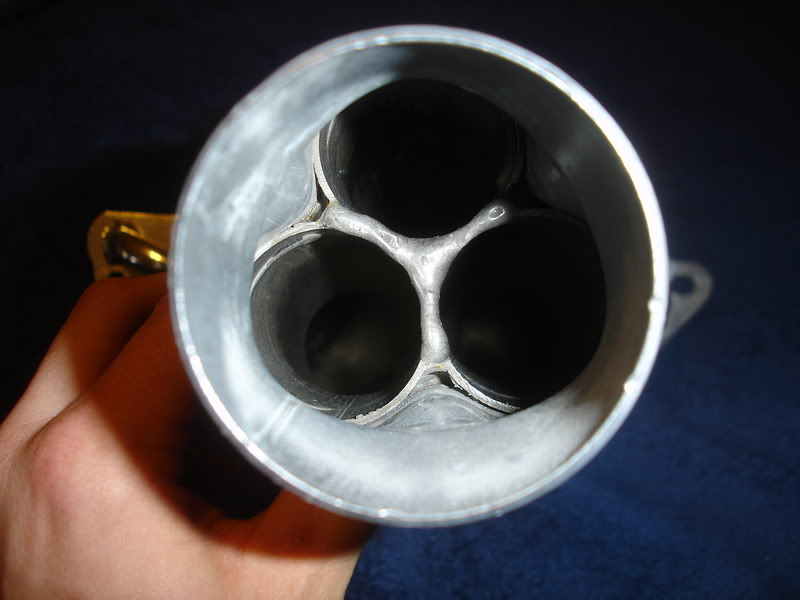

Name:  DSC07251.jpg
Views: 1
Size:  43.5 KB

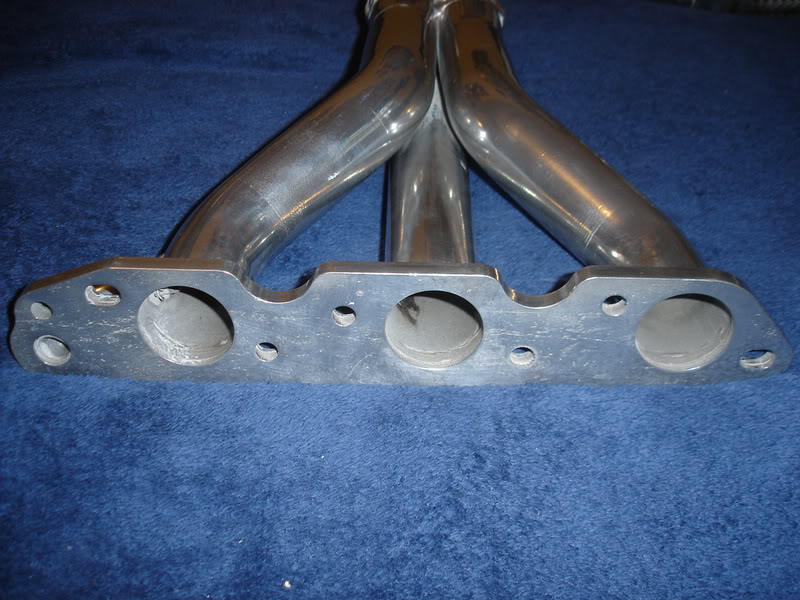

Name:  DSC07252.jpg
Views: 3
Size:  100.7 KB
Name:  DSC07253.jpg
Views: 1
Size:  34.3 KB
Name:  DSC07254.jpg
Views: 0
Size:  34.7 KB

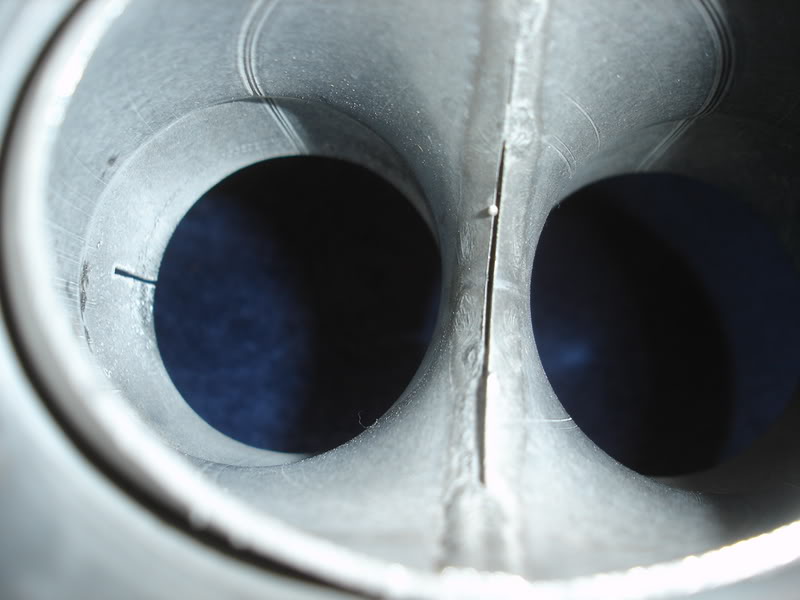

Name:  DSC07255.jpg
Views: 1
Size:  47.6 KB
Name:  DSC07256.jpg
Views: 1
Size:  52.6 KB

this is what makes them ZZP Pacesetters
Quote:

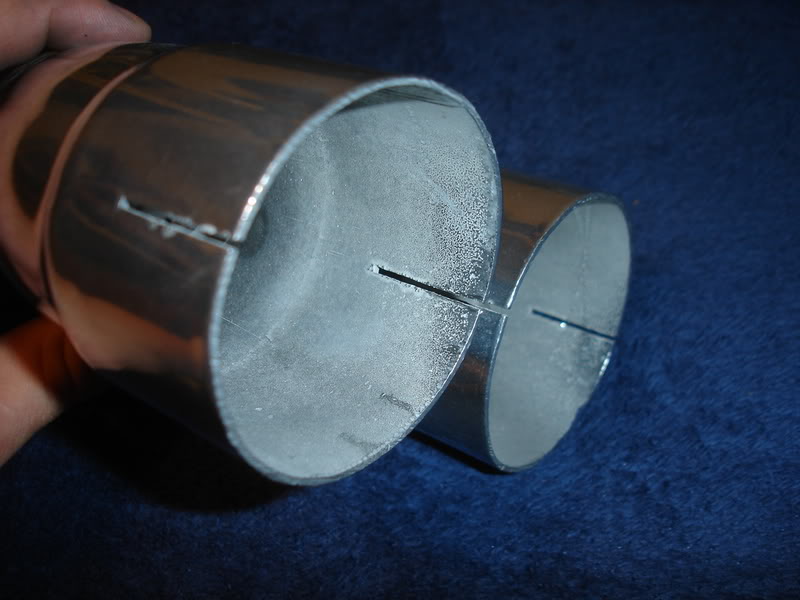

While these headers are a great low cost product, there is a small problem with the Y leaking. ZZP is the first and only company to develop a solution. The problem is caused from the pipe going into the Y being too small or the Y expanded section being too large (there is a 70 thou difference, which we decrease to 20). To correct this we use our expander to increase the size of the pipe going into the Y. This seems to correct the leakage problem. Below is a picture with a stock pipe, our corrected expanded pipe, and the Y section. All of the pacesetters from ZZP are currently shipping like this. We have them in stock in coated and non-coated.
Name:  DSC07257.jpg
Views: 1
Size:  58.3 KB
harofreak00 is offline   Reply With Quote
Old 05-22-2007, 10:19 PM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Yikes. I see some pretty bad welds, missed welds, and pitted flanges. That'* gotta be the ugliest set of NEW headers I've seen. No offense, bud, I think they'll be ok, but I'd put a bit of work into them first.
willwren is offline   Reply With Quote
Old 05-22-2007, 10:21 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

can you point out the missing welds. i am aware of the poor welds and the pitted flanges (is there a way to fix this?)
harofreak00 is offline   Reply With Quote
Old 05-22-2007, 10:24 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2006
Location: Granville, Ohio ~NEBF '07 Survivor~
Posts: 5,001
Thanks: 0
Thanked 0 Times in 0 Posts
petraman is on a distinguished road
Default

Yup, I was going to post the same thing. I can't believe the crevasses in the headers and how half assed that is. I'd go to a good exhaust shop and get some of those welds fixed up.
petraman is offline   Reply With Quote
Old 05-22-2007, 10:32 PM   #5
Senior Member
Posts like a Supercharger

Join Date: May 2006
Location: Vancouver
Posts: 160
Thanks: 0
Thanked 0 Times in 0 Posts
94SLEeper is on a distinguished road
Default

I saw tons of missing weld spots, the inside of your exhaust shouldn't have so many little corners, it should be smooth one way flow. Get someone to fill up the holes, and finish up welding where you see slits or gaps, then grind them down smooth.
94SLEeper is offline   Reply With Quote
Old 05-22-2007, 10:34 PM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

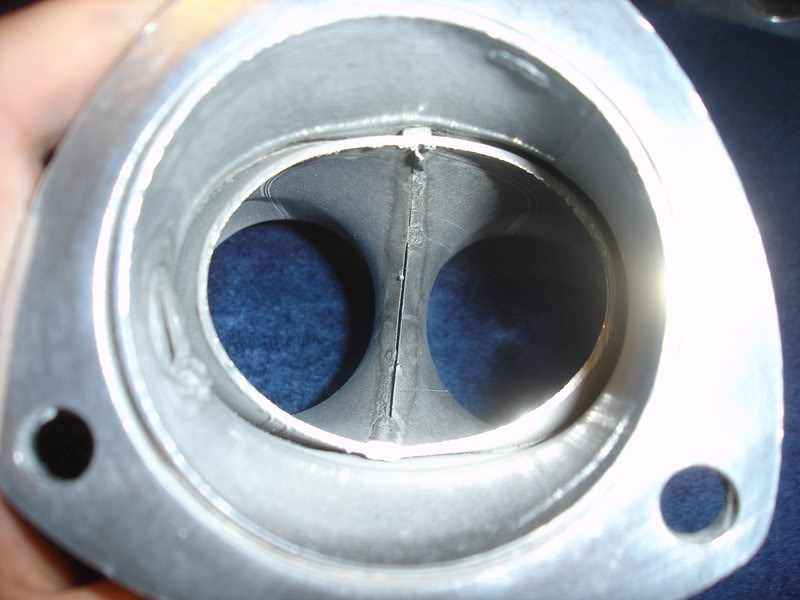

Here'* a big one:

Name:  DSC07256.jpg
Views: 0
Size:  52.6 KB

They missed the entire seam. Top to bottom in the pic where the pipes come together.

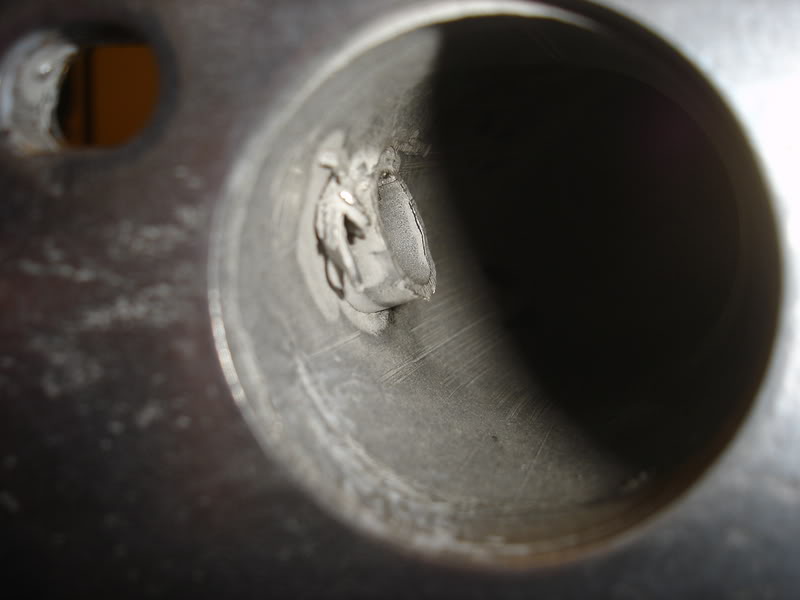

And here:
Name:  DSC07253.jpg
Views: 1
Size:  34.3 KB
I can't believe this got by quality control or final inspection. This is good for flow? And a good weld? This needs to be fixed on both accounts.
willwren is offline   Reply With Quote
Old 05-22-2007, 10:41 PM   #7
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

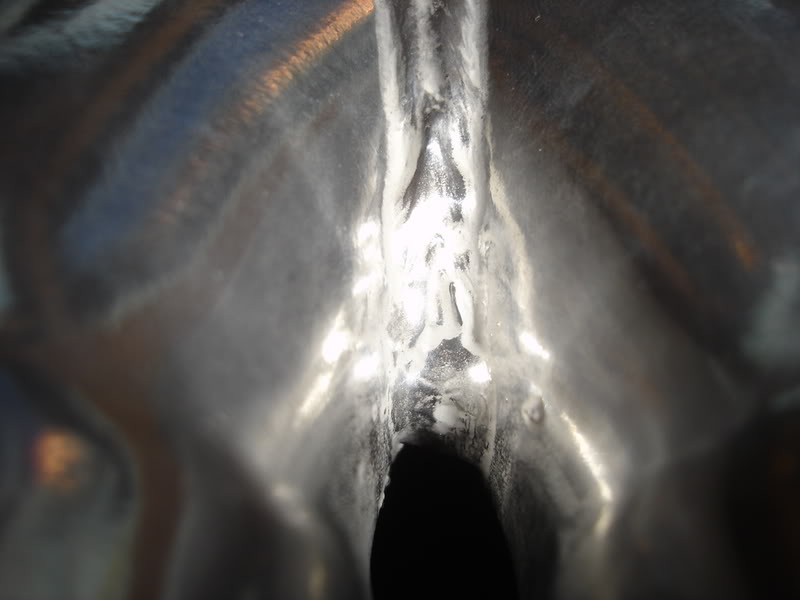

that slit does not go all the way though.. it wont leak.. is it still a flow problem?
Name:  DSC07263.jpg
Views: 0
Size:  41.0 KB

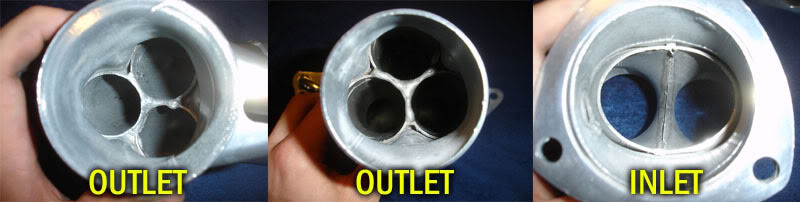

these other pipes are outlets, the flow doesnt matter on the outlets does it?
Name:  DSC072561copy.jpg
Views: 1
Size:  37.3 KB
harofreak00 is offline   Reply With Quote
Old 05-22-2007, 10:44 PM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Yes they do matter, for various reasons. Flow, lack of turbulence, and rigidity.

On the one that 'doesn't matter' can you see they TRIED to weld it? They MISSED. The evidence is there. It should be welded. Those edges will heat up nastily because they are two sharp edges without a contiguous weld. That will make it expand and contract over time, flexing the pieces and weakening the entire structure.

That'* true for a few spots in those.
willwren is offline   Reply With Quote
Old 05-22-2007, 10:44 PM   #9
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

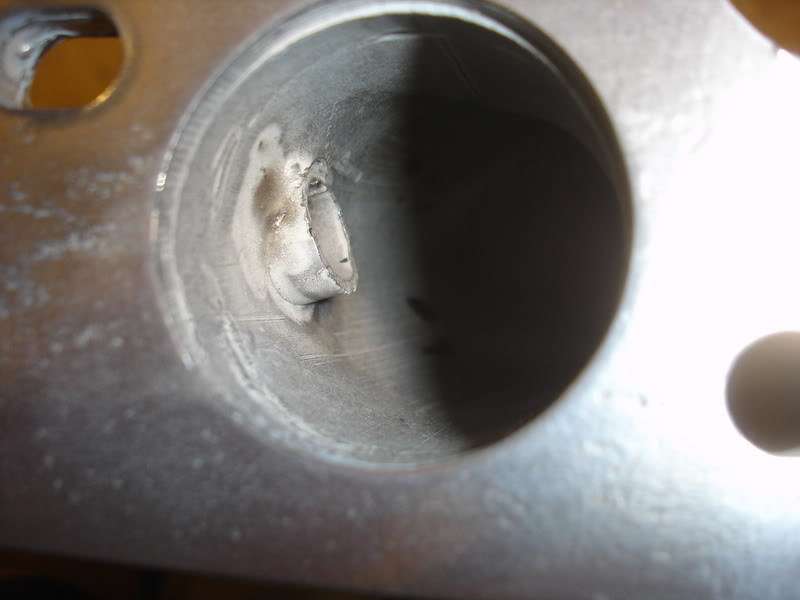

i picked that blob of metal away with my finger
Name:  DSC07266.jpg
Views: 1
Size:  37.5 KB
harofreak00 is offline   Reply With Quote
Old 05-22-2007, 10:48 PM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Grind the PIPE out of there. That'* an intrusion.....flow disturbance. Quality control.

Andrew, these have potential, but as they sit, they won't last as long as TOG'* or *&*. These aren't nearly the same quality.

Address the issues, and you'll have a good set. Now we know why they go for cheaper than the competition.
willwren is offline   Reply With Quote
