Default Ignition Switch

My daughter'* ignition switch came out when she removed her key last night. She has a pontiac Grand am and it is NOT in the steering wheel. Is it dangerous for her to drive car and is this a costly problem?
JLVAUGHT is offline   Reply With Quote
Old 06-18-2014, 10:23 PM   #2
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,150
Thanked 785 Times in 614 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

That is not your ignition switch.......did just the lock cylinder come out, or did the lock cylinder AND pass Lock sensor come out?

I have never seen that happen.......was someone previously in there?

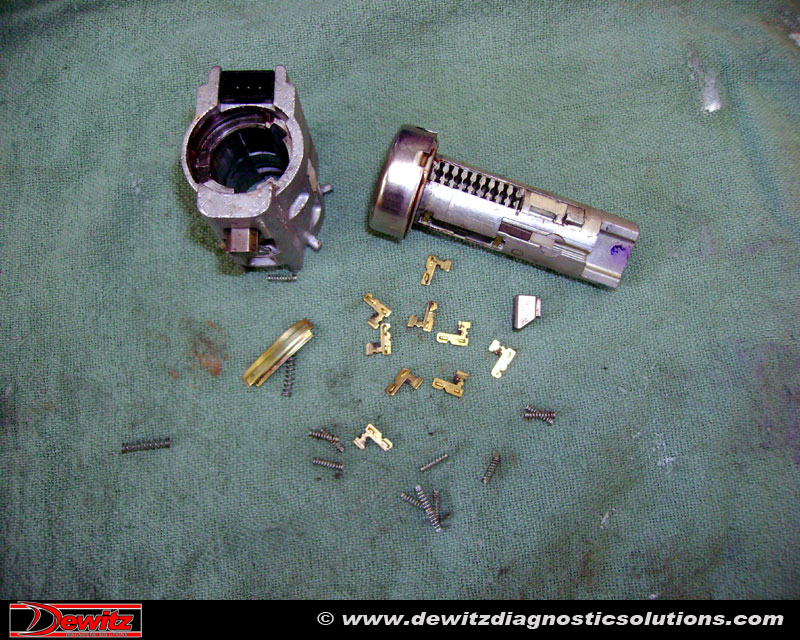

The lock cylinder in on the right, sensor on the left......

Would I drive it like that? No....

Attached Thumbnails
Ignition Switch-key_lock_cylinder2_big.jpg
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
WilliamE (06-18-2014)
Old 06-18-2014, 10:25 PM   #3
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Totally agree with Gus, I am not sure how much it will cost to get it fixed, but I would not advise driving it until it is repaired.
WilliamE is offline   Reply With Quote
Old 06-19-2014, 06:08 AM   #4
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,589
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

What year is your daughter'* pontiac Grand am ?
Wonder if there might be any applicable recalls?
I definitely would not attempt driving the vehicle without it repaired as well.
Soft Ride is offline   Reply With Quote
Old 06-19-2014, 08:28 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

the later ones had constant security issues. sounds like someone didnt put it back together right when poking around in there or broke a retainer of some sort.
jwfirebird is offline   Reply With Quote
Old 06-19-2014, 02:29 PM   #6
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 3
Thanked 0 Times in 0 Posts
JLVAUGHT is on a distinguished road
Default Ignition Switch

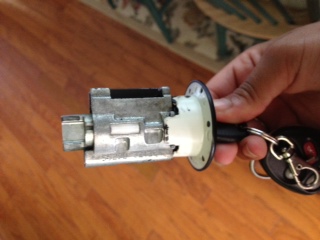

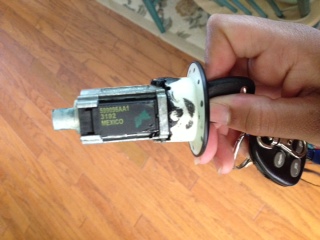

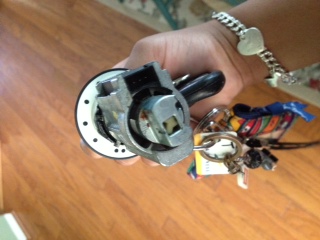

It is a 2003 Pontiac Grand Am and since I am not sure what it is I took a picture of it. The car still operates with it out. Hope this will help.
Attached Thumbnails
Ignition Switch-s1.jpg   Ignition Switch-s2.jpg   Ignition Switch-s3.jpg   Ignition Switch-s4.jpg
JLVAUGHT is offline   Reply With Quote
Old 06-19-2014, 10:56 PM   #7
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,150
Thanked 785 Times in 614 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

That is definitely the PassLock sensor......on the side is a tang with a retainer on the end of it......that has to be broken......in order to remove it you have to turn the key to on, and then you depress that retainer to pull it out of the housing.....

Or possibly, a previous owner may have had a problem turning the key.....now the only way you can remove the tumbler/sensor, like I said, is turn the key to on, then depress the retainer in the housing, and pull the sensor out........however if you can't turn the key, then you can't depress that retainer.....so the only way to remove it, is to break the tang holding the retainer......to do that, you have to drill a hole into the housing to break the tang......if someone destroyed the housing while drilling, that retainer may have nothing to "bite' on.....
Tech II is offline   Reply With Quote
The Following 2 Users Say Thank You to Tech II For This Useful Post:
JLVAUGHT (06-20-2014), WilliamE (06-20-2014)
Old 06-20-2014, 12:56 AM   #8
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 3
Thanked 0 Times in 0 Posts
JLVAUGHT is on a distinguished road
Default Ignition Switch

Thank you for your help. Looks like we will be taking it to the repair shop or dealership.
