Okay, I removed the front Manifold tonight...
I unbolted the ICM, and unbolted that left side heat sheild.
I know what bolt you were speaking of that was hard to remove, right behind the dipstick, however, When I unbolted the dipstick mount, I went to move the dipstick over a tad, i gave it a tug, and it popped right out of its hole...that made TONS of room, now I just have to re install that dipstick tube.
The Marty manifolds in comparisson to the stock ones are opend up a bit more, thats for sure, I still feel I can have them machined a litle bit more.
SSEimatt93 is offline   Reply With Quote
Old 12-11-2006, 08:37 AM   #92
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The ICM needed to move
BillBoost37 is offline   Reply With Quote
Old 12-11-2006, 10:28 AM   #93
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

It was much easier with it out of the way.
It made more room for unbolting that heatshield.
SSEimatt93 is offline   Reply With Quote
Old 12-11-2006, 09:00 PM   #94
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

New pics for ya.

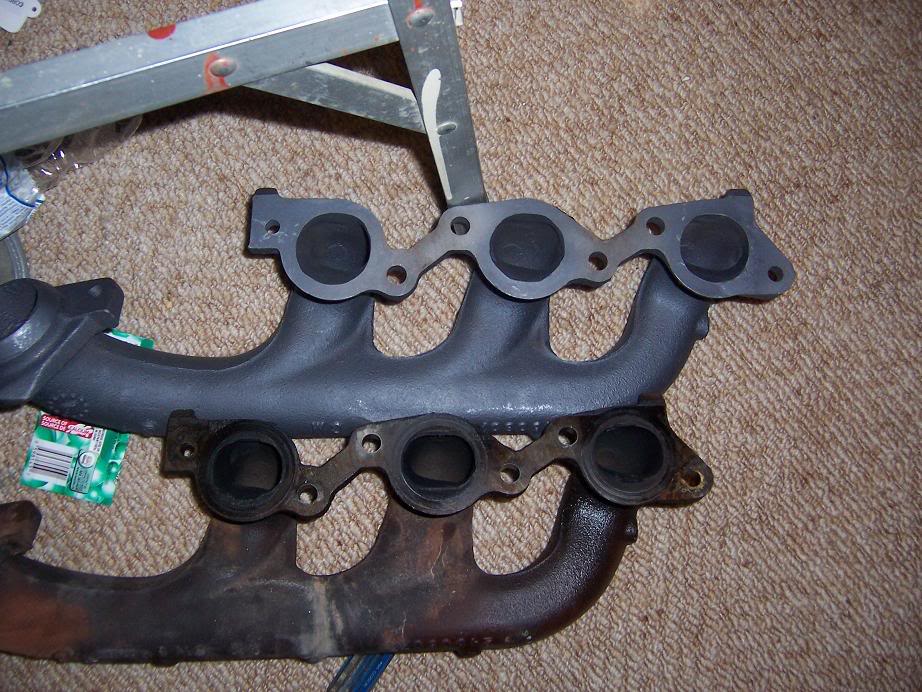

Here are the PEMS
I want Ideas, suggestions, warnings..ect from anyone here...
Name:  EMS.jpg
Views: 0
Size:  141.1 KB
Mine are obviously the used looking ones

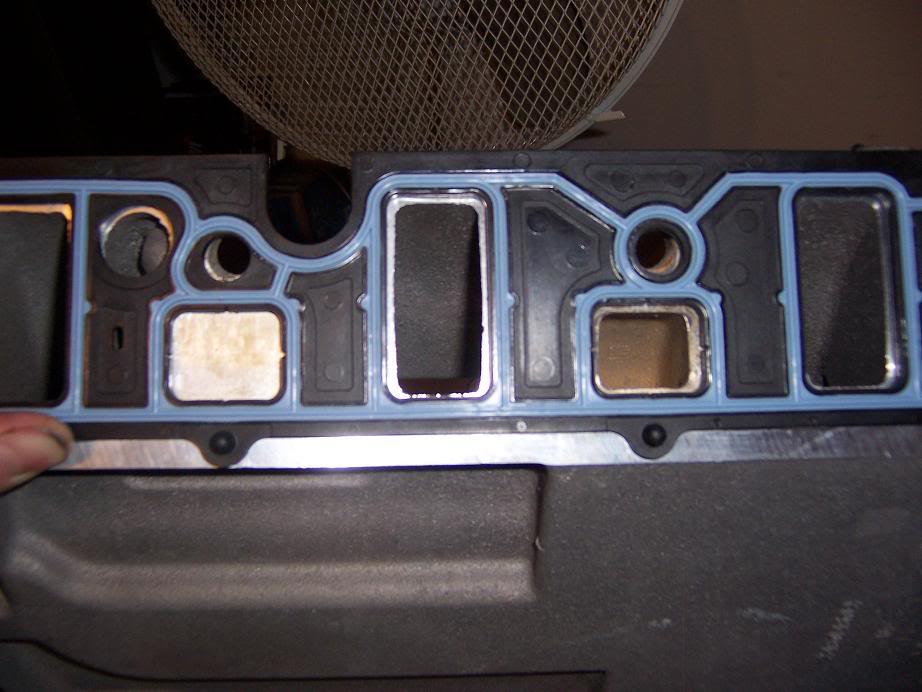

Here is my LIM with the new gasket lined up over it
Name:  LIM2.jpg
Views: 0
Size:  75.9 KB
Name:  LIM3.jpg
Views: 2
Size:  51.7 KB

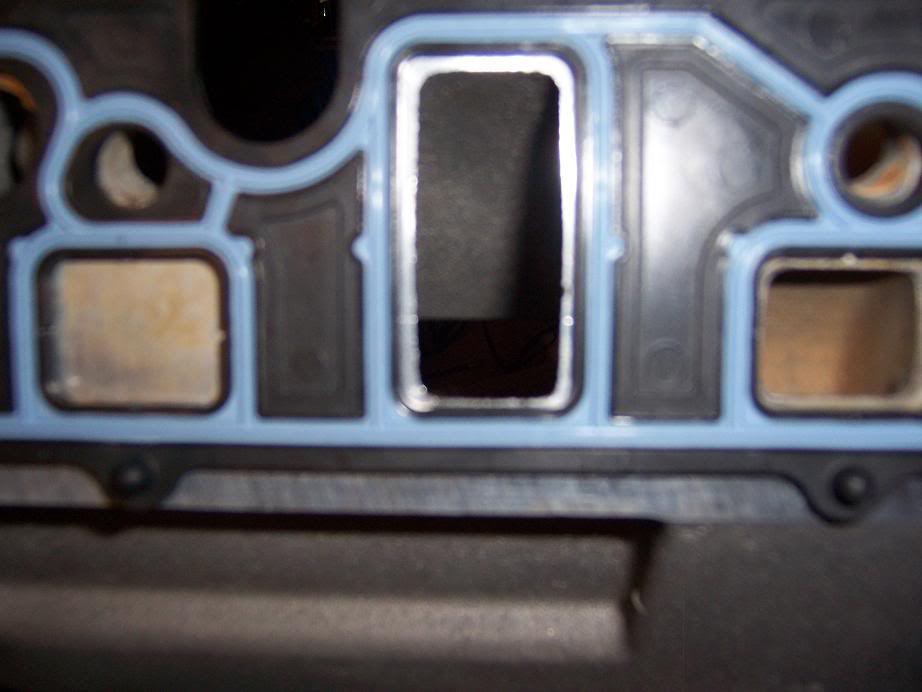

I see how the port tapers off, Should I clean up the outlet so it matches the gasket?
SSEimatt93 is offline   Reply With Quote
Old 12-11-2006, 09:26 PM   #95
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Forget the GASKET, and match it to the port size of the HEAD.

Where'* the other PEM?
willwren is offline   Reply With Quote
Old 12-11-2006, 09:36 PM   #96
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

SSEimatt93 is offline   Reply With Quote
Old 12-11-2006, 09:40 PM   #97
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I remember now. Your rear PEM didn't get any material added under the 'chin'. Your front will outflow the rear dramatically.

I suspect you may have similar issues to powerlog users.
willwren is offline   Reply With Quote
Old 12-11-2006, 09:44 PM   #98
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

The front one was not ported a whole lot...the ports on the front mani are a bit smaller in comparission to the rear...
SSEimatt93 is offline   Reply With Quote
Old 12-11-2006, 09:50 PM   #99
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Name:  EMS.jpg
Views: 0
Size:  141.1 KB

Look at this one carefully. Can you see how if you're the exhaust gasses, you have to move up right after entering the manfold? Material should have been added UNDERNEATH each runner, behind the flange, so you could remove the restriction. This is your REAR manifold, and will not flow as much as your front.

Measure your port sizes front to rear. Even if they're the same, that rear was done incorrectly, and will not flow as much as the front. We looked at these at WCBF and diagnosed them there. I recall suggesting getting that rear fixed before use.
willwren is offline   Reply With Quote
Old 12-11-2006, 09:56 PM   #100
Senior Member
True Car Nut
Thread Starter

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

This is why I was confused, you are calling the front manifold the rear..the rear is still attached to the car.
So i need to talk to a machine shop
