Default my little bonneville project progress thread

i think the supercharger is the only reason i am attacking this project with any enthusiasm at all. lol

as stated in an earlier thread:

almost 20 years ago my father traded in his 1988 mustang gt for a brand new 1988 bonneville sse for my mother. once the bonneville was traded in on another car my mother started the "i liked my bonneville"

a few weeks ago my father found a 1995 sse i which has been sitting for 4 years or so. he said since your mother keeps saying how much she liked the bonneville i'll get it for her. buying the car carried a certain risk. the previous owner parked the car due to an unresolved engine noise.

Day1
i trailered the car home

Day2
pulled the plugs and squirted some penetrating fluid in the cylinders to reduce the chance of a ring sticking to the cylinder wall. a few days later i spun the engine over by hand.

while the plugs were out i check that it had spark, it does. it also made a horrid clatter while it turned over. got me thinking and i took the oil fill cap off and made sure the rocker i could see was moving. compression tested the engine and found ~150psi each cylinder. that made me feel better. took the acc belts off and poking around i found the harmonic balancer is SHOT. the outer ring the belt rides on has rotational movement around the pulley itself.

also found no fuel pressure. checked fuse and relay. bad pump was conclusion.

Day3

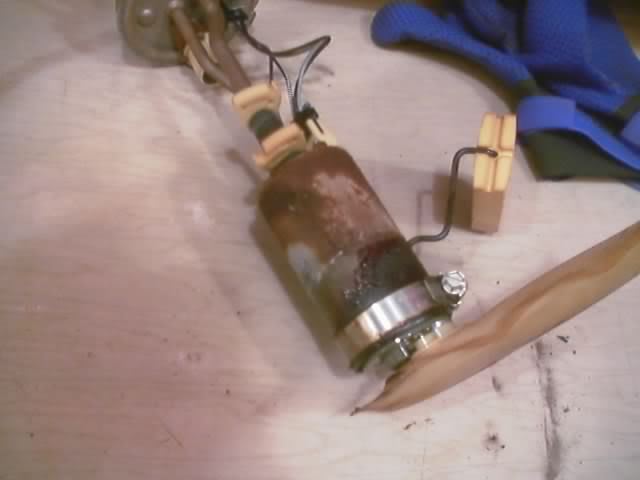

dropped tank. man that fuel was rotten. draining fuel through the filler vent was quite time consuming. regardless of having the correct tools the quick disconnect fuel lines were not so quick to disconnect for me. low quality cell phone pics don't show how ugly pump is but it looks like it was pulled from hudson river bottom:

Name:  dec11_001.jpg
Views: 0
Size:  18.9 KB

save for the exhaust the undercarrige is in spectacular condition:





i have a preliminary parts list: pump/sending, fuel filter unit/harmonic balancer. plan on putting a coat of paint on gas tank while i wait for parts to arrive. if all goes well at this stage the tune up parts will be next.
chris c is offline   Reply With Quote
Old 12-12-2007, 12:01 AM   #2
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Nice to see you bring the car back to life....

and on the Balancer.... in all of my years of 3800'* its amazing to me to see how many people mistake a bad balancer for a rod...lol

Hope all goes well.. Car doesn't look too bad either

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 12-12-2007, 12:07 AM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Another one saved. Gives me a good warm feeling.









But that might be the tequila. Not sure right now.
willwren is offline   Reply With Quote
Old 12-12-2007, 07:23 AM   #4
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

You da man!!!
That is some really good work! Nice troubleshooting & such. Very cool. Who will use the car once it'* fixed up?
radomirthegreat is offline   Reply With Quote
Old 12-12-2007, 09:02 AM   #5
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Dec 2007
Posts: 170
Thanks: 0
Thanked 0 Times in 0 Posts
chris c is on a distinguished road
Default

Quote:
Originally Posted by radomirthegreat
You da man!!!
That is some really good work! Nice troubleshooting & such. Very cool. Who will use the car once it'* fixed up?
i assume my mother. i guess it depends how much my father likes it when it'* functional again.

going to try and get over there after work today and shot some paint on the gas tank. i figure it'* out so why not try and preserve it the best i can.
chris c is offline   Reply With Quote
Old 12-12-2007, 10:50 AM   #6
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

Looks great. I'm sure your parents will enjoy it when you are done.

Let me know if you need anything else for the car.
JimmyFloyd is offline   Reply With Quote
Old 12-12-2007, 01:57 PM   #7
Senior Member
Posts like a Northstar

Join Date: Mar 2007
Location: Minneapolis, MN
Posts: 509
Thanks: 0
Thanked 0 Times in 0 Posts
Barry is on a distinguished road
Default

Nice car and cool garage. Frilly window drapes and all! Looks better than alot of homes I've been in. Judging from the underside of that SSE, you must be from a Southern state. How many miles on the engine?
Barry is offline   Reply With Quote
Old 12-12-2007, 02:43 PM   #8
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Dec 2007
Posts: 170
Thanks: 0
Thanked 0 Times in 0 Posts
chris c is on a distinguished road
Default

Quote:
Originally Posted by Barry
Nice car and cool garage. Frilly window drapes and all! Looks better than alot of homes I've been in. Judging from the underside of that SSE, you must be from a Southern state. How many miles on the engine?
my father is into his garage. plus those windows face street side and it'* just a bit more appealing from the front then seeing cars on jack stands.

suburbs of nyc. why i was SHOCKED at the condition of the floorpans.

original owner is a 92 year old woman. she put just 57k miles on the car.
chris c is offline   Reply With Quote
Old 12-12-2007, 03:00 PM   #9
Senior Member
Posts like a Northstar

Join Date: Mar 2007
Location: Minneapolis, MN
Posts: 509
Thanks: 0
Thanked 0 Times in 0 Posts
Barry is on a distinguished road
Default

57k. That is great. Make sure you check the UIM at some point.
Barry is offline   Reply With Quote
Old 12-12-2007, 03:02 PM   #10
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Quote:
Originally Posted by Barry
57k. That is great. Make sure you check the UIM at some point.
The car is supercharged.

But I would still replace the LIM gaskets at some point in the near future.
vital49 is offline   Reply With Quote
