Old 04-15-2011, 01:55 PM   #121
Senior Member
Posts like a Northstar

RobertISaar's Avatar

Join Date: Jul 2010
Location: Camden, MI
Posts: 615
Thanks: 0
Thanked 0 Times in 0 Posts
RobertISaar is on a distinguished road
Default

3.1 turbo map isn't going to do you much good... it only goes up to 100kPa, then above that, a BPW modifier based on kPa above 100 gets applied.

i do have a 3500 VE MAP from a 04 malibu 3.5 PCM though... that would at least get the N/A stuff done for you, then just be rather generous with fueling above 100kPa until you can trim it down to what it likes after logs.
RobertISaar is offline   Reply With Quote
Old 04-15-2011, 01:57 PM   #122
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

I just want to look at it.

Autotune created a VE map for me that looks insane honestly. I wonder how well my WBo2 is working...
Jonpro03 is offline   Reply With Quote
Old 04-15-2011, 02:01 PM   #123
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default



look at 140kpa and 3900 rpms
Jonpro03 is offline   Reply With Quote
Old 04-15-2011, 02:11 PM   #124
Senior Member
Posts like a Northstar

RobertISaar's Avatar

Join Date: Jul 2010
Location: Camden, MI
Posts: 615
Thanks: 0
Thanked 0 Times in 0 Posts
RobertISaar is on a distinguished road
Default

this is why you DO NOT let computers go unchecked, they go all SKYNET on you and assplode your motors.

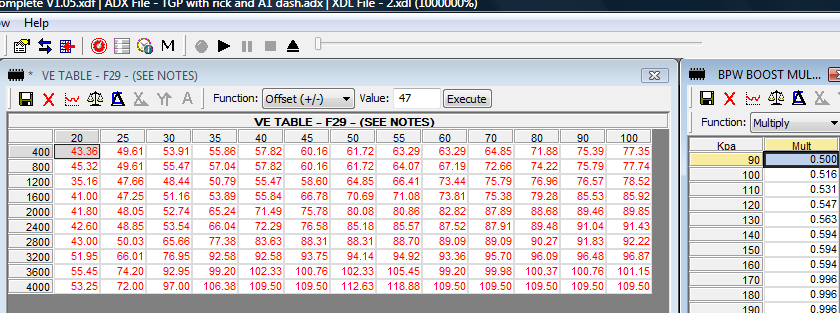

here is stock TGP:

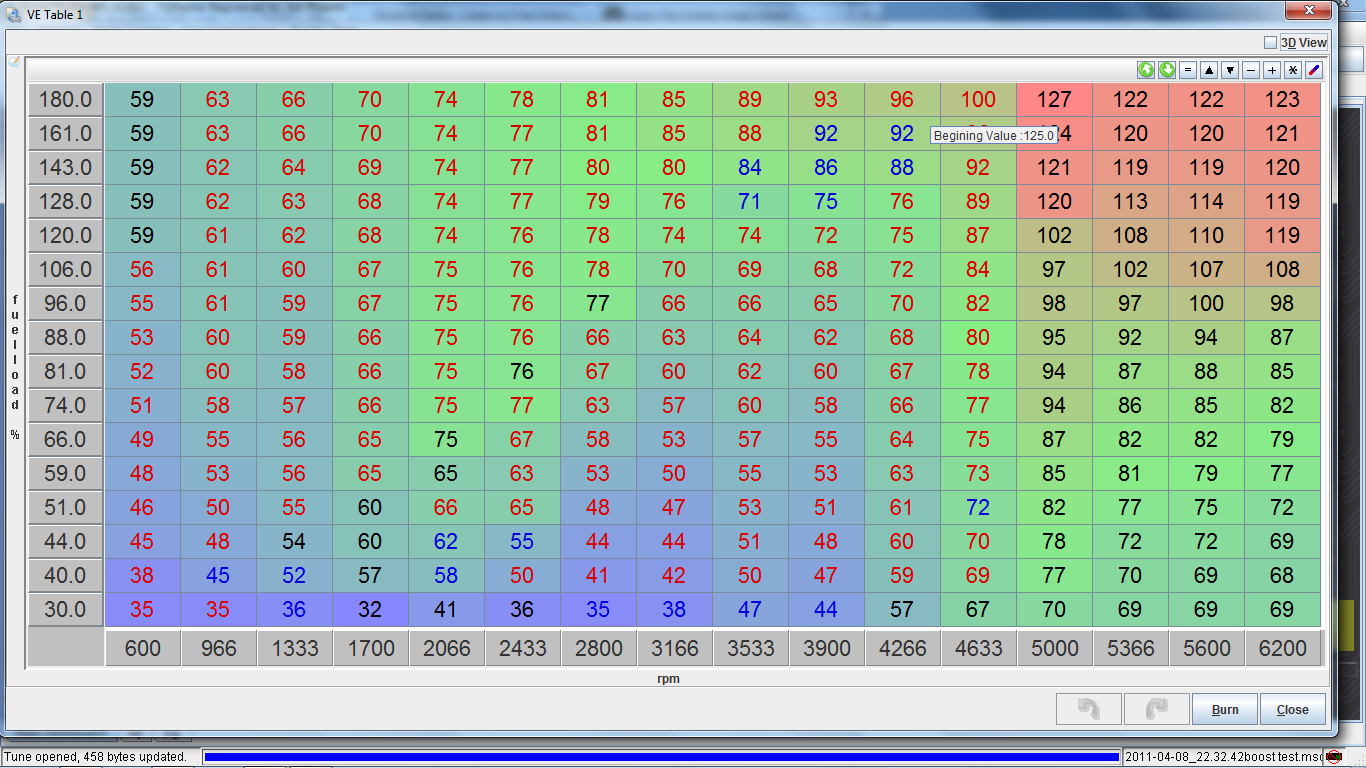

here is 3500:

RobertISaar is offline   Reply With Quote
Old 04-15-2011, 02:12 PM   #125
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default



I cleaned it up and interpolated a lot of it. I also added fuel back to where it did riduculous cuts.
Jonpro03 is offline   Reply With Quote
Old 04-15-2011, 02:17 PM   #126
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default



I'm gonna try this... I need to check on my WBo2, I'm worried that'* it'* not working right.
Jonpro03 is offline   Reply With Quote
Old 04-15-2011, 02:22 PM   #127
Senior Member
Posts like a Northstar

RobertISaar's Avatar

Join Date: Jul 2010
Location: Camden, MI
Posts: 615
Thanks: 0
Thanked 0 Times in 0 Posts
RobertISaar is on a distinguished road
Default

widebands are NOT perfect devices...

what'* with the dip in the 2800 to 4266 RPM range? that'* about where a 3500 should start waking up, but you need less fuel?
RobertISaar is offline   Reply With Quote
Old 04-15-2011, 02:23 PM   #128
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

That spike of green to the top and right is where the auto tune was pulling fuel. It'* also where I detonated.
Jonpro03 is offline   Reply With Quote
Old 04-15-2011, 02:27 PM   #129
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Eeeek... lol

That'* VE, but is VE used in your tune? Some of the V6'* seem to be affected by VE tables and some don't as long as the maf is present.
BillBoost37 is offline   Reply With Quote
Old 04-15-2011, 02:28 PM   #130
Senior Member
True Car Nut
Thread Starter

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

Im not running a MAF so yes, all VE
Jonpro03 is offline   Reply With Quote
