Old 04-16-2012, 02:28 PM   #151
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

That'* the thing about big builds. I like the big install etc. The bug hunt is the final details that always take forever and don't make a lot of progress. Although it'* required to finishing
BillBoost37 is offline   Reply With Quote
Old 04-16-2012, 02:43 PM   #152
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It started and ran great, but when I was standing there with the key in my hand and the engine was still running, ya, we have a bug. Tracked it down to the ICCU. Plug it in and the ignition keeps running, unplug, and it shuts off like it should.
Danthurs is offline   Reply With Quote
Old 04-16-2012, 06:36 PM   #153
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Good thing I went back to look, missed it by one tooth.


There, now I nailed it.


Then, as mentioned above, had a little problem with the car not wanting to shut off, even with key out. It worked fine the other day, so must have been something I did yesterday. So I stated going over everything. Unplugged this, then that, no change. Finally unplugged the ICCU, and the problem went away. Plugged it back in, problem came back. Hmm, strange. Double checked everything, all looked good. Finally, on a whim, I check the wire I added from the ignition signal wire to the ICCU. It looked fine. But it'* the only thing I changed on the ICCU yesterday. So I cut if off and soldered in a new wire. Problem went away. Strangest thing. But that is what it was.

But now the engine wont start. Standing there scratching my head. Checked things over, all looks good. No start. So I unplug an injector, hook up a light, and it blinks. Injectors are working. Pull a plug wire, connect an old spark plug, lay it on a ground, crank, good strong spark. WTH??? I then check fuel pressure. Got none. What the? We had pressure just before. I can hear the pump. The tank is low, perhaps out of gas. So Chris goes and gets some gas. Still nothing. So I put my head right down by the pump and listen. I can hear it run, but why do I hear gas splashing? Oh oh. Pull the pump, and the fuel line came off inside. Fixed that, put it back, and turned the key.





Some noises to deal with, oil got on the belt, and I think there may be a vacuum leak. Got a lot of tuning to do.

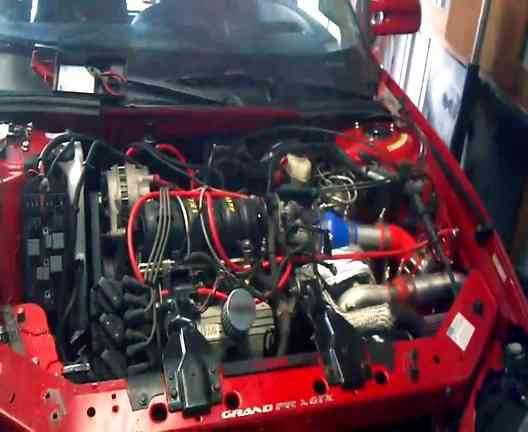

Attached Thumbnails
GTX turbo build-th_2012-04-16_15-30-18_206.jpg   GTX turbo build-th_2012-04-16_15-32-17_474.jpg
Danthurs is offline   Reply With Quote
Old 04-16-2012, 06:47 PM   #154
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,636
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

That vac leak might be the IAC, that thing has fooled me a few times, let the engine warm up. I hear a squeaky pulley.

Boy, I hope that fuel line doesn't pop off out in the middle of nowhere.
Mike is offline   Reply With Quote
Old 04-16-2012, 07:53 PM   #155
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The fuel line is clamped in place now. It shouldn't go anywhere.
Danthurs is offline   Reply With Quote
Old 04-16-2012, 08:45 PM   #156
Member
Posts like a V-Tak

sweetgtx's Avatar

Join Date: Jul 2011
Location: cascade,wi
Posts: 32
Thanks: 0
Thanked 0 Times in 0 Posts
sweetgtx is on a distinguished road
Default

we have an ses light but no po code, kinda weird,, cant wait to hear that 50mm bov,,lol
sweetgtx is offline   Reply With Quote
Old 04-16-2012, 10:38 PM   #157
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,636
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

How do you have a SES light but no stored codes?
Mike is offline   Reply With Quote
Old 04-16-2012, 10:58 PM   #158
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That it would seem is another one of those bugs we're looking for. I should know more when I get the computer hooked up tomorrow.
Danthurs is offline   Reply With Quote
Old 04-17-2012, 01:03 AM   #159
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

She'* alive! Way to go guys, now for the fun part.
ymmot04 is offline   Reply With Quote
Old 04-17-2012, 08:00 AM   #160
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Glad you got it resolved. Do you think that wire got pinched or something through the firewall or maybe it had a break?
BillBoost37 is offline   Reply With Quote
