Old 02-23-2009, 12:18 PM   #81
Okie Hokie
Posts like a Camaro

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Default

I agree with john in thats "thats some manly porting"... ill be suprised if the sc doesnt fall into the hole lol j/k

paints lookin good... really inspiring me to tear mine down and port/polish it all up and paint it this summer...

good job dano
tlsheff is offline   Reply With Quote
Old 02-25-2009, 05:15 PM   #82
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Got a little more work done today.

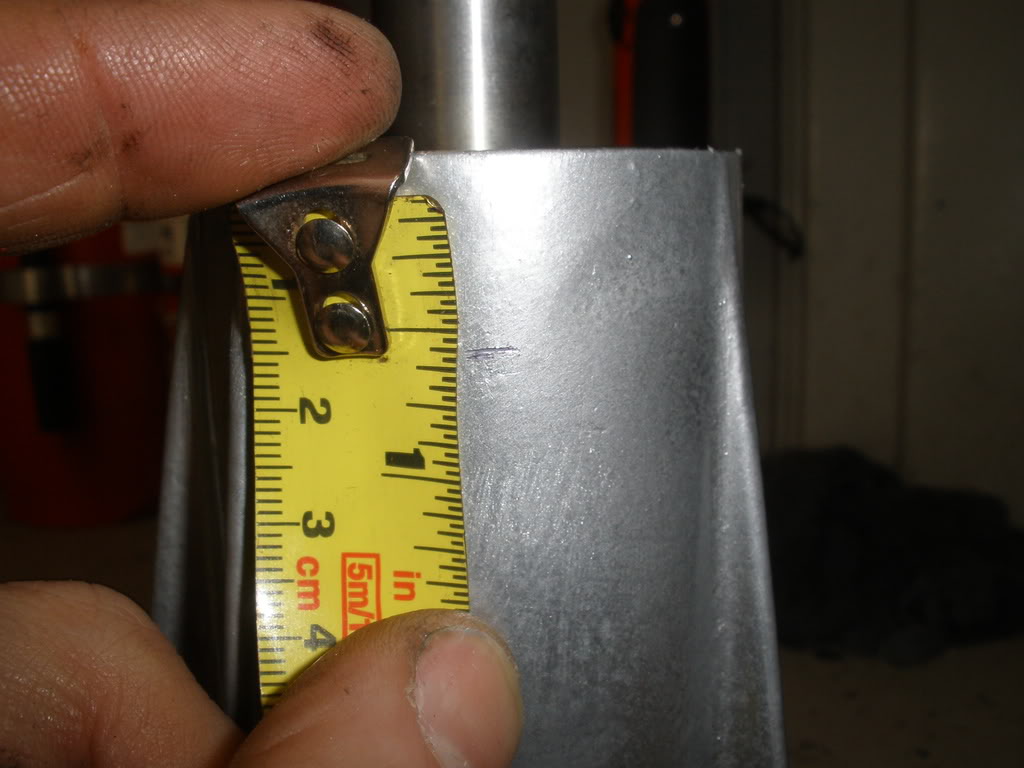

First I marked 5/8" so I knew how deep to cut.
Name:  P2250009.jpg
Views: 3
Size:  84.8 KB

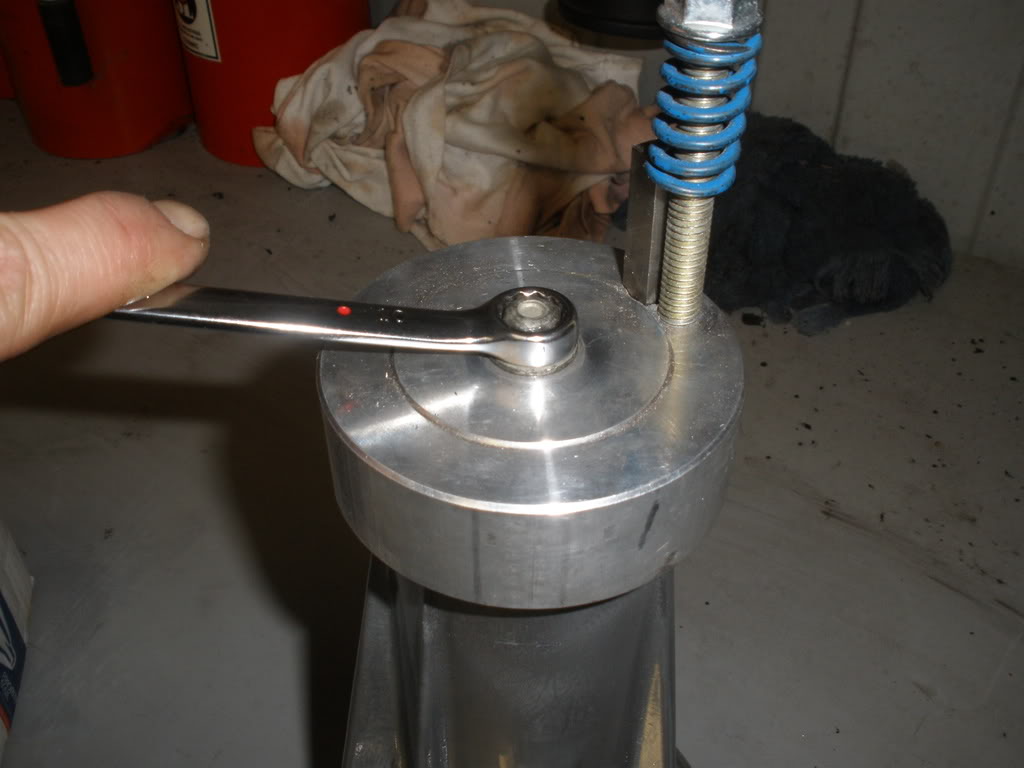

Bolted down the cutting head.
Name:  P2250010.jpg
Views: 3
Size:  65.7 KB

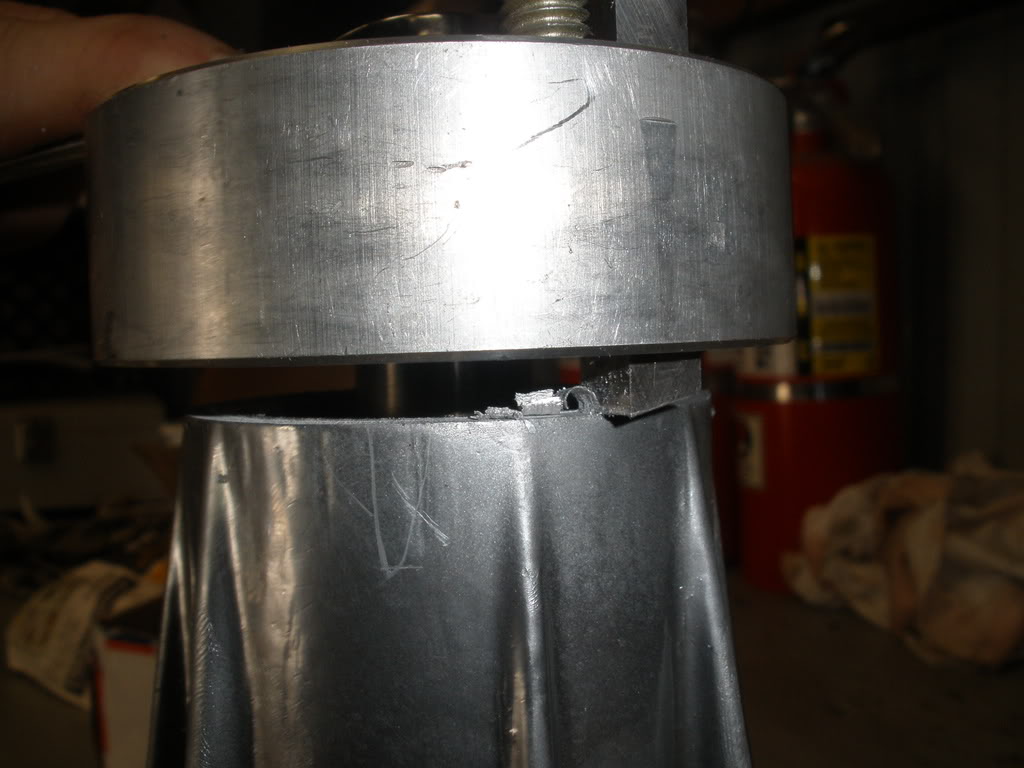

Put some tension on the cutting bit.


And started turning
Name:  P2250012.jpg
Views: 3
Size:  88.6 KB

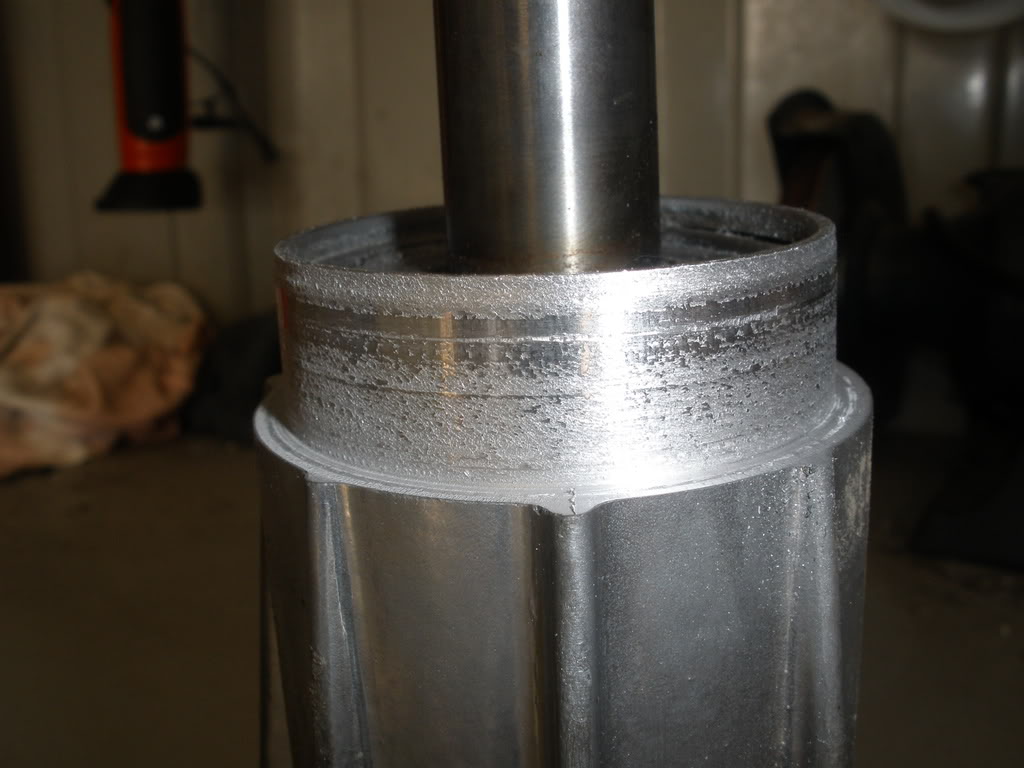

After about 20 minutes.
Name:  P2250013.jpg
Views: 3
Size:  92.7 KB

All done. Now I can run some really small pulleys.
Danthurs is offline   Reply With Quote
Old 02-25-2009, 07:03 PM   #83
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

How long did it take you cut that snout down?
Purplehazeir is offline   Reply With Quote
Old 02-25-2009, 08:13 PM   #84
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Look at the caption above the last picture.
Danthurs is offline   Reply With Quote
Old 02-25-2009, 08:29 PM   #85
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Look at the caption above the last picture.
Well gee...don't I feel stupid.
Purplehazeir is offline   Reply With Quote
Old 02-26-2009, 01:49 PM   #86
Okie Hokie
Posts like a Camaro

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Talking

Quote:
Originally Posted by Danthurs View Post
Now I can run some really small pulleys.
<--- Interpretted as meaning... "Now I can see how fast i can blow the heads off the block with boost, I always wanted a ram air hood... maybe at 50lbs the heads will go THROUGH the hood and save me the trouble of cutting slots" lol j/k dan thats awesome using the cutting tool for that... we have 2 machine ones and 1 hand crank at the shop but theyre usually used for turning down rotors
tlsheff is offline   Reply With Quote
Old 02-26-2009, 03:58 PM   #87
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Got a bit more done. Figured I would post while my toes thaw out.

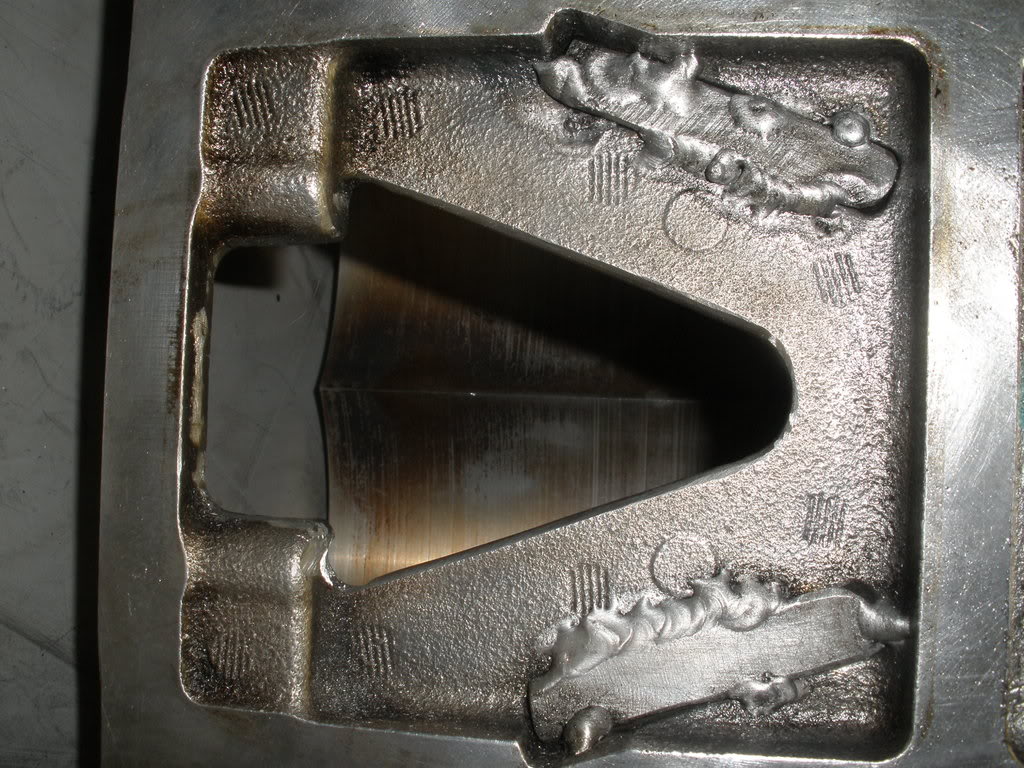

Still need to finish this. But I want to get on the Milling machine to remove the H bar and then cut away the bolt bosses.
Name:  P2260012.jpg
Views: 3
Size:  185.9 KB

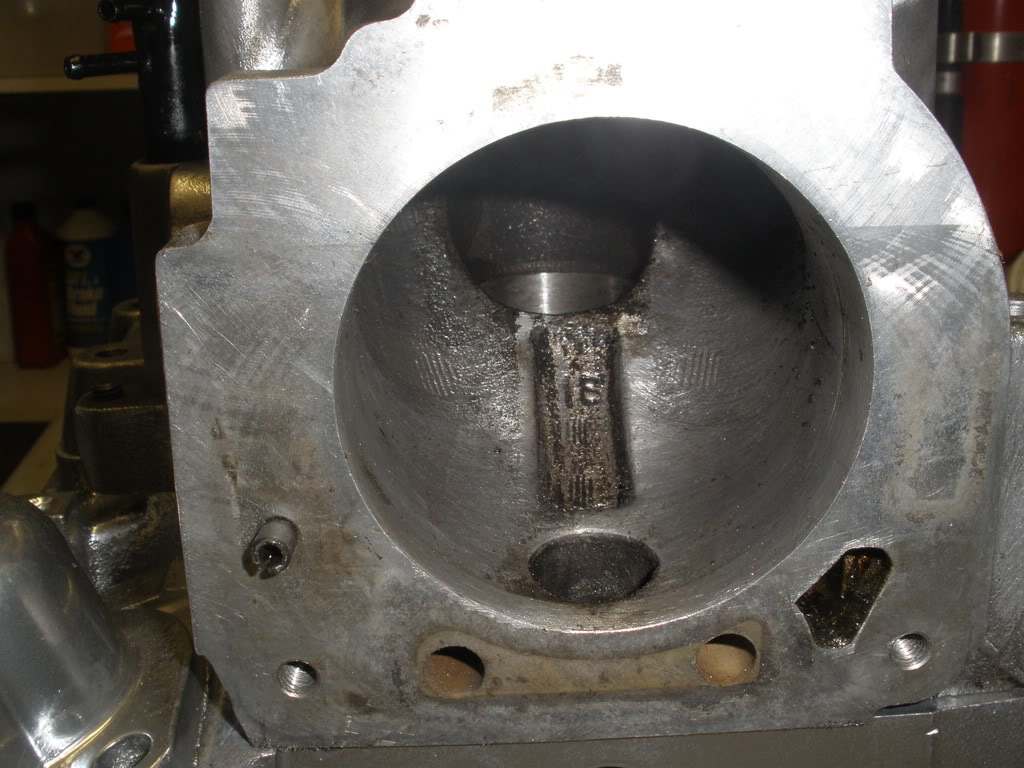

Got the intake clean up a little, but still need to work on this.
Name:  P2260006.jpg
Views: 3
Size:  128.4 KB

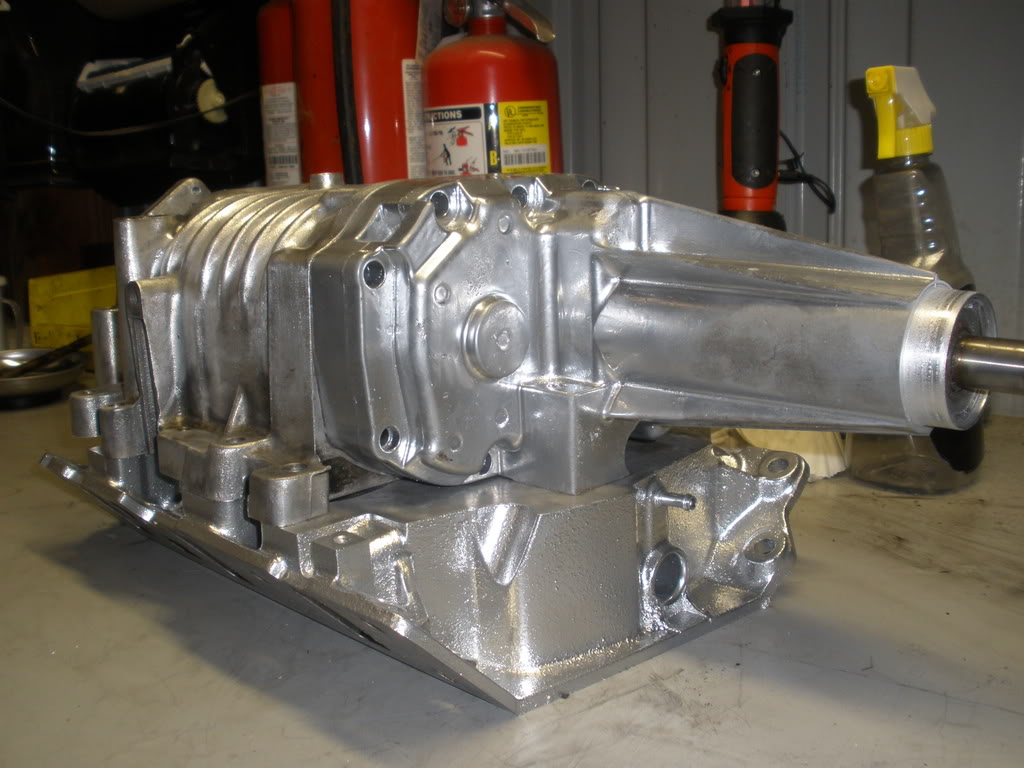

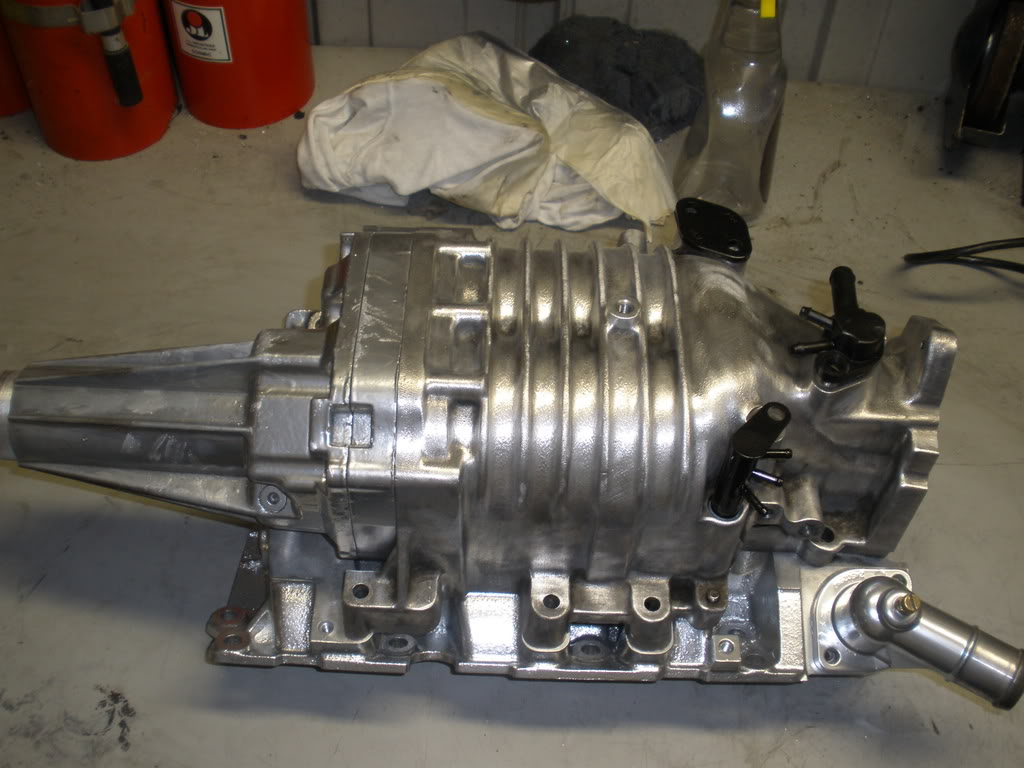

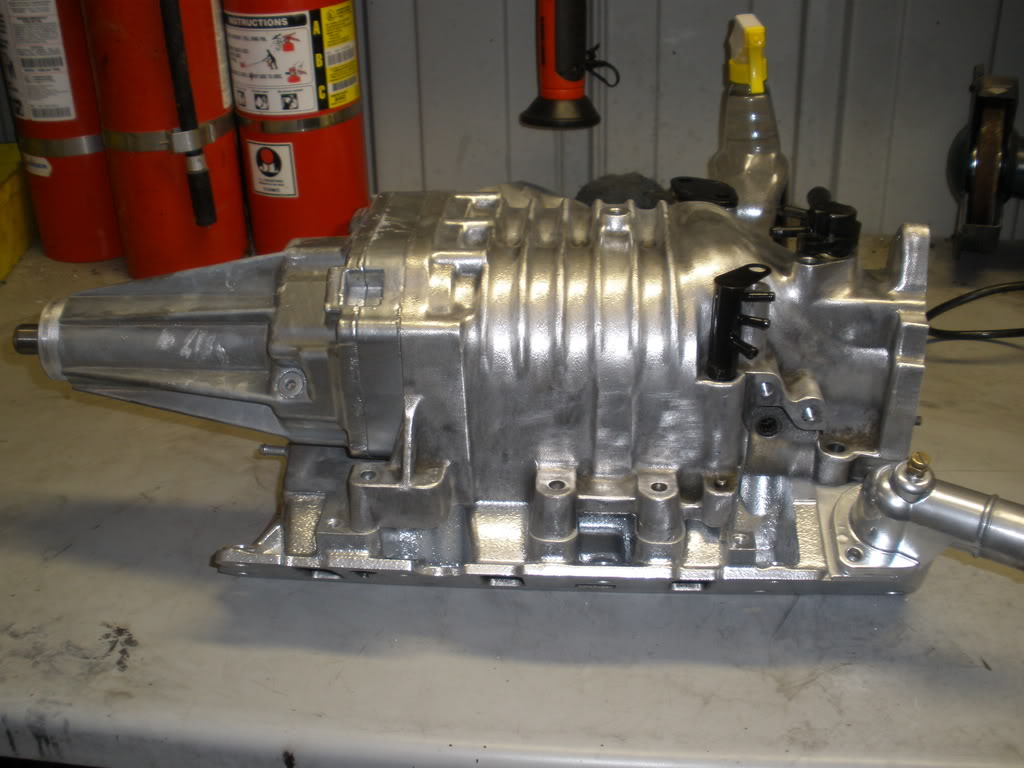

Then I threw it all together for a photo shoot. The snout got a little messed up when I cut it down, so that needs to be cleaned up.

Name:  P2260005.jpg
Views: 3
Size:  97.5 KB
Name:  P2260007.jpg
Views: 3
Size:  103.1 KB

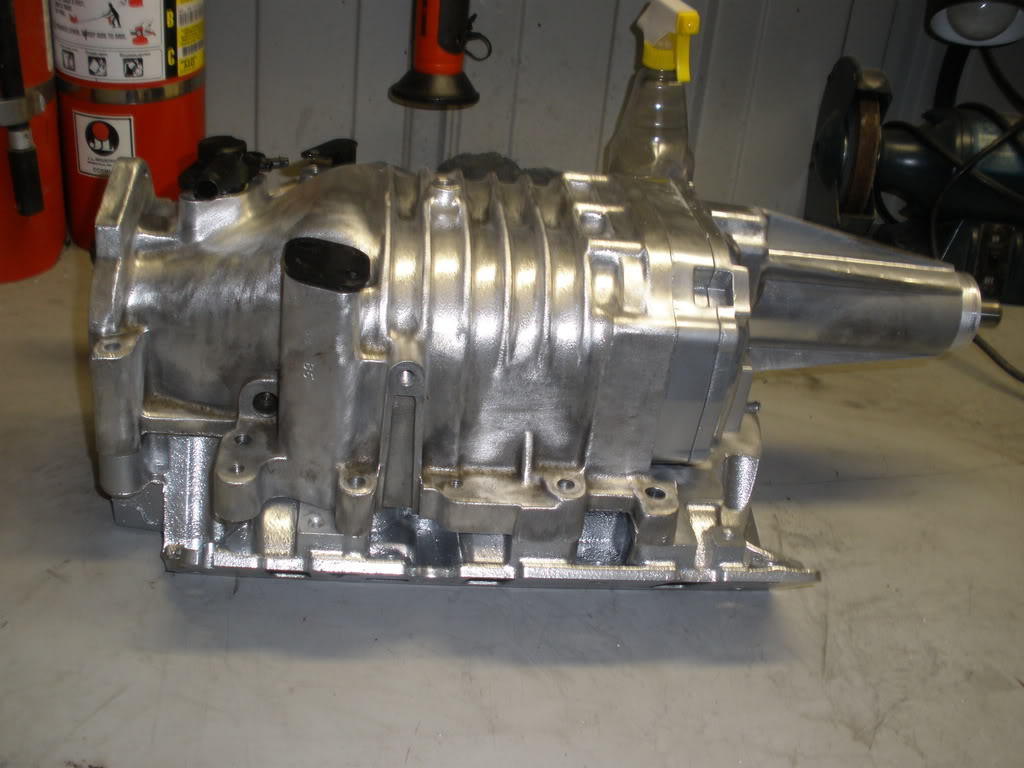

Name:  P2260008.jpg
Views: 3
Size:  93.8 KB
Name:  P2260009.jpg
Views: 3
Size:  110.6 KB

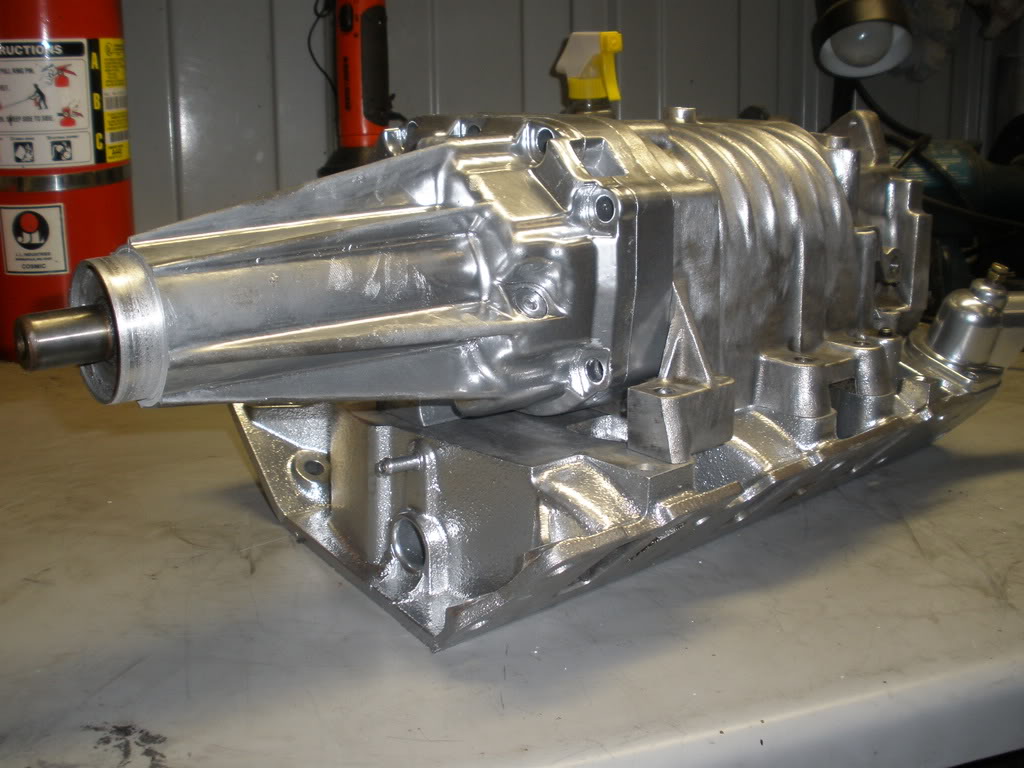

Name:  P2260011.jpg
Views: 3
Size:  115.2 KB
Danthurs is offline   Reply With Quote
Old 02-26-2009, 04:02 PM   #88
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

That is looking mighty nice. I appreciate the updates, it helps with my learning curve about SC and performance enhancements for the Bonny.

One question...which area is the "H" bar?
Purplehazeir is offline   Reply With Quote
Old 02-26-2009, 04:08 PM   #89
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Danthurs is offline   Reply With Quote
Old 02-26-2009, 04:10 PM   #90
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Holly cow, I just happen to look back at what I started with and then looked at what I have now. And I'm not even done yet.

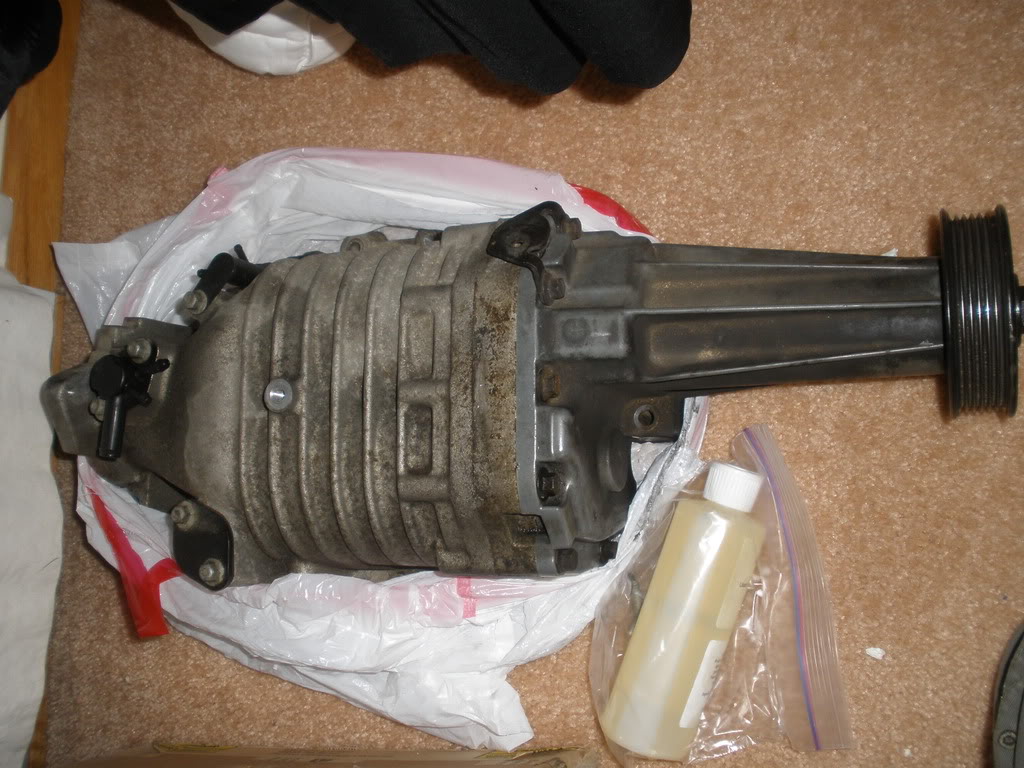

Name:  P1270002.jpg
Views: 2
Size:  145.5 KB
Name:  P2260007.jpg
Views: 3
Size:  103.1 KB
Danthurs is offline   Reply With Quote
