Old 04-02-2009, 06:06 PM   #121
Okie Hokie
Posts like a Camaro

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Default

if only it was that easy to build one for mine... i need to take some pics so we can work ideas... the charcoal canister, and bigger windshield sprayer resevior make it hard to build one... plus the compressor for the air ride is in the way on the bottom side... but only a lil... ill get pics and make a thread and we can throw ideas

btw todd ever claim the old tube???

btw looks... slightly... *sigh* AWESOME!!!
tlsheff is offline   Reply With Quote
Old 04-02-2009, 06:10 PM   #122
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Not yet. He'* coming over next weekend for the meet and we will go from there.
Danthurs is offline   Reply With Quote
Old 04-02-2009, 06:29 PM   #123
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Looks great Dan! ...and a bit familiar
Purplehazeir is offline   Reply With Quote
Old 04-02-2009, 06:37 PM   #124
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Ya, someone gave me some ideas, but I can't remember who?
Danthurs is offline   Reply With Quote
Old 04-09-2009, 07:28 PM   #125
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

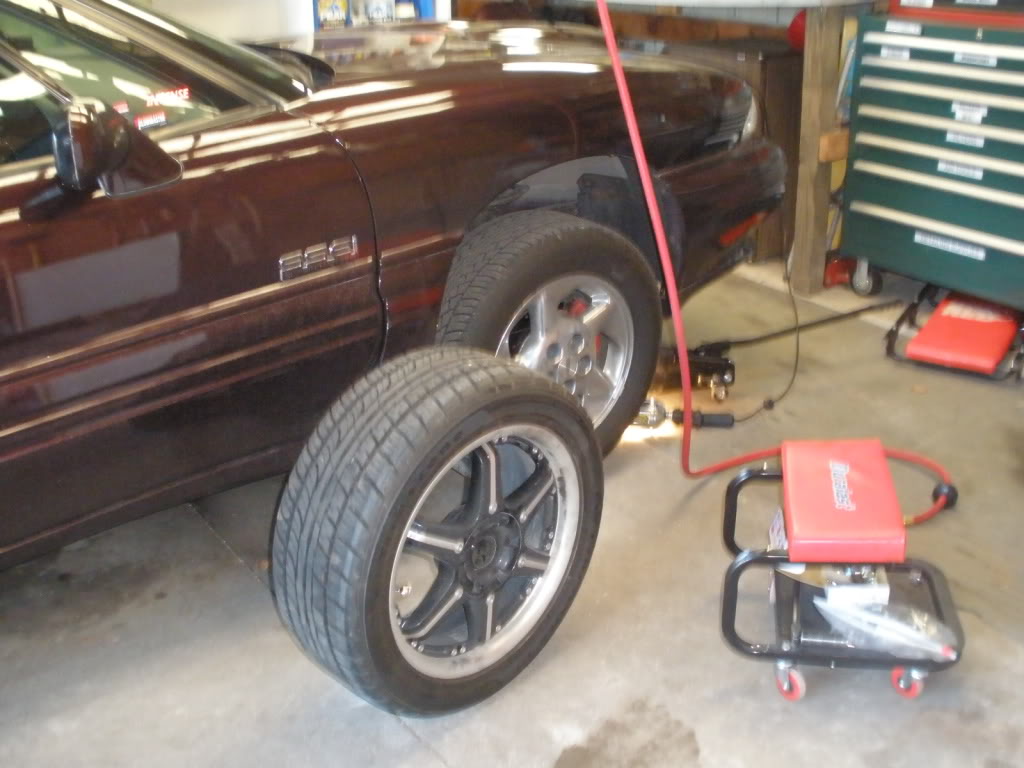

Well, today was the day. Started off with changing my tires.
Name:  P4090001.jpg
Views: 2
Size:  103.3 KB

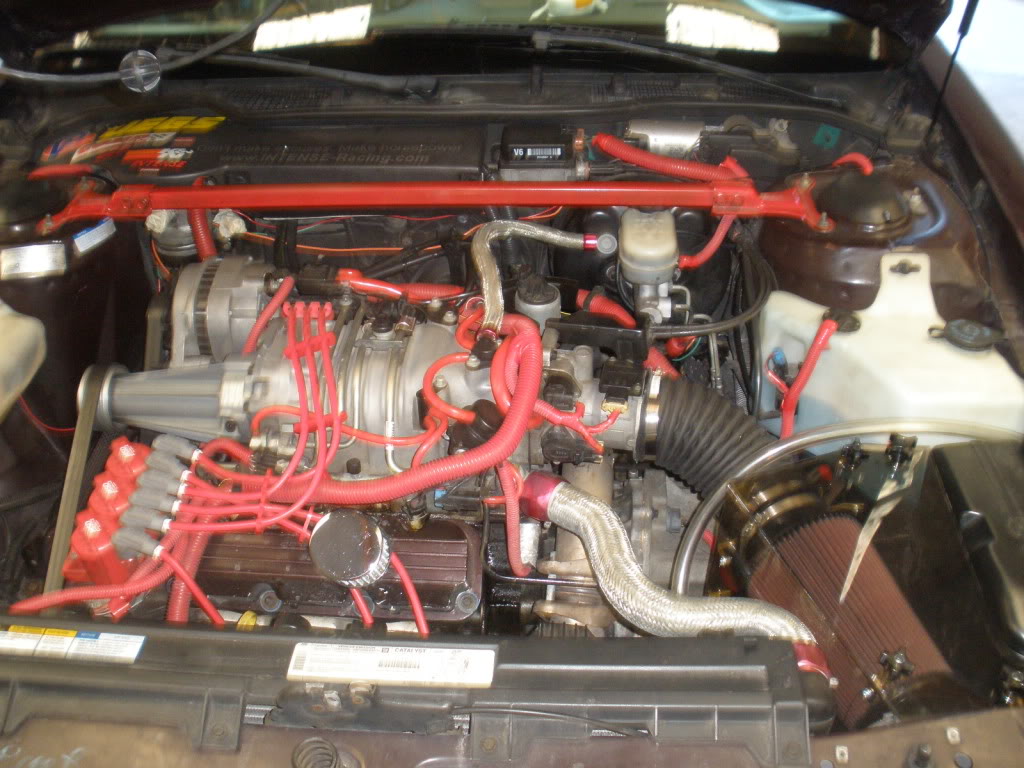

The before picture.
Name:  P4090002.jpg
Views: 2
Size:  146.6 KB

The parts are coming off easy
Name:  P4090004.jpg
Views: 2
Size:  149.9 KB

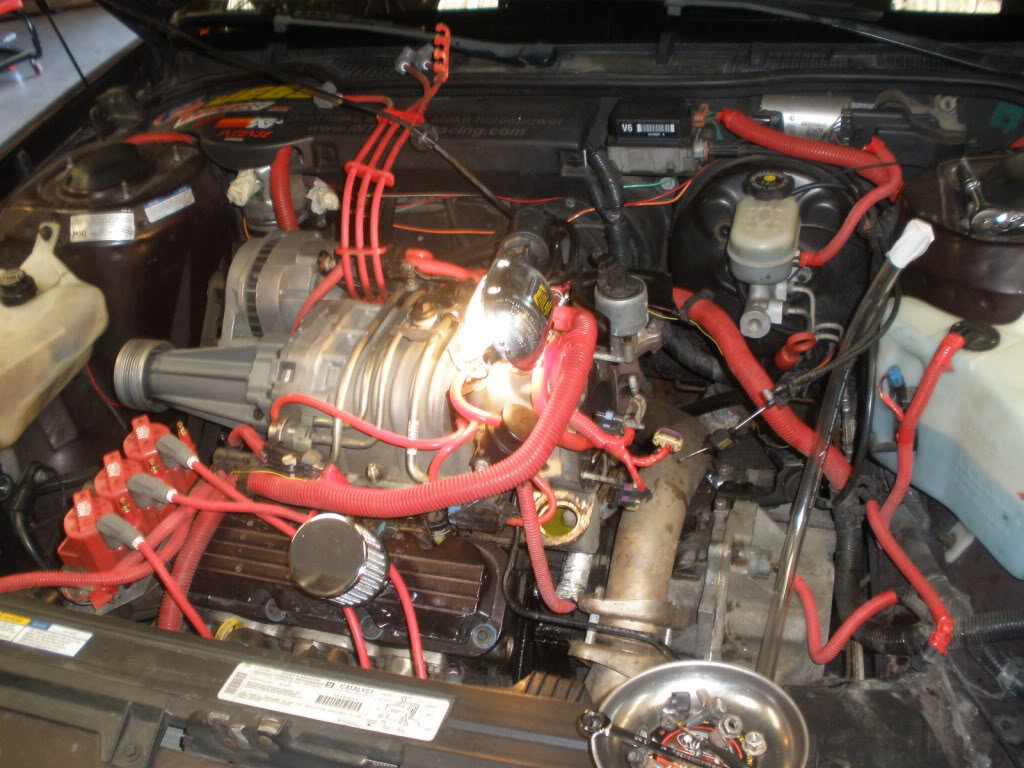

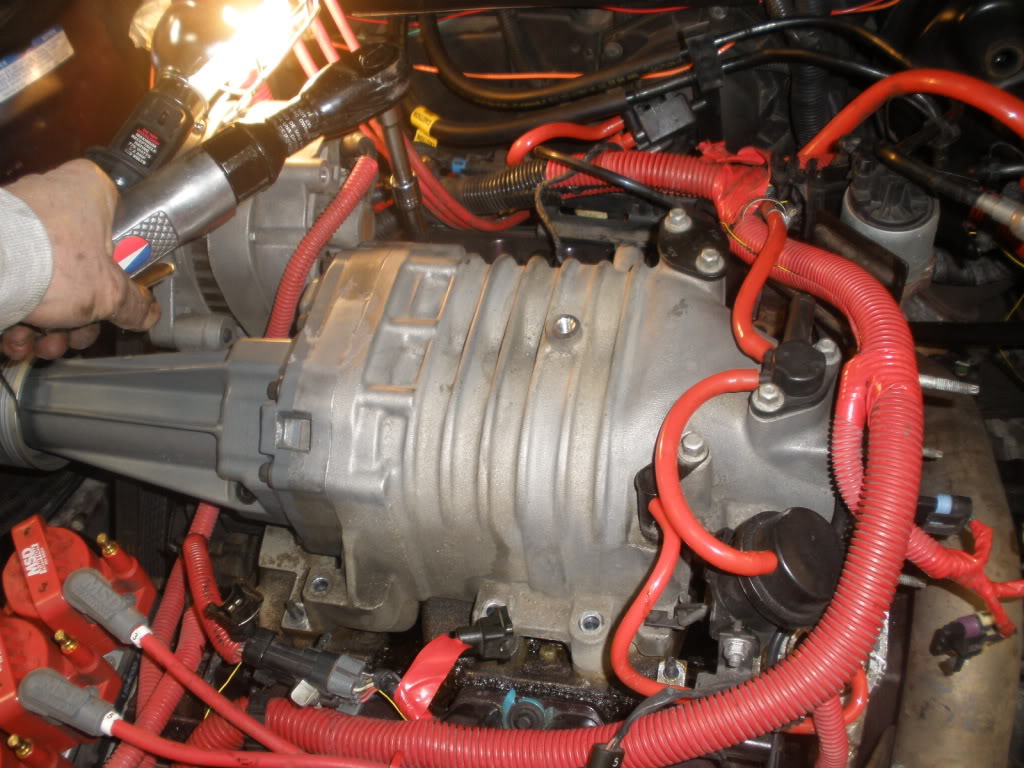

Off with the supercharger.
Name:  P4090005.jpg
Views: 2
Size:  144.0 KB

All gone, now on to the LIM.
Name:  P4090006.jpg
Views: 2
Size:  175.3 KB

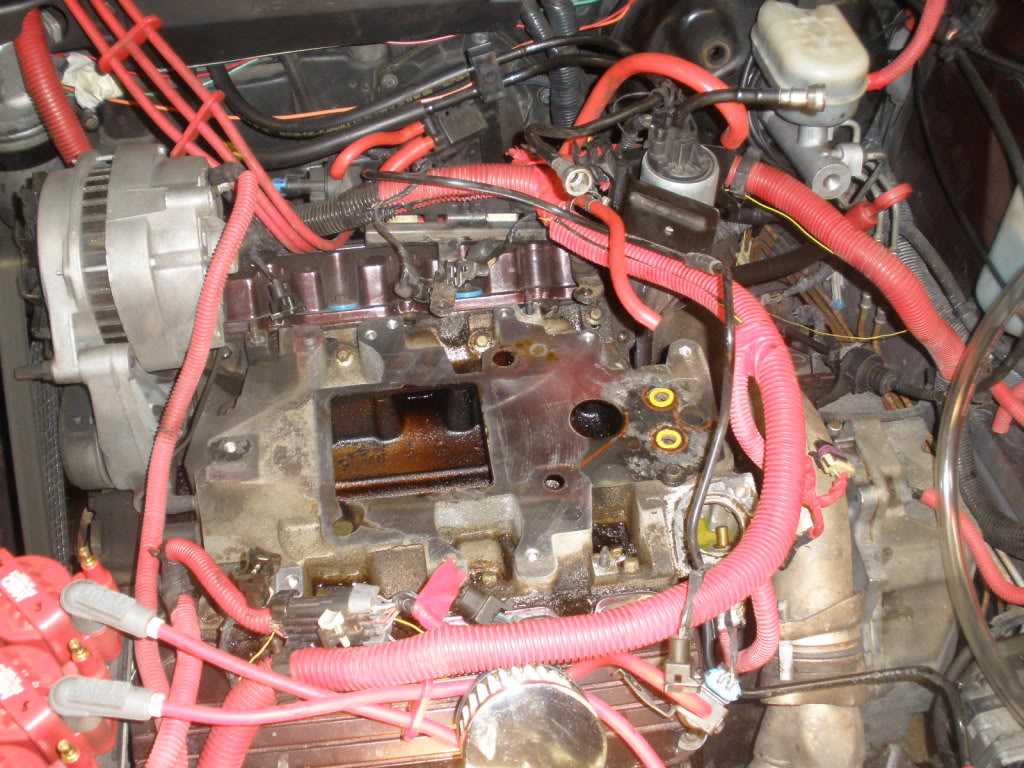

Got that off with no problems. A small amount of coolant got in to the valley. Whipped it up best I could.
Name:  P4090007.jpg
Views: 2
Size:  193.1 KB

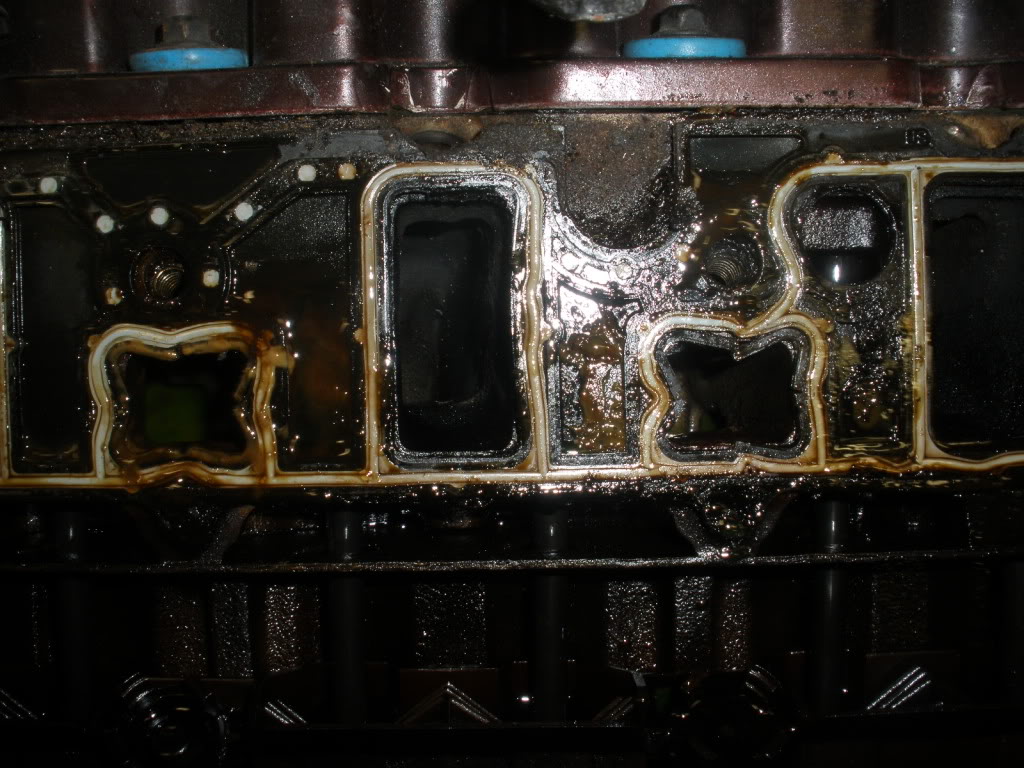

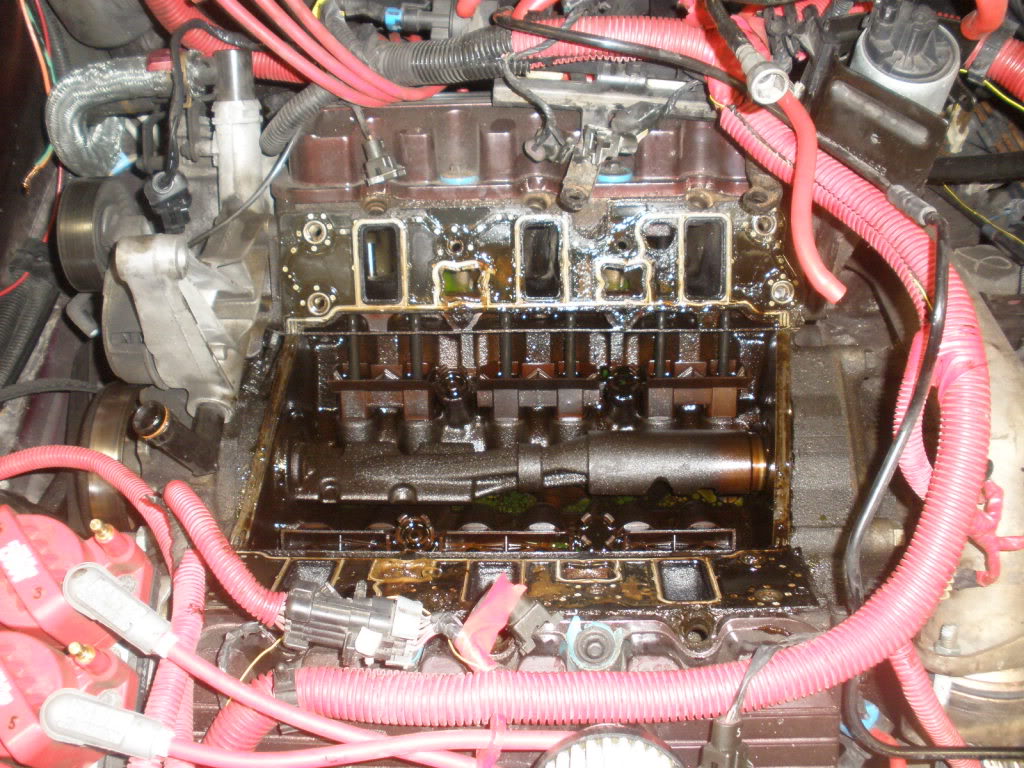

102k miles, yep, time to change these.

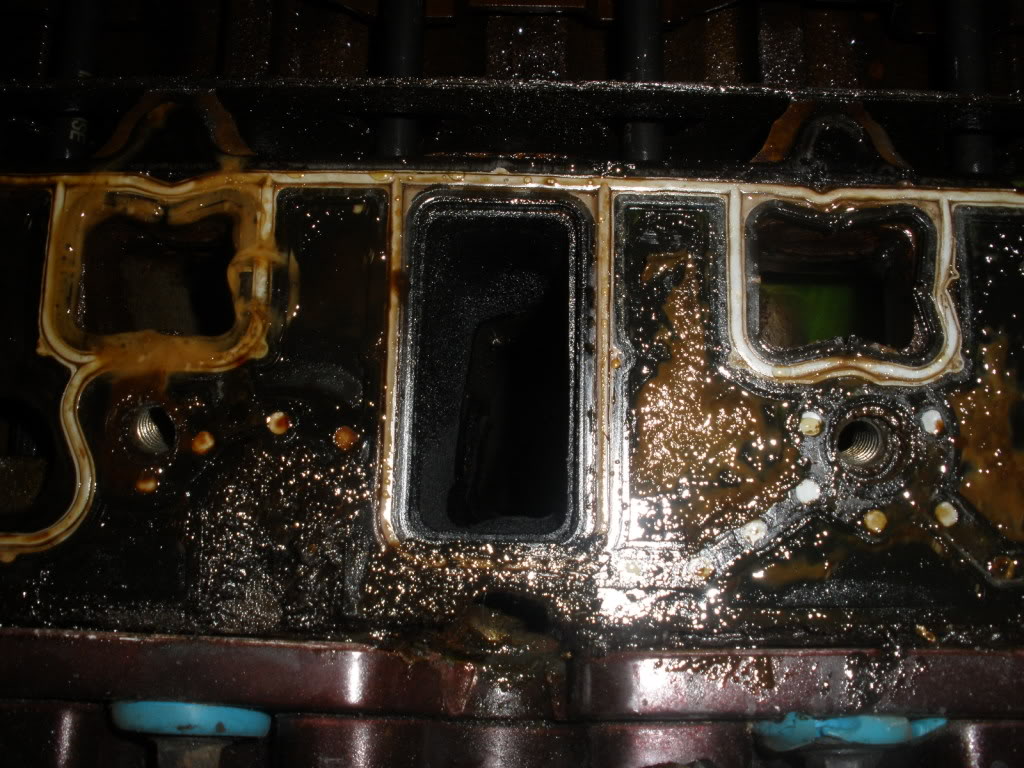

Name:  P4090008.jpg
Views: 2
Size:  167.1 KB
Name:  P4090009.jpg
Views: 2
Size:  173.3 KB

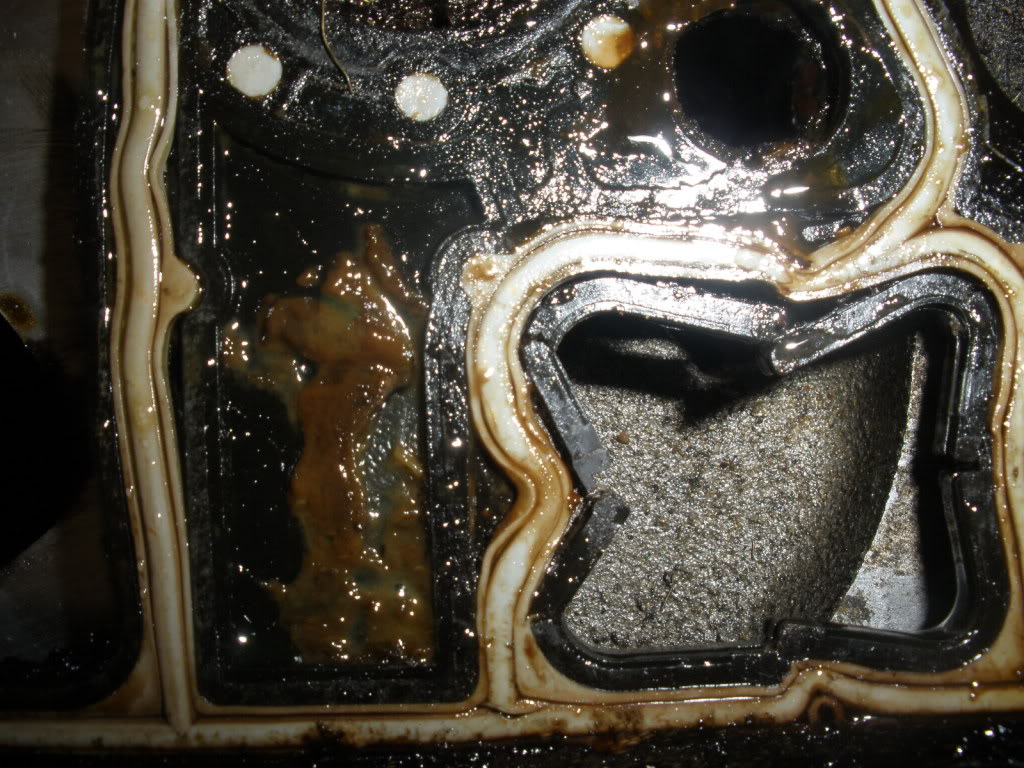

Name:  P4090010.jpg
Views: 2
Size:  164.4 KB
Name:  P4090011.jpg
Views: 2
Size:  186.2 KB

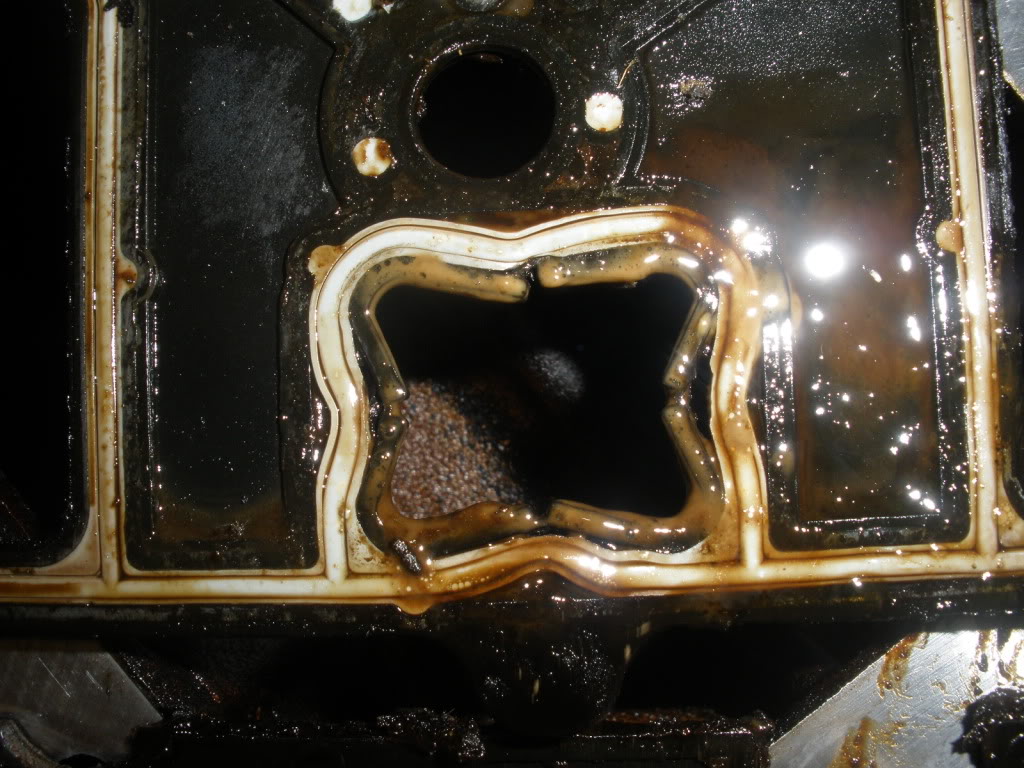

Cleaning up the heads.

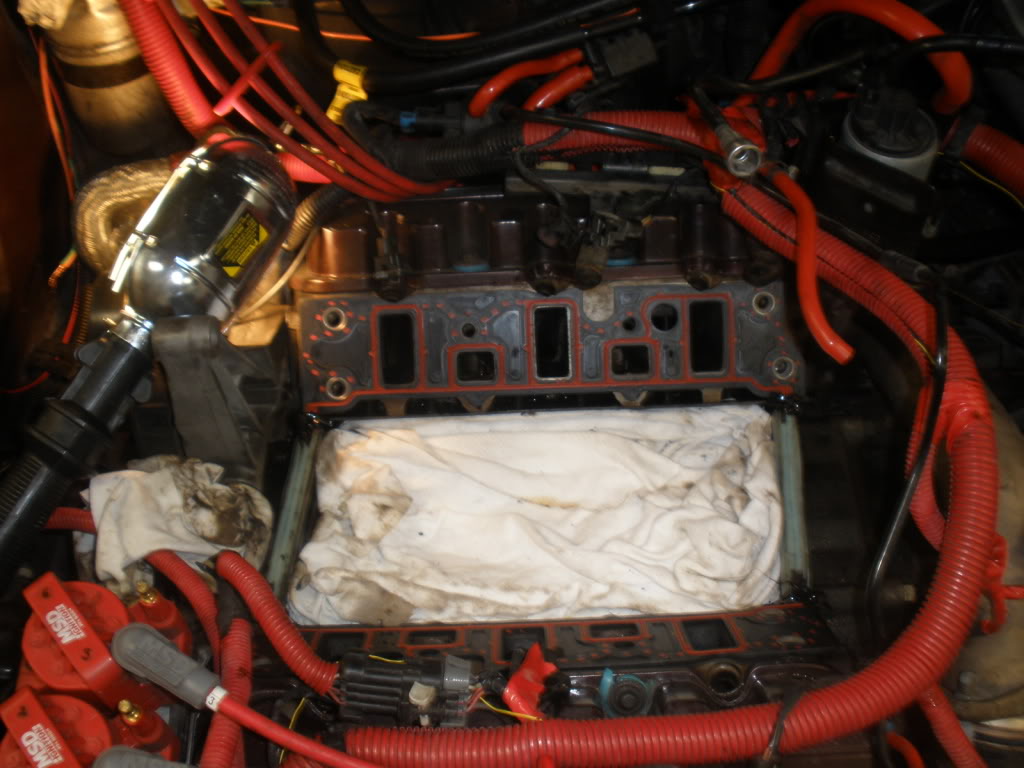

Gaskets in place and read to close up.
Name:  P4090013.jpg
Views: 2
Size:  113.0 KB

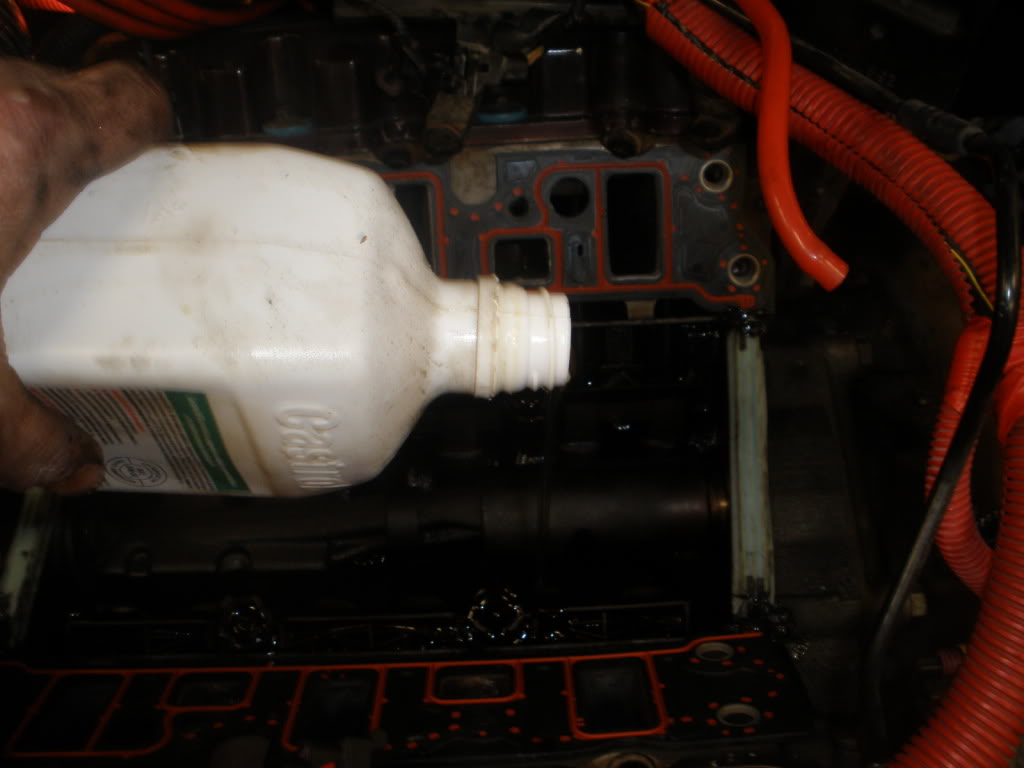

Because I saw some coolant in the valley I poured some cheep oil to rinse what ever I didn't whip up away.
Name:  P4090014.jpg
Views: 2
Size:  68.2 KB

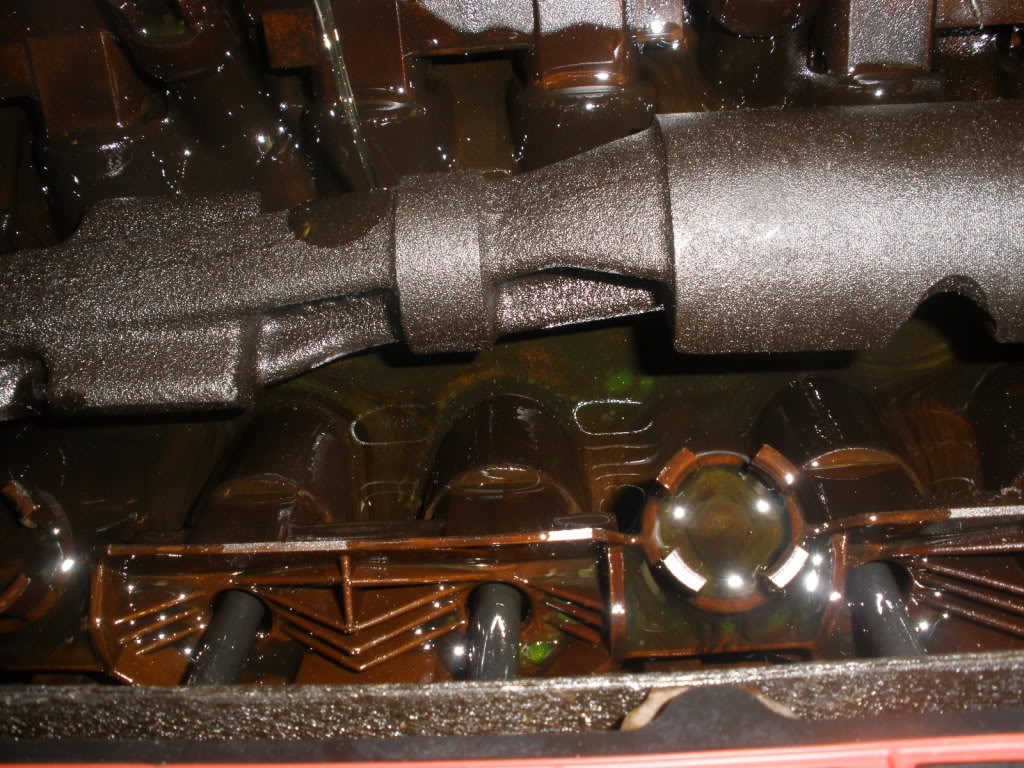

You can see there was still a little left.
Name:  P4090015.jpg
Views: 2
Size:  178.0 KB

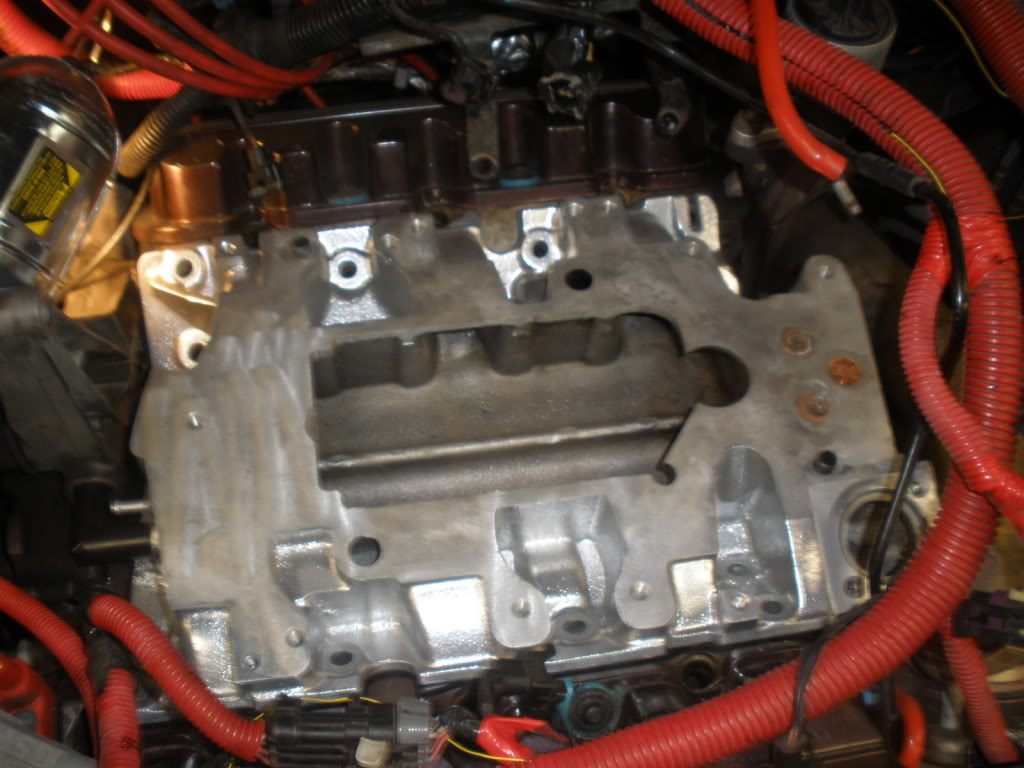

New ported LIM is in place.
Name:  P4090016.jpg
Views: 2
Size:  108.5 KB

All torqued
Name:  P4090017.jpg
Views: 2
Size:  136.3 KB

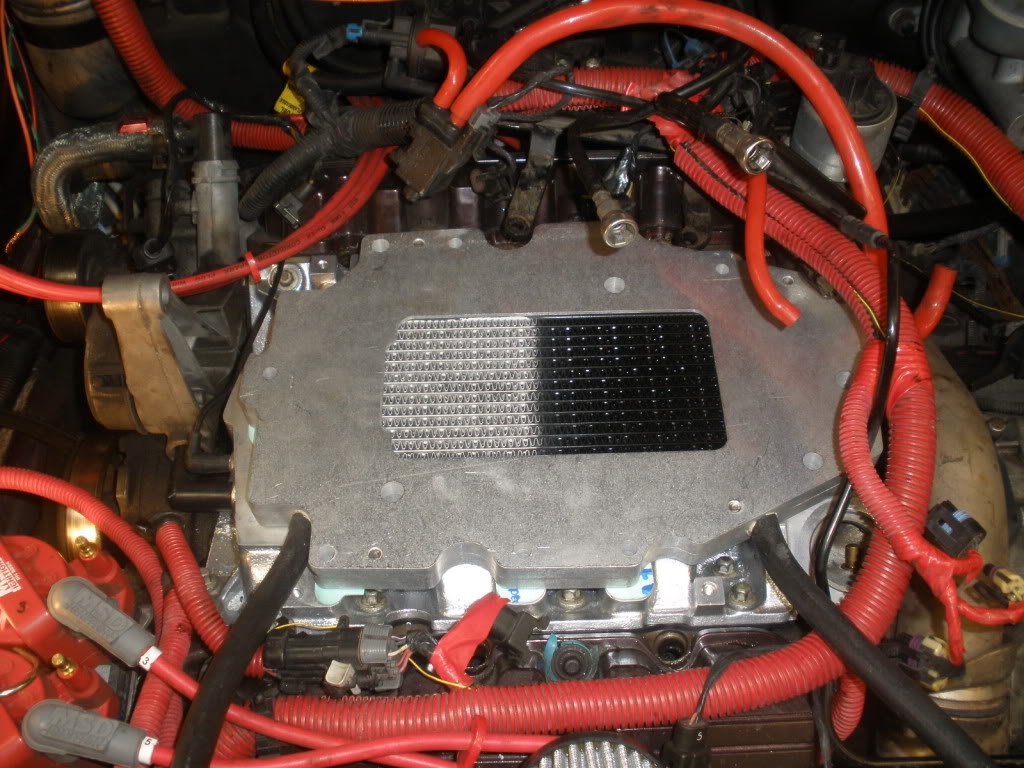

Intercooler set in place.
Name:  P4090019.jpg
Views: 2
Size:  164.2 KB

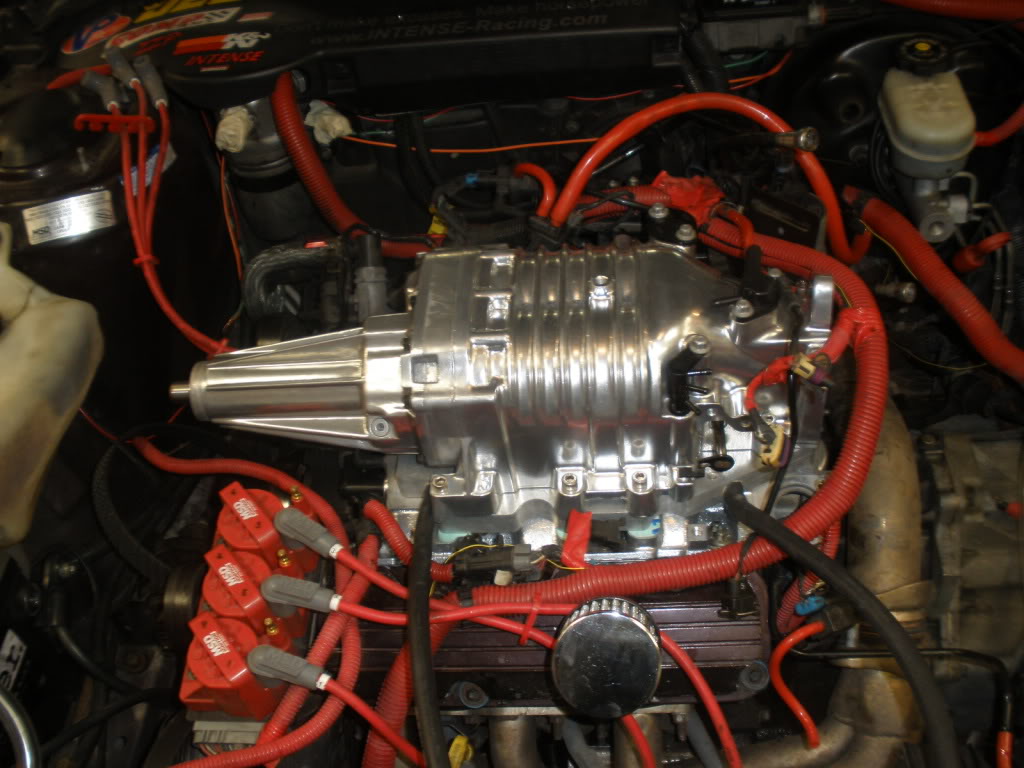

Supercharger in place and torqued,
Name:  P4090020.jpg
Views: 2
Size:  121.8 KB

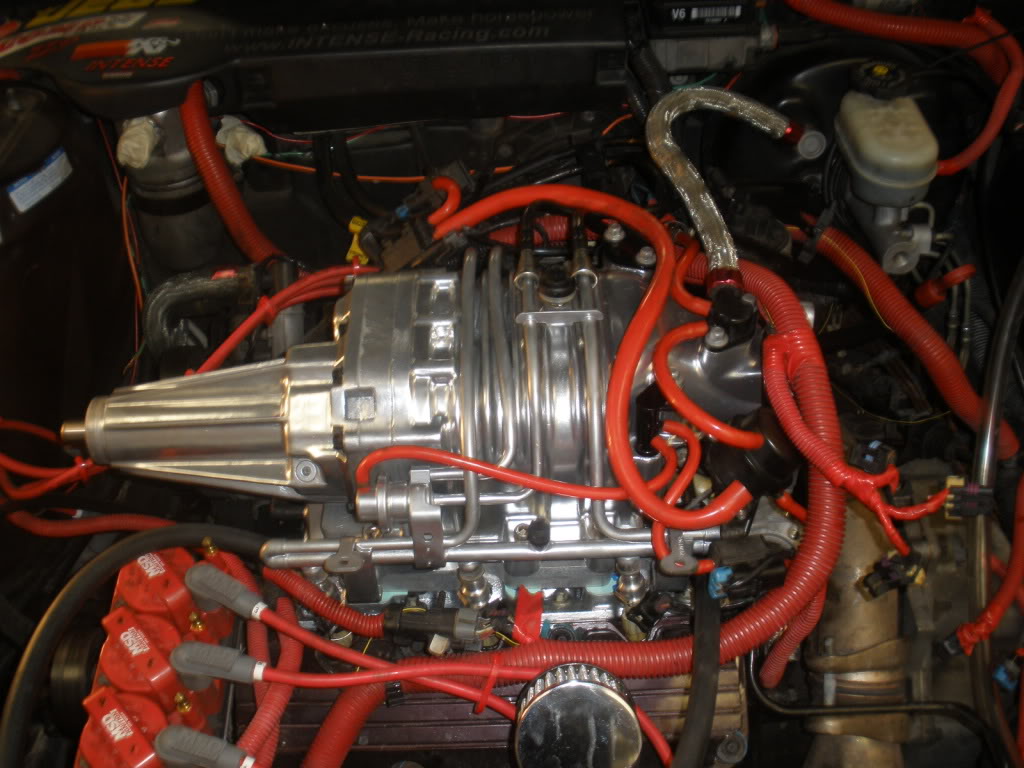

Fuel rails in place.
Name:  P4090021.jpg
Views: 2
Size:  127.3 KB

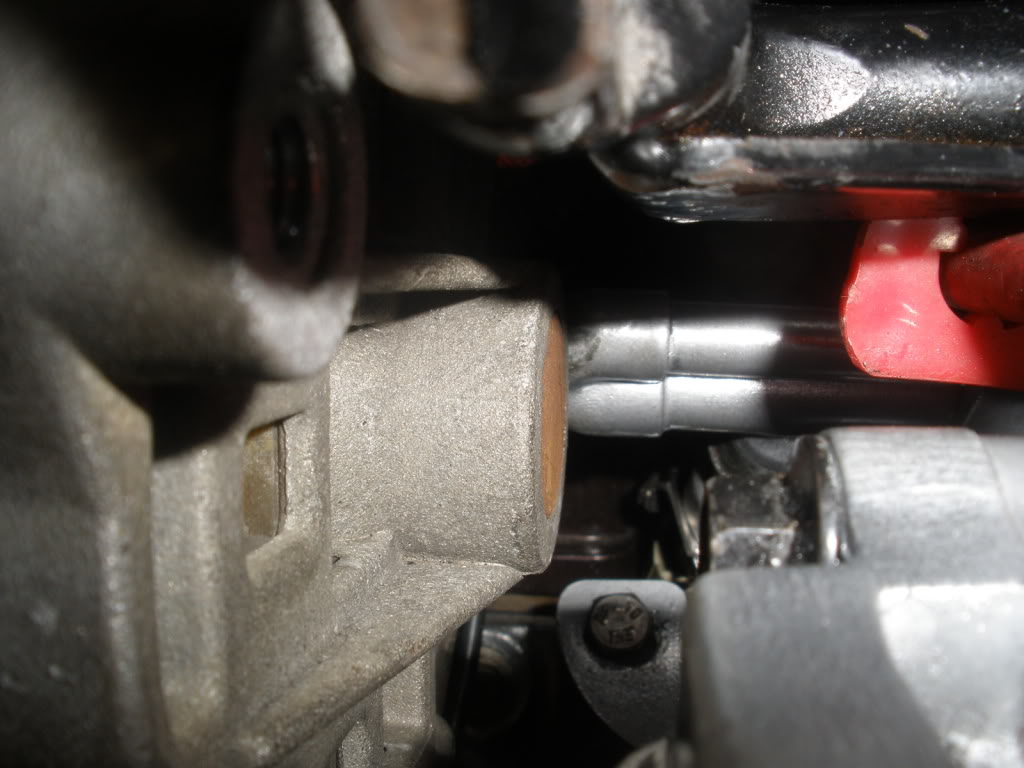

Not real happy with this. Fuel rail touches the alternator.
Name:  P4090022.jpg
Views: 2
Size:  97.6 KB

Had to gently persuade the fuel rail a bit.


Most things are back in place.
Name:  P4090024.jpg
Views: 2
Size:  152.1 KB

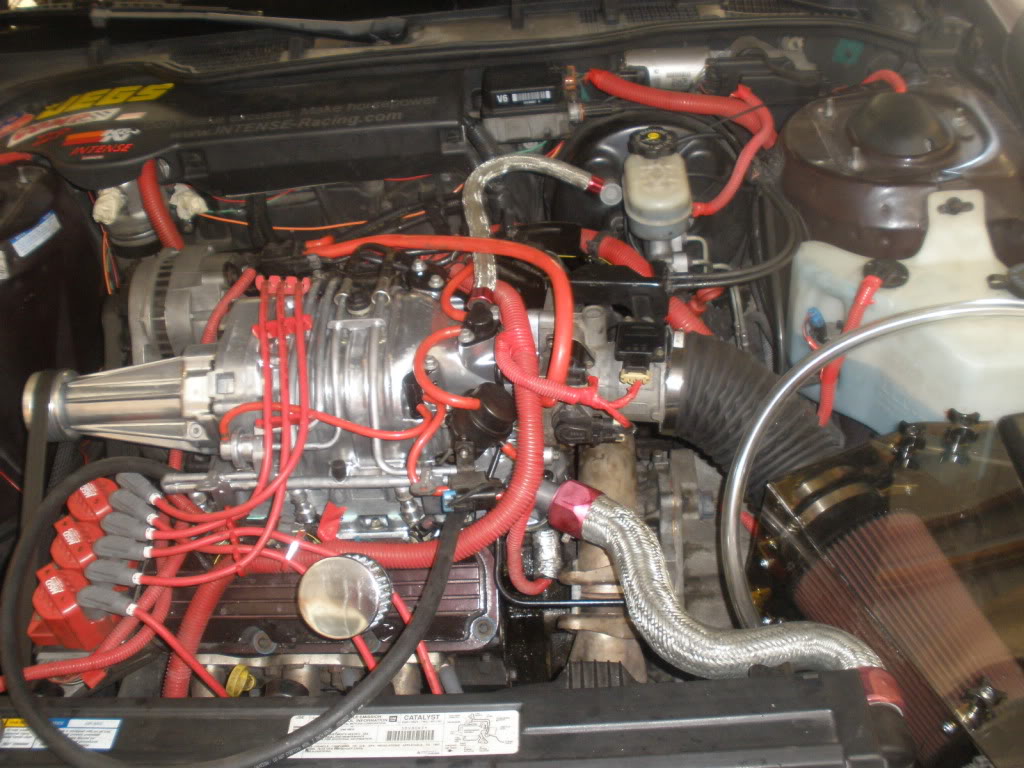

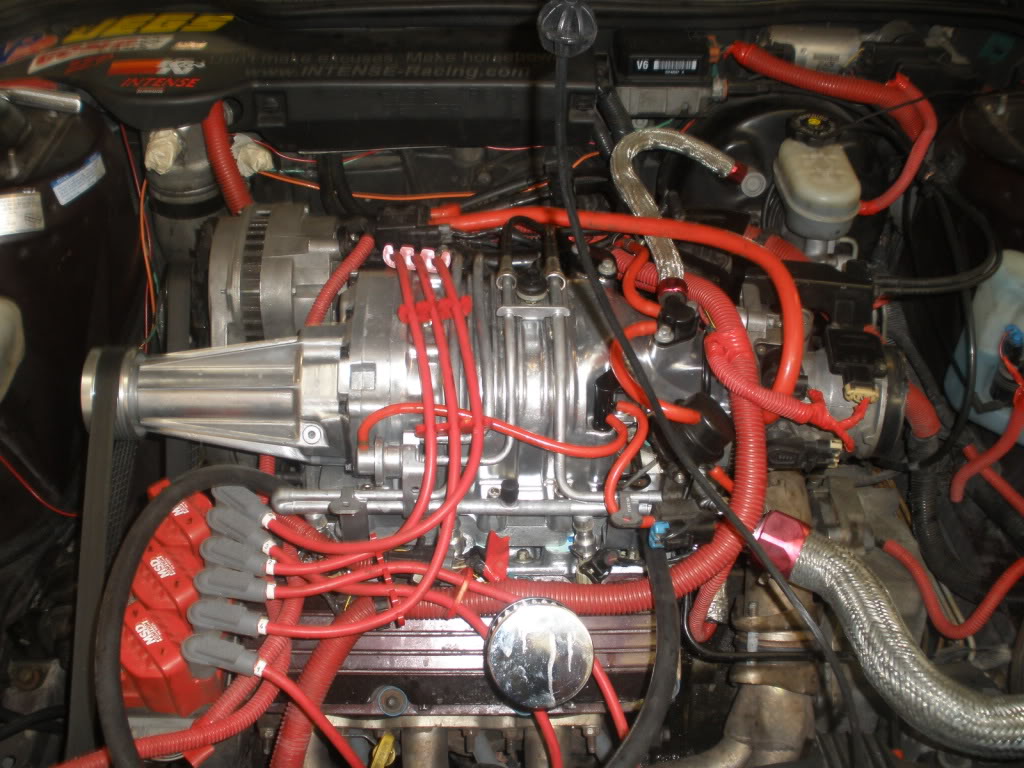

All back together. Still need to hook up the cooling lines for the intercooler.
Name:  P4090026.jpg
Views: 2
Size:  148.3 KB

A little video of the engine. Didn't run it long because no cooling lines on the heat exchanger.
Danthurs is offline   Reply With Quote
Old 04-09-2009, 07:50 PM   #126
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Nice work Buddy! Let the tuning begin!
Purplehazeir is offline   Reply With Quote
Old 04-09-2009, 08:10 PM   #127
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Tomorrow I'm changing the oil, sparks plugs, and filling the intercooler. Then I will clean it up and then run a scan so I can start tuning.
Danthurs is offline   Reply With Quote
Old 04-09-2009, 08:11 PM   #128
Senior Member
Posts like a 4 Banger

FriendSSEI's Avatar

Join Date: Nov 2008
Posts: 123
Thanks: 0
Thanked 0 Times in 0 Posts
FriendSSEI is on a distinguished road
Default

Looks like you've been busy on that spring project. Will you let us know your new run times Dan??
FriendSSEI is offline   Reply With Quote
Old 04-09-2009, 08:30 PM   #129
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

PM sent on extra tube and plexi.........
Toddster is offline   Reply With Quote
Old 04-09-2009, 08:37 PM   #130
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Quote:
Originally Posted by FriendSSEI View Post
Looks like you've been busy on that spring project. Will you let us know your new run times Dan??
I hope to hit the track this year. I suspect with a good tune I can get deep in to the 13s. My goal is to break in to the 12s. might be out of my reach right now, but it'* still my goal.
Danthurs is offline   Reply With Quote
