Old 11-22-2006, 01:11 AM   #41
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default


That is amazing.
I cant wait to get my SC off of the car!
SSEimatt93 is offline   Reply With Quote
Old 11-22-2006, 01:16 AM   #42
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Bastard (bath-turd). You bumped it to page 3 with no pics.
willwren is offline   Reply With Quote
Old 11-22-2006, 01:20 AM   #43
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Im assuming little touches like that can be added to the exterior on any rough cast area?
I'm impressed! How time consuming was the wet sanding?
SSEimatt93 is offline   Reply With Quote
Old 11-22-2006, 09:18 AM   #44
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by SSEimatt93
How time consuming was the wet sanding?
Very time consuming. My experience with polishing after cleaning the roughness up is no where near that and takes tons of time. The more of a mirror polish, the more time.
BillBoost37 is offline   Reply With Quote
Old 11-22-2006, 09:25 AM   #45
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Pic bump to page 3.

Matt, you don't NEED a mirror finish like this. But if you have the time, take it down with the dremel as I stated, using a combination of attachments appropriate for the material you're removing, then start wetsanding in stages (400, 600, 800, finish with 1000), then polish with the dremel.

Quote:
Originally Posted by willwren
Ok, here'* probably the last update on Paul'*. After this update, the Bullet'* new blower will be left out (it'll be shipped soon) and Haro'* and Zilla'* will follow on.

Keep in mind all these surfaces on the inlet and outlet are VERY rough sand castings. Smoothing the GenV'* tougher alloy is a B****.

Starting off with the TB adapter again (this adapter is required to mate the L67 TB to the GenV blower inlet), this adapter was blended to better match the inlet diameter of the GenV blower, then polished:


The inlet went through a tougher transformation. Per Paul'* request, the EGR was filled and blended, then the inlet was smoothed and lightly polished. You can see the 'blended egr plug' in the pic, and you can see how it'* smoothed out alot. This combats heat caused by friction. The inlet is actually the hottest portion of a SC under boost:

Note that polishing the inlet to a mirror would be very difficult and would gain little over the amount you see here, but I'll be making another polishing pass or two on this sucker anyway.

On to the outlet. Sharp corners create heat. All sharp corners were blended off, then polished:




Again, I'll probably make a couple more passes on this outlet before shipping it back to Canada. The GenV alloy is MUCH tougher and very hard to work. Particuarly at this level of detail.

And just because I can, I decided to leave my signature on a worthless feature on the EXTERIOR of this SC:

This polishing job clearly needs more work. I can't see the date of mint on the penny in the reflection.
willwren is offline   Reply With Quote
Old 11-22-2006, 08:10 PM   #46
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Switching gears back to Harofreak'* Gen3 M90:

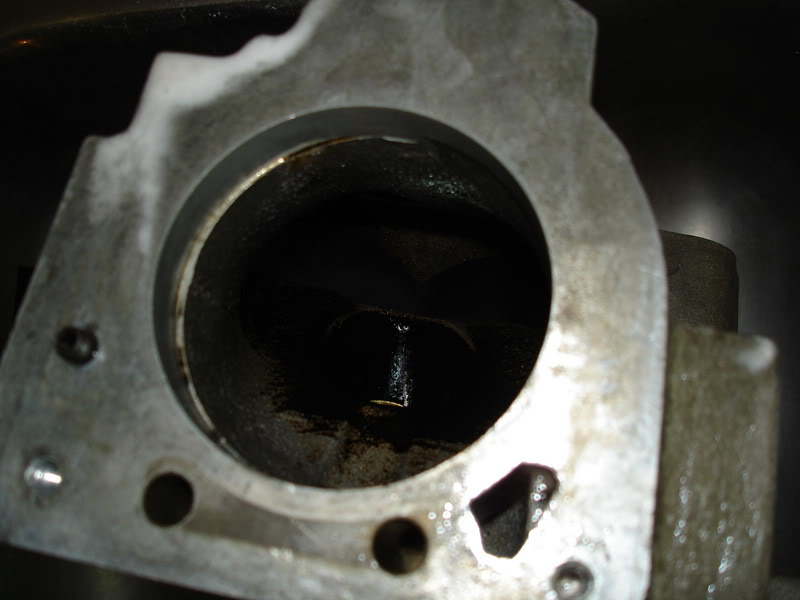

I've already roughed in the inlet to fix the Eaton goof pictured here.
Name:  haro1.jpg
Views: 3
Size:  41.6 KB

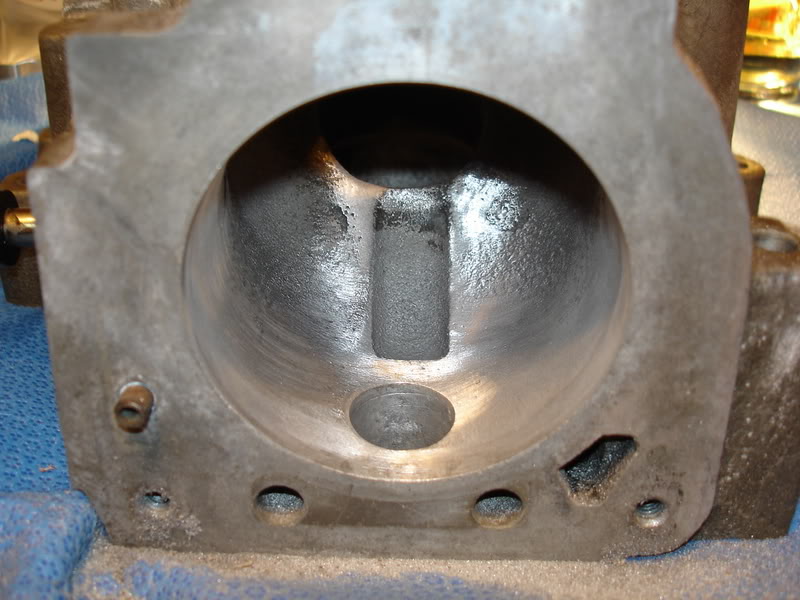

And now fixed (good thing he sent his throttle body so I could center the bore for the natural flow).
Name:  haro8.jpg
Views: 3
Size:  76.0 KB

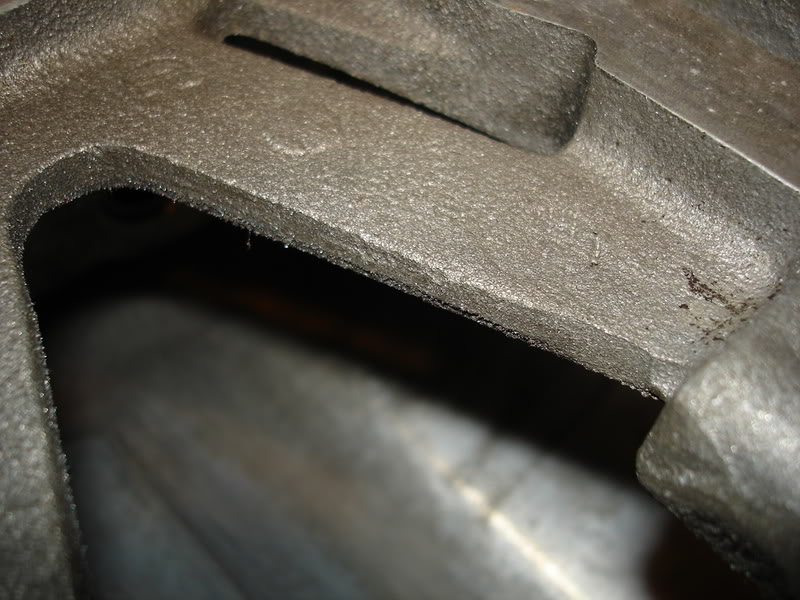

So I set to work on roughing in his outlet. This is what it looked like an hour ago:
