Old 11-12-2006, 11:49 PM   #31
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I have my nearly severed finger duct-taped to keep debris out of it. I've been working on it quite a bit today.

Shadd'* visit has been delayed. Just me, the dog, and Katie working on these.

Edit:

Late night update from last night. My flex-cable for my dremel broke. I have to get a new one today.
willwren is offline   Reply With Quote
Old 11-17-2006, 08:10 PM   #32
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

lets see some more pic
Peterg22000 is offline   Reply With Quote
Old 11-17-2006, 10:55 PM   #33
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Ya, come on Bill.
Please. Even if you have to PM me a pic. I'm really curious to see the progress.
2000SilverBullet is offline   Reply With Quote
Old 11-21-2006, 11:10 PM   #34
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Hey Paul, I need to ask you a personal question. When you shave, do you shave in the shower? Just the face, or the legs too? Do you prefer to use a mirror when shaving?

Or.....


























































Your throttle body adapter?
Name:  DSC02885.jpg
Views: 10
Size:  91.6 KB











The outlet is looking ALMOST that good so far.
willwren is offline   Reply With Quote
Old 11-21-2006, 11:19 PM   #35
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Hot darn. WOW.

I'm gonna ditch my mirrors now.

2000SilverBullet is offline   Reply With Quote
Old 11-21-2006, 11:27 PM   #36
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

holy shine......
1993 SLE is offline   Reply With Quote
Old 11-22-2006, 12:18 AM   #37
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

OH>>> MY>>> GOD!
harofreak00 is offline   Reply With Quote
Old 11-22-2006, 12:59 AM   #38
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Ok, here'* probably the last update on Paul'*. After this update, the Bullet'* new blower will be left out (it'll be shipped soon) and Haro'* and Zilla'* will follow on.

Keep in mind all these surfaces on the inlet and outlet are VERY rough sand castings. Smoothing the GenV'* tougher alloy is a bitch.

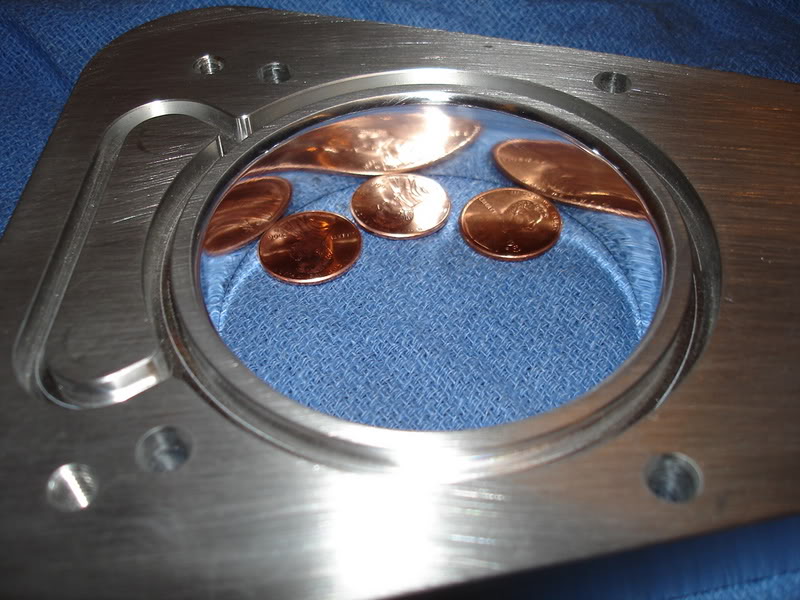

Starting off with the TB adapter again (this adapter is required to mate the L67 TB to the GenV blower inlet), this adapter was blended to better match the inlet diameter of the GenV blower, then polished:
Name:  DSC02885.jpg
Views: 7
Size:  91.6 KB

The inlet went through a tougher transformation. Per Paul'* request, the EGR was filled and blended, then the inlet was smoothed and lightly polished. You can see the 'blended egr plug' in the pic, and you can see how it'* smoothed out alot. This combats heat caused by friction. The inlet is actually the hottest portion of a SC under boost:

Note that polishing the inlet to a mirror would be very difficult and would gain little over the amount you see here, but I'll be making another polishing pass or two on this sucker anyway.

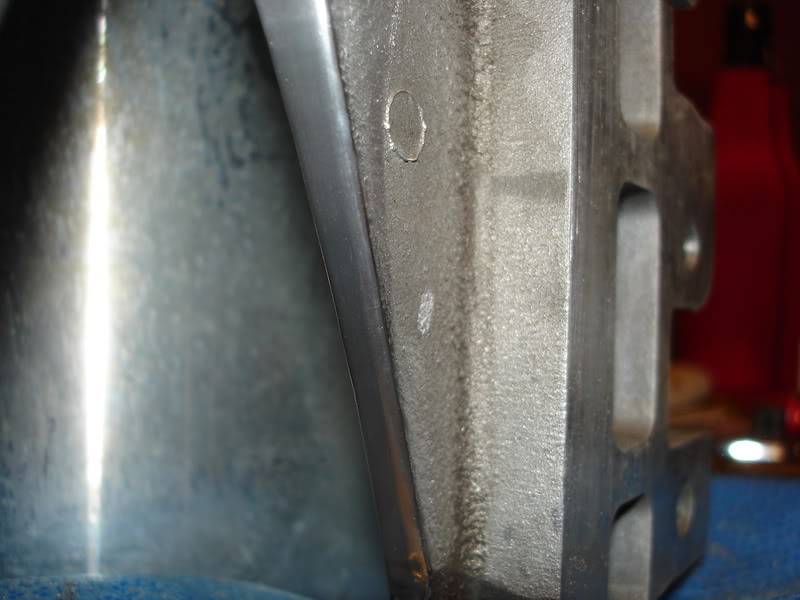

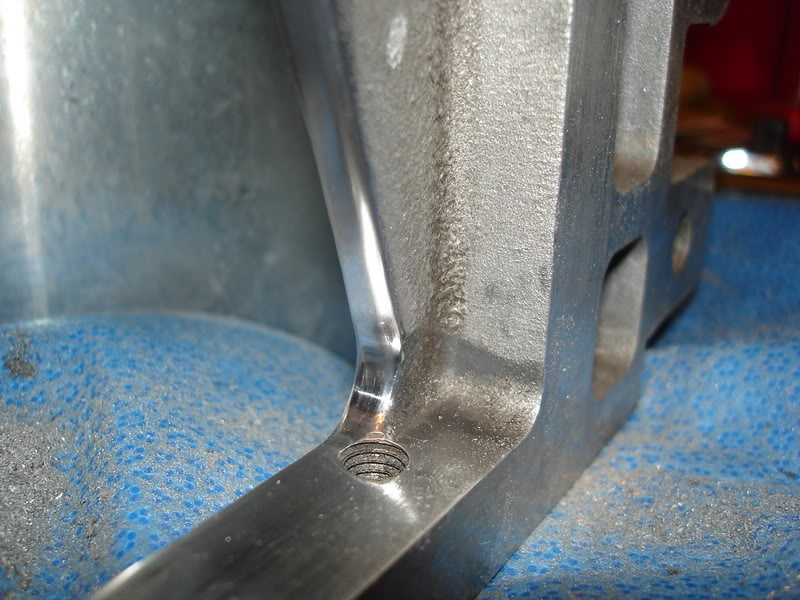

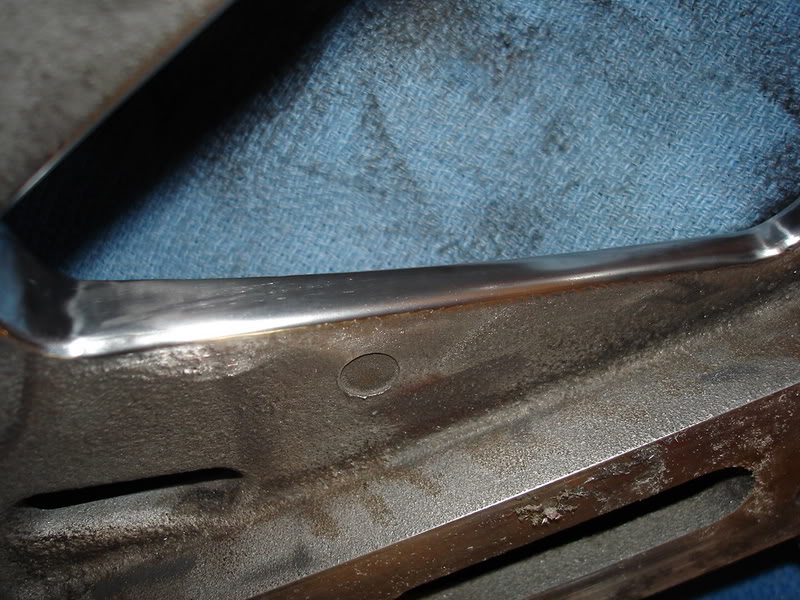

On to the outlet. Sharp corners create heat. All sharp corners were blended off, then polished:

Name:  paul3-1.jpg
Views: 5
Size:  118.3 KB
Name:  paul4-1.jpg
Views: 6
Size:  61.0 KB
Name:  paul5.jpg
Views: 8
Size:  93.1 KB
Again, I'll probably make a couple more passes on this outlet before shipping it back to Canada. The GenV alloy is MUCH tougher and very hard to work. Particuarly at this level of detail.

And just because I can, I decided to leave my signature on a worthless feature on the EXTERIOR of this SC:
Name:  paul6.jpg
Views: 13
Size:  59.5 KB
This polishing job clearly needs more work. I can't see the date of mint on the penny in the reflection.
willwren is offline   Reply With Quote
Old 11-22-2006, 01:01 AM   #39
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

bill i dont care if mine takes till march if it looks that good
harofreak00 is offline   Reply With Quote
Old 11-22-2006, 01:03 AM   #40
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

It won't. Most of your rough shaping is done already, but I've got some more unplanned work to do on your outlet. Your sanding and polishing will go at least twice as fast. The Gen3 alloy is softer than the GenV.

BTW, the polishing above was preceded by a 3-step wetsanding. 400, 600, 1000.
willwren is offline   Reply With Quote
