Old 04-09-2007, 05:15 PM   #11
Junior Member

Join Date: Apr 2007
Location: Boston, Mass
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
DJBerson is on a distinguished road
Default

Wow, I have been wondering about this for TWO YEARS! Thanks for your prompt response (and photos). Its a good thing I didnt try prying out the buttons (which I have been tempted to do on several occasions). So the pods just pull out, and is there a plug on the back that the wiring gets connected to, or are there integrated contact points on the pod?
DJBerson is offline   Reply With Quote
Old 04-09-2007, 05:19 PM   #12
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

wires pull out.. small connectors on the back of the pods

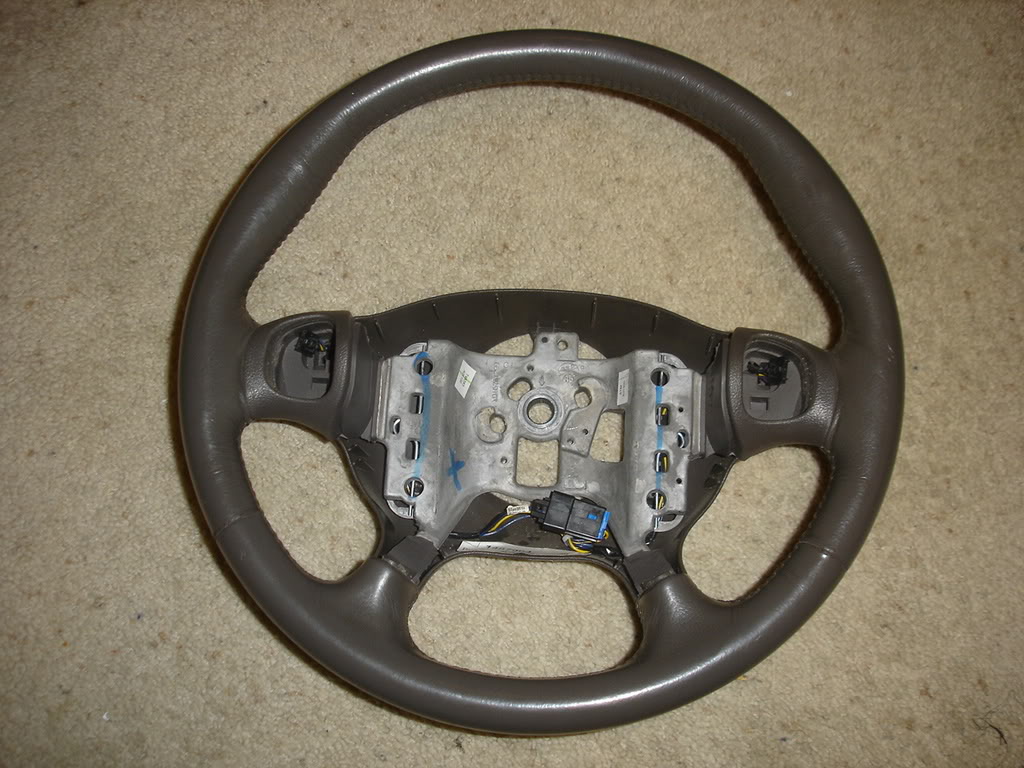

Name:  DSC05934.jpg
Views: 0
Size:  143.5 KB

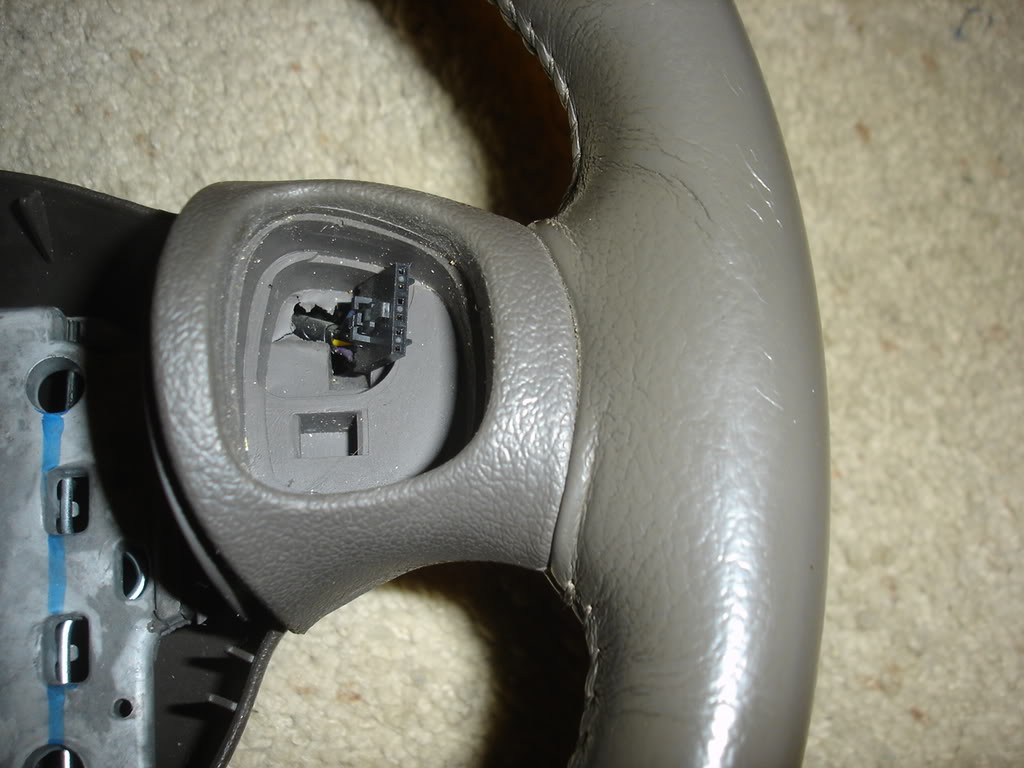

Name:  DSC05936.jpg
Views: 0
Size:  93.2 KB
harofreak00 is offline   Reply With Quote
Old 04-09-2007, 05:40 PM   #13
Junior Member

Join Date: Apr 2007
Location: Boston, Mass
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
DJBerson is on a distinguished road
Default

Great info, thanks for sharing.
DJBerson is offline   Reply With Quote
Old 04-10-2007, 12:06 PM   #14
Junior Member

Join Date: Apr 2007
Location: Boston, Mass
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
DJBerson is on a distinguished road
Default

Removed the control pod and opened it up to see what could be done..... the diodes are EXTREMELY small, and do not appear servicable, except for someone who has enough hand-eye coordination to work on tiny parts with micro-tools under a magnifying glass. Also, the circuit board is sealed to some degree and might not be able to be put back together after disassembly. (Disassembly would be required to solder out diodes, if it is even possible). Therefore, I can safely say that this is truly, as GM parts dealers would call it, a "sealed and unservicable unit".
DJBerson is offline   Reply With Quote
Old 04-10-2007, 12:10 PM   #15
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

they arent that expensive

Left Side
Quote:
GM PART # 25750060
CATEGORY: All
PACK QTY: 1
CORE CHARGE: $0.00
GM LIST: $19.51
OUR PRICE: $11.56
Right Side
Quote:
GM PART # 25750059
CATEGORY: All
PACK QTY: 1
CORE CHARGE: $0.00
GM LIST: $19.51
OUR PRICE: $11.56
*these are for the BLACK ones, shown several posts up*
harofreak00 is offline   Reply With Quote
