Default Instrument backlighting replacements?

Hi all, just got back from a 1000 mile trio in my "new" 2000 SSEi- what a nice cruising automobile.
Everything works great, except there are a number of backlights that are burned out- drivers heated seat sw, vol control on steering wheel, headlight adjust/dash dimmer control and half the radio-

Well, I searched back 25 pages in this forum- found out where to get bulbs for the radio! but didn't see anything addressing the backlighting issue.

Anyone have any ideas/thoughts or part numbers? All the switches work, they just don't light up at night.

Also, are most of these switches press-in types, pry out carefully? or did GM "magically" put them in my SSEi so I would have to go to the stealer?

Thanks a lot!
Carl
Floordry is offline   Reply With Quote
Old 07-14-2006, 04:44 AM   #2
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Not all that familiar with your model, but, I would assume the best course of action would be to take apart the item that has blown lights and pull them out, and find replacements. They may be normal dash type lights, or they could be LED like in my Neon.
Mike is offline   Reply With Quote
Old 07-14-2006, 11:50 AM   #3
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

Either a bunch of bulbs are burnt out, you have a bad lighting module or bad grounds. All three are easy to check with a voltmeter. I'm assuming you checked the fuses.
Technical Ted is offline   Reply With Quote
Old 07-14-2006, 04:00 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2006
Location: Lake Charles LA
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
Floordry is on a distinguished road
Default

I'm pretty sure it'* just bulbs- are most of the sws pop-out or are they secured some other way, if anybody knows?
Thanks,
Carl
Floordry is offline   Reply With Quote
Old 04-09-2007, 03:34 PM   #5
Junior Member

Join Date: Apr 2007
Location: Boston, Mass
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
DJBerson is on a distinguished road
Default I second this question.... steering wheel radio control bulb

On a 2000 SSei:


Do the little buttons for radio on steering wheel pry out easily for bulb replacement, or is it major surgery??

And if I am reading these posts correctly he buttons on the radio unit itself definately DO NOT pry out from the front, correct?
DJBerson is offline   Reply With Quote
Old 04-09-2007, 03:59 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: May 2006
Location: Lake Charles LA
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
Floordry is on a distinguished road
Default

Since posting that question, I have visited a number of dealers- they say the sw is a complete unit that cannot be taken apart- and I don't have the time to try.

The radio is 3 leds that need to be soldered in- here again, I haev the knowledge, but no time to pull the radio, etc.

Good luck, post if you find anything out!
Floordry is offline   Reply With Quote
Old 04-09-2007, 04:16 PM   #7
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

I believe that Harofreak did an extensive write up on replacing the backlighting on the radio. We won't be able to come up with anything that won't require some time on your part.
Archon is offline   Reply With Quote
Old 04-09-2007, 04:22 PM   #8
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default Re: I second this question.... steering wheel radio control

Quote:
Do the little buttons for radio on steering wheel pry out easily for bulb replacement, or is it major surgery??
they just pry out.. but i have not had those switches apart so i cant tell you whats in them

Quote:
And if I am reading these posts correctly he buttons on the radio unit itself definately DO NOT pry out from the front, correct?
just the *****, not the buttons... the buttons are just sitting in there once you take the faceplate off

http://www.bonnevilleclub.com/forum/...ht=radio+light
harofreak00 is offline   Reply With Quote
Old 04-09-2007, 04:38 PM   #9
Junior Member

Join Date: Apr 2007
Location: Boston, Mass
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
DJBerson is on a distinguished road
Default

Thanks for the info everyone. So the steering wheel buttons pop out, that is VERY good news. Has anybody done this? If so, please advise on best method to prevent breakage. Thank you!!
DJBerson is offline   Reply With Quote
Old 04-09-2007, 05:02 PM   #10
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

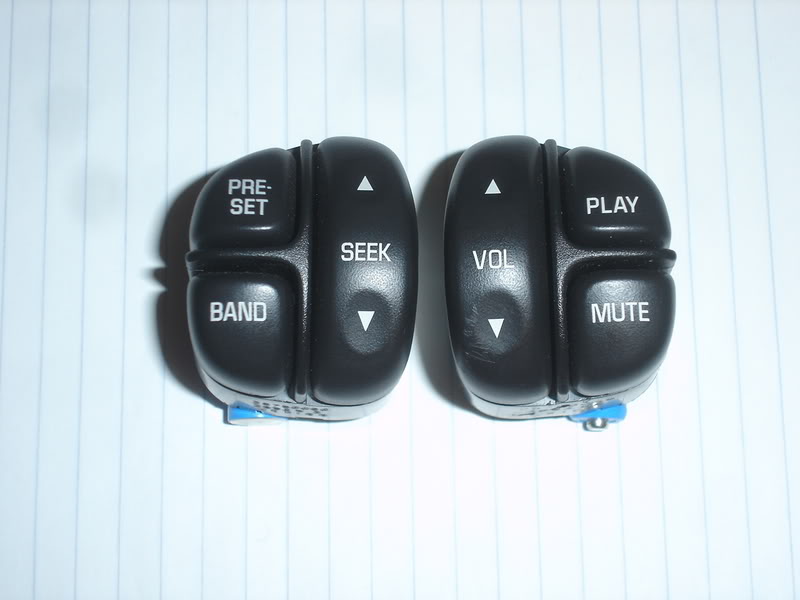

the buttons popout as a "pod" .. you need to dig into the rubber surround with a pocket knife and slowly pry around all edge to get them out

like this:
Name:  DSC05878.jpg
Views: 0
Size:  44.3 KB
