Default Dorman Intake Questions

Ok Guys getting ready to order parts to do the 9 yards on UIM/LIM.

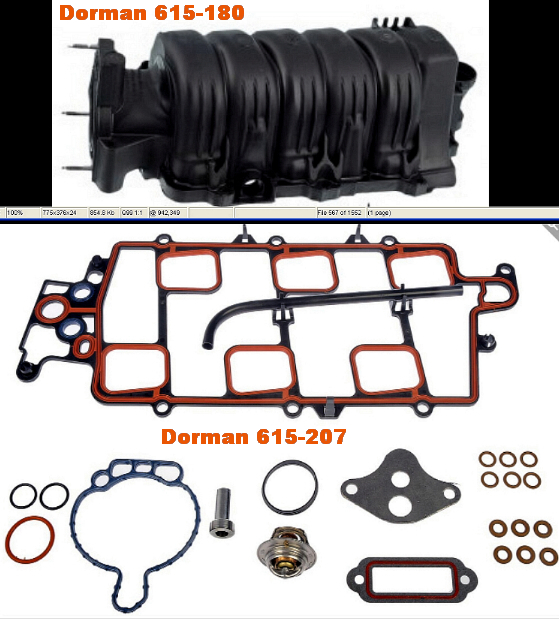

I have been able to confirm that the PA has had the Upper intake replaced with a Dorman 615-180 / is currently in the Park Ave.
I am going to re use the Dorman Intake, I guess a gasket kit for upper I might as well replace as well?


A new thermostat comes with the gasket kit (no specs I can find on it)
Should I just get a new OEM one at 195 degrees??
A fail safe Prestone 195 is currently in there....

I will also order the LIM set FelPro MS 98014 T
and also the new metal elbow Dorman 47065HP
The current LIM is nylon or original and has been weeping a bit. (no surprise)
The car did pass a rad pressure test at 15 psi.

Anything else I need?
Attached Thumbnails
Dorman Intake Questions-dormanintakeandgasketkit_zps27aea6f1.jpg
Soft Ride is offline   Reply With Quote
Old 06-28-2014, 05:41 AM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

The kit is fine. Yet, I may suggest while your in there, to do your lower gaskets also. And another suggestion would be to swap out the 195* to a 180* for the summer. Come fall, put the 195* back in.
Mike is offline   Reply With Quote
Old 06-28-2014, 05:56 AM   #3
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Thank Mike..Never thought about a 180 in summer..hmm...sounds like a good idea!

I will be replacing the lower LIM gasket for sure as well with -set FelPro MS 98014 T
Soft Ride is offline   Reply With Quote
Old 06-28-2014, 06:12 AM   #4
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Rock Auto is a bit confusing when it states 1'st & 2nd gen gaskets for LIM.
Upon hitting info it does look like the right one...
More Information for FEL-PRO MS98014T
Soft Ride is offline   Reply With Quote
Old 06-28-2014, 07:42 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

thats the right one pictured. i dont see any benefit to changing the thermostat all the time, for anyone that doesnt have tuning software. your fan still comes on at over 200 and the timing isnt going to change for the different temp, you may actually be less efficient because its tuned to 195

Last edited by jwfirebird; 06-28-2014 at 07:44 AM.
jwfirebird is offline   Reply With Quote
The Following User Says Thank You to jwfirebird For This Useful Post:
Soft Ride (06-28-2014)
Old 06-28-2014, 03:45 PM   #6
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,149
Thanked 784 Times in 613 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

May even set a P0128 ?
Tech II is offline   Reply With Quote
Old 06-28-2014, 09:53 PM   #7
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by Tech II View Post
May even set a P0128 ?
Nope. As long as it gets above its designed closed loop temp(168ish) it won't trip it.
Mike is offline   Reply With Quote
Old 06-29-2014, 12:33 AM   #8
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Also check the UIM info, because they may include the upper gasket with it.
rjolly87 is offline   Reply With Quote
Old 06-29-2014, 10:38 PM   #9
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Reusing that UIM is fine, I'd soak it in something like a cheap 33 gallon trash can, and some de-greaser like purple power, when you remove the throttle body gasket be careful, the ribs/groove on the UIM that holds the TB gasket in place broke off a bit on me, as it was softened up from all of the heat cycles I guess, so I had to replace the UIM, if yours is fine they UIM Kit will work fine.

If you do have to replace the UIM the Doorman Part # 615180 will work, it is what I used, some will get the ineedparts one that has some extra security added to keep the EGR port from warping, I have found that replacing the EGR stovepipe with the one you will get in that UIM kit keeps the gasses from warping the port.
I'll give you a link to the Kit I am talking about, in case any others read this thread, and are curious about it.
GM Intake Manifold Kit

That T-Stat should be find, it will be a 195F stat, I drilled a small 5/32" hole in the 12'oclock position of mine to help with the bleeding of the air, if you do not drill the hole to big you will not have any issues from doing so.
You could replace the thermostat during summer/winter like Mike suggests, but it is not necessary.
One thing I do not see in that kit is a paper gasket for the thermostat, I know the rubber one goes around it, I used that, but rather than just use a little rtv I opted to use a paper gasket that came with the LIM kit as well, and coated it with a little rtv, not sure using it was necessary, but I just felt better doing so, and I have not had any leaks at all, you really do not need to use rtv on it as it has some on the gasket that will work, but I like the added piece of mind.
Since you have the Prestone fail-safe thermostat already in there you may just want to reuse it, and keep the one you get in the UIM kit as a spare.

All of your parts listed sound good, while you are at it clean your TB and butterfly valve good, mine had lots of carbon buildup.

If you have any issues let me know and I'll help you out.
WilliamE is offline   Reply With Quote
The Following User Says Thank You to WilliamE For This Useful Post:
Soft Ride (06-30-2014)
Old 07-12-2014, 08:14 PM   #10
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default Parts Arrive-UIM/LIM Install time Next weekend..

Ya finally got the set together..first to arrive was...

Then...

No more elbow leaks expected once these are installed !!

Back from local shopping too 4x 3.78L of LL Prestone Coolant...
6x NGK Iridium TR55IX spark plugs...oh an oil filter & oil etc...
Looking forward to getting this done next Sat.
Attached Thumbnails

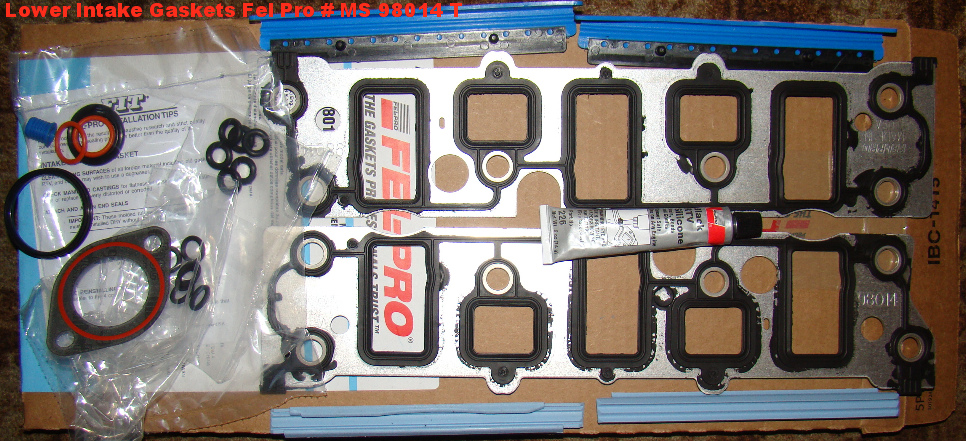

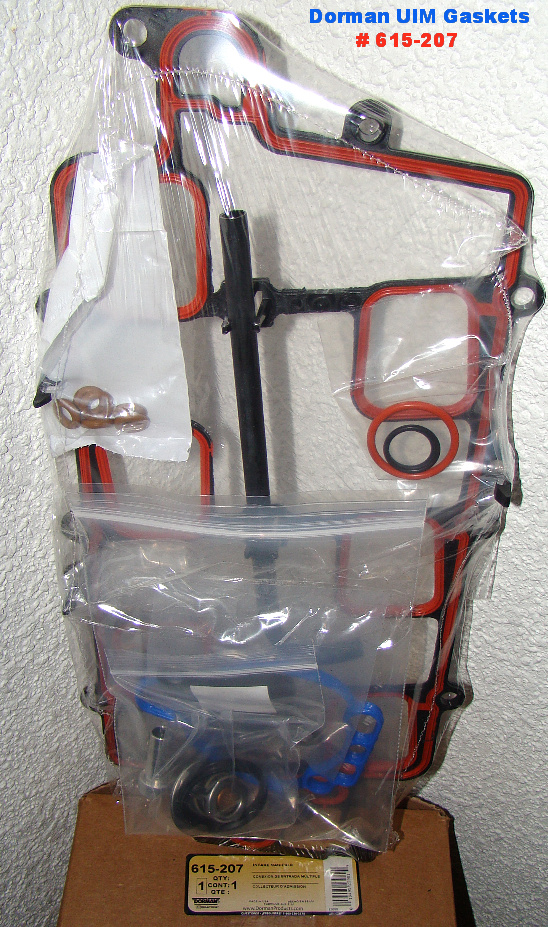

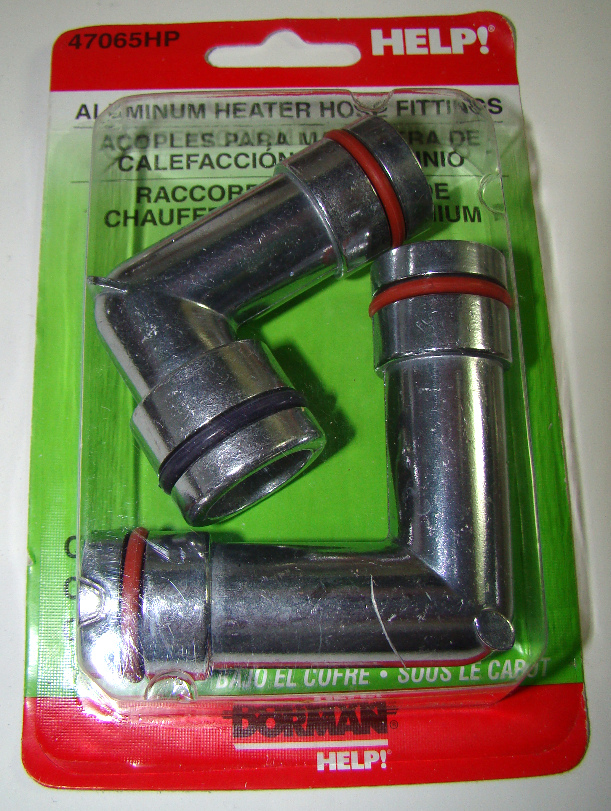

Dorman Intake Questions-dormanuimgaskets_zpsd9295525.jpg   Dorman Intake Questions-limgasketsms98014t_zpsff41bccf.jpg   Dorman Intake Questions-dormanelbows_zps82f77205.jpg
