97 Park Ave A/C - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Buick When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 06-01-2014, 11:31 PM   #1
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 3
Thanks: 0
Thanked 3 Times in 1 Post
trojwl is on a distinguished road
Question 97 Park Ave A/C

The repair shop owner is telling me that the driver'* side A/C is not blowing cold because there are two Freon circuits (and I guess two evaporators) and the one side is leaking freon.
This makes no sense to me. I was thinking it was a blending door malfunction.
I've never heard of a car having two evaporators (i.e. two independent systems).
Am I crazy or is the shop owner?
trojwl is offline   Reply With Quote
Old 06-02-2014, 12:28 AM   #2
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

I'm gonna say the shop owner. Even if he was right, even if it did have 2 evaporators, and onewas leaking, it wouldnt cause one side to act like that. There is actually a quarter of the pressure running as there is on that side than when turned off. If there was a leak, it would leak continuously until the pressure is too low, and the computer will refuse to fire the compressor. If the compressor continued to run it would self destruct.

Based on the design of the system however, i have heard that that could be a sign of low refridgerent, but it would go away when the system is properly charged.

Again tjis is assuming you do not have blend door actuator issues
rjolly87 is offline   Reply With Quote
The Following 2 Users Say Thank You to rjolly87 For This Useful Post:
Soft Ride (06-02-2014), WilliamE (06-02-2014)
Old 06-02-2014, 03:16 AM   #3
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,590
Thanked 341 Times in 303 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

The two circuits may be considered the high / low = on the pressure side.
One evaporator/Condensor.
If you set the PA temp selector to 60 F and push the Auto button as well the compressor clutch should engage.
If it does not engage it generally is that you have a leak and have insufficient refrigerant.
If the clutch does engage the accumulator should get very cold quickly.

If you want a good read just google:
"Auto air conditioner blowing warm air not cooling"
Hope this helps !
Attached Thumbnails

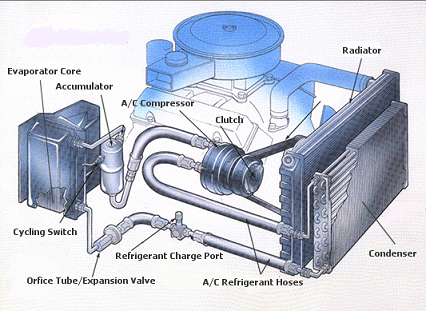

97 Park Ave A/C-airconditionersystem_zps6ac652ec.gif
Soft Ride is offline   Reply With Quote
Old 06-02-2014, 08:14 AM   #4
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i have seen vehicles with two evaporators but never two circuits, the same everything else is used but in bigger vehicles like my yukon they have a second evap and fan in the back. never have seen two side by side or in a car, doesnt make any sense.

dont take your car to this shop anymore, see if your pressure is good and blend doors are operating
jwfirebird is offline   Reply With Quote
Old 06-02-2014, 08:53 AM   #5
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 3
Thanks: 0
Thanked 3 Times in 1 Post
trojwl is on a distinguished road
Default

Thanks to all for the great info.

These internet automotive forums are priceless! I know they have saved me a lot of time and a lot of dollars.
trojwl is offline   Reply With Quote
The Following 3 Users Say Thank You to trojwl For This Useful Post:
Mike (06-02-2014), Soft Ride (06-02-2014), WilliamE (06-03-2014)
Old 06-02-2014, 12:30 PM   #6
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,152
Thanked 786 Times in 615 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

There is only one evaporator........however there are two duct passages....one for the left side and one for the right,,,,,one side will use the upper half of the evaporator and the other side will use the lower half........

If the temp doors for each side is working correctly(this can be verified by turning the A/C system off(vent mode or ECON), and commanding both sides hot and both sides cold....if the output temps are the same, the actuators are working.......

Then the usual culprit, is low freon.....if low, the best way to describe it is, the freon will short circuit though either the upper or lower half of the evaporator(depending on where the inlet/outlet is to the evaporator)....thus one half of the evap will be cold and the other half will be less cool or warm.....causing the disparity in temp from one side to the other....
Tech II is offline   Reply With Quote
The Following 2 Users Say Thank You to Tech II For This Useful Post:
Soft Ride (06-02-2014), WilliamE (06-03-2014)
Old 06-02-2014, 06:32 PM   #7
Junior Member
Thread Starter

Join Date: Jun 2014
Posts: 3
Thanks: 0
Thanked 3 Times in 1 Post
trojwl is on a distinguished road
Default Thanks Tech II

Great explanation and it all makes perfect sense.

Thanks
trojwl is offline   Reply With Quote
Old 06-02-2014, 10:46 PM   #8
Senior Member
Posts like a Turbo

Join Date: Nov 2008
Location: Tipp City , Ohio
Posts: 246
Thanked 18 Times in 13 Posts
ssei98 will become famous soon enoughssei98 will become famous soon enough
Default

I spent most of last summer fussing with my PA ac system. There is a programmer that ( small computer) that oversee the entire system, two actuators that open and close separate blend doors to give separate temps for passenger side and driver side. The main control panel and the passenger side temp adjuster (makes the pass side about 5 degrees cooler or warmer depending on how you set it). There are sunlight sensors cabin temp sensors exterior ambient temp sensors and who knows what else. Long story short the Dealer can hook up his scan tool and give you a printed read out on how each of these things is performing in about 10 minutes. He diagnosed and fixed in 10 minutes what I had been trying to fix for three months. Best 100 bucks I ever spent!!! I fix them myself all the time but, sometimes it is best to get some help.
ssei98 is offline   Reply With Quote
The Following 2 Users Say Thank You to ssei98 For This Useful Post:
GunsOfNavarone (06-02-2014), WilliamE (06-03-2014)
