Default GXP Heated Seat Shutting Off

Last week I noticed every time I start my driver heated seat it goes on for less than 5 minutes then it shuts off, before it used to stay on forever.

This morning it was a little cold outside, so I push the button and nothing happened. I pushed it like ten times and still no HI or LO light coming on. I pull over to record it so I can show it to the dealer when I go in. I park on the side and bang! It works...


But only for few seconds then it shuts off, any idea why?

Here is the video I took this morning, eventually it stays on and it heats no problem

Last night it was going on for less than 2 minutes, but I was still warming the seat up..


SAMzGXP is offline   Reply With Quote
Old 05-25-2011, 07:21 PM   #2
Senior Member
Posts like a Supercharger

Badazzgta89's Avatar

Join Date: Dec 2010
Posts: 177
Thanked 2 Times in 2 Posts
Badazzgta89 is on a distinguished road
Default

Relay? or switch.
check the wiring.
Badazzgta89 is offline   Reply With Quote
Old 05-25-2011, 07:35 PM   #3
Senior Member
True Car Nut
Thread Starter

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

it heats up no problem though
SAMzGXP is offline   Reply With Quote
Old 05-25-2011, 07:44 PM   #4
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

it'* either the switch or is the module under the seat. if the module trips itself then it will shut that light off like it'* a blown element
sawgunner is offline   Reply With Quote
Old 05-25-2011, 07:51 PM   #5
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

to see if it'* the switch try this.
remove the switch panel and switch the passenger and drivers wires between the switches. if it still does the same thing to the opposing seat then it'* the switch if not then it'* the module
sawgunner is offline   Reply With Quote
Old 05-25-2011, 09:18 PM   #6
Senior Member
True Car Nut
Thread Starter

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

good idea. I'll try that tonight if not then its going into the dealer on monday
SAMzGXP is offline   Reply With Quote
Old 05-26-2011, 11:01 AM   #7
Member
Posts like a V-Tak

GM Customer Svc's Avatar

Join Date: Jun 2010
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
GM Customer Svc is on a distinguished road
Default

SAMzGXP,

Keep us posted when the issue has been taken care of.

Thank you,
Caron, GM Customer Service
GM Customer Svc is offline   Reply With Quote
Old 05-30-2011, 10:48 AM   #8
Senior Member
Posts like a Turbo

ZeeVert's Avatar

Join Date: Jan 2006
Location: Brighton, Michigan
Posts: 255
Thanks: 0
Thanked 0 Times in 0 Posts
ZeeVert is on a distinguished road
Default

You can also swap the driver and passenger control modules. That'* how I figured I had a bad module.

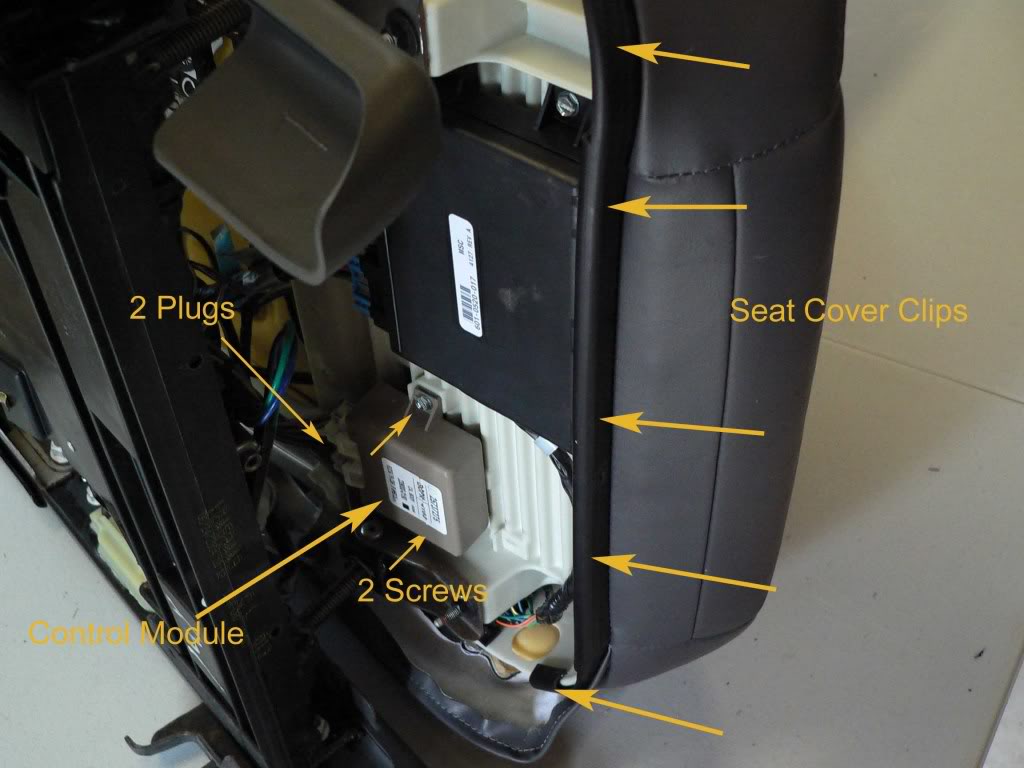

The module is under the front of the seat, and only has only two screws. One screw can be a little tough to get to.
Here'* a picture:
Name:  92clipsandmoduleP1190246crop.jpg
Views: 161
Size:  80.2 KB

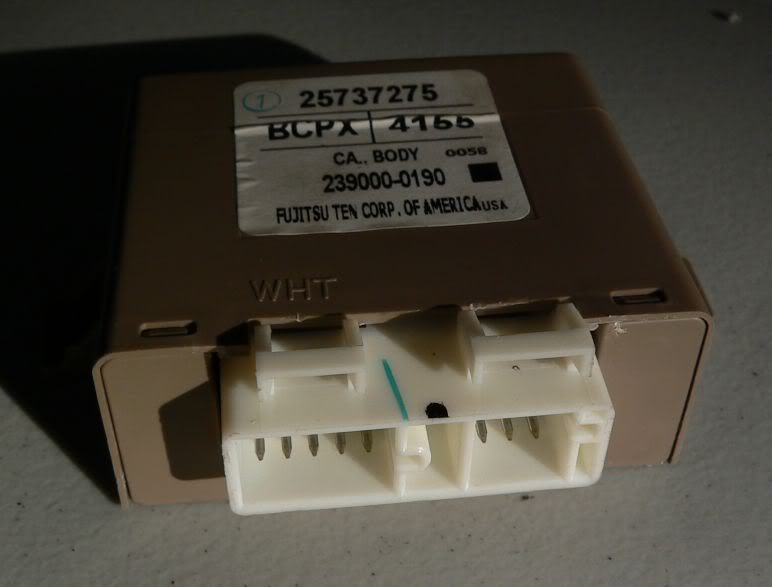

Name:  8moduleP1190249crop.jpg
Views: 79
Size:  35.6 KB
