Old 10-29-2012, 08:55 AM   #21
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

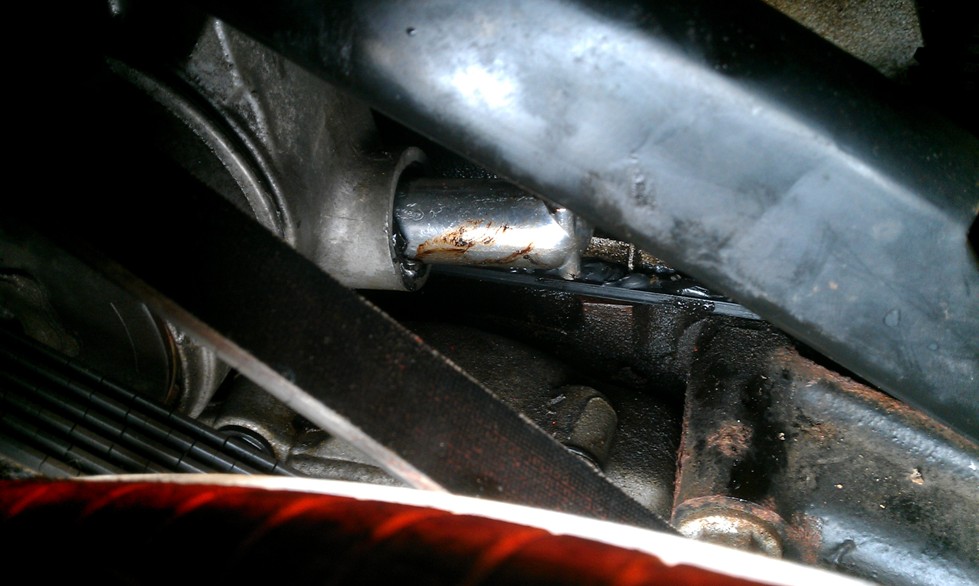

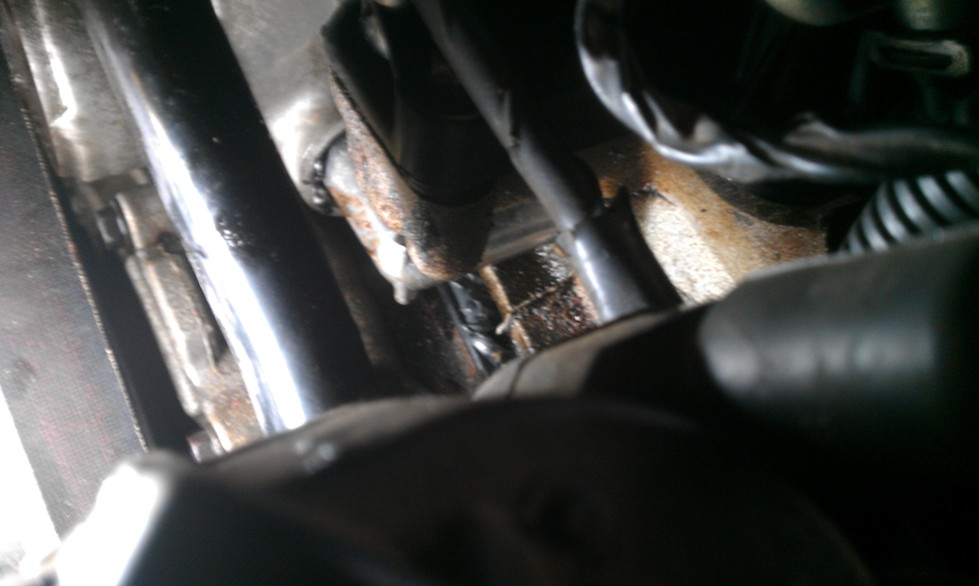

had to pick the old pieces of plastic and o-ring out of the intake and tensioner, then put on some black rtv for good measure.

Attached Thumbnails
Coolant elbow update...??-imag0325.jpg   Coolant elbow update...??-imag0324.jpg
jwfirebird is offline   Reply With Quote
Old 10-29-2012, 08:57 AM   #22
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

anyone know why exactly they give you two?
jwfirebird is offline   Reply With Quote
Old 10-29-2012, 01:31 PM   #23
Senior Member

True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Quote:
Originally Posted by jwfirebird View Post
anyone know why exactly they give you two?

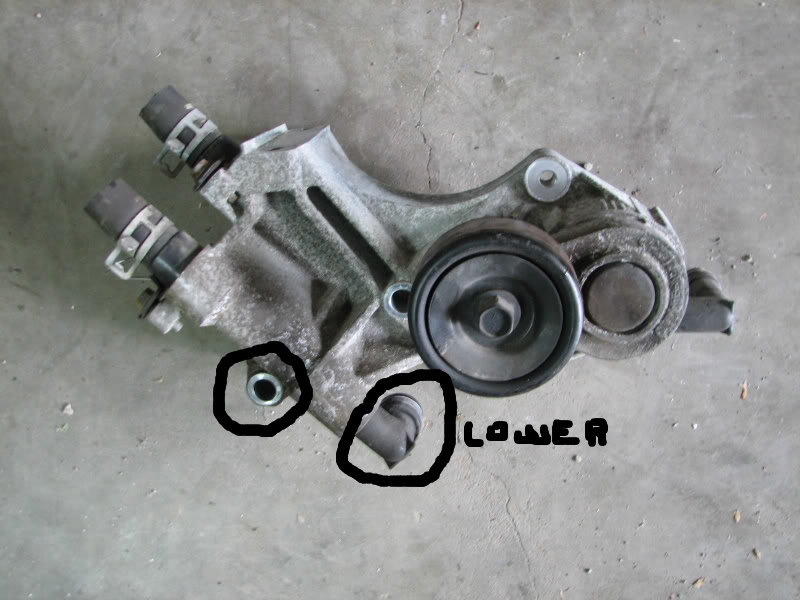

I am pretty sure the smaller elbow should be for L67'*, the tensioner does not have the other nipple cast as part of the tensioner assembly like on L36'*, at least that is what I have heard, I have yet to work on a L67.
Let me try to find a pic via google.

The lower elbow is the shorter stubby one.
Attached Thumbnails
Coolant elbow update...??-img_3103-1.jpg
WilliamE is offline   Reply With Quote
Old 10-30-2012, 09:38 AM   #24
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

That'* correct. Us L67 guys don't have your fancy cast lower elbow and need that second stubby one. On the L36, make sure you inspect and if necessary replace the o-ring on the cast elbow.
ymmot04 is offline   Reply With Quote
Old 10-30-2012, 09:59 AM   #25
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i didn't move the tensioner so hopefully its good but when i look again for leaks i will check it out
jwfirebird is offline   Reply With Quote
