Default mechanical oil pressure gauge?

Well, because it looks as though my oil pressure readings are just a wacked out gauge i want to install a mechanical gauge permanently. I've never done this but from what i've read you have to remove the sensor for the stock electircal gauge and install the fittings for the mechanical one in the same hole.

when i unhook/remove the sensor what can i do to stop the check gauges light and chime? i don't want to have it going all the time.

what gauge is a good one to get. i want something that looks decent and works well because its going to be permanent.

any suggestions on mounting this? pillar pod?

if you're interisted here is the orignal thread...

http://www.bonnevilleclub.com/forum/...ic.php?t=93568
  Reply With Quote
Old 02-13-2008, 07:08 PM   #2
Darrel
Guest

Posts: n/a
Default

well i'm pretty sure i'm going to put an aftermarket gauge in, i think i got it all lined up. can anyone with a 95 FSM tell me how to disable the dash gauge though? i guess some wires go to the PCM and some go to the gauge. if i can either just "cut" the gauge lines or put a resistor in to force a high reading that would be great. i just want it to stop throwing the check gauges chime and light every time i let off the gas. I know it won't be functional, but thats the point right now . any ideas? i'm open to suggestions...
  Reply With Quote
Old 02-13-2008, 08:57 PM   #3
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

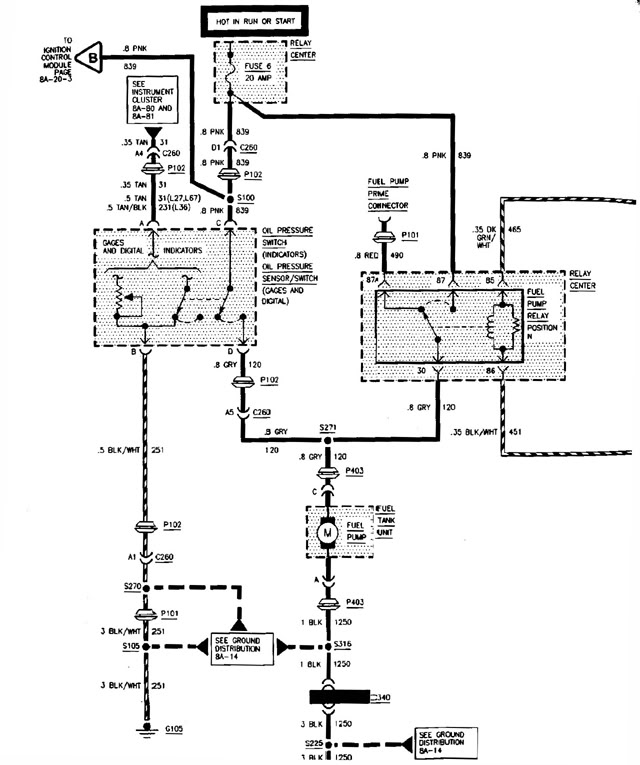

Name:  oilsensor640.jpg
Views: 1
Size:  78.7 KB
bill buttermore is offline   Reply With Quote
Old 02-13-2008, 09:26 PM   #4
Darrel
Guest

Posts: n/a
Default

that THATS awesome... looks like i need to do something with the gauges indicators line...

does anyone know how the sensor works? Its resistance, that i know. but when the resistance gets higher what happens to the gauge? does the pressure increase as well or does it work the other way (higher resistance lower presure...)?
  Reply With Quote
Old 02-14-2008, 01:07 AM   #5
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

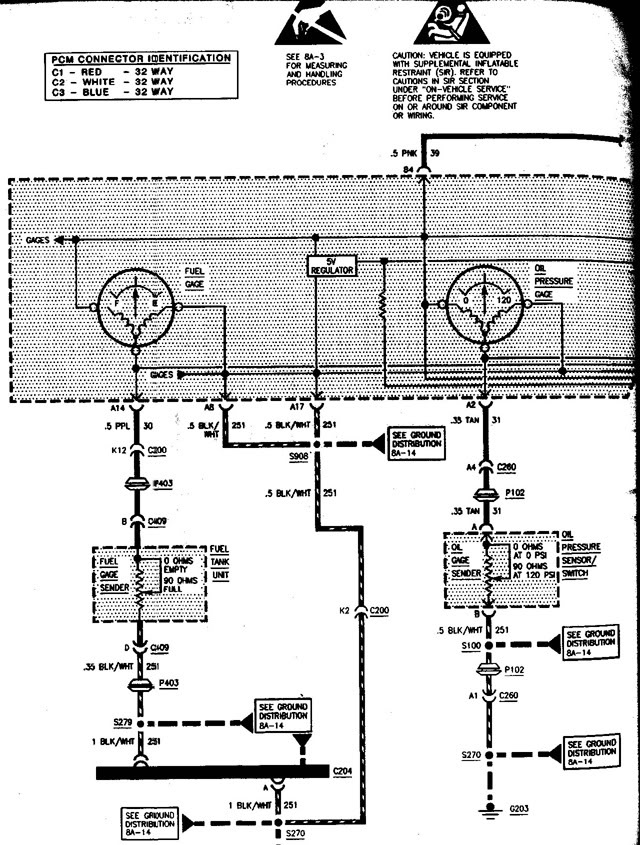

Here are the resistance values you were looking for. Here is the gage connection:

Name:  oilgage640.jpg
Views: 1
Size:  161.0 KB

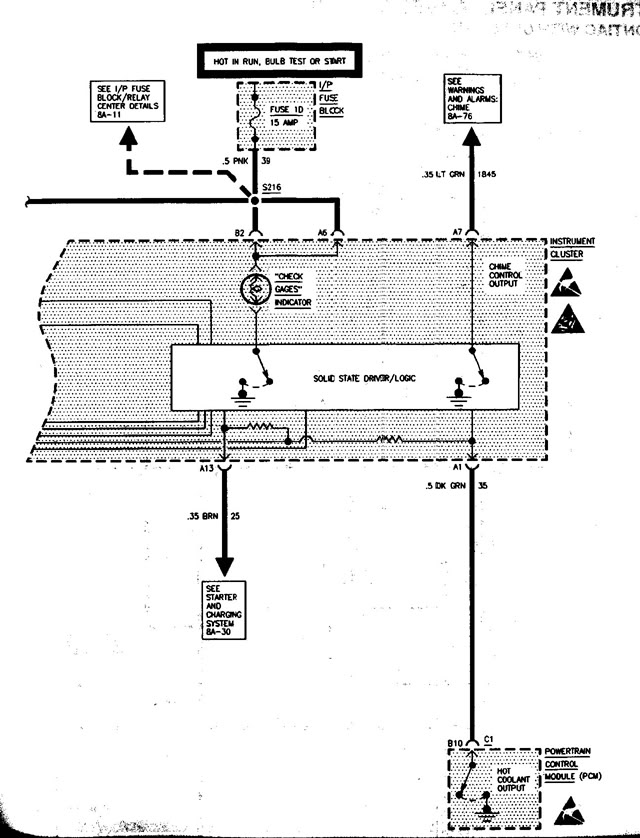

And here is the connection to the chime and light module:

Name:  oilgagedinger640.jpg
Views: 1
Size:  102.0 KB

All three scans are from the '95 FSM
bill buttermore is offline   Reply With Quote
Old 02-14-2008, 07:06 AM   #6
Darrel
Guest

Posts: n/a
Default

wow, that is pretty my exactly what i was looking for. thanks SOOOO much!
  Reply With Quote
Old 02-14-2008, 09:14 AM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Won't work if you replace one with the other.

Your sender has two contacts in it. One is for the PCM. It disables your fuel pump relay if you lose oil pressure under certain conditions. Are you willing to bypass that also?
willwren is offline   Reply With Quote
Old 02-14-2008, 09:21 AM   #8
Darrel
Guest

Posts: n/a
Default

Quote:
Originally Posted by willwren
Won't work if you replace one with the other.

Your sender has two contacts in it. One is for the PCM. It disables your fuel pump relay if you lose oil pressure under certain conditions. Are you willing to bypass that also?
not if I can help it. I don't know if this will work as well, and was actually about to bring it up too, but what if i where to put a "T" on it. one branch for the electrical sensor (gauge disabled) and the other for the mechanical gauge. has anyone tried that yet? as a last resort I supose i can trick the PCM with a resistor as well but I kind of like the idea of fuel shutoff as a safety.
  Reply With Quote
Old 02-15-2008, 02:14 PM   #9
Darrel
Guest

Posts: n/a
Default

can anyone tell me what size the sensor fitting is? i'm going to get a T for it tonight and give it a shot. i think i can just get it at a hardware store but i'd like to know what i'm looking for. thanks!
  Reply With Quote
Old 02-15-2008, 02:48 PM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I've got a couple oil filter adapters and sensors laying around the shop. I THINK it may be 1/8" NPT (1/8-27 taper). I can double-check later today and let you know. Surprisingly, mine just went back in yesterday.

I have no idea where these parts are, but Pdad is re-organizing my shop again right now, so he'll know.
willwren is offline   Reply With Quote
