1994 Pontiac Bonneville se 3.8 liter 3800 cube transmission ratio option location - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


1992-1999 Series I L27 (1992-1994 SE,SLE, SSE) & Series II L36 (1995-1999 SE, SSE, SLE) and common problems for the Series I and II L67 (all supercharged models 92-99) Including Olds 88's, Olds LSS's and Buick Lesabres Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 06-05-2015, 07:07 PM   #1
Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2011
Location: albany,ny
Posts: 45
Thanked 0 Times in 0 Posts
MeticulousMike is on a distinguished road
Default 1994 Pontiac Bonneville se 3.8 liter 3800 cube transmission ratio option location

where do I find the information to find out my transmission ratio option? I was told to look on spare tire in trunk cover I looked in the door panels I looked under the hood I can't see what option I need .what ratio option do I choose when purchasing a used transmission?
MeticulousMike is offline   Reply With Quote
Old 06-05-2015, 08:51 PM   #2
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,855
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

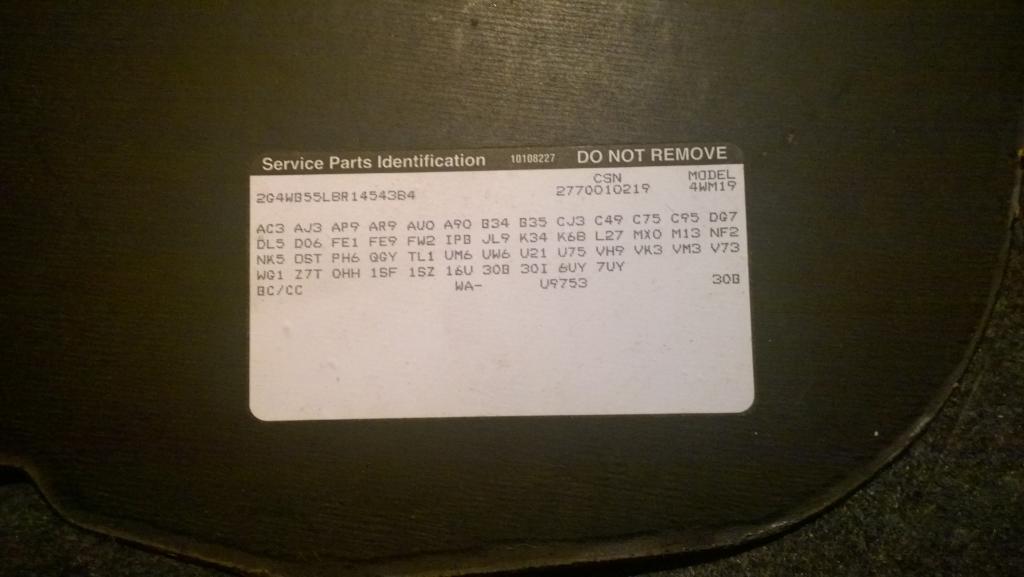

You are looking for the RPO Label, looks like this:



My favorite RPO List: http://www.longroof.info/pdf/rpo.pdf

Compare it against the RPO List, and this tells you what options the car is equipped with, one of which is FDR.

In this particular example, RPO FW2 is listed, which is: TRANSAXLE FINAL DRIVE 3.06

Most FDR'* I believe start with F, so start looking there
Attached Thumbnails
1994 Pontiac Bonneville se 3.8 liter 3800 cube transmission ratio option location-wp_20150303_18_42_12_pro.jpg
rjolly87 is offline   Reply With Quote
The Following 3 Users Say Thank You to rjolly87 For This Useful Post:
MeticulousMike (06-15-2015), Soft Ride (06-05-2015), WilliamE (06-06-2015)
Old 06-06-2015, 12:29 PM   #3
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 780 Times in 609 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

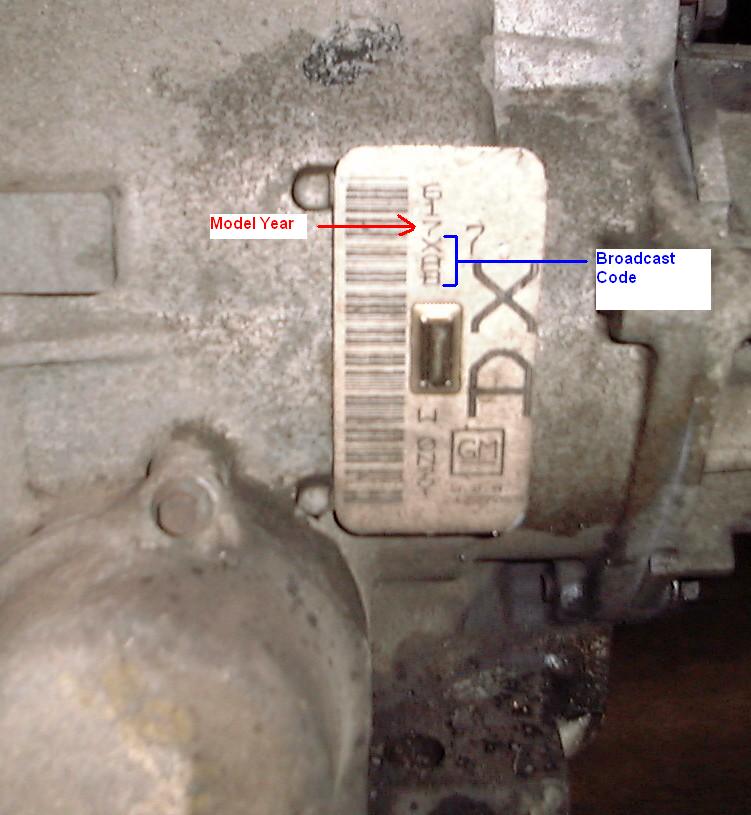

You should be looking at the plate on your transmission for info on getting the correct tranny.....

Attached Thumbnails
1994 Pontiac Bonneville se 3.8 liter 3800 cube transmission ratio option location-trans_bcc.jpg
Tech II is offline   Reply With Quote
The Following 2 Users Say Thank You to Tech II For This Useful Post:
MeticulousMike (06-15-2015), Soft Ride (06-06-2015)
Old 06-06-2015, 01:02 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2011
Location: albany,ny
Posts: 45
Thanked 0 Times in 0 Posts
MeticulousMike is on a distinguished road
Default thanks

hey guys thanks for the info..williams auto parts guy was right when he told me to look on spare tire cover in trunk..just a bunch of numbers to me to decipher. also i looked for the tranny broadcast label on tranny but couldn't find that maybe i have to crawl under car to find it...thank sagain.
MeticulousMike is offline   Reply With Quote
Old 06-09-2015, 03:50 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2011
Location: albany,ny
Posts: 45
Thanked 0 Times in 0 Posts
MeticulousMike is on a distinguished road
Default got code.

hi I got the code as was directed. when I get this used tranny.shoud I flush it first? I was told not to use Transx cause it will harden the seals.i keep it in and don't use it to flush . it'* not formulated for that.if I should flush what do I use? thanks.
MeticulousMike is offline   Reply With Quote
Old 06-10-2015, 05:58 AM   #6
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 997 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

It will be much cheaper to have this new one rebuilt prior to installation.
Mike is offline   Reply With Quote
The Following User Says Thank You to Mike For This Useful Post:
MeticulousMike (06-15-2015)
Old 06-14-2015, 09:57 AM   #7
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 780 Times in 609 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

When getting a junkyard transmission, I usually removed the torque converter and drained it....replaced the torque converter seal.....replaced both axle seals.....replaced filter and fluid...Had a special attachment to mount to the tranny, and then could slide this attachment into a holder on our table......thus the pan was easily accessible.....you do not want to install a tranny into a vehicle first, and then find a surprise in the bottom of the pan later...
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
MeticulousMike (06-15-2015)
Old 06-15-2015, 02:20 PM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2011
Location: albany,ny
Posts: 45
Thanked 0 Times in 0 Posts
MeticulousMike is on a distinguished road
Default

i found a cheaper used tranny from a somewhat reputable used shop..they've been there for years.the only kicker is that it'* the other than fw2 option.nobody had any in stock that i needed for my somewhat nice looking old 'whip' as the kids call em' these days..well it'* a garbage car from the get go nothing but problems used from a friend/customer , that my original goal was to get at least 2 solid years up and running until i can find and afford something sportier and can accommodate my 6' tall self for my adventures oh and don't forget 4 cylinder too..i want to sip the gas not like my 87' ford squire with over 350k on it...she'* a champ for all the miles on her-always in any weather she still starts and runs great and is my work horse...don't get me wrong i've owned a bunch of chevy'* in my time never had ford'* though.i need to know if this fw17 ratio is going to be a problem if i buy and install.the lady assured me that a mechanic wouldn't know the difference.she also told me that it'* a question that'* always asked but didn't really matter,there won't be any difference in 'feel' or errors.one guy said the speedo would be off,another said a check engine light might come on.another said something about the pcm needing to be matched as well..that sounds pretty accurate to me if this is true.It'* been so long that i haven't worked on cars that i'm out of touch on these technical matters. i never have the time to troubleshoot my own or actually complete 100%, i just kept em' running good or so so for years..i do the opposite type of work.plumbing,heating and electrical and if i can give ya' a pick of my brain to help then just give me a holla' thanks again in advance..
MeticulousMike is offline   Reply With Quote
Old 06-15-2015, 02:23 PM   #9
Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2011
Location: albany,ny
Posts: 45
Thanked 0 Times in 0 Posts
MeticulousMike is on a distinguished road
Default

Quote:
Originally Posted by MeticulousMike View Post
i found a cheaper used tranny from a somewhat reputable used shop..they've been there for years.the only kicker is that it'* the other than fw2 option.nobody had any in stock that i needed for my somewhat nice looking old 'whip' as the kids call em' these days..well it'* a garbage car from the get go nothing but problems used from a friend/customer , that my original goal was to get at least 2 solid years up and running until i can find and afford something sportier and can accommodate my 6' tall self for my adventures oh and don't forget 4 cylinder too..i want to sip the gas not like my 87' ford squire with over 350k on it...she'* a champ for all the miles on her-always in any weather she still starts and runs great and is my work horse...don't get me wrong i've owned a bunch of chevy'* in my time never had ford'* though.i need to know if this fw17 ratio is going to be a problem if i buy and install.the lady assured me that a mechanic wouldn't know the difference.she also told me that it'* a question that'* always asked but didn't really matter,there won't be any difference in 'feel' or errors.one guy said the speedo would be off,another said a check engine light might come on.another said something about the pcm needing to be matched as well..that sounds pretty accurate to me if this is true.It'* been so long that i haven't worked on cars that i'm out of touch on these technical matters. i never have the time to troubleshoot my own or actually complete 100%, i just kept em' running good or so so for years..i do the opposite type of work.plumbing,heating and electrical and if i can give ya' a pick of my brain to help then just give me a holla' thanks again in advance..
it was one field or another i had to get into home trades not by choice...they are a nightmare too.
MeticulousMike is offline   Reply With Quote
Old 06-22-2015, 10:10 AM   #10
Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2011
Location: albany,ny
Posts: 45
Thanked 0 Times in 0 Posts
MeticulousMike is on a distinguished road
Default

so is there a big difference between the 2 options for this tranny?..would it hurt my car to put in the fw17 option tranny?
