Old 02-14-2008, 01:24 AM   #171
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Kissing is not going to fix your washer and dryer or your hamstring.

Bo on the other hand can lick your clothes clean and just look at those lucious lips.

......and you could probably get your arms around Bo.
2000SilverBullet is offline   Reply With Quote
Old 02-14-2008, 01:31 AM   #172
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Paul BernardO, it'* LOMBARD street, not LobardO. Turst a bay area native.

Hey, Bo is MUCH cuter then Pdad, and he kisses damn good according to Matt, Matt, Wendy, and John.

Greyhare don't kiss and tell, but I know his true feelings about bo.
willwren is offline   Reply With Quote
Old 02-14-2008, 11:12 AM   #173
Senior Member
Certified GM nut

wakefieldl's Avatar

Join Date: Dec 2005
Location: dekalb illinois
Posts: 1,916
Thanks: 0
Thanked 0 Times in 0 Posts
wakefieldl is on a distinguished road
Default


bo loves it too

nice job
wakefieldl is offline   Reply With Quote
Old 02-15-2008, 01:25 AM   #174
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Intercooler certified leak-free under pressure a few minutes ago. LIM and SC are ready to go in, front IC radiator is already installed.

We won't turn the key tonight, but will tomorrow for sure EASILY. Pdad did alot of prep work today that really saved some time.

I'll get some pics up a little later.
willwren is offline   Reply With Quote
Old 02-15-2008, 01:32 AM   #175
Junior Member

Join Date: Dec 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacMom is on a distinguished road
Default

PDad had better be on the road bright and early tomorrow morning. I want my husband back!!!!!! I have work for him to do here!!!!!!!!!!
PontiacMom is offline   Reply With Quote
Old 02-15-2008, 02:36 AM   #176
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Quote:
I love Lombardo street
I meant what I said.

Good luck firing her up tomorrow. Take a vid of it'* rebirth.
2000SilverBullet is offline   Reply With Quote
Old 02-15-2008, 02:39 AM   #177
Senior Member
Posts like a Camaro

Join Date: Jun 2005
Posts: 1,108
Thanks: 0
Thanked 0 Times in 0 Posts
chadow427 is on a distinguished road
Default

Good luck with the fire-up!!
chadow427 is offline   Reply With Quote
Old 02-15-2008, 02:45 AM   #178
Senior Member
Posts like a Camaro

Join Date: Nov 2007
Location: MN
Posts: 1,172
Thanks: 0
Thanked 0 Times in 0 Posts
Bonnevillan is on a distinguished road
Default

[quote="2000SilverBullet"]
Quote:
Good luck firing her up tomorrow. Take a vid of it'* rebirth.
x2
Bonnevillan is offline   Reply With Quote
Old 02-15-2008, 03:07 AM   #179
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

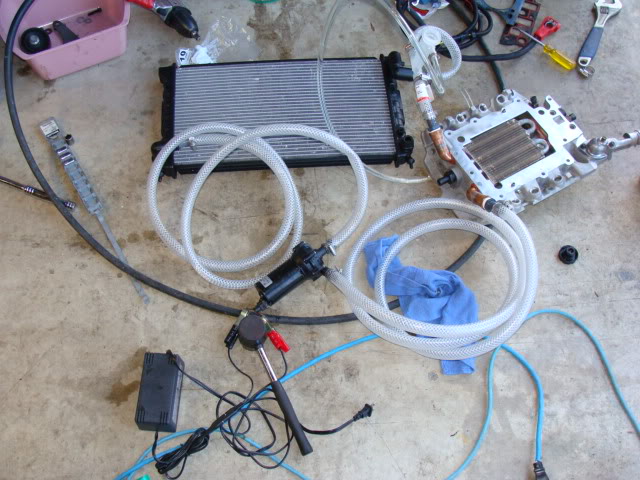

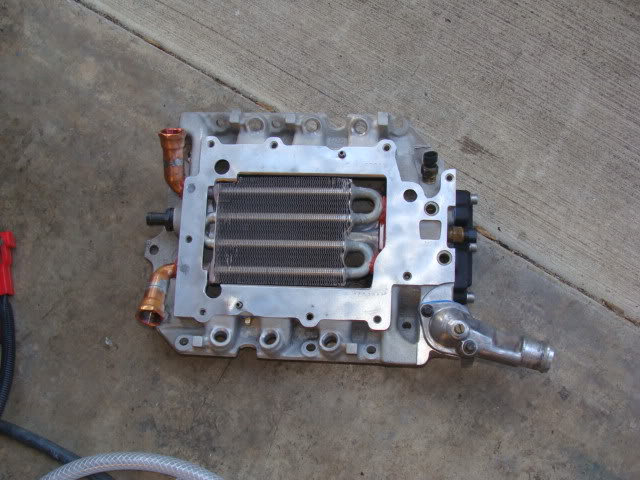

Ok. Ready for leak testing (this heat exchanger is WIDE):
Name:  DSC00917.jpg
Views: 1
Size:  68.0 KB


Name:  DSC00919.jpg
Views: 3
Size:  81.9 KB

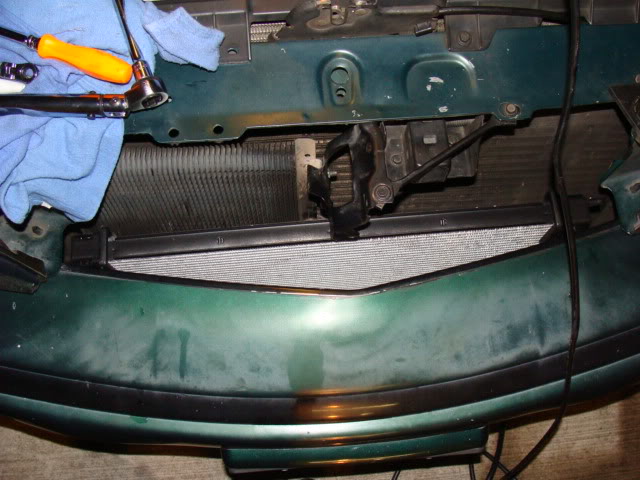

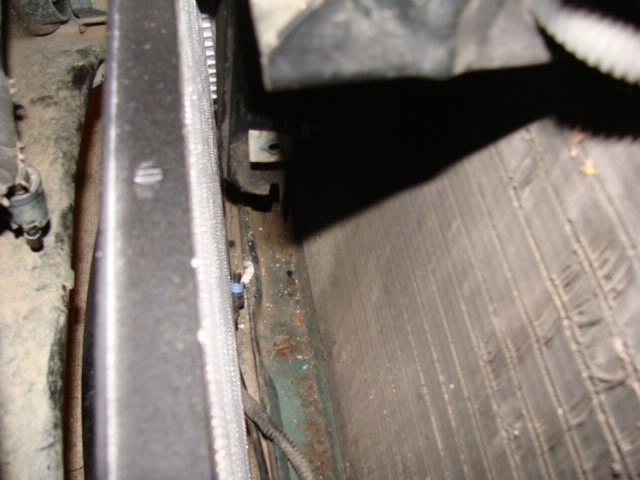

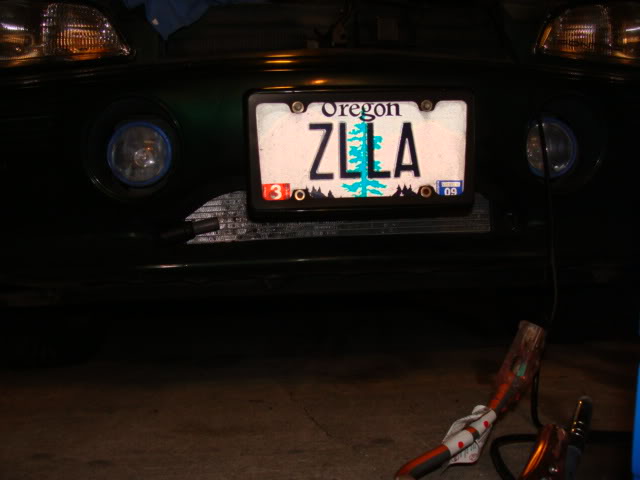

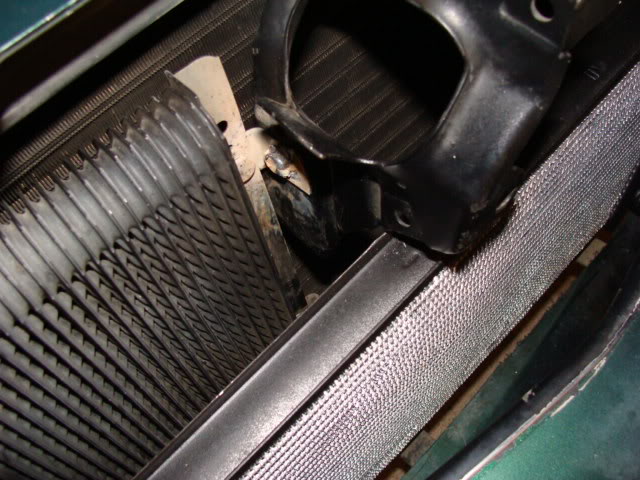

Front core in. Notice the front core support is completely cut out below the top trans cooler bolt. That bolt is now welded to the bracket as a stud, and the top portion of the core support is bolted to it, and the top 3 points. It'* impossible to get to the lower core support bolt or ECC exterior temp sender with the IC radiator installed. ECC temp sender is now under the front airdam:

Name:  DSC00920.jpg
Views: 1
Size:  69.2 KB

Name:  DSC00921.jpg
Views: 2
Size:  78.4 KB

Name:  DSC00922.jpg
Views: 0
Size:  48.7 KB

Name:  DSC00923.jpg
Views: 1
Size:  38.7 KB

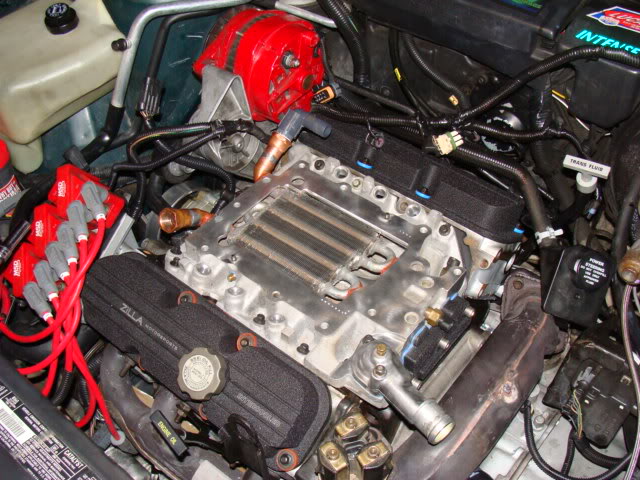

LIM in and torqued:
Name:  DSC00924.jpg
Views: 1
Size:  91.8 KB

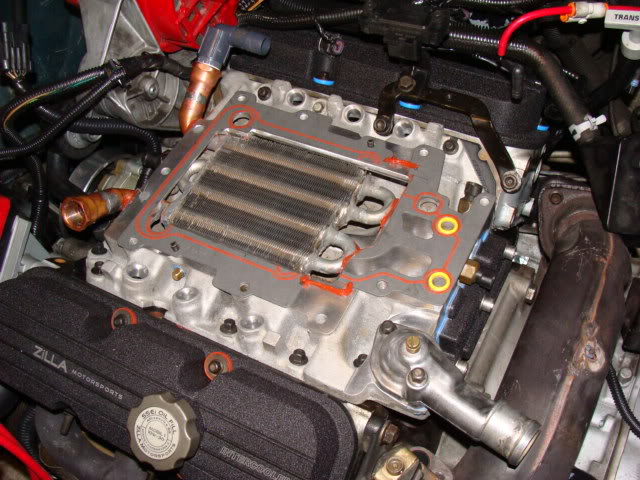

Gaskets, o-rings, and sealant where needed:
Name:  DSC00925.jpg
Views: 1
Size:  83.7 KB

Ready to roll, thanks to Pdad. He built it up for me today while I was at work:
Name:  DSC00926.jpg
Views: 1
Size:  67.3 KB

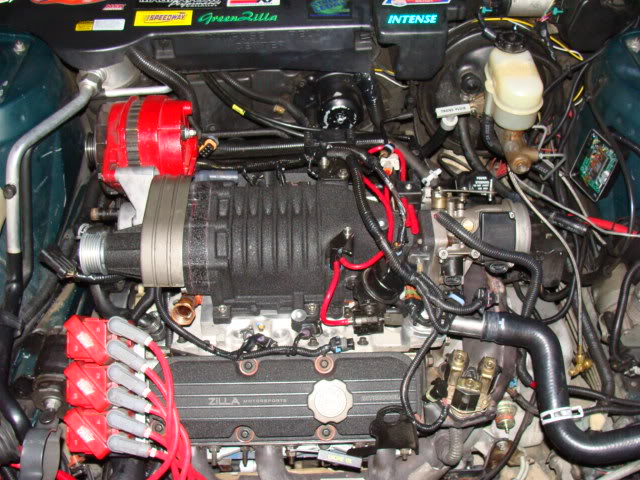

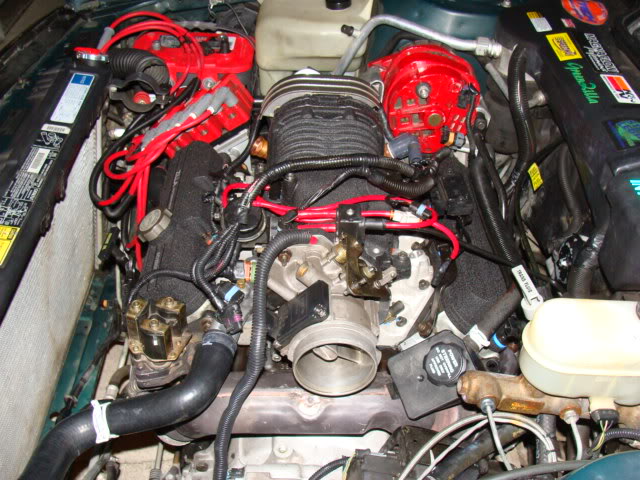

SC bolted on, and a few vac/boost lines hooked up:
Name:  DSC00928.jpg
Views: 1
Size:  95.4 KB

Name:  DSC00929.jpg
Views: 1
Size:  93.4 KB

Tomorrow:
Fans
Crossover heatshield
FWI
Throttle bracket
Fuel rail
EGR tube
A little more oil
Heater hoses
Coolant bypass fittings
Upper and lower radiator hoses
Coolant
ICM grounds
Extra idler bracket and pulley
Battery
Plugs/Wires

Plumbing and wiring of the rest of the IC components (reservior, flow switch, and all tubing) will follow firing the car and driving it. The new temp sender and gauge for the LIM will arrive on Saturday. The whole thing should be wrapped up with the exception of the LSD by Sunday.
willwren is offline   Reply With Quote
Old 02-15-2008, 04:02 PM   #180
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

I love it when a dream becomes reality.

Nice colour combination with the valve cover bolt seals front and rear. :P


The only thing that has me worried is the amount of volume that the new intercooler displaces inside the LIM. Flow restriction and volumetric issues.
