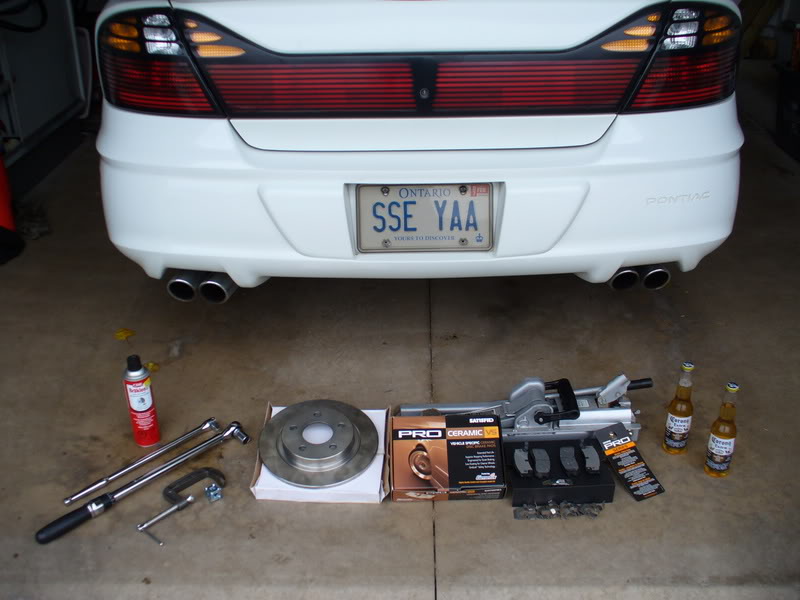

Well all set to do the rear brakes!

Name:  P1000552.jpg
Views: 0
Size:  68.8 KB

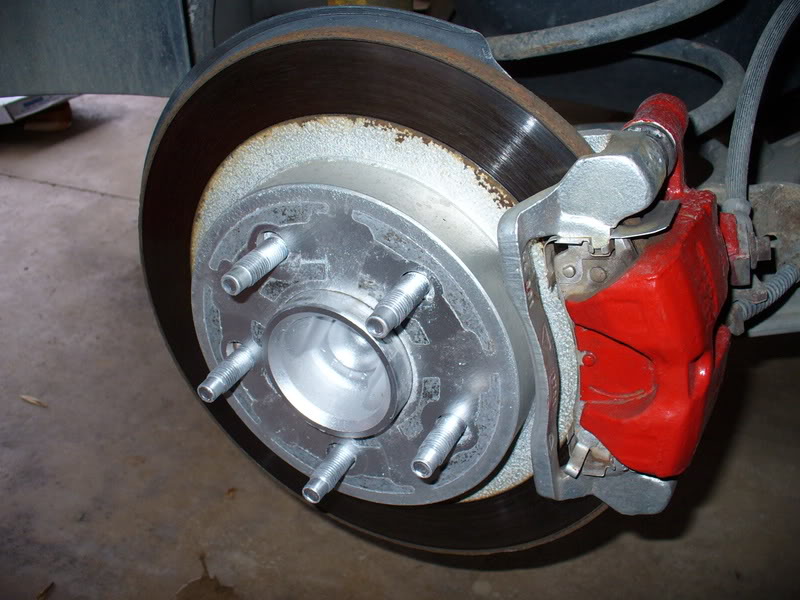

Before Shot!
Name:  P1000553-1.jpg
Views: 0
Size:  91.7 KB

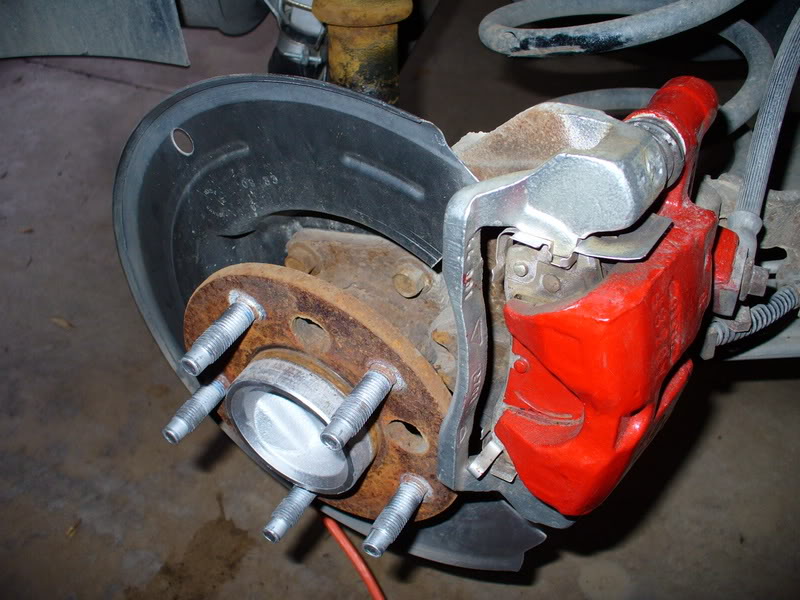

Caliper removed, old rotor removed, ready for new pads.
Name:  P1000555.jpg
Views: 0
Size:  99.3 KB

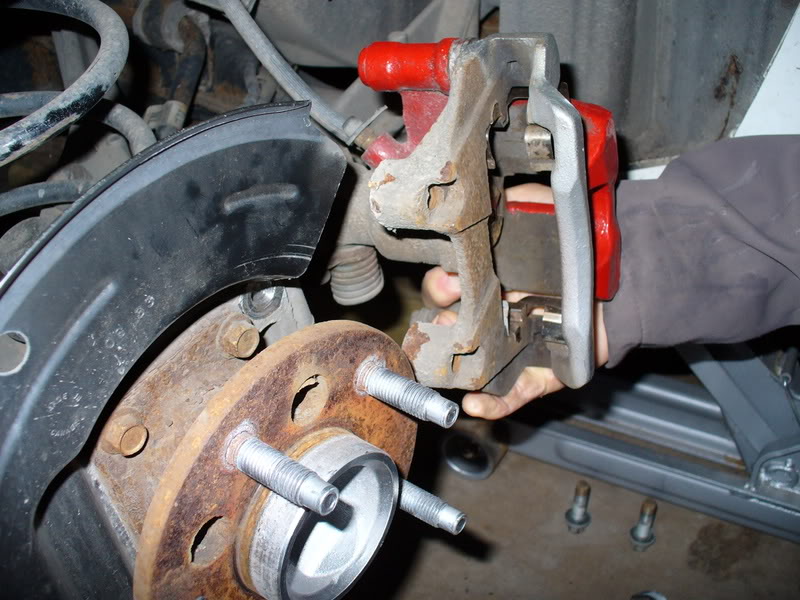

Old pads removed, ready for new pads and rotor.
Name:  P1000556.jpg
Views: 0
Size:  102.3 KB

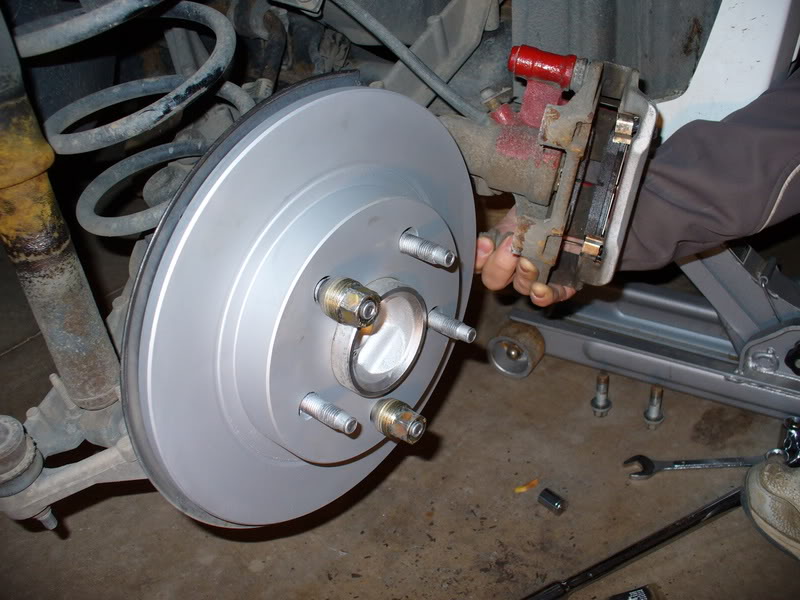

New rotor installed, caliper re-mounts with new pads.
Name:  P1000557.jpg
Views: 0
Size:  88.5 KB

Finished one side back together ready for wheel mounting!

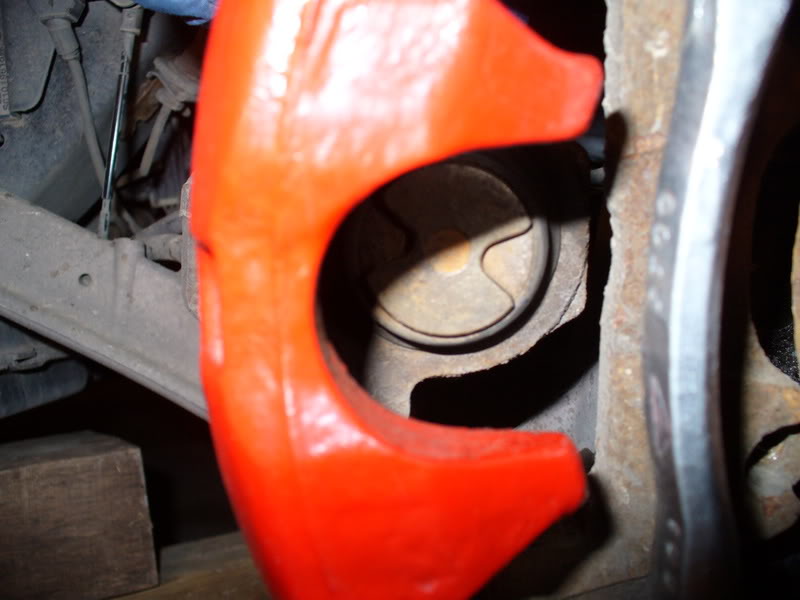

This is the piston that goes into the caliper for which that special toll is used.
Name:  P1000559.jpg
Views: 0
Size:  58.6 KB

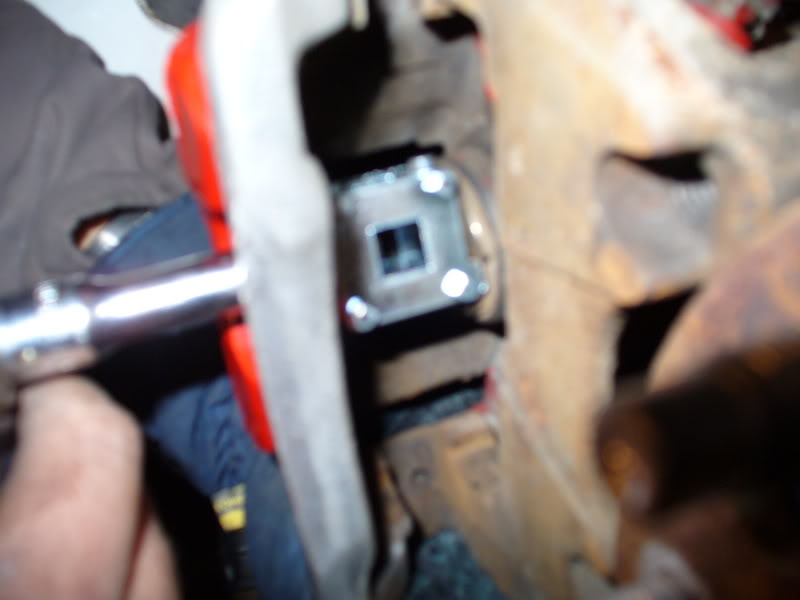

Tool in action threading (clockwise) piston back into caliper. (poor focus)
Name:  P1000560.jpg
Views: 0
Size:  44.7 KB

This is the left rear rotor inside.....obviously the main culprit for the vibration!


Easier than I imagined. Just have to remember to "thread" the piston back into the bore before remounting the pads and caliper. Emergency cable was never removed, just a bracket removed for more freedom of movement of the whole caliper.

Thanks to Archon for info, tips, diagarams, and offers of technical phone support!

Now it brakes smooth and quiet!
