Default Braded SS Fuel Lines

since i have installed the PRJ Fuel Rails, my Stock Nylon Fuel Lines have been routed in ways that would make you cry. Not to mention when GM built my car they decided to put the engine cover in a manner that pinched the nylon lines and make a small kink in the supply line....

anyway here are the pics of how the nylon lines were routed

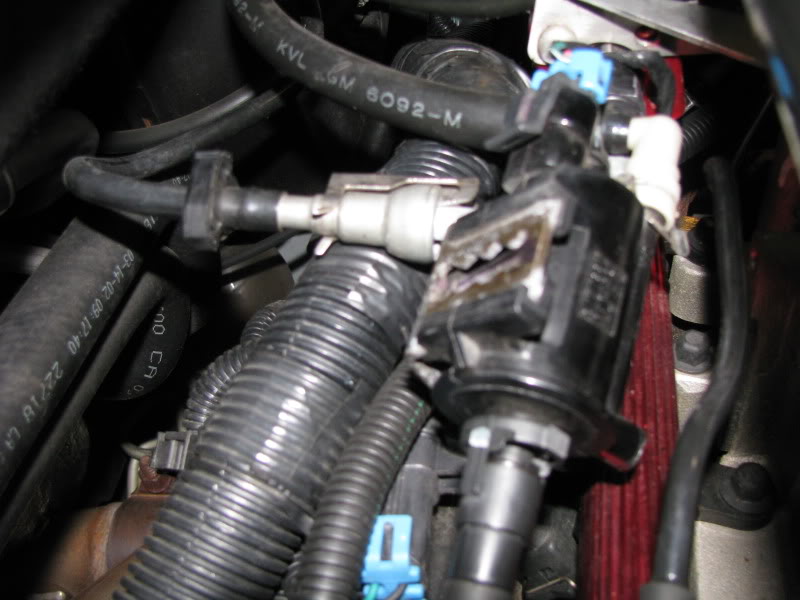

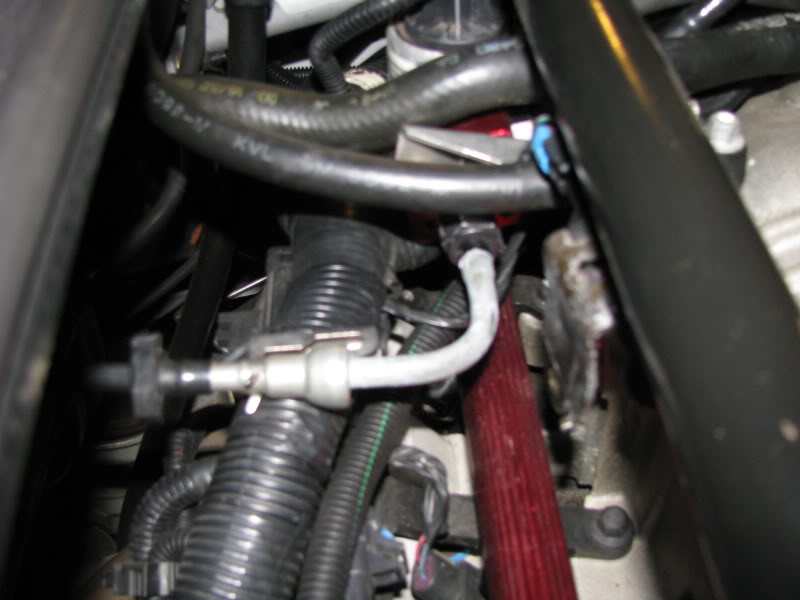

the return came out of the regulator and very close to the firewall
Name:  BradedSSfuellines009.jpg
Views: 0
Size:  58.2 KB

Name:  BradedSSfuellines008.jpg
Views: 0
Size:  72.9 KB

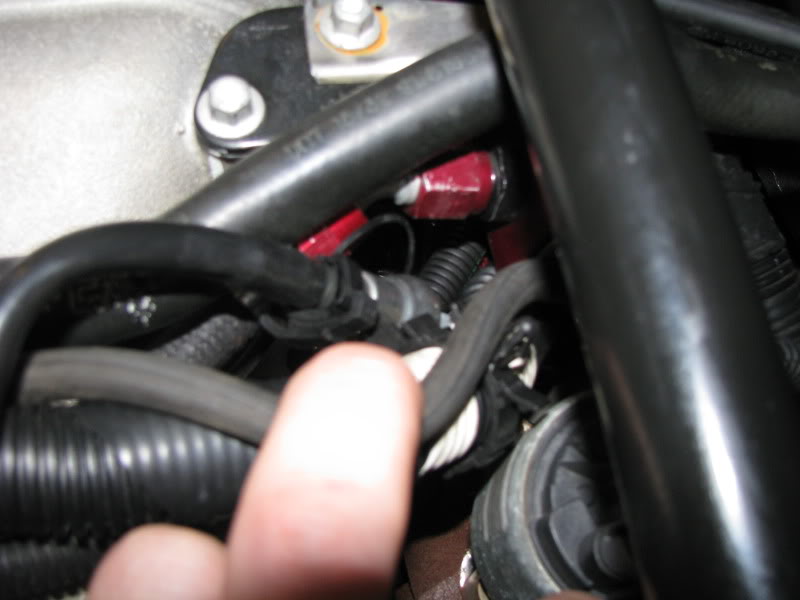

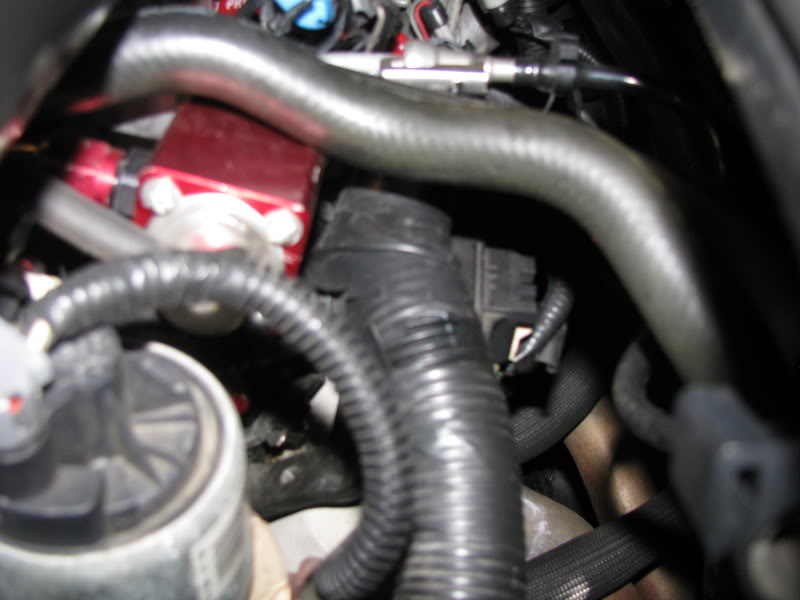

and the supply sucked even more. It actually went over the TB
Name:  BradedSSfuellines010.jpg
Views: 0
Size:  53.2 KB

Name:  BradedSSfuellines011.jpg
Views: 0
Size:  59.0 KB


Time for the Braded to go on

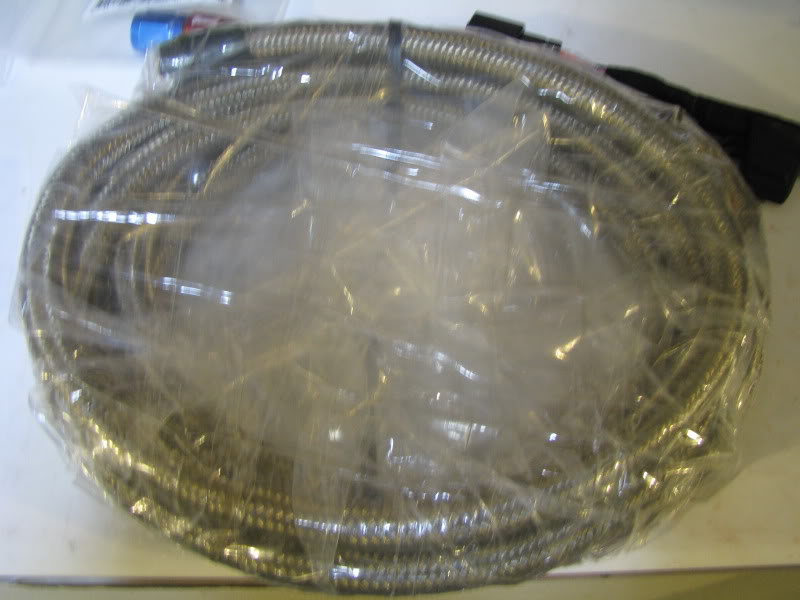

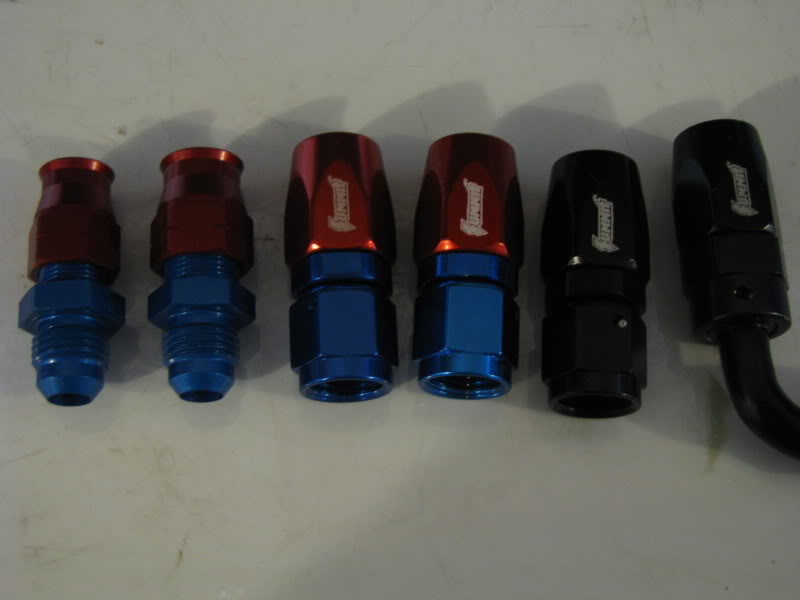

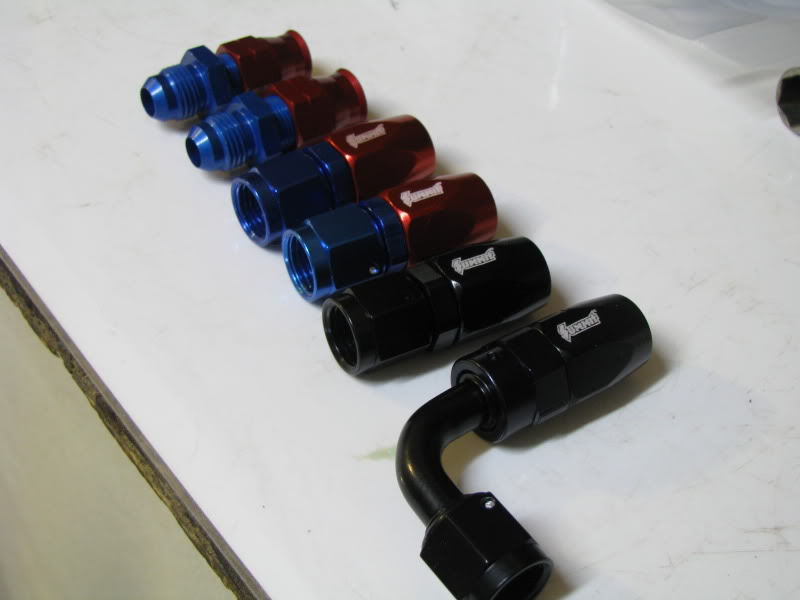

Parts:

Name:  BradedSSfuellines014.jpg
Views: 0
Size:  44.9 KB

Name:  BradedSSfuellines005.jpg
Views: 0
Size:  67.1 KB

Name:  BradedSSfuellines013.jpg
Views: 0
Size:  38.9 KB

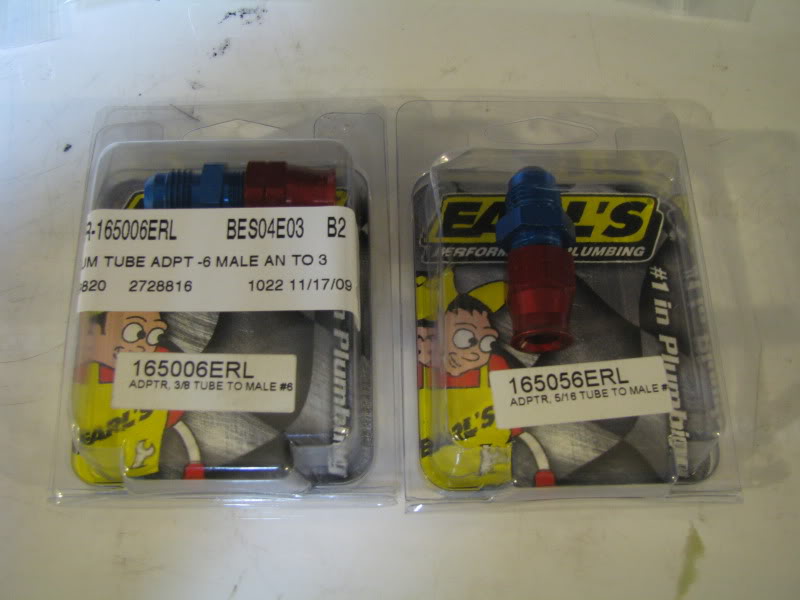

Hard line Fittings
Name:  BradedSSfuellines001.jpg
Views: 0
Size:  61.5 KB

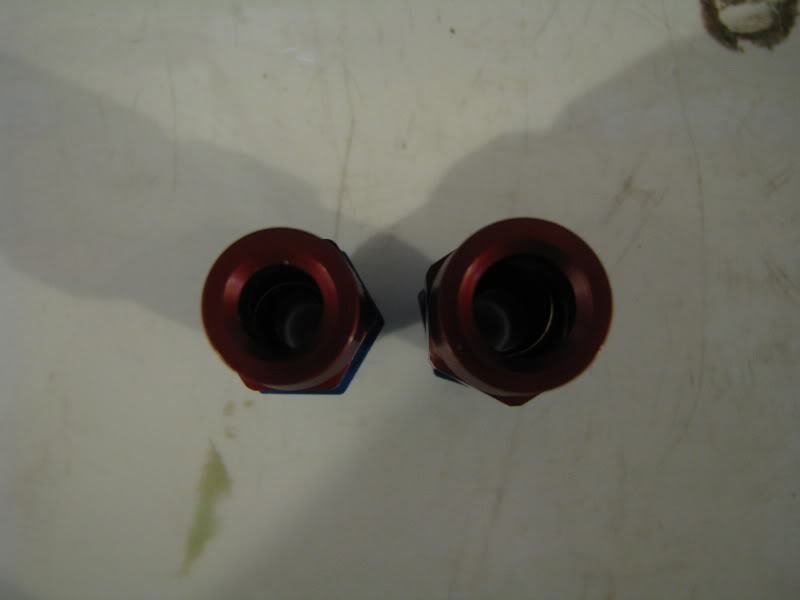

one is 3/8 the other is 5/16
Name:  BradedSSfuellines007.jpg
Views: 0
Size:  27.4 KB

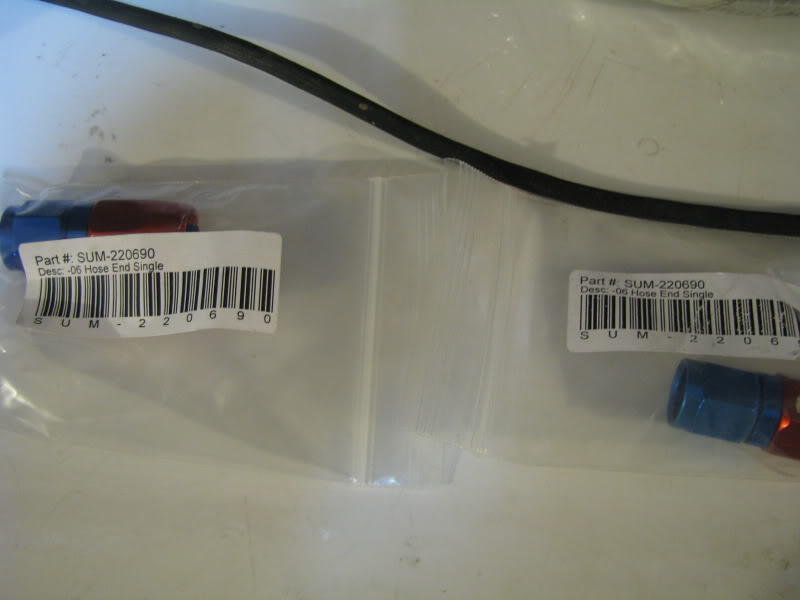

SS line fittings
Name:  BradedSSfuellines002.jpg
Views: 0
Size:  43.2 KB

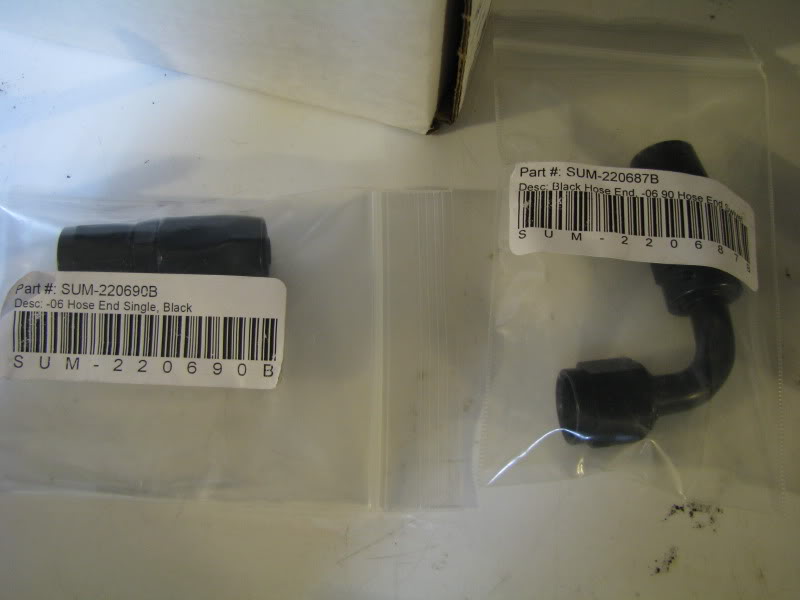

PRJ Regulator and Line fittings
Name:  BradedSSfuellines003.jpg
Views: 0
Size:  46.9 KB

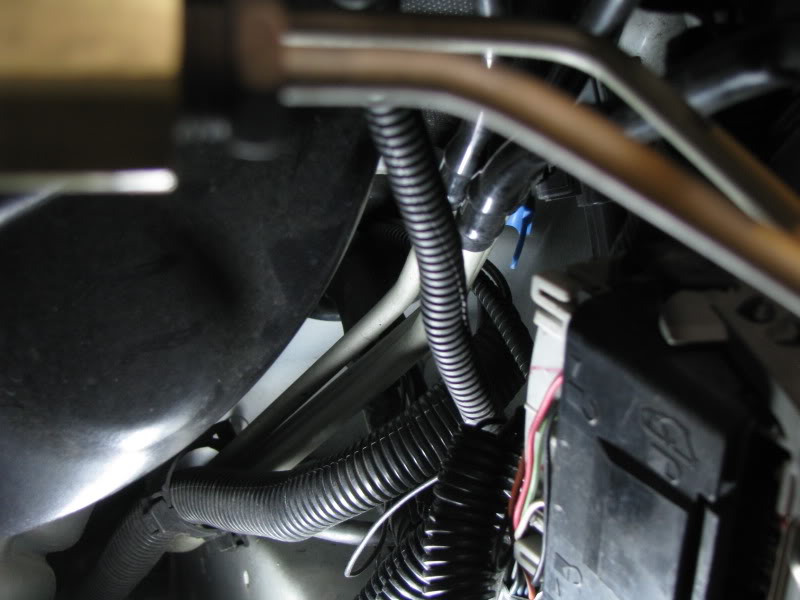

so the cutting began, and since i have a ton of room in the engine bay, and the lines come up the entire way up the firewall i decided that i would cut the lines where the nylon started
Name:  BradedSSfuellines012.jpg
Views: 0
Size:  66.3 KB

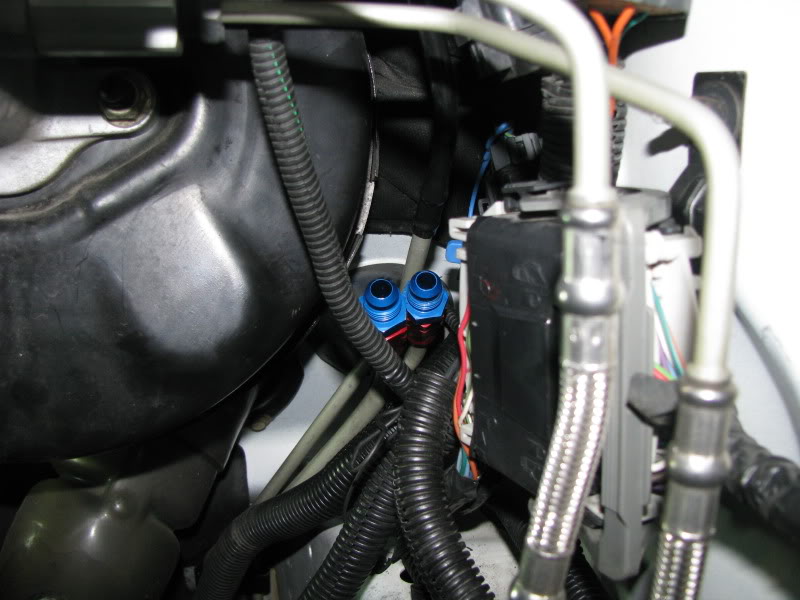

so once the line is cut you can install the hard line fittings
Name:  BradedSSfuellines016.jpg
Views: 0
Size:  79.5 KB

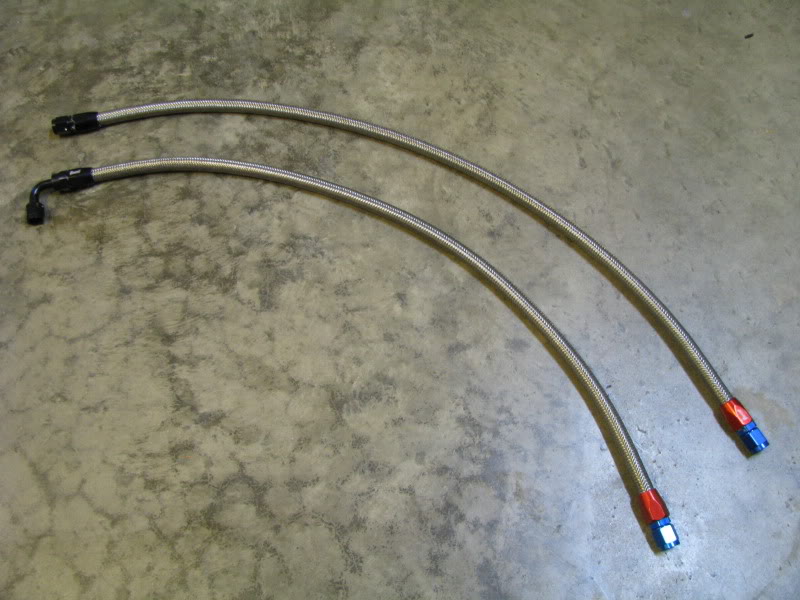

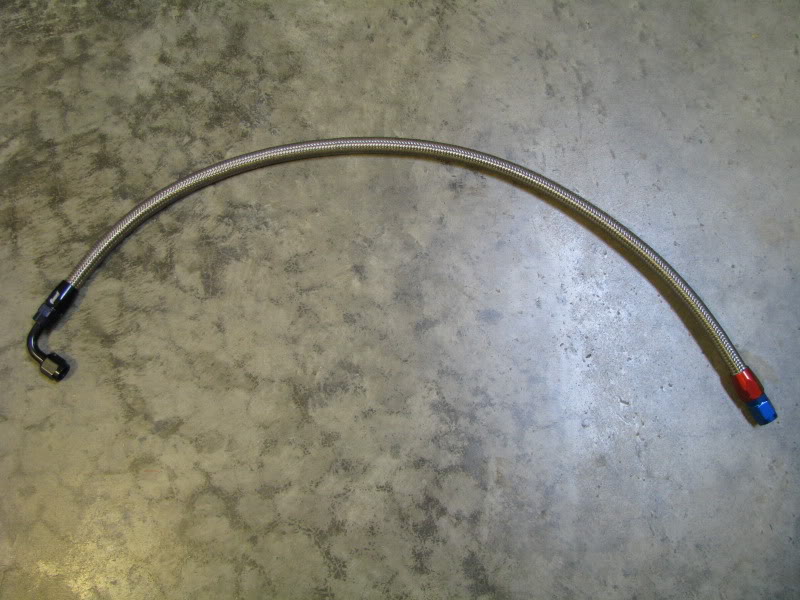

Then measure the length you want and the routing you desire, and make your lines
Name:  BradedSSfuellines017.jpg
Views: 0
Size:  95.4 KB

Name:  BradedSSfuellines018.jpg
Views: 0
Size:  89.9 KB

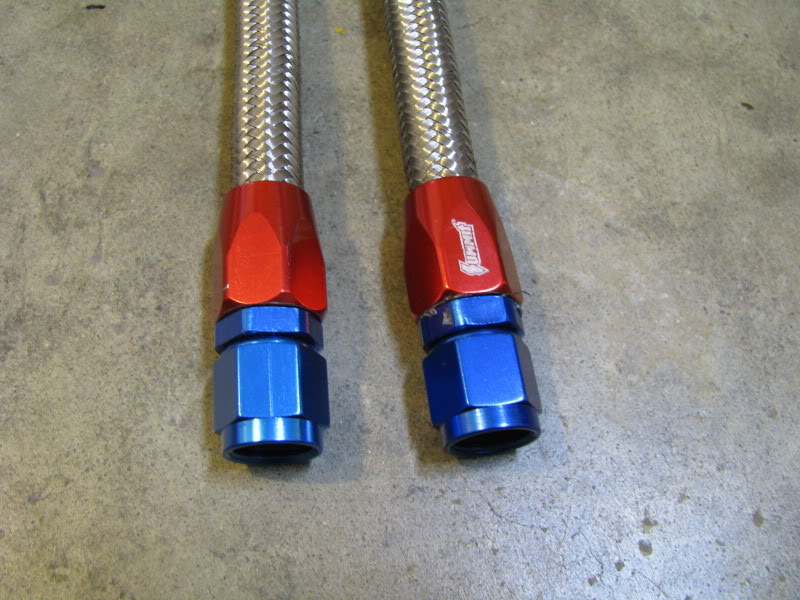

as you can see i used the Annodized Blue/Red Fittings down low on the car so they would match and then the Annodized Black up at the rail so that they would also match the PRJ fittings.

Name:  BradedSSfuellines020.jpg
Views: 0
Size:  107.5 KB

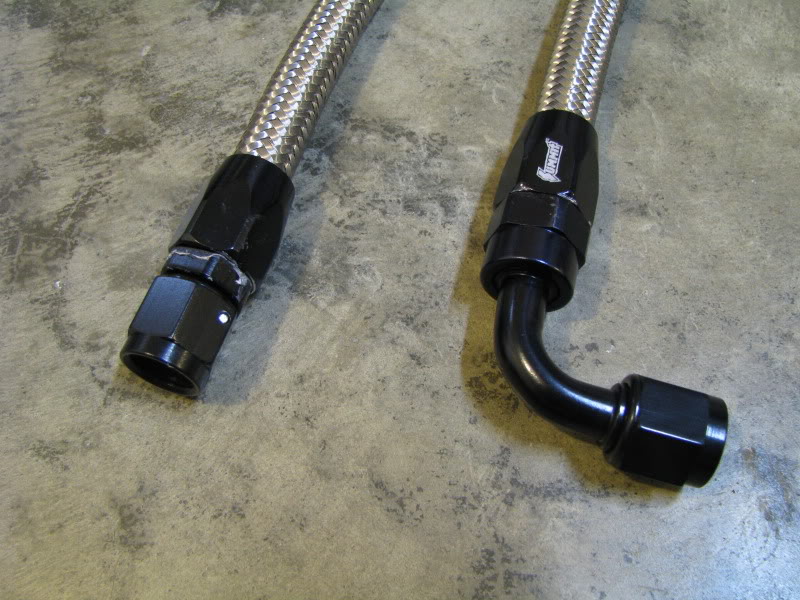

the 90* is the return the straight is the supply.
Name:  BradedSSfuellines021.jpg
Views: 0
Size:  116.3 KB

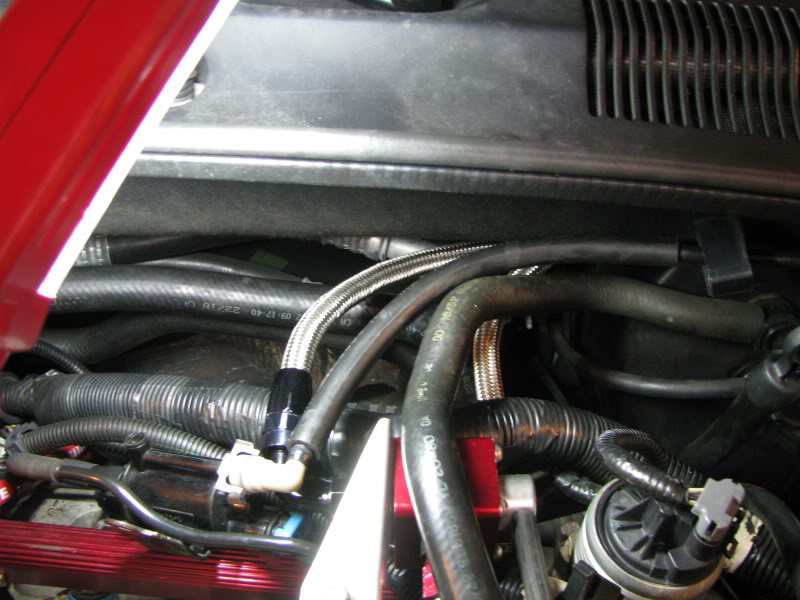

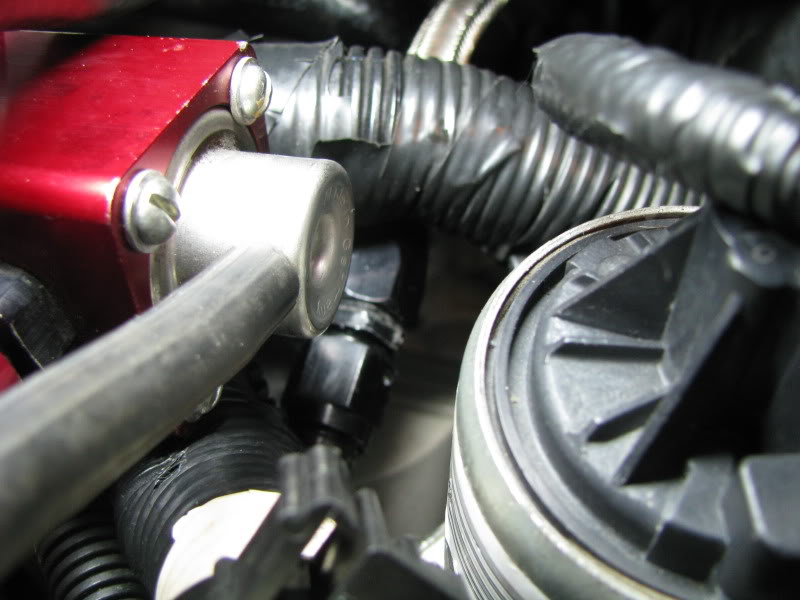

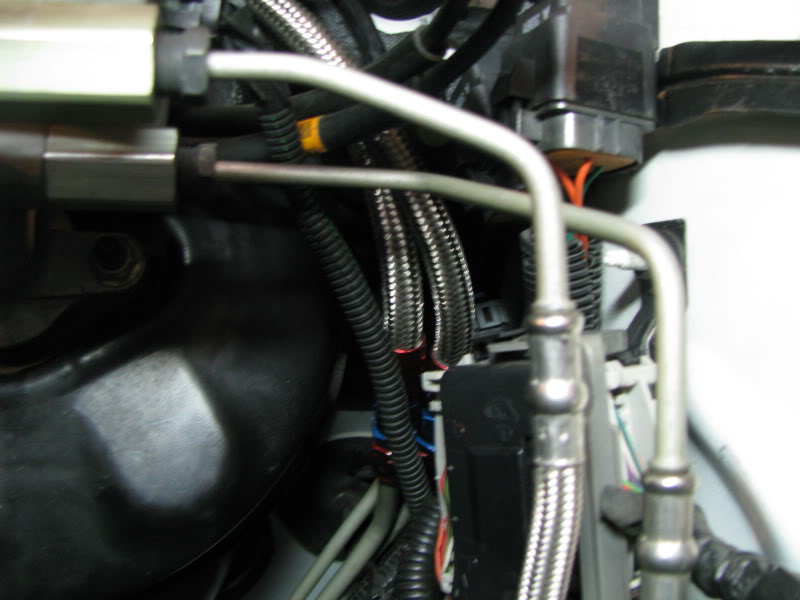

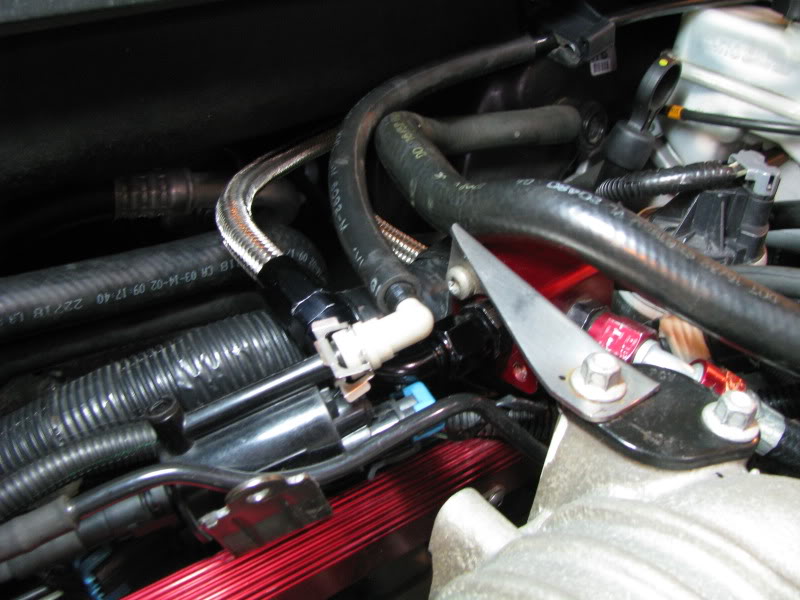

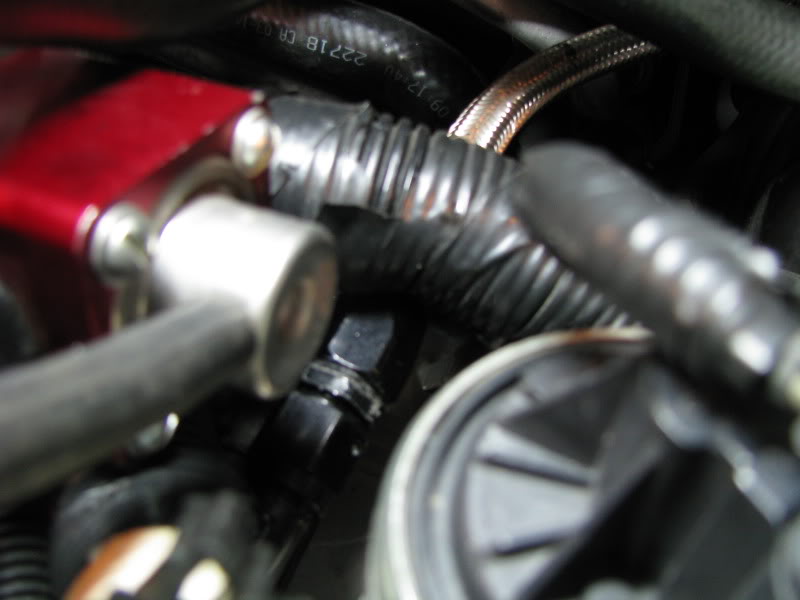

and the final product
Name:  BradedSSfuellines024.jpg
Views: 0
Size:  62.6 KB

Name:  BradedSSfuellines025.jpg
Views: 0
Size:  85.4 KB

Name:  BradedSSfuellines026.jpg
Views: 0
Size:  51.8 KB

Name:  BradedSSfuellines031.jpg
Views: 0
Size:  71.5 KB

Name:  BradedSSfuellines027.jpg
Views: 0
Size:  88.9 KB
1993 SLE is offline   Reply With Quote
Old 12-07-2009, 01:57 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Looks good. Did you get your buddy that extra straight fitting?
BillBoost37 is offline   Reply With Quote
Old 12-07-2009, 02:37 PM   #3
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

looks good, nice job thanks for sharing
sawgunner is offline   Reply With Quote
Old 12-07-2009, 07:37 PM   #4
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

Nice Pat, I kinda beat you to the writeup on that one lol, those Summit parts really help and it was nice that I could actually go pick them up
crunkfrunk is offline   Reply With Quote
Old 12-07-2009, 09:45 PM   #5
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

ya Frank, i have had my PRJ'* since mid summer, and just havent got time to do the lines
1993 SLE is offline   Reply With Quote
Old 12-07-2009, 09:49 PM   #6
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

I'm still running stock rails that were modified by me for the SS M90, I actually had to do the braided lines to stop a leak at the supply connector, it was a mess until that
crunkfrunk is offline   Reply With Quote
Old 12-07-2009, 09:53 PM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Very well done. Looks much better now.
Danthurs is offline   Reply With Quote
Old 12-07-2009, 10:09 PM   #8
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

Looks great. That is a nice look
Black Pearl is offline   Reply With Quote
Old 12-07-2009, 11:51 PM   #9
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Nice and clean look Pat!
