Rocker arms? - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Reply



Thread Tools Search this Thread
Old 03-11-2015, 03:49 PM   #1
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2014
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
dhurtad2 is on a distinguished road
Default Rocker arms?

While putting on the rocker arms I noticed it never seemed to screw in tightly then finding out that the entry is all rubbed out. Is there anything I can do about this or will I need to purchase some new ones?
dhurtad2 is offline   Reply With Quote
Old 03-11-2015, 07:20 PM   #2
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

Are you talking about the threads in the cylinder head? If so you might try a helicoil or timesert.
chevy82 is offline   Reply With Quote
Old 03-11-2015, 09:47 PM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2014
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
dhurtad2 is on a distinguished road
Default

Yes rocker arm screws on top of the cylinder head the screw to the rocker arm is fine it just won't screw in because it'* all rubbed inside? Would it be best to throw some used heads from the junk yard? It'* a 3.4 impala year 2000 btw
dhurtad2 is offline   Reply With Quote
Old 03-11-2015, 10:09 PM   #4
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

It can be saved if done right. I would try a heli-coil repair or gm has a thread repair kit that comes with timeserts (Dealer item only) . I would try this first before replacing the head, but to each his own though.

Last edited by chevy82; 03-11-2015 at 10:10 PM.
chevy82 is offline   Reply With Quote
The Following User Says Thank You to chevy82 For This Useful Post:
Soft Ride (03-12-2015)
Old 03-12-2015, 12:01 PM   #5
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,152
Thanked 786 Times in 615 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

I see this happen a lot, when the rocker bolts are just zipped out with an impact or air ratchet......you have to manually break them free first...otherwise, you take the threads out with the bolts...

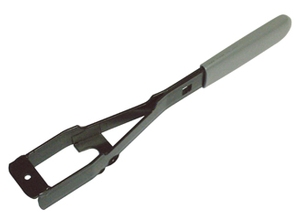

FYI.....if this happened while doing a lower intake gasket or head gasket, there is a tool you use to rotate the rocker and remove the push rods, without having to remove the rocker bolts(saves a lot of time and grief)....

Attached Thumbnails
Rocker arms?-48500new_12847197ed276.jpg
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
WilliamE (03-13-2015)
Old 03-17-2015, 04:24 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2014
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
dhurtad2 is on a distinguished road
Default

Got it. Thank you for your opinions. Also what'* the push rod order for the 2000 impala 3.4? I got
Firewall side
E-I-E-I-I-E
E-I-I-E-I-E
Radiator side

Just confirming if this is correct?
dhurtad2 is offline   Reply With Quote
Old 03-17-2015, 10:52 PM   #7
Junior Member

Join Date: Mar 2015
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
wills383 is on a distinguished road
Default website pic

try this web link How to Adjust GM 3400 3.4L Pushrod Rocker Arms
they have a pic to help, look around for pic before assembly (lots of people have mixed them up)
wills383 is offline   Reply With Quote
Old 03-17-2015, 11:37 PM   #8
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,152
Thanked 786 Times in 615 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

You should put those push rods back in the original positions......if mixed up, the exhaust push rods are longer than the intakes.......you can easily look into the head to see if the rod is going to an intake valve....
Tech II is offline   Reply With Quote
Old 03-18-2015, 02:11 AM   #9
Junior Member

Join Date: Mar 2015
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
wills383 is on a distinguished road
Default correction to thread posted

I appologize tech ll I meant to say that if you mixed two exhaust valves it would not be the end of the motor (it is frowned upon when building a motor to take a exhaust pushrod out of its spot and accidently move to another) I am not saying that exhaust pushrod is the same as an intake because it is NOT. that is my fault for not catogorizing I was trying to simply say that if you look at the pic it will show the "position" of each rocker. with that said taking a piece of styrafoam you can mark each pushrod and shove them into it. and mark each position corrosponding with simple masking tape and a dark colored marker (to keep track of its original hole). but like tech ll said do not mix intake and exhaust but if you accidently mix two exhaust push rods Not going to be the end of your motor sorry for explaining
wills383 is offline   Reply With Quote
Old 03-18-2015, 02:15 AM   #10
Junior Member

Join Date: Mar 2015
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
wills383 is on a distinguished road
Default

I have had to take pushrods from junkyard and use because of money costs for customers on these motors as long as they are with in spec (not bent) and exhaust pushrods go where exhaust pushrods are supposed to go and intake go where intake are supposed to go it is all ok
wills383 is offline   Reply With Quote
