I tried to have my 2003 Bonneville SLE inspected yesterday and it failed because the OBDII connector is not communicating with the test equipment. Does anyone have any ideas as to what would cause this? Also, I have been having some electrical interference on my radio the past couple of weeks as well. Could this be related?
Thanks for the help!!!
designerspike is offline   Reply With Quote
Old 07-01-2016, 10:52 AM   #2
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Check the fuse.
2kg4u is offline   Reply With Quote
Old 07-01-2016, 02:08 PM   #3
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 780 Times in 609 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

check 4, 5, and 16

Attached Thumbnails

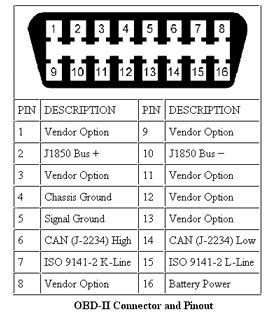

OBD 2 Port not working-b3kaj.png
Tech II is offline   Reply With Quote
The Following User Says Thank You to Tech II For This Useful Post:
CathedralCub (07-05-2016)
Old 07-01-2016, 09:13 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2009
Location: North Carolina
Posts: 16
Thanked 0 Times in 0 Posts
designerspike is on a distinguished road
Default

I think I checked the right fuse and it was fine. How do I check the data link connector?
designerspike is offline   Reply With Quote
Old 07-01-2016, 10:47 PM   #5
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 780 Times in 609 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Basically, you check connectors 4 and 5 for a good ground.....you will check 16 for battery power.....take a test light, attach to 16 and the other end to 4...should light....then 16 to 5....should light....

Then take a voltmeter, attach one end to 4 or 5 and the other to 2.....turn key to on, don't have to start vehicle....should get a variable voltage reading, it should not be zero, battery voltage, or a steady voltage....it should change....
Tech II is offline   Reply With Quote
The Following 3 Users Say Thank You to Tech II For This Useful Post:
CathedralCub (07-05-2016), designerspike (07-04-2016), WilliamE (07-02-2016)
Old 07-04-2016, 10:45 AM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Jan 2009
Location: North Carolina
Posts: 16
Thanked 0 Times in 0 Posts
designerspike is on a distinguished road
Default

What fuse powers the DLC? Is it the fuse for the cigarette lighter? I can't seem to find anything that states where it is.
Thanks
designerspike is offline   Reply With Quote
Old 07-04-2016, 12:40 PM   #7
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 780 Times in 609 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

in the rear fuse block, under the rear seat, you are looking for fuse 4, ALDL, 10 Amp.....
Tech II is offline   Reply With Quote
The Following 2 Users Say Thank You to Tech II For This Useful Post:
CathedralCub (07-05-2016), designerspike (07-04-2016)


Reply
