Default TJ'* Motors built/in (working on KR issues now, update 9-12)

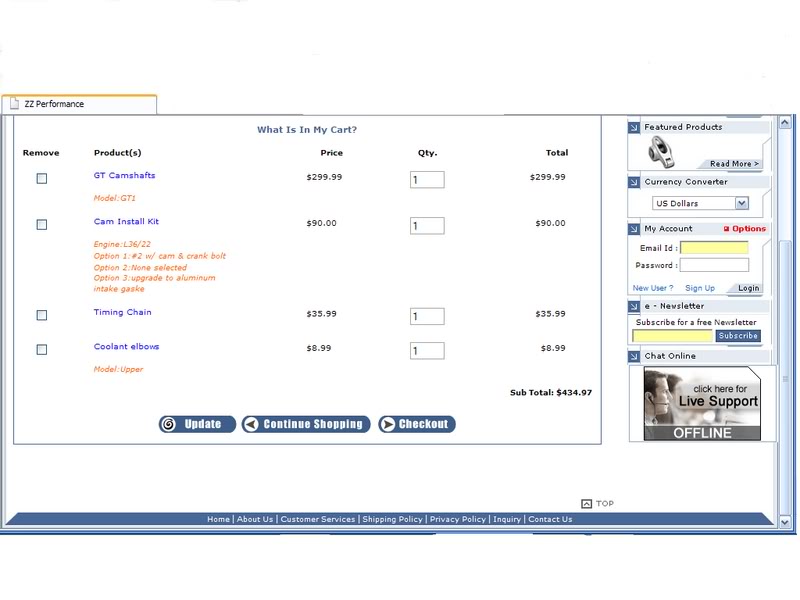

Is this all i need for the cam install?

Name:  untitled.jpg
Views: 0
Size:  48.9 KB
TJ'sblackbonne is offline   Reply With Quote
Old 07-09-2007, 12:11 AM   #2
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default Re: A quick cam question

I believe that is everything, but if anyone has anything to throw in just tell me.
TJ'sblackbonne is offline   Reply With Quote
Old 07-09-2007, 12:13 AM   #3
Senior Member
True Car Nut

Join Date: Dec 2005
Location: August 07 COTM....NEBF '06, CEBF '06 OHMM '06 ONBF '07 CEBF '07
Posts: 4,064
Thanks: 0
Thanked 0 Times in 0 Posts
PRD2BDF is on a distinguished road
Default

Won't there be any gaskets needed?
PRD2BDF is offline   Reply With Quote
Old 07-09-2007, 12:17 AM   #4
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Yep, gaskets (timing cover, WP, oil pan maybe), fluids obviously... are there any cam bearings or anything of that sort that are easy to replace when you've got a cam out?
J Wikoff is offline   Reply With Quote
Old 07-09-2007, 12:18 AM   #5
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default

Kit 2 includes:

Timing chain dampener
12 rocker bolts
supercharger gasket (except L36/22)
2 coolant passage O-rings (except L36/22)
intake gasket set
front cover gasket
ARP assembly lube
cam bolt
crank bolt


that is the cam install kit
TJ'sblackbonne is offline   Reply With Quote
Old 07-09-2007, 12:19 AM   #6
Senior Member
Posts like a Camaro

Join Date: Oct 2006
Location: montreal canada NEBF07 ONBF07
Posts: 987
Thanks: 0
Thanked 0 Times in 0 Posts
firebuick is on a distinguished road
Default

ME
firebuick is offline   Reply With Quote
Old 07-09-2007, 12:21 AM   #7
Senior Member
Certified GM nut
Thread Starter

Join Date: Dec 2002
Location: plattsburgh NY
Posts: 2,037
Thanks: 0
Thanked 0 Times in 0 Posts
TJ'sblackbonne is on a distinguished road
Default

TJ'sblackbonne is offline   Reply With Quote
Old 07-09-2007, 09:42 AM   #8
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Get a new timing chain as cheap insurance.
Pick up a coolant elbow from the help section. They are really easy to break.
You might want to get two new torx bolts for the cam thrust plate from the dealer. They are VERY easy to strip. Make sure you have those bits too.
You'll need a harmonic balancer remover and of course all the RTV and fluids stuff.
95naSTA is offline   Reply With Quote
Old 07-09-2007, 12:03 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I have done 3 cams to date and wasn't able to strip a cam bolt. (Looks at Mike funny )

TJ..
It'* new chain/gear set or nothing IMO>

You forgot the Boosty option for $1,000.

Get some cam lube if it'* not in the kit. The lube is basically a thicker weight oil like 20-50 or straight 50. Plan to do the swap all at once so when you pull the lifters they go back in the same day. That way they won't drain off too much oil.

If you need..I have a WP gasket, although you shouldn't have to remove the pump..only 4 of the bolts (the 13mm ones) If I can recommend... toss a higher oil pressure kit in there. It'* a spring/washer/slide and brings your pressure up to help ensure the life of your parts.
BillBoost37 is offline   Reply With Quote
Old 07-09-2007, 12:28 PM   #10
Senior Member
Posts like a Camaro

Join Date: Oct 2006
Location: montreal canada NEBF07 ONBF07
Posts: 987
Thanks: 0
Thanked 0 Times in 0 Posts
firebuick is on a distinguished road
Default

Quote:
Pick up a coolant elbow from the help section.
there no where to find a elbow in plattsburgs at advance or auto zone they don't know what we are talking about we had to be very carefull and save mine
