Old 01-24-2008, 07:37 PM   #31
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Yup. 30 minute countdown to mill the LIM time.
willwren is offline   Reply With Quote
Old 01-24-2008, 07:38 PM   #32
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

yess, im a bozo, thanks for the sneak peek!
samueljackson is offline   Reply With Quote
Old 01-25-2008, 12:33 AM   #33
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Update:

Milled the LIM, but have a bit more pneumatic work to do, but this is for the most part what it will look like at install, including milling pics, and showing the helical inserts in the core to promote thermal transfer.

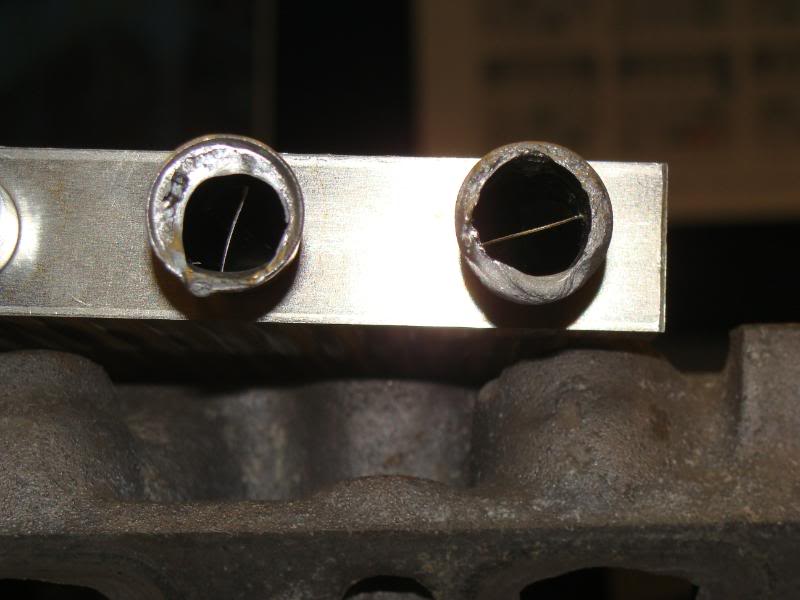

The 'slits' you see inside here are twisted all the way through like twisty pasta:


Name:  DSC00631.jpg
Views: 0
Size:  52.9 KB

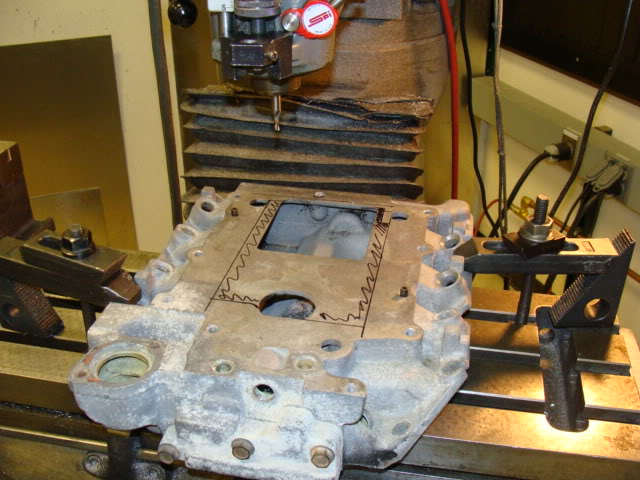

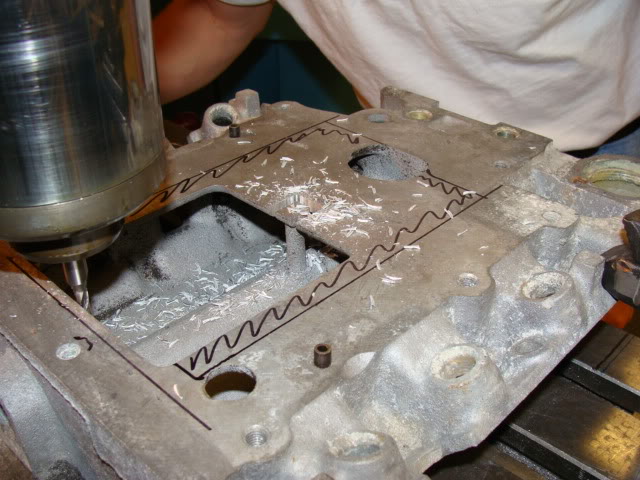

Milling the LIM (pics courtesy of greyhare):
Name:  DSC00632.jpg
Views: 0
Size:  78.8 KB

Name:  DSC00633.jpg
Views: 0
Size:  75.5 KB

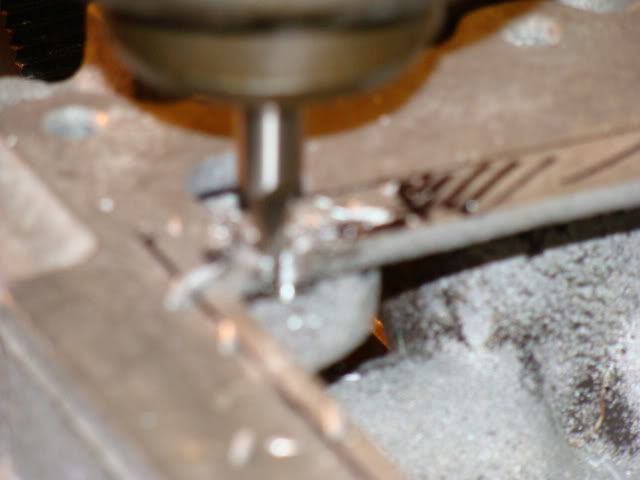

Name:  DSC00634.jpg
Views: 0
Size:  37.0 KB

Name:  DSC00635-1.jpg
Views: 0
Size:  82.9 KB

Name:  DSC00636-1.jpg
Views: 0
Size:  82.8 KB

Name:  DSC00637-1.jpg
Views: 0
Size:  65.0 KB

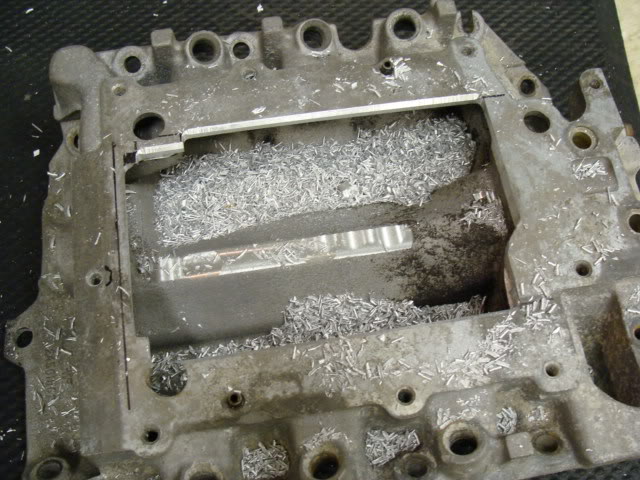

Name:  DSC00635.jpg
Views: 0
Size:  82.9 KB

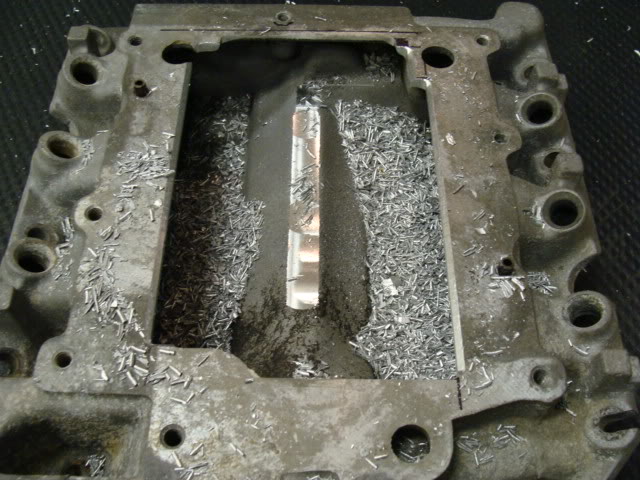

Name:  DSC00636.jpg
Views: 0
Size:  82.8 KB

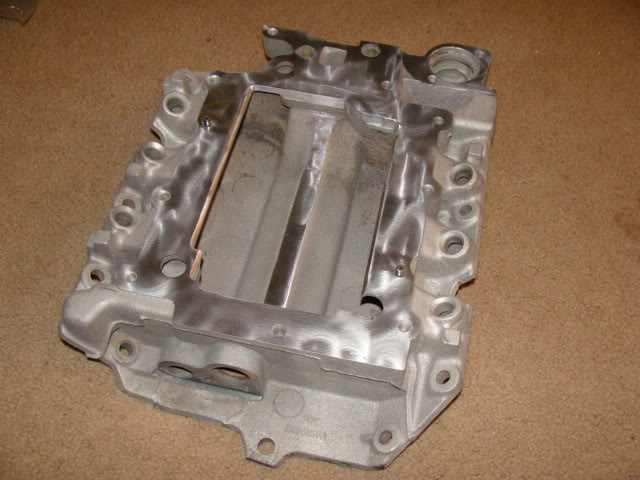

Name:  DSC00637.jpg
Views: 0
Size:  65.0 KB
willwren is offline   Reply With Quote
Old 01-25-2008, 01:14 AM   #34
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

Damn, Impressive Bill


I want more!
Peterg22000 is offline   Reply With Quote
Old 01-25-2008, 02:06 AM   #35
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Aren't you risking a cracked LIM by milling the rise in the valley?
OLBlueEyesBonne is offline   Reply With Quote
Old 01-25-2008, 02:08 AM   #36
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Enough for tonight. I got into the Glennfiddich.

Gotta modify the core in the next couple days and figure out the milling on the bottom of the blower.

Porting this LIM will have to wait until the motor comes out and the heads come off to go the other motor for matching like the old LIM (which will be stored on the shelf until I port the SLE heads so I can store it on that car).

Then I have to port and rebuild that blower, and a GenV, then put the magic coating on both before Pdad gets here. Gotta port his L32 LIM too. So I'll be taking a short break from the intercooler work unles the meet attendees wanna work on the Zilla with me. Up to them.
willwren is offline   Reply With Quote
Old 01-25-2008, 09:16 AM   #37
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by OLBlueEyesBonne
Aren't you risking a cracked LIM by milling the rise in the valley?
No. I had to mill off the support post. I just 'shaved' the casting roughness with the mill so I wouldn't have one tiny milled spot. I'm smoothing a couple inner areas to encourage flow away from the center of the LIM and underside of the core.
willwren is offline   Reply With Quote
Old 01-27-2008, 12:59 PM   #38
Senior Member
Posts like a Supercharger

Join Date: Oct 2006
Location: Alberta, Canada
Posts: 170
Thanks: 0
Thanked 0 Times in 0 Posts
Drunken Sailor is on a distinguished road
Default

This is really cool. I had thought about doing something inside the LIM void too. I like it and I can't wait to see more. Stay tuned for my prototype in the spring/summer.
Drunken Sailor is offline   Reply With Quote
Old 01-28-2008, 04:08 AM   #39
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

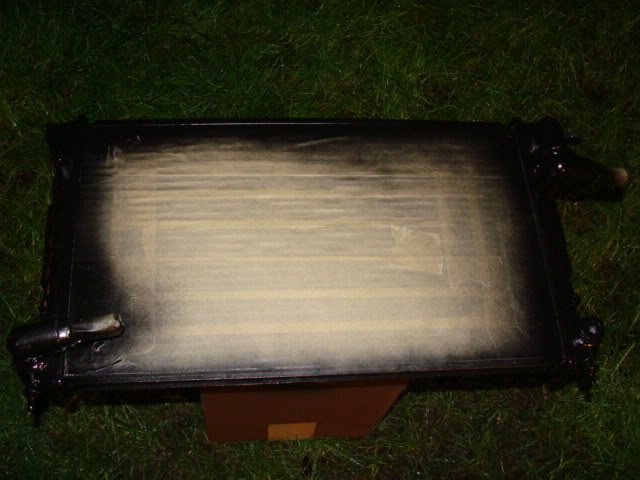

Cosmetics are nearly as important as that performance crap:

Name:  DSC00671.jpg
Views: 0
Size:  57.9 KB



My internal heat exchanger was selected for thickness and width. The length needs to be cut down in a 'staggered' fashion to fit the LIM and make the most of the efficiency:

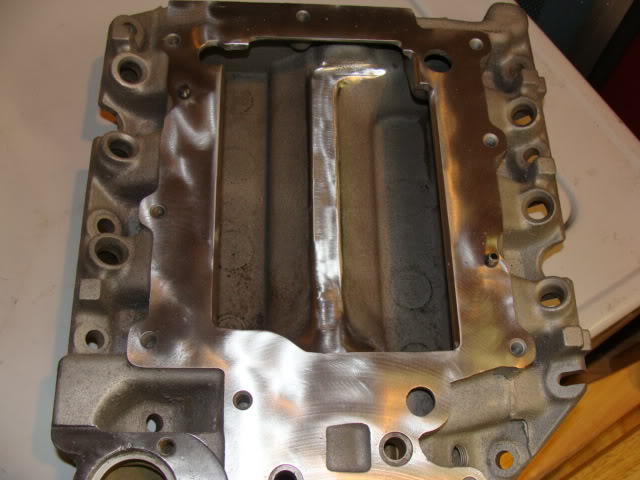

Name:  DSC00672.jpg
Views: 0
Size:  60.1 KB

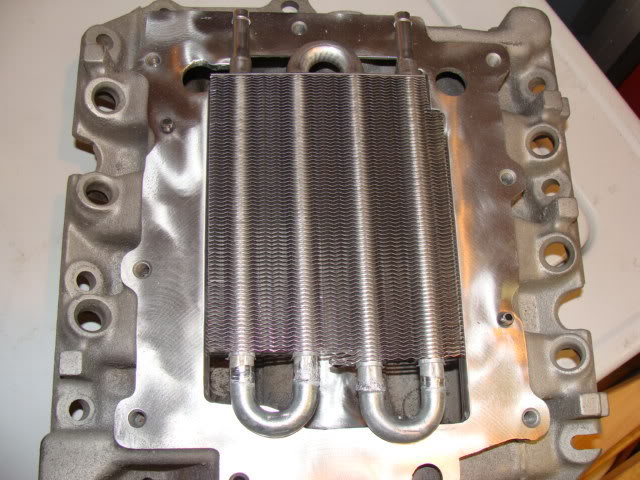

Name:  DSC00673.jpg
Views: 0
Size:  73.2 KB

Not as easy as it looks. This exchanger is very fragile, and re-sealing the aluminum is a bit of a trick. You can't afford leaks here. Notice the top right corner of the bottom pic? I've shaved the fins for a good fit. I machined and trimmed to make the absolute most of surface area. Thermal efficiency is paramount.
willwren is offline   Reply With Quote
Old 01-28-2008, 04:36 AM   #40
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

I've been following this thread, and I just don't know what to say. It all looks really good, and I'm impressed by the attention to details. One thing I saw that was interesting was the mention of airflow through the intercooler core. Is there a calculated max CFM and PSI that the fin array can take? And with that, does it mean that neither the M62 nor the M90 can outflow the airflow capacity of the holes between the fins? Also, great job as always. I thought I was free when I learned of the magic coating, but now there'* another information strain put on me. Thanks, Will!
radomirthegreat is offline   Reply With Quote
