Old 11-19-2005, 08:08 PM   #21
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

OK, here'* what I have.

As you can see I have the top and bottom removed from the rest of the box because I don't have a 96-99 washer fluid reservoir yet. But I am including a pic of the tank in my 98 SSE -I had the TEP in but I didn't have the top or bottom on because I didn't have a PCM tray, so I just turned the stock PCM box on it side which caused the top to come in contact with the hood before the hood could latch shut.

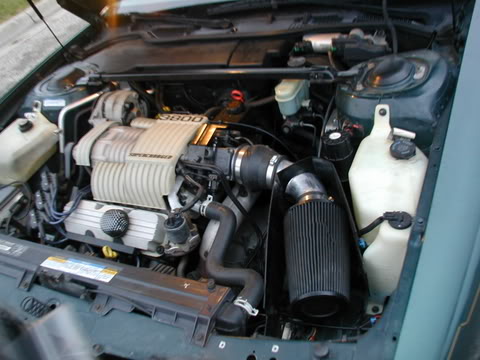

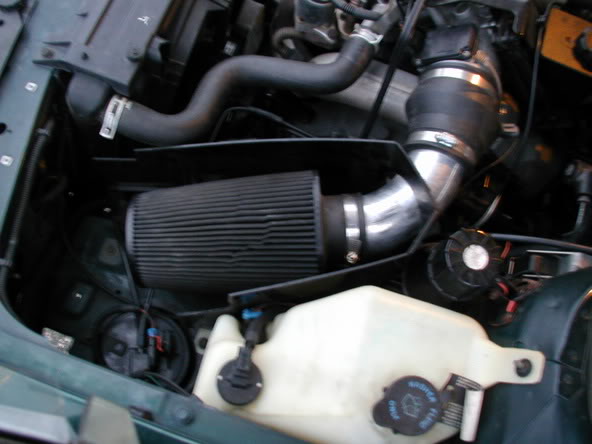

97-03 GP TEP CAI in my 95 SLE SC:

Name:  P1010752.jpg
Views: 1
Size:  38.1 KB

Name:  P1010753.jpg
Views: 1
Size:  38.8 KB

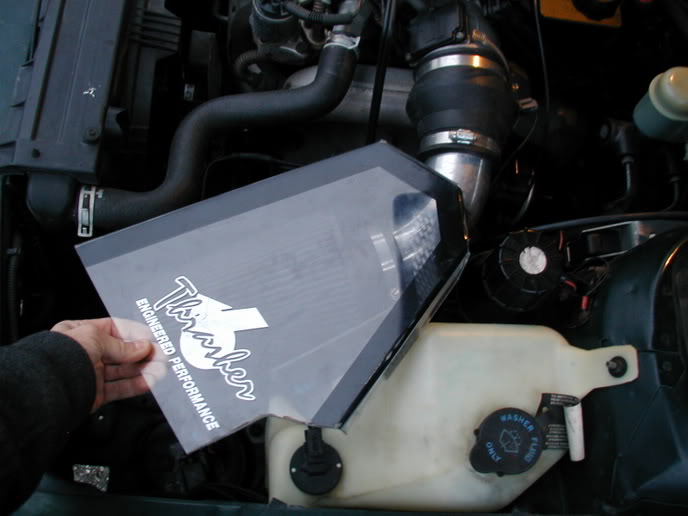

As you can see here this is why the complete box won't fit with a 92-95 washer tank. 96-99 will need a PCM tray.

Name:  P1010754.jpg
Views: 1
Size:  43.0 KB

Here'* a pic of the 98 tank (same in 96-99). The 96-99 tank is shorter to accomadate the PCM, which makes the tank ideal for 92-95 cars (possibly 87-91 also).

OLBlueEyesBonne is offline   Reply With Quote
Old 11-19-2005, 09:02 PM   #22
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

Not bad... Once you get the top and bottom on that it should work well. It looks like your going to have to move your alarm to fit the '96-'99 style tank.

I swapped out my '92-'95 double style tank to a '92-'95 single style tank like yours. I would of done the '96-'99 tank but it will not fit with the air compressor. Doesn't matter now because I have moved the compressor over to where the battery is. Once I try building a new CAI I'll probable swap to the '96-'99 tank for even more space. Hum. . . it looks like I might have a CAI for sale.
llBlazin_llLo is offline   Reply With Quote
Old 11-19-2005, 09:05 PM   #23
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

interesting difference.....could you slide the box further into the corner that you have it now in your SLE?
1993 SLE is offline   Reply With Quote
Old 11-20-2005, 12:28 AM   #24
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
could you slide the box further into the corner that you have it now in your SLE?
Yes, it is sitting back a little far -I usually push it forward, but the force of the air coming in pushes it back. With it forward all the way the rf corner of the box is tight against the radiator core support, and the left side is almost touching the left inner frame rail.
OLBlueEyesBonne is offline   Reply With Quote
