Default Installing a Phenolic spacer

Had a GP come over today to get a new Phenolic spacer installed. Putting it in was easy, but did have some problems after.

In the shop and ready to start.
Name:  P6040002.jpg
Views: 10
Size:  173.6 KB

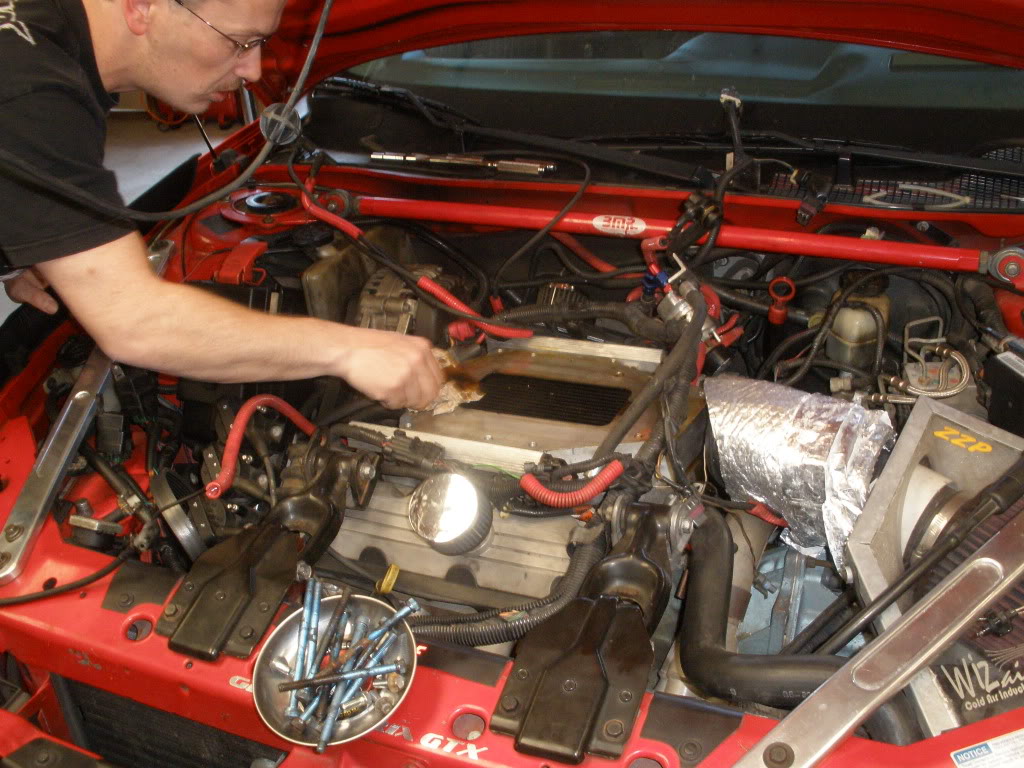

Got the supercharger off and cleaned up the IC core a bit. Some snout oil was between the SC and the core.
Name:  P6040003.jpg
Views: 13
Size:  176.3 KB

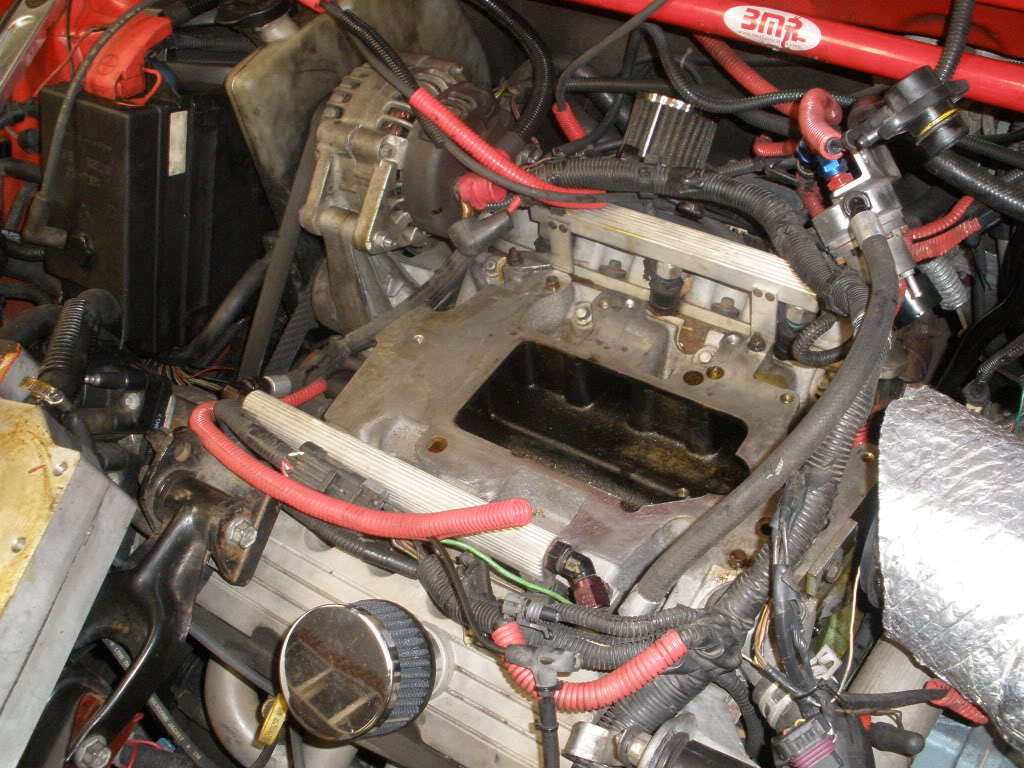

Everything out and cleaned up. About a half hour at the most at this point.
Name:  P6040004.jpg
Views: 10
Size:  211.0 KB

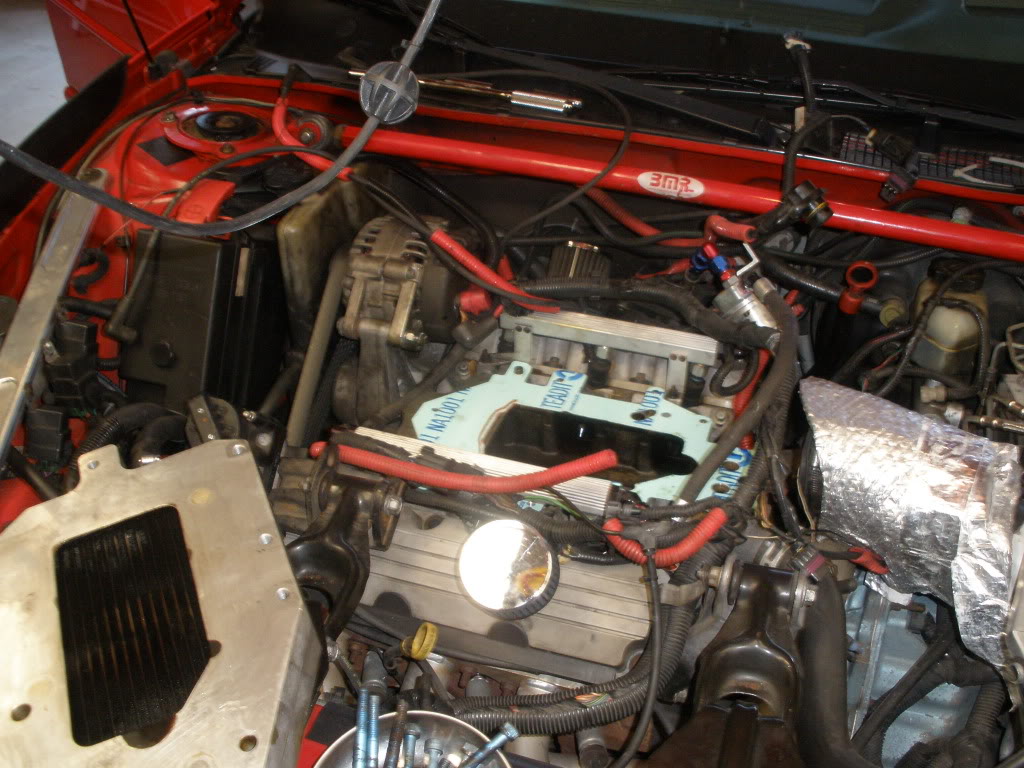

First gasket in place.
Name:  P6040005.jpg
Views: 12
Size:  167.3 KB

Had to modify the spacer a bit. Cleaning it up here.
Name:  P6040006.jpg
Views: 10
Size:  136.2 KB

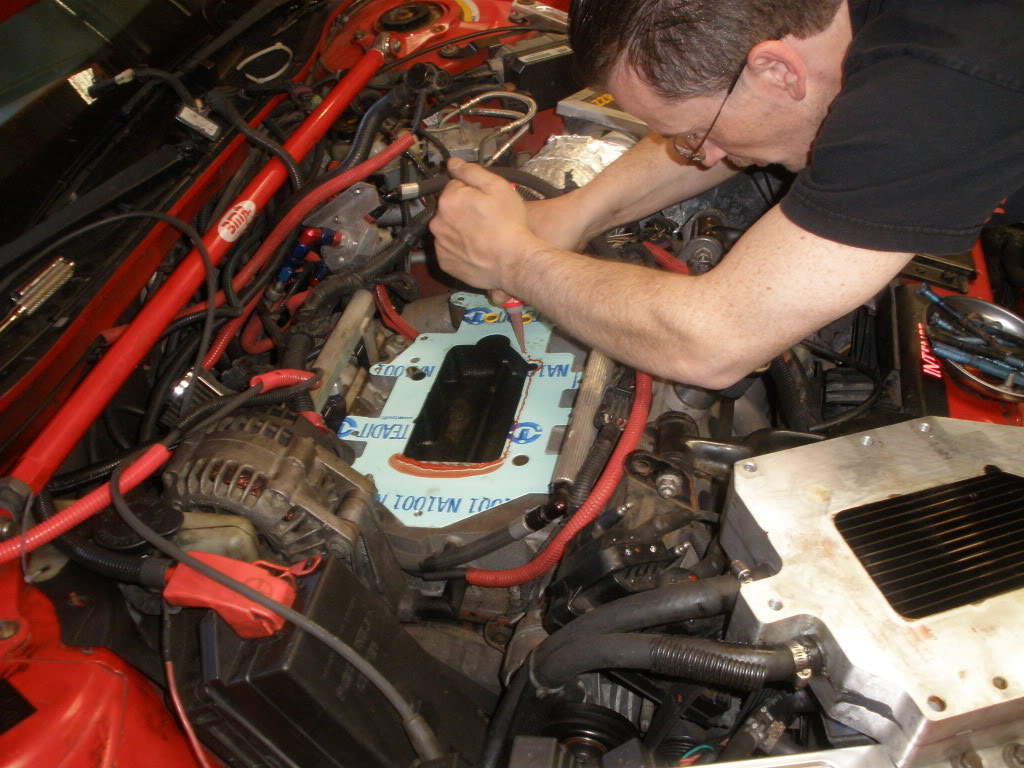

A little RTV.
Name:  P6040007.jpg
Views: 10
Size:  163.6 KB

Spacer is in place, put this in right after you placed the IC core in, then Chris says, wouldn't that be better under the core? Ahhh, ya, I was just testing the fit. :bonk:
Name:  P6040008.jpg
Views: 10
Size:  189.4 KB

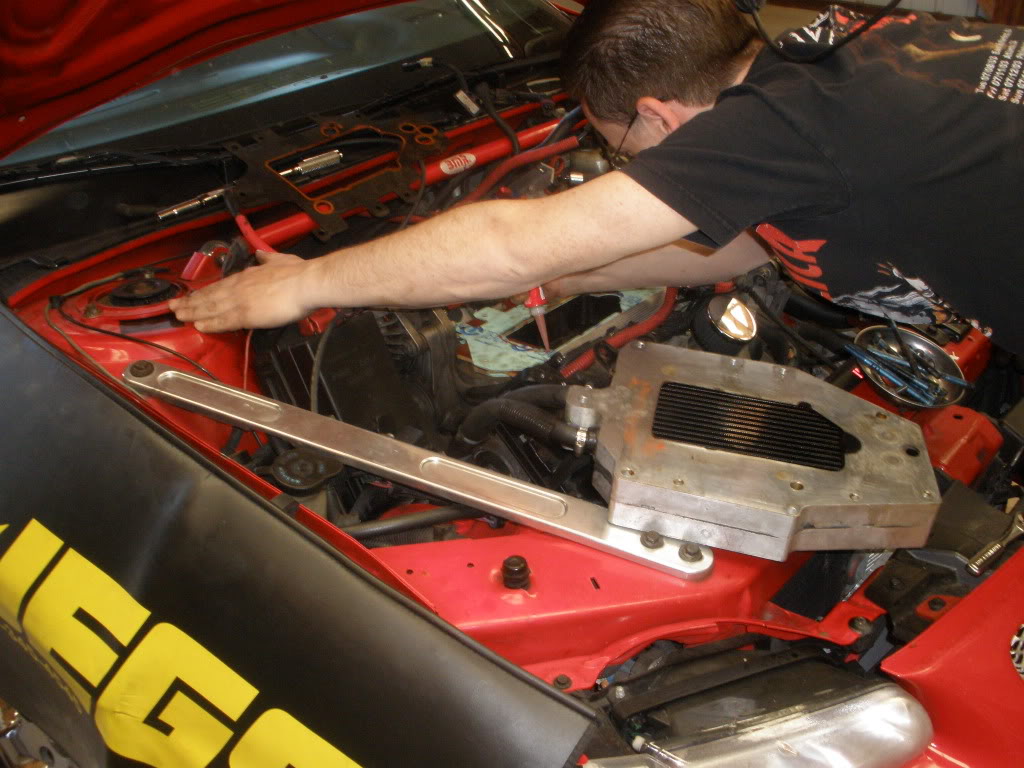

Another gasket and more RTV
Name:  P6040009.jpg
Views: 8
Size:  146.2 KB

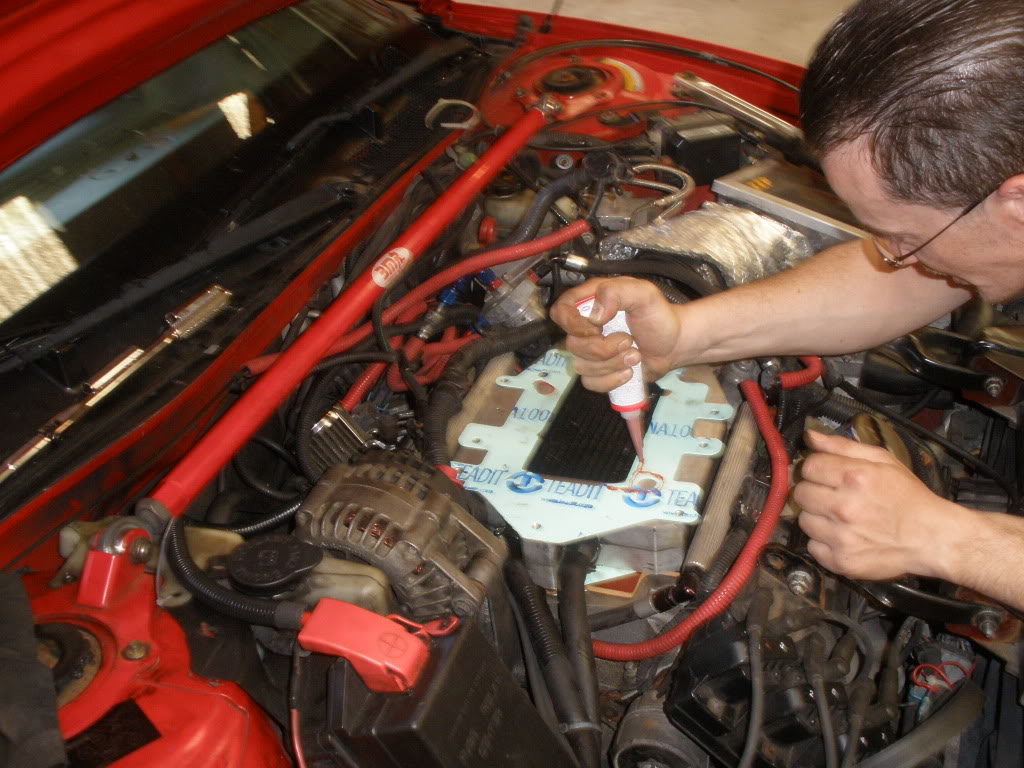

Got the core in place and ya, another gasket and more RTV.
Name:  P6040010.jpg
Views: 10
Size:  162.1 KB

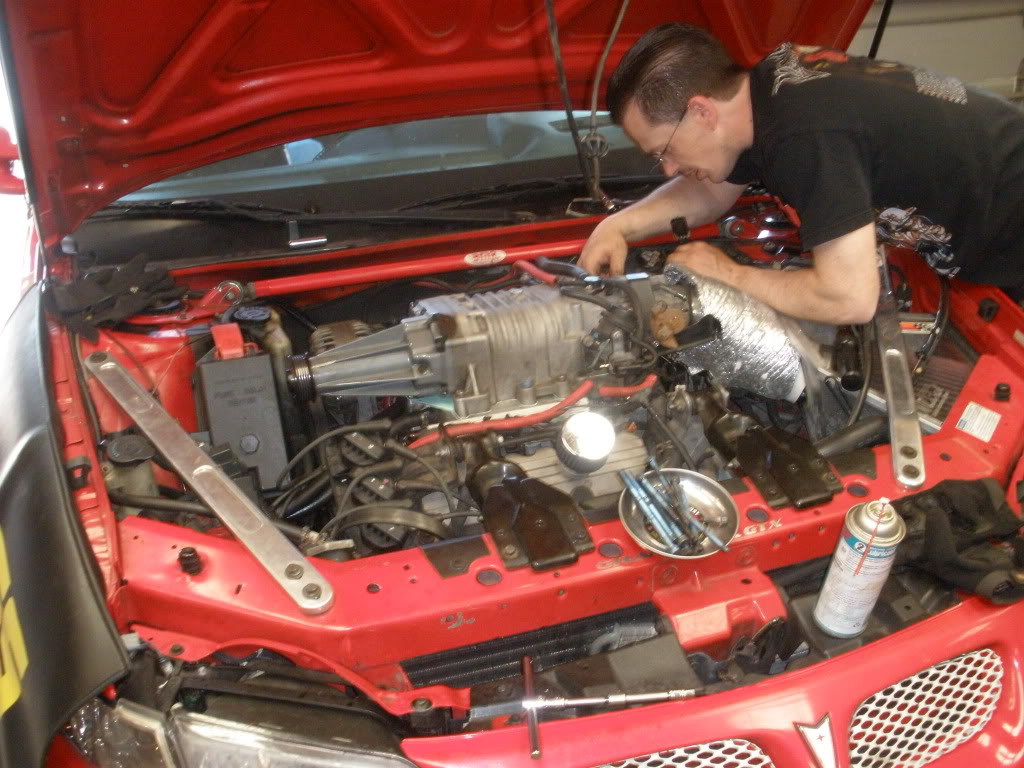

Got it all back in and lined up.
Name:  P6040011.jpg
Views: 8
Size:  164.1 KB

And here she is, all torqued and running great, after a few little problems.
Name:  P6040012.jpg
Views: 10
Size:  175.7 KB

It all went back together easy. About a hour and a half and it was ready to start. But it didn't run right. A SES light came on, ran bad. What the heck? Shut it down. The code was MAF. All plugged in. Spent 2 hours checking things. Why wont this work. Got the computer and did a scan, MAF was reading zero, the TPS was saying 100%. I'm like, the plugs are idiot proof, they only go in one way. Chris finally noticed that his ICU wasn't on. So he'* poking around trying to figure that out. I check a few wires and re solder them. Then I pulled all the plugs out and started over. Hmm, what'* this? I think that'* for the ICU. This plug is exactly the same as that plug. Hmm, what'* this plug for, ahh The MAF. So I start plugging things in and right when I plug in the last one I here Chris say, it'* working. Really? What did you do? Nothing. Ahh, I think I just plugged it in. Start it up. Runs great, all readings look right. Who ever installed that ICU used the same plug at the MAF, real smart, then have both plugs within a few inches of each other.
Danthurs is offline   Reply With Quote
Old 06-07-2009, 08:31 PM   #2
Senior Member
Posts like a Turbo

Geforce's Avatar

Join Date: Dec 2008
Location: Mississauga Ontario
Posts: 323
Thanks: 0
Thanked 0 Times in 0 Posts
Geforce is on a distinguished road
Default

may i ask what the spacer is used for? To make the SC stand out more?
Geforce is offline   Reply With Quote
Old 06-07-2009, 08:39 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

It'* a heat barrier. It helps hold back a lot of the heat from the engine from heating up the intercooler core. That way the IC core is removing charge heat instead of engine heat.
Danthurs is offline   Reply With Quote
Old 06-07-2009, 11:33 PM   #4
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Have you seen these hold up in the long run Dan. In industrial applications I have used them (for dielectric purposes) they work as good current isolators where heat resistant properties are needed. But dont last long. Heat was caused by high current amperage into stainless steel plating tanks. It may have been a little hotter than an engine block. Typically phenolic blocks would last us 9 months to a year.
GXP Venom is offline   Reply With Quote
Old 06-08-2009, 12:05 AM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

This is actually the first one I installed. He has a throttle body spacer of teh same material that has been there for a while. But less heat. I will be keeping a close eye on it. My biggest concern is the differences in expansion.
Danthurs is offline   Reply With Quote
Old 06-08-2009, 10:52 AM   #6
Senior Member
Posts like a 4 Banger

Join Date: Sep 2008
Location: Tampa Florida
Posts: 106
Thanks: 0
Thanked 0 Times in 0 Posts
QuickLTD is on a distinguished road
Default

A lot of people use them on 5.0L Mustangs with no problems. For those cars it fits between the Plenum and the LIM. They get used on naturally aspirated, super and turbocharged engines.
QuickLTD is offline   Reply With Quote
Old 06-10-2009, 01:07 AM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: May 2009
Location: Copper Country Michigan
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
cutroc350 is on a distinguished road
Default

Nice job on the install. It seems like you know your way around 3800s pretty well.
