front tranny mount for 96se - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Performance, Brainstorming & Tuning Talk about modifications, or anything else associated with performance enhancements. Have a new idea for performance/reliability? Post it here. No idea is stupid! (please use Detailing and Appearance for cosmetic ideas)

Reply



Thread Tools Search this Thread
Old 08-26-2008, 11:22 PM   #1
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2007
Location: Saint Amant, LA Southern tip of Hell where it floods.
Posts: 31
Thanks: 0
Thanked 0 Times in 0 Posts
68w46 is on a distinguished road
Default front tranny mount for 96se

Anyone making a "hockey puck" style for a 96? I'm tired of replacing the stock types. As we all know they don't last, they're a pain in the *** to replace. I need to replace all of them this time but before I spend $70 for the "shocker" I'd like to knowmy options.
Does anyone have pictures and instructions on how to modify?

AJ
68w46 is offline   Reply With Quote
Old 08-27-2008, 09:05 AM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

To start off.. Rockiauto has them for about $45

I devised this mount originally to clear headers, have been running it for over a year and it has held perfectly. The rubber has not seperated at all, the mount allows for less engine/trans travel and works like a champ.

Name:  IMG_1332.jpg
Views: 2
Size:  79.3 KB
Name:  IMG_1333.jpg
Views: 2
Size:  83.0 KB
Name:  IMG_1331.jpg
Views: 3
Size:  79.3 KB

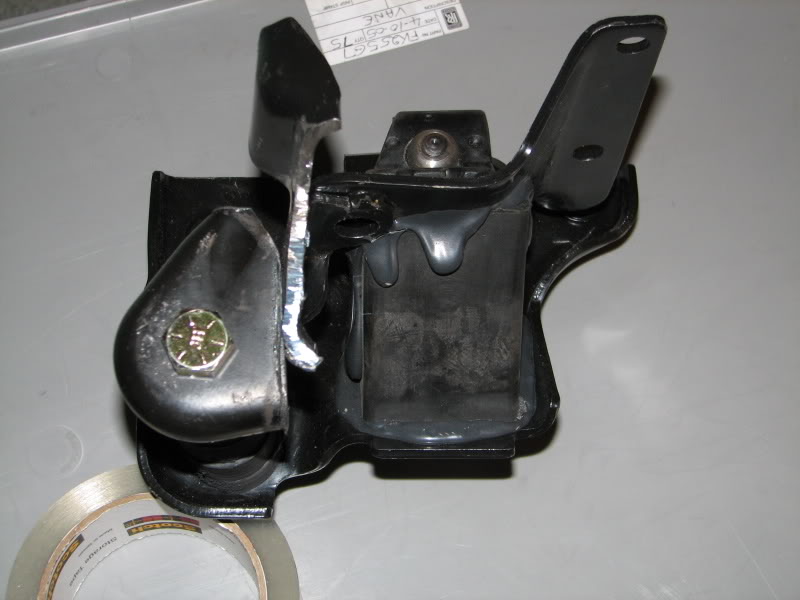

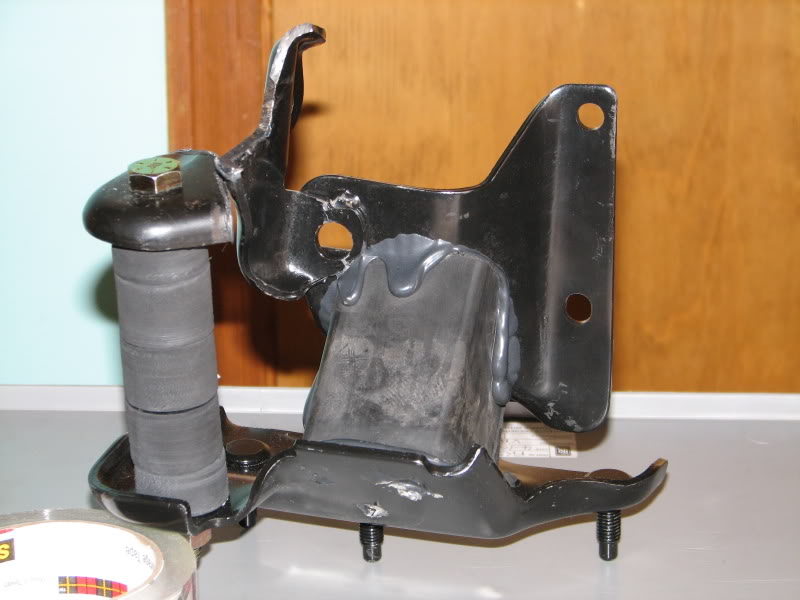

I removed the factory strut from it, cut the ear and welded the ear sideways. Used a grade 8 bolt to hold it together with some hockey pucks I used a hole saw to right size.
Name:  IMG_1321.jpg
Views: 6
Size:  51.3 KB
Name:  IMG_1319.jpg
Views: 3
Size:  58.5 KB

Hopefully this helps
BillBoost37 is offline   Reply With Quote
Old 08-27-2008, 11:51 AM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2007
Location: Saint Amant, LA Southern tip of Hell where it floods.
Posts: 31
Thanks: 0
Thanked 0 Times in 0 Posts
68w46 is on a distinguished road
Default

It looks good. Do you have one you could ship to me? How much?
I'm so fed-up with it I'm willing to pay a shop to replace all of them. I know the front one is bad. I'm guessing they are all bad by the noises coming from the engine bay. I do see the engine move around a good bit.
68w46 is offline   Reply With Quote
Old 08-27-2008, 12:04 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I recently made one for a member on another forum. He bought the mount from Rockauto, had it shipped to me and then sent a nice check when he received the mount.

I'm pretty busy with things, but if you want one badly...make it worth my time and I can make another. Say $40 + the mount shipped to me. Personally I wouldn't pay me that much to do it. Ask around to friends etc and find someone that knows how to weld and has the tools to cut the metal.

The only specialish tools I needed to do it was a welder, cut off wheel, and a hole saw. The hockey pucks (3) and bolt cost about $8.
BillBoost37 is offline   Reply With Quote
Old 08-28-2008, 12:56 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2007
Location: Saint Amant, LA Southern tip of Hell where it floods.
Posts: 31
Thanks: 0
Thanked 0 Times in 0 Posts
68w46 is on a distinguished road
Default

Thanks,
Time is against me right now, I guess I'll use an original design for now and then build one later. I've never tried to find a Hockey Puck here in South Louisiana, maybe at one of those big athletic stores....

Peace Out
68w46 is offline   Reply With Quote
