A couple more intake options for the 00+ guys - Page 7 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Performance, Brainstorming & Tuning Talk about modifications, or anything else associated with performance enhancements. Have a new idea for performance/reliability? Post it here. No idea is stupid! (please use Detailing and Appearance for cosmetic ideas)

Reply



Thread Tools Search this Thread
Old 04-04-2007, 11:56 AM   #61
Member
Posts like a V-Tak

Join Date: Apr 2007
Location: Rapid City South Dakota
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
blackbuick1987 is on a distinguished road
Default

In the second pic the tubing further down really does look smooth. If the Intense FWI seems to work the best then I guess there is no other option until something else comes along that is proven, just wish it was a little better looking for $180.
blackbuick1987 is offline   Reply With Quote
Old 04-04-2007, 12:02 PM   #62
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by blackbuick1987
In the second pic the tubing further down really does look smooth. If the Intense FWI seems to work the best then I guess there is no other option until something else comes along that is proven, just wish it was a little better looking for $180.
if you can find another way to mount out IAT sensor, you dont really need the buy the entire kit, both the filter and tubing are available separate at www.intense-racing.com

i know dillcc drilled a hole in his filter and put the IAT in there, saved himself ~$50?
harofreak00 is offline   Reply With Quote
Old 04-04-2007, 01:05 PM   #63
Senior Member
Posts like a Turbo

Join Date: Feb 2004
Location: Wappingers Falls, NY
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Explr1 is on a distinguished road
Default

Quote:
Originally Posted by J Wikoff
Any idea where the KR came from?
I had high KR and rattling/pinging with the JMB intake. I went back to the gutted airbox, and the problems went away. I now run a 4" FWI with tubing from ZZP, a 90 degree silicon coupler and 9" cone filter with no ill effects. An FWI is so much cheaper and better than the JBM intake I had.
Explr1 is offline   Reply With Quote
Old 04-04-2007, 01:13 PM   #64
Senior Member
Posts like a Turbo

Join Date: Feb 2004
Location: Wappingers Falls, NY
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Explr1 is on a distinguished road
Default

Quote:
Originally Posted by 67Goat
WHOA! - surprised no one else is running the JNB intakes! I beg to differ with anyone not having luck with these. I have been running this intake for nearly a year now and have no problems whatsoever with it. It was a bit tougher to install than a simple flex hose, but when done correctly have had no issues. (I think my time slips also support the performance results as well)
Did you buy it on eBay? Is it red with Magnaflow and K&N decals on it? I sold my JMB intake on eBay to someone in the Chicago area last year. If it'* the one, then this is the intake that I had trouble with.
Explr1 is offline   Reply With Quote
Old 04-04-2007, 01:17 PM   #65
Member
Posts like a V-Tak

Join Date: Apr 2007
Location: Rapid City South Dakota
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
blackbuick1987 is on a distinguished road
Default

Quote:
Originally Posted by Explr1
Quote:
Originally Posted by J Wikoff
Any idea where the KR came from?
I had high KR and rattling/pinging with the JMB intake. I went back to the gutted airbox, and the problems went away. I now run a 4" FWI with tubing from ZZP, a 90 degree silicon coupler and 9" cone filter with no ill effects. An FWI is so much cheaper and better than the JBM intake I had.
Got any pics of this setup? I may end up just trying to build one, any chance you can list where you got everything and price?
blackbuick1987 is offline   Reply With Quote
Old 04-04-2007, 01:18 PM   #66
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

harofreak00 is offline   Reply With Quote
Old 04-04-2007, 01:25 PM   #67
Senior Member
Posts like a Turbo

Join Date: Feb 2004
Location: Wappingers Falls, NY
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Explr1 is on a distinguished road
Default

Quote:
Originally Posted by blackbuick1987
Quote:
Originally Posted by Explr1
Quote:
Originally Posted by J Wikoff
Any idea where the KR came from?
I had high KR and rattling/pinging with the JMB intake. I went back to the gutted airbox, and the problems went away. I now run a 4" FWI with tubing from ZZP, a 90 degree silicon coupler and 9" cone filter with no ill effects. An FWI is so much cheaper and better than the JBM intake I had.
Got any pics of this setup? I may end up just trying to build one, any chance you can list where you got everything and price?
I'll get pics up tonight. It'* basicly 4" ZZP or Intense tubing from the TB (using a 3.75" to 4" rubber adapter) to the fender hole, then a 4" outer diameter PVC coupler from the hose to the 90 degree silicon coupler in the fender well. Use another PVC coupler to attach the filter to the silicon coupler.

Cost:

4" tubing from ZZP $40.38 shipped *I ordered four feet, you only three*
2- PVC couplers $6.00
2- SS 4" clamps $7.00
1- 9" filter $30.00

Total= $83.38
Explr1 is offline   Reply With Quote
Old 04-04-2007, 01:25 PM   #68
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That'* the one-piece pictured. There'* an option for a 2-piece based on a fell-founded suggestion I made to him when he was developing it. I'd strongly encourage you to go with the 2-piece. There'* ample engine flex under heavy load/launches.

From just over a year ago:

Quote:
Originally Posted by willwren
Have you considered having the pipe in two pieces with another flexible coupling in the middle to account for flex?

From my standpoint as an outsider looking in, I see a pretty exlusive market for 3 model years. 2000-2003. Very few have the solid motor mount, and those are the only ones that could consider it. But with some flex in the middle, and a bushing in that hole, it would work for all 3 years regardless of mounts.

The INTENSE FWI is 3.5", but that'* due (perhaps) to the fact that the tubing isn't perfectly smooth inside. Close, but not as smooth as what you have. There'* some potential here, but still a pretty exclusive market.
Quote:
Originally Posted by willwren
Further thought......adding that flex joint in the middle will relieve alot of stress on the UIM of the L36 engine, further opening the market for you. The L36 UIM is plastic, and has a know weak spot directly behind the TB mount in the EGR stovepipe area.
Quote:
Originally Posted by willwren
Quote:
Originally Posted by JMB Justin
Adding a hump style coupler would not be a problem at all, but would add about $20 to the overall cost for the extra materials. If it would open up a larger market then it could be added as an option to those who dont have upgraded mounts or have the weak UIM. Again, not a problem at all for me, Im willing to make changes or add options to accomodate and broaden the market. Thanks for your help,
Justin
Now we're talking. The L36 outnumbers the L67 by 10:1 for each year. I like the idea of adding it as an option rather than jacking the price for all, but I still think the 'hump' (I like the term) should be a recommended option for L36 and L67 without the solid motor mount.
willwren is offline   Reply With Quote
Old 04-04-2007, 01:58 PM   #69
Senior Member
Posts like a Northstar

Join Date: Feb 2003
Location: Sacramento, CA WCBF '06, '07 survivor
Posts: 658
Thanks: 0
Thanked 0 Times in 0 Posts
rrounds is on a distinguished road
Default

i like mine, smooth as a baby'* butt and BIG. you could be making 500 H.P. and not out flow it. there are pic'* of it somewhere on here. if i had a camera i would post some pic'*, but i don't. i took a look for them but did not find any, i thought Willwren had put some pic'* on here last year, but i had no luck finding them. man you have a lot of post'*.

ROD

p.*. if you don't have a solid front motor mount yet, make one ! !
rrounds is offline   Reply With Quote
Old 04-04-2007, 02:17 PM   #70
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Keep in mind these pics of Rod Rounds' intake are evidence in a criminal trial. Rod sucked 4 small children, 2 cats and a pygmy goat into his engine last summer.

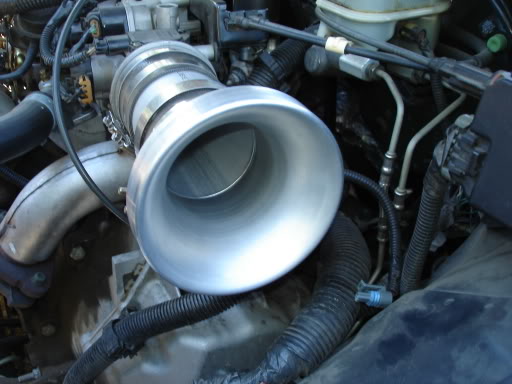

Name:  mg3.jpg
Views: 1
Size:  37.7 KB

Name:  WCBF06July28-06063.jpg
Views: 1
Size:  92.2 KB
willwren is offline   Reply With Quote
