Old 10-15-2007, 01:26 PM   #21
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2005
Location: North Platte, Nebraska
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
JamesCurtis is on a distinguished road
Default

Well the weight will vary for different options and auto/manual. A safe assumption on a fiero is anywhere between 3000-3200lbs. I'm not sure on the weight of the drivetrain.

edit: and also, I'm not looking forward to figuring out what cam profile to tell a cam company to make. I know the basics about cams and what to avoid in boosted applications, but not enough to tell them exactly what I need :(

Will I need to know all the *'* BTDC for where the lobe starts and all that good stuff? Also, how much info on s1performance.com'* cams can I take to heart, will they be a good reference?
JamesCurtis is offline   Reply With Quote
Old 10-15-2007, 01:59 PM   #22
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

S1performance dosen't make, specify (or sell) cams.

The cams you see there are from www.crowcams.com

Austrailian Holdens. Note that the Aussies never got the S1 L67, so the cams you'll be looking at are the Series 2 (yes, that'* right) L27 cams. Not optimized for blowers.

Our Series 2 is their Ecotec.
Our Series 1 is their Series 2.
willwren is offline   Reply With Quote
Old 10-15-2007, 04:02 PM   #23
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2005
Location: North Platte, Nebraska
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
JamesCurtis is on a distinguished road
Default

What about headers for these engines? Does anyone make them?
JamesCurtis is offline   Reply With Quote
Old 10-15-2007, 04:11 PM   #24
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

No. And you don't really need them. The S1 manifolds are the best-flowing OEM GM exhaust manifolds produced to date. The flow more freely than S2 ported manifolds.

Nor do you need to port them (unless you severely chop/port/mutilate your cylinder head exhaust ports).

You WILL need to repair the cracks. Micro-cracks can hardly be seen, but I assure you that they are there.
willwren is offline   Reply With Quote
Old 10-15-2007, 04:51 PM   #25
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by JamesCurtis
What about headers for these engines? Does anyone make them?
You got an answer in this thread.
95naSTA is offline   Reply With Quote
Old 10-15-2007, 07:55 PM   #26
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2005
Location: North Platte, Nebraska
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
JamesCurtis is on a distinguished road
Default

thanks 95na, I can't believe I didn't remember posting that in a different section! I posted that and almost immediately forgot about the post. I'm hoping to keep all of my posts inside this thread so that we don't run into this problem again.

On a side note - I just got off the phone with compcams and really enjoyed talking with the person I got ahold of. He was very helpful and explained that all they needed would be a *detailed* description of the application and they could come up with some suggestions ranging from mild to wild. This car will not be a daily driver so I will be putting a slightly wild cam in it. By the way, what do you guys suggest for a pulley size in this application. I will need to know what psi to expect so that compcams can design around the amount of boost I will be running.

Here are the images I promised you. Rest assured this engine will be put back together in a clean environment.

Yuuuck...
Name:  100_2731.jpg
Views: 1
Size:  68.5 KB

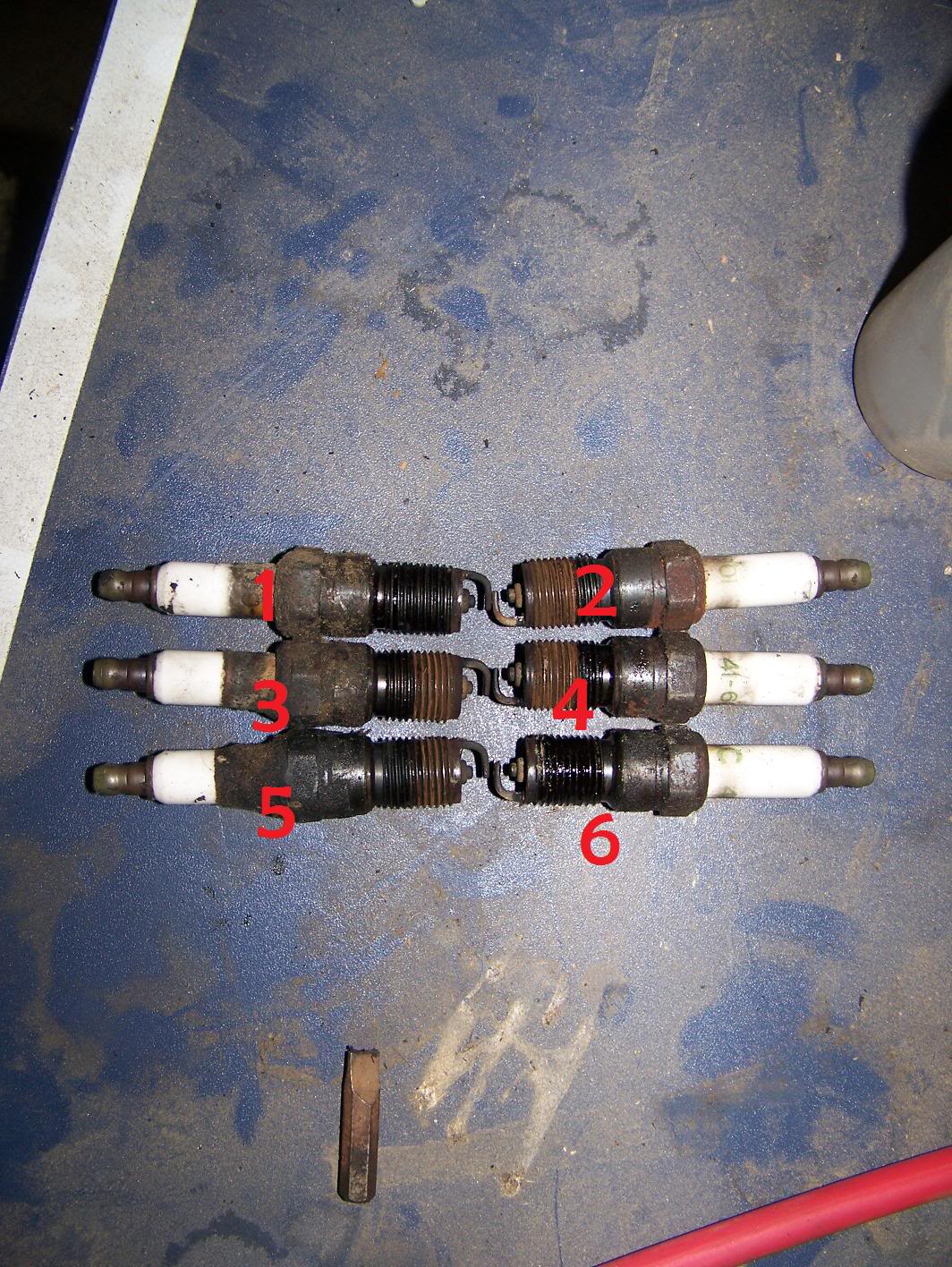

the state of the spark plugs (ms paint skillz)
Name:  mmmmmmmmmm.jpg
Views: 1
Size:  352.0 KB

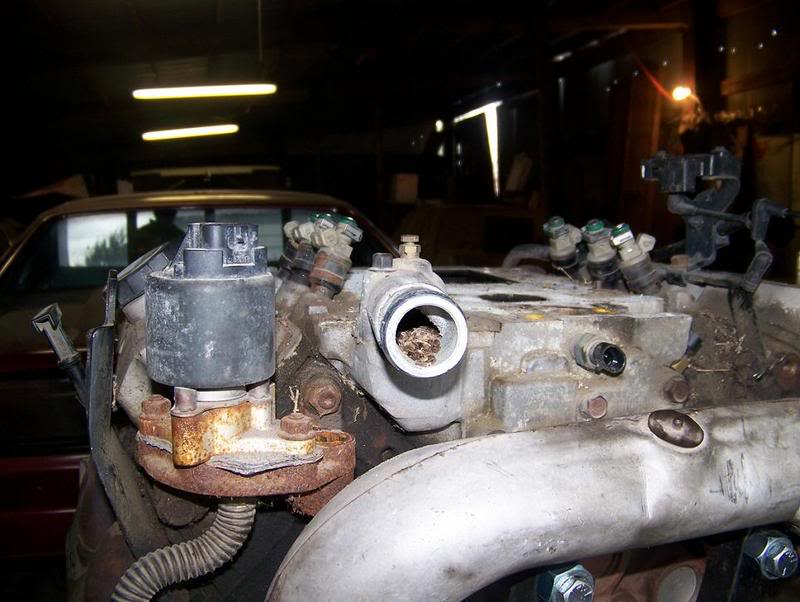

It looks like I may have a buddy
Name:  100_2738.jpg
Views: 1
Size:  77.3 KB

6-4-2 in that order

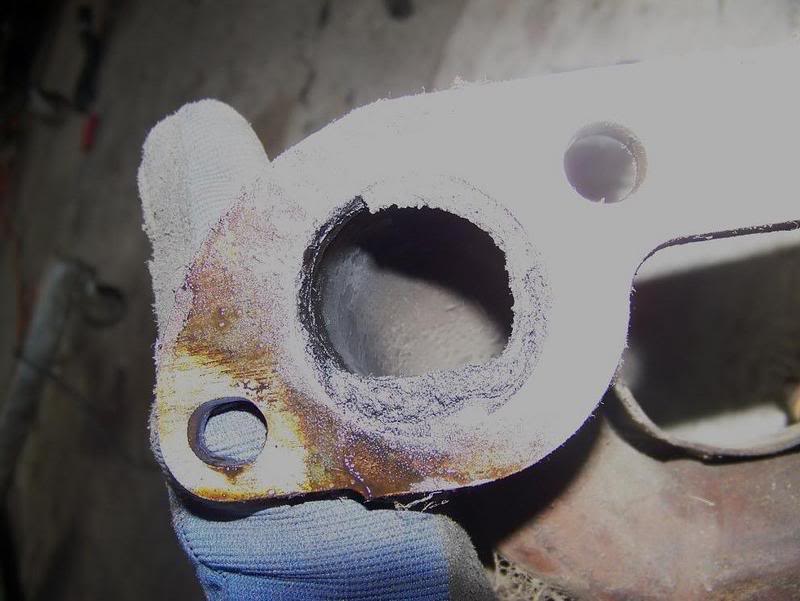

Lots of carbon buildup on exhaust manifold
Name:  100_2743.jpg
Views: 1
Size:  65.4 KB

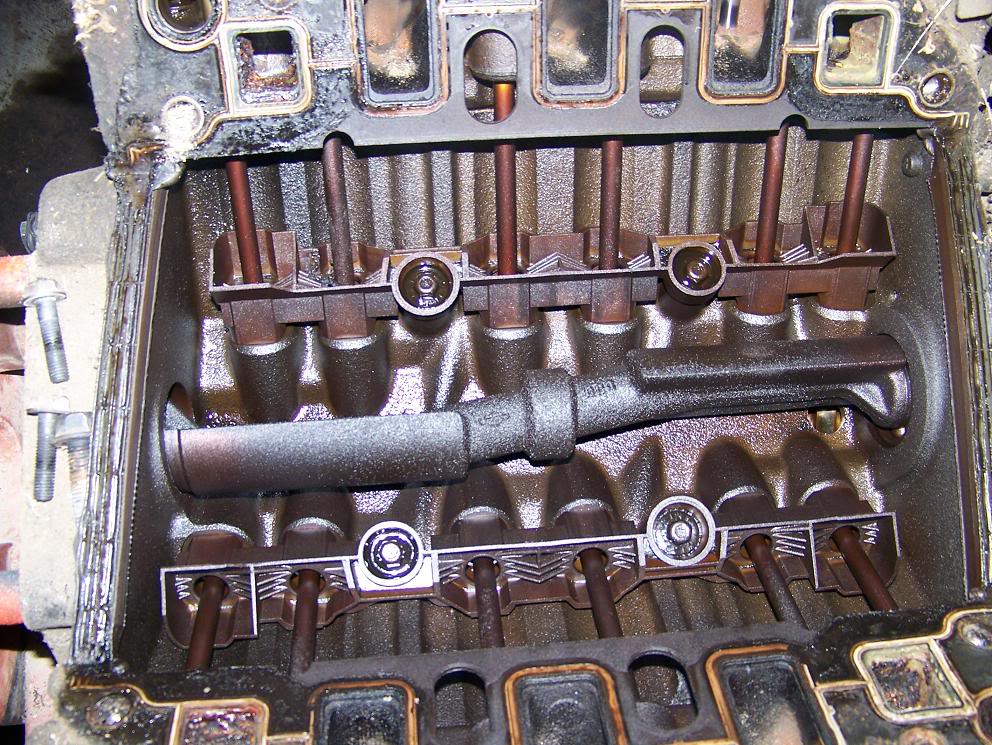

Oil Galley, I don't think it looks toooo bad.
Name:  100_2747.jpg
Views: 1
Size:  210.5 KB

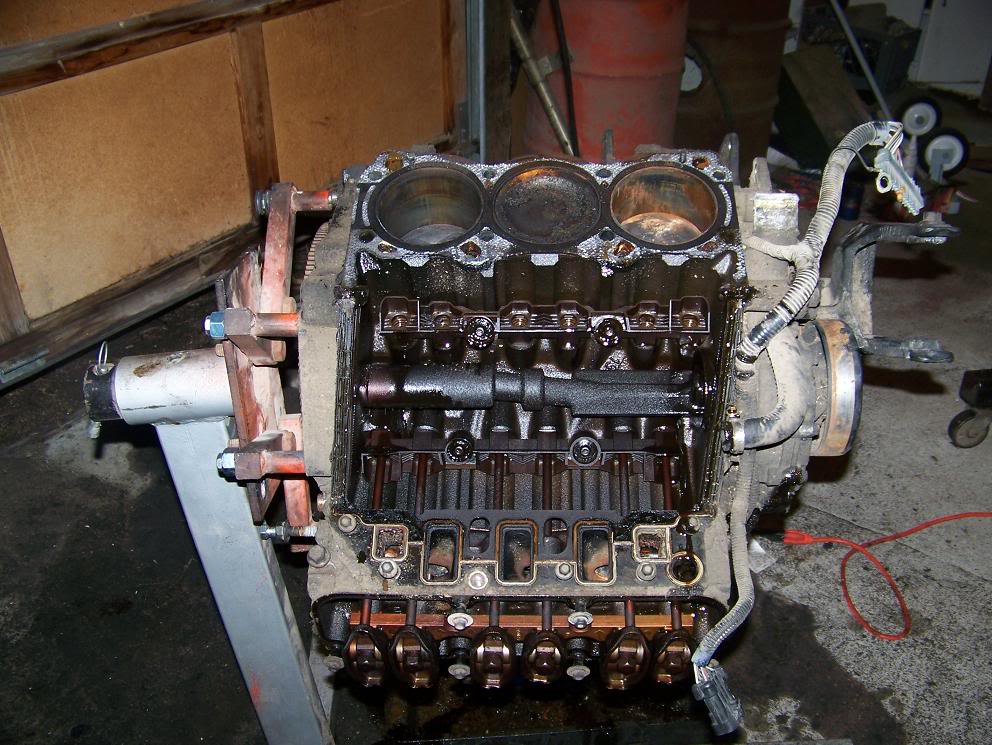

5-3-1, a pretty good view of the rust
Name:  100_2767.jpg
Views: 1
Size:  154.1 KB

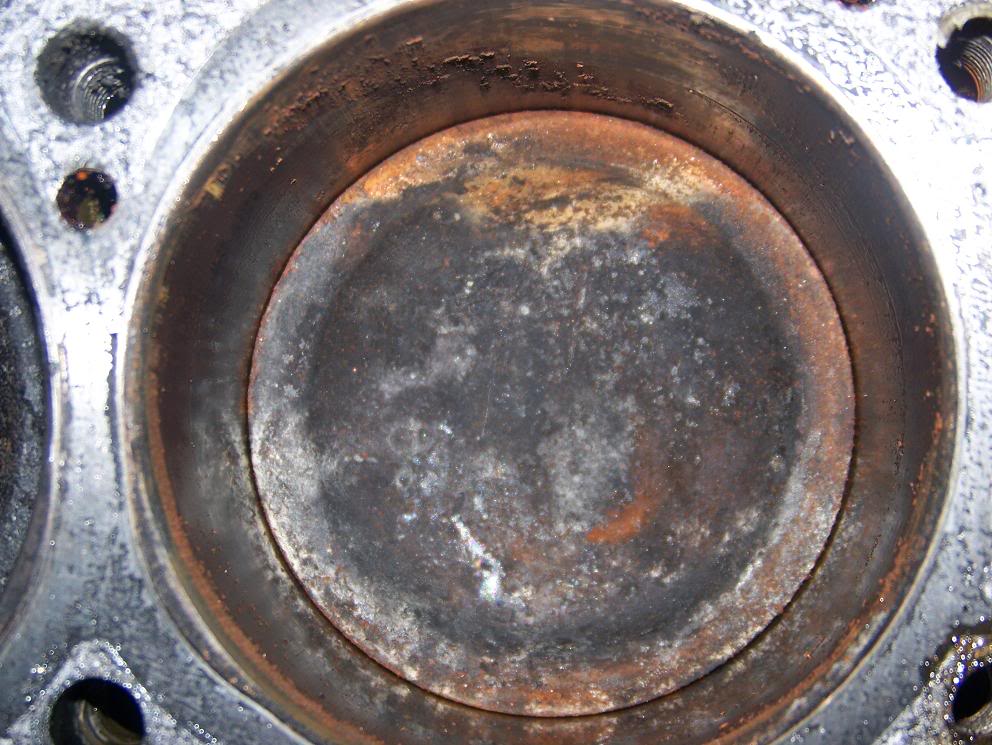

The worst cylinder
Name:  100_2773.jpg
Views: 1
Size:  132.8 KB

Both heads off
Name:  100_2778.jpg
Views: 1
Size:  80.9 KB

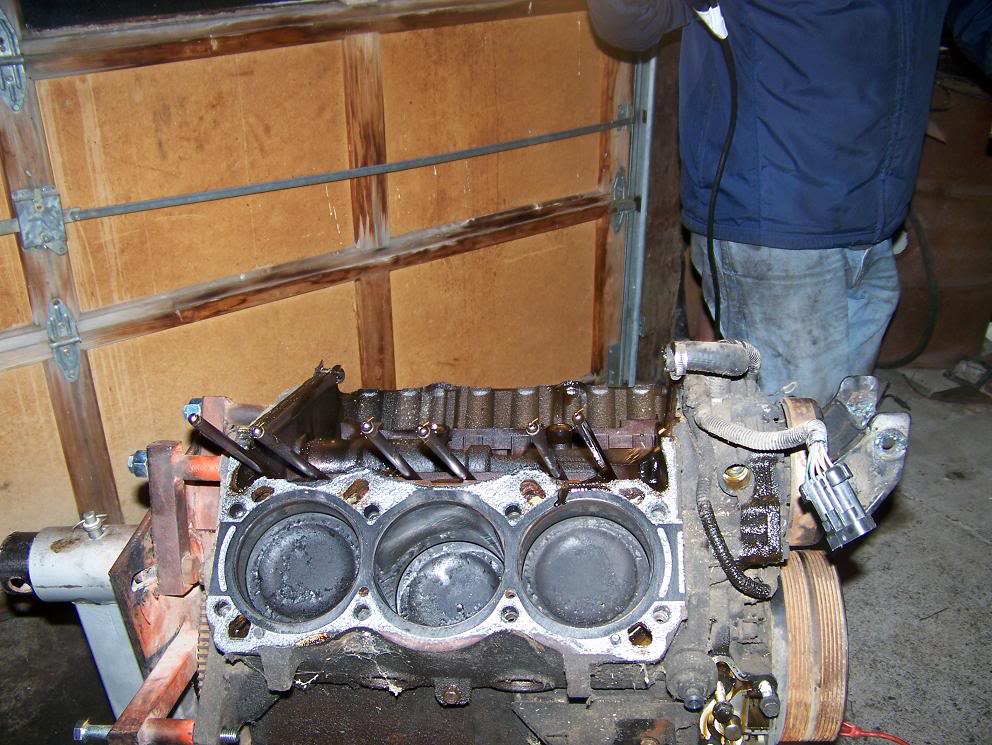

6-4-2
Name:  100_2779.jpg
Views: 1
Size:  151.8 KB

Thanks again for the help guys
JamesCurtis is offline   Reply With Quote
Old 10-15-2007, 11:33 PM   #27
Senior Member
Certified Car Nut

Join Date: Jun 2003
Posts: 15,928
Thanks: 0
Thanked 0 Times in 0 Posts
BonneMeMN is on a distinguished road
Default

How long was that motor sitting? I sure hope the cyl walls can be fixed up..
BonneMeMN is offline   Reply With Quote
Old 10-15-2007, 11:41 PM   #28
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That thing is just nasty. Personally, I'd ditch it and find a better candidate. Sad looking proud old motor there.
willwren is offline   Reply With Quote
Old 10-16-2007, 12:42 AM   #29
Ignorant User
Posts like a 4 Banger

Join Date: Mar 2007
Posts: 126
Thanks: 0
Thanked 0 Times in 0 Posts
Dirtracr95 is an unknown quantity at this point
Default

why ditch it when you can rebuild it and know it was done right. well at least only have yourself to blame if something should go wrong. if all works you could gain a few horsepower.
Dirtracr95 is offline   Reply With Quote
Old 10-16-2007, 01:19 PM   #30
Member
Posts like a V-Tak
Thread Starter

Join Date: Nov 2005
Location: North Platte, Nebraska
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
JamesCurtis is on a distinguished road
Default

Hey will, I saw that you have done some research on throttle bodies between the different 3800 models/series. Would a northstar throttle body conversion work and/or help the flow on this engine? And if so how hard would it be to make an adapter and work with the inlet to get it to work?
JamesCurtis is offline   Reply With Quote
